Brand

TP-Link

Model

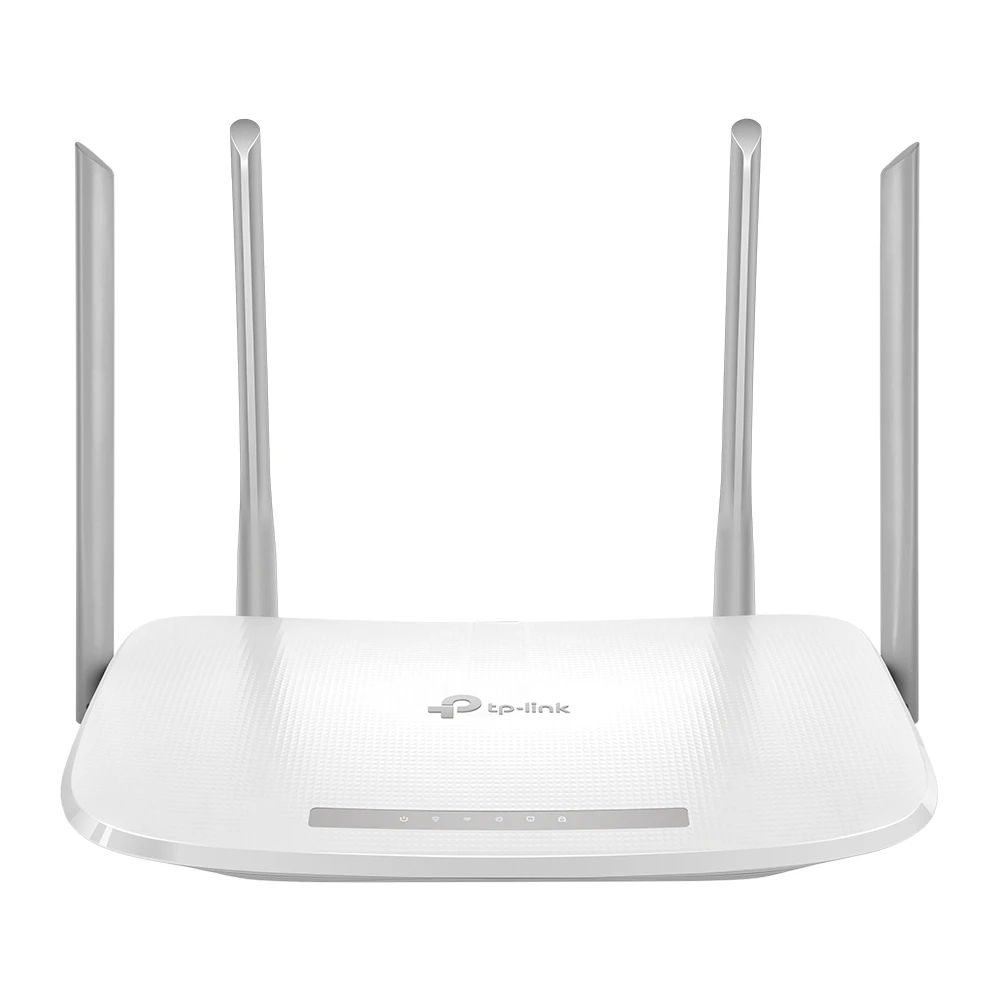

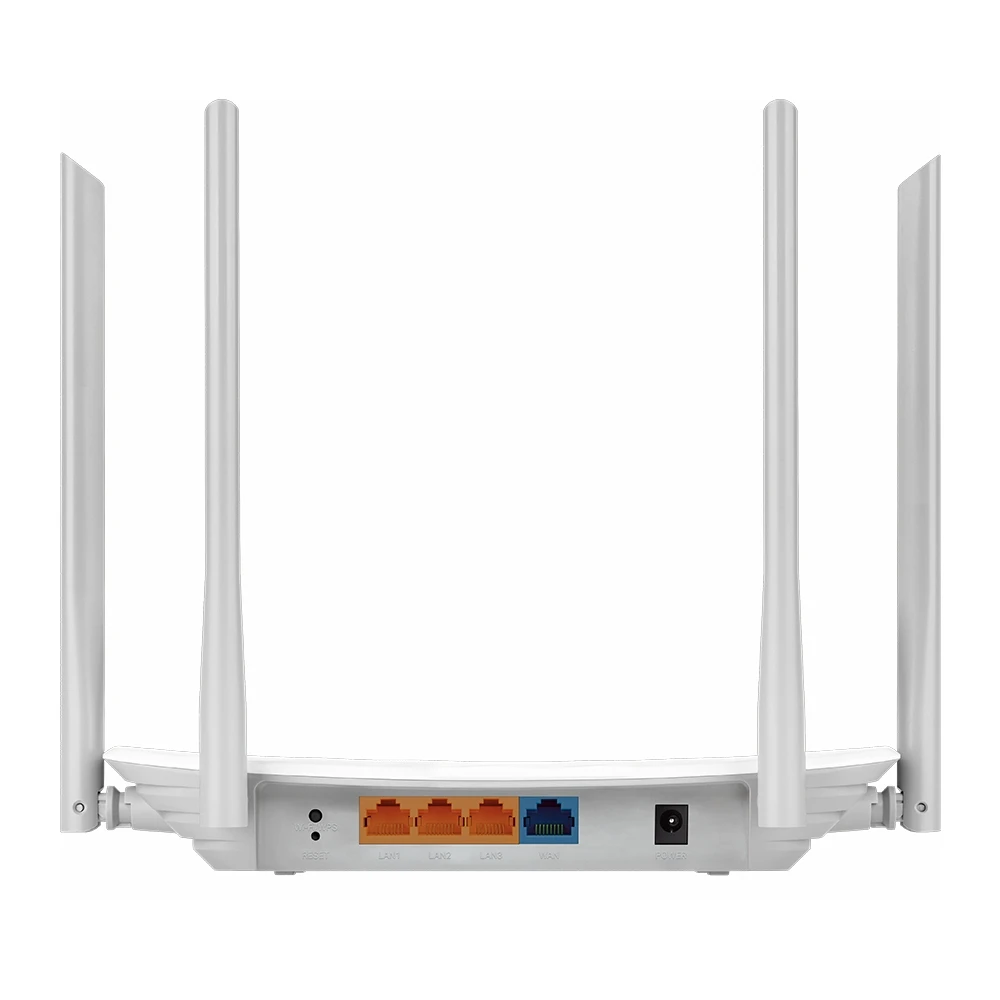

TP-Link EC220-G5 V3

Type

Wireless & Ethernet

Technical Data*

Data Transfer Rate (Wifi): 1200 Mbps

WiFi Network Standards: IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11 k/v

LAN Network Standard: 10/100/1000

WAN Network Standard: 10/100/1000

Data Transfer Rate (Lan): 1000 Mbps

Interface

Interface(s): 1 x 10/100/1000 RJ45 WAN, 3 x 10/100/1000 RJ45 LAN

Number of WAN Port: 1

Number of LAN Port: 3

USB Interface: No

Internet Connectivity: WAN Only

Wireless*

Antenna (Type & Qty): 4 x External Antena

WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Wi-Fi Generation: Wi-Fi 5

Band: Dual

Wi-Fi Coverage (Approximate): Up to 2000 sq. ft.

Number of Concurrent User: Up to 20 User connections

Performance

3G/4G: No

Mesh Technology: Yes

MIMO Technology: Yes

Security

Operating Frequency: 2.4 GHz, 5 GHz

Operation/Working Wireless Modes: Router, Access Point, Wireless Bridge

Security Protocols: Supports IPv4 and IPv6

Firewall Protocols: DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding

VPN Support: Yes

Power

Power: 12V - 1A

Physical Attributes

Wall Mountable: Yes

Button: 1 x WPS

Dimensions: 230.0 x 144.0 x 37.0mm

Color: White

Warranty

1 Year (Without Adapter)

* Product may vary with different Kit or Version
