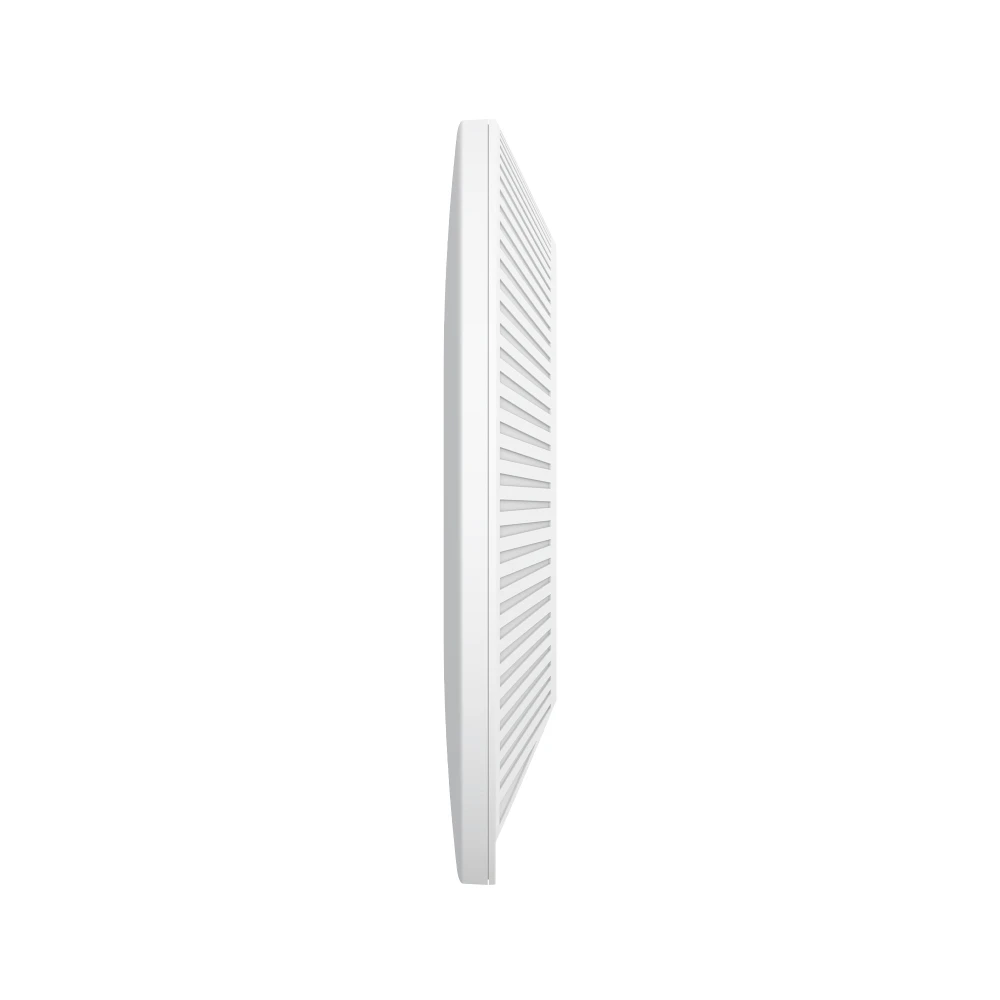

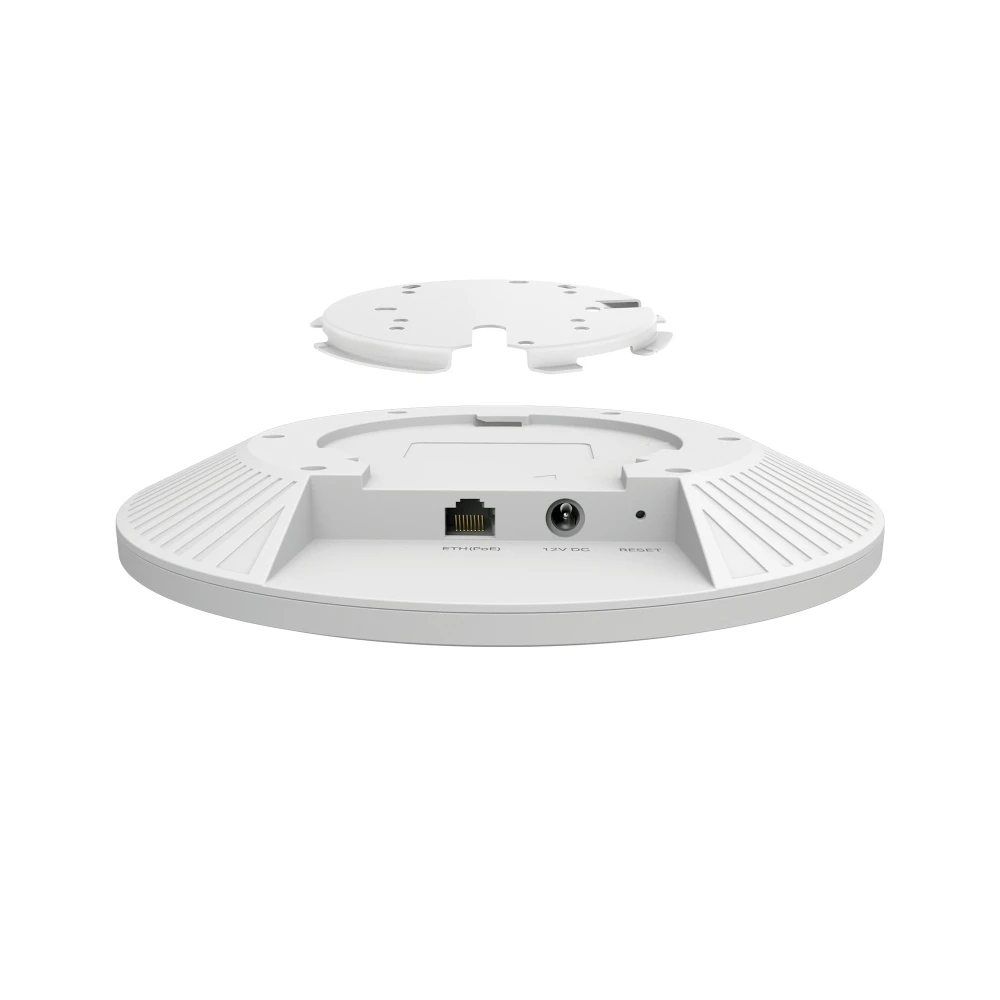

TP-Link EAP660 HD Wireless Access Point

The TP-Link EAP660 HD is a Wi-Fi 6 (802.11ax) access point designed for high-density environments where fast, reliable, and secure wireless connections are needed. With a total data rate of 3600 Mbps, this access point provides robust wireless performance for modern networks, making it suitable for both large offices and high-traffic areas like universities or stadiums.

Features

• Network Standards: Supports IEEE 802.11ax/ac/n/g/b/a, providing support for the latest Wi-Fi 6 standard.
• Data Transfer Rates: Up to 3600 Mbps total bandwidth, with 2.4 GHz supporting 600 Mbps and 5 GHz supporting 3000 Mbps for high-speed wireless connections.
• Security Protocols: Supports WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise for robust wireless encryption.
• MU-MIMO: Includes MU-MIMO technology, allowing simultaneous communication with multiple devices to boost network efficiency.
• Antenna Configuration: Equipped with internal antennas with 4 x 4 dBi gain for 2.4 GHz and 4 x 5 dBi gain for 5 GHz, ensuring strong and stable signals over a wide coverage area.

Design & Build

• Dimensions: 243 x 243 x 64 mm, designed for ceiling or wall mounting, ensuring flexibility in placement.
• Color: White, providing a clean, professional appearance that blends well with most environments.
• Mounting: Includes mounting kits for easy installation on either ceiling or wall.
• LED Indicators: Equipped with LED ON/OFF indicators for easy status monitoring.

Power & Environmental

• Power Supply: 12V DC, or can be powered using 802.3at PoE.
• Max. Power Consumption: Between 18.5W - 21.5W, depending on the power method.
• Operating Temperature: 0°C to 40°C, suitable for a variety of indoor environments.
• Operating Humidity: 10% to 90% (non-condensing), adaptable to most indoor conditions.
• Storage Temperature: -40°C to 70°C, ensuring the device is resilient to harsh storage environments.

Performance & Management

• Throughput: 3600 Mbps total throughput, ensuring high-speed connectivity for all connected devices.
• Max. Concurrent Clients: Supports up to 1000+ concurrent clients, making it ideal for high-density deployments like offices, schools, and large venues.
• SSID Numbers: Supports up to 116 SSIDs, allowing multiple network segments for better security and network management.
• Management Options: Offers centralized management through Omada, including cloud access, SNMP, remote syslog, and Zero-Touch Provisioning for easy setup and ongoing management.
• Web-Based Management: Provides easy configuration and management via HTTP/HTTPS web interface.
• Multi-Site Management: Allows seamless management of multiple access points across different locations, perfect for large deployments.
• Security: Includes advanced security features such as Captive Portal Authentication, Access Control, VLAN Mapping, Rogue AP Detection, and more for comprehensive network protection.

Power Attributes

• Power Method: 12V DC or 802.3at PoE for flexible power options.
• Max. Power Consumption: 18.5W - 21.5W depending on the power source.

Package Contents

• EAP660 HD Access Point
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide

Warranty

• 1-year warranty (without adapter).
