TP-Link EAP625-Outdoor HD AX1800 Wireless Indoor/Outdoor Wi-Fi 6 Access Point
Key Specification
‣ Network Standards:
IEEE 802.11 a/b/g/n/ac/ax
‣ Connectivity – Dual Band
‣ Data Transfer Rates – 1800 Mbps
‣ Interface(s) - 1 x
Gigabit Ethernet Port
‣ Antenna (Type & Qty)
– 2 x External
Product Specification
|
Brand |
TP-Link |
|
Model |
TP-Link EAP625-Outdoor HD |
|
P/N |
N/A |
|
Components* |
Network
Standards: IEEE 802.11 a/b/g/n/ac/ax Data
Transfer Rates: 1800 Mbps WAN
Network Standard: 10/100/1000 |
|
Interface |
Interface(s): 1 x Gigabit Ethernet Port Number of WAN Port: 1 Number of LAN Port: No |
|
Wireless |
Band:
Dual Frequency:
2.4GHz, 5GHz Bluetooth:
No Antenna
(Type & Qty): 2 x Internal Antenna
Gain: 2.4 GHz: 3.0 dBi; 5 GHz: 5.0 dBi Antenna
Placement: External MU-MIMO
Support: Yes Transmission
Power: CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); FCC: <
25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
|
Management |
Max. Concurrent Clients: 1020 SSID Numbers: 16 Management: Omada Hardware Controller
(OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada
Cloud-Based Controller Web-Based Management: Yes Management MAC Access Control: Yes |
|
Performance |
Waterproof
Level/Grade: IP67 IP
Rating: Yes OFDM/OFDMA:
OFDMA Email
Alerts: Yes |
|
Technical Info |
Outdoor Use: Yes |
|
Security |
Wireless
Security: VLAN, Access Control, Rogue AP Detection, Captive Portal
Authenticationx 4, Maximum number of MAC Filter: 4,000, Wireless Isolation
between Clients, WPA-Personal/Enterprise, WPA2-Personal/Enterprise,
WPA3-Personal/Enterprise, 802.1X Support |
|
Power Attributes |
Power Method: Passive PoE Max. Power Consumption: EU: 12.5W (802.3at
PoE or Passive PoE), US: 14.7W (802.3at PoE or Passive PoE) Passive PoE Power Supply: 802.3at PoE, 48V
Passive PoE |
|
Environmental |
Operating
Temperature: -30 Degree C to 70 Degree C Operating
Humidity: 10% - 90% (non-condensing) Storing/Storage
Temperature: -40 Degree C to 70 Degree C Storing/Storage
Humidity: 5% - 90% (non-condensing) |
|
Physical Attributes |
Button: Reset LED Indicators: Yes Mounting: Yes Mount Options: Pole/ Wall Dimensions: 182.2 x 57 x 281mm Color: White Packet Contents: EAP625-Outdoor HD, 2x
Detachable Antennas, Installation Guide, Mounting Kit, Waterproof Kit. |
|
Warranty |
1 year
(Without Adapter) |
|
* Product may vary with different Kit or
Version |
|
Product Details
TP-Link

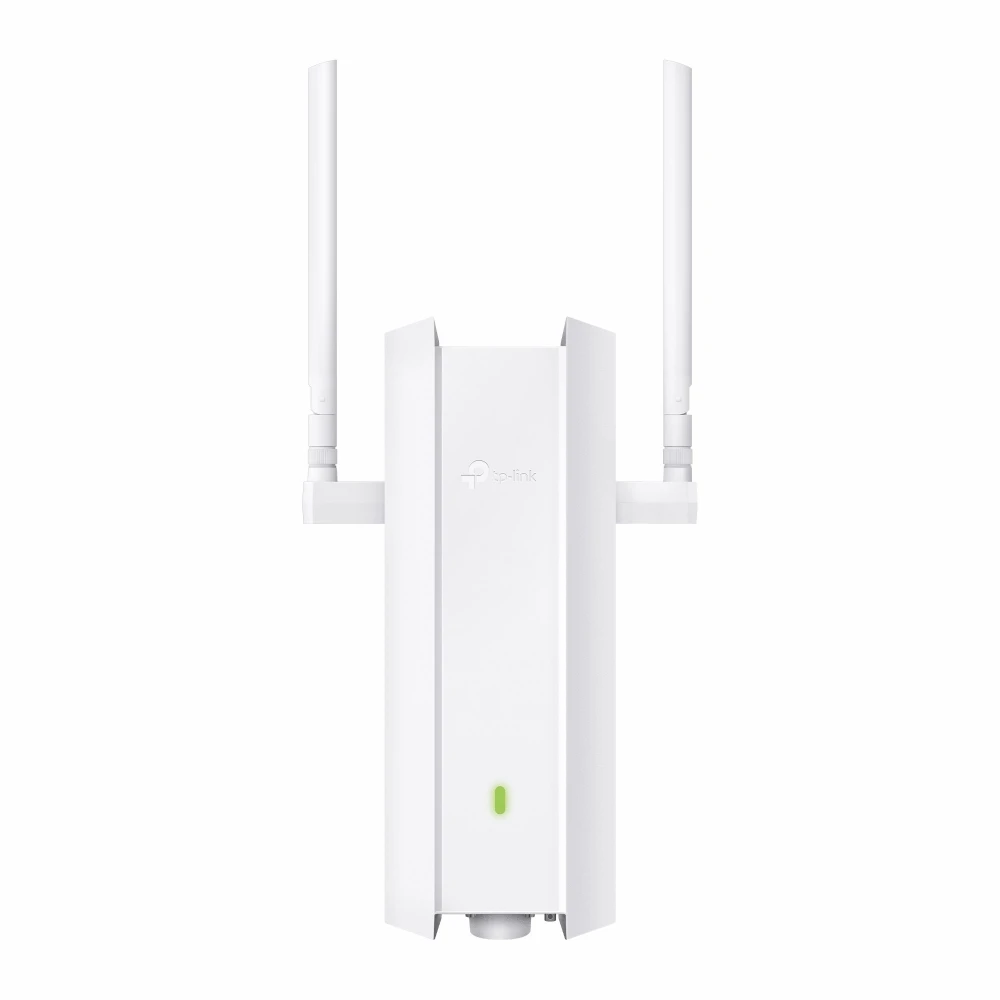

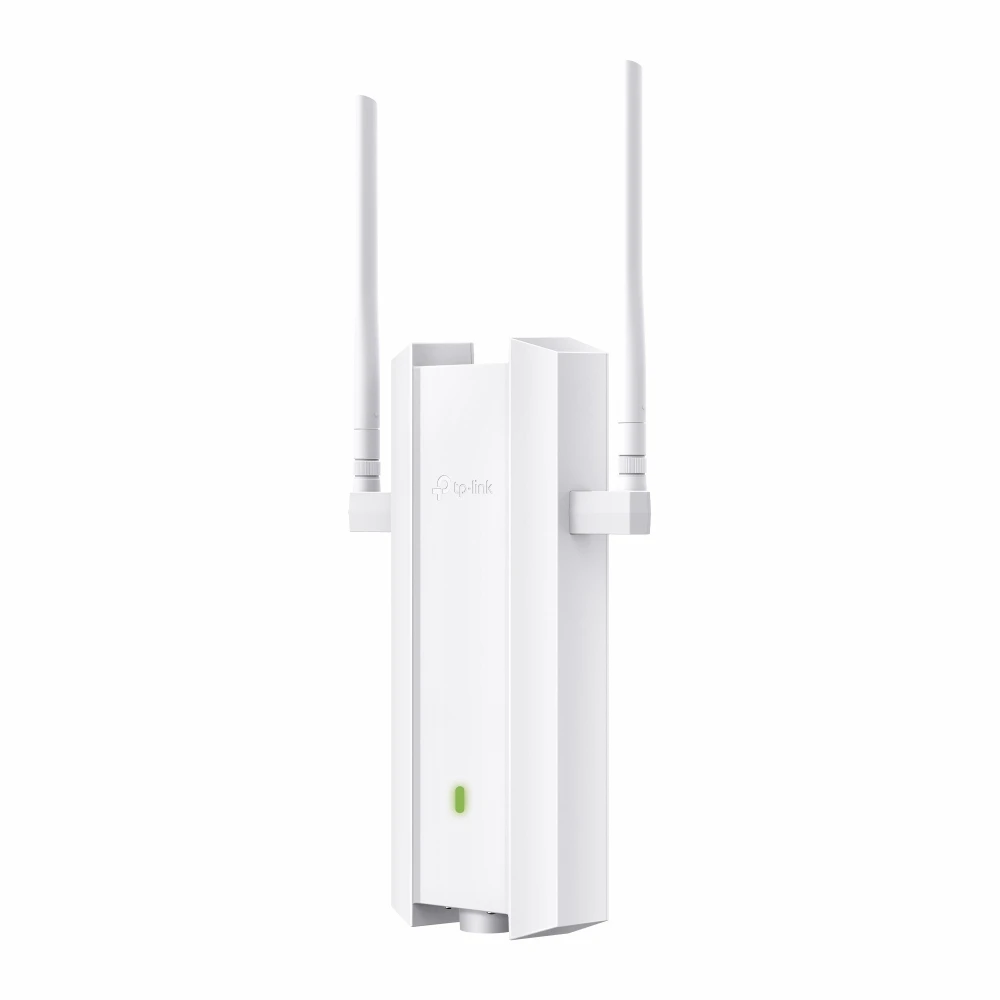

EAP625-Outdoor HD Wireless Access Point
The TP-Link EAP625-Outdoor HD
is a high-performance outdoor access point designed to offer robust,
reliable Wi-Fi 6 connectivity. With support for IEEE 802.11
a/b/g/n/ac/ax, it delivers 1800 Mbps data transfer rates and is
built for both high-performance and outdoor usage, making it ideal for large
outdoor environments such as stadiums, parks, or campuses.
Features
- Network Standards:
Compatible with IEEE 802.11 a/b/g/n/ac/ax, providing advanced
support for the latest Wi-Fi technologies.
- Data Transfer Rates:
1800 Mbps total bandwidth, with 2.4 GHz offering up to 574
Mbps and 5 GHz up to 1200 Mbps for high-speed connections.
- Wireless Security:
Supports WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise,
and 802.1X for advanced network security.
- MU-MIMO:
MU-MIMO support ensures simultaneous communication with multiple
devices, enhancing network efficiency.
- Antenna Configuration:
Equipped with 2 external antennas with 3.0 dBi gain on 2.4
GHz and 5.0 dBi gain on 5 GHz, ensuring stable
connectivity and signal strength over large areas.
Design
& Build
- Dimensions:
182.2 x 57 x 281 mm, designed for outdoor mounting with a pole
or wall installation option.
- Color:
White, making it blend seamlessly with outdoor structures.
- Mounting:
Includes a mounting kit for easy installation on poles or walls,
perfect for outdoor use.
- Waterproof Protection:
Rated IP67, making it waterproof and dustproof for reliable
performance in harsh weather conditions.
Power
& Environmental
- Power Supply:
Passive PoE, 48V Passive PoE or 802.3at PoE for
flexible power options.
- Max. Power Consumption: 12.5W (EU) or 14.7W (US) depending on
the power method used.
- Operating Temperature:
-30°C to 70°C, designed to operate in extreme weather conditions.
- Operating Humidity:
10% to 90% (non-condensing), suitable for most outdoor
environments.
- Storage Temperature:
-40°C to 70°C, ensuring durability and safe storage in extreme
temperatures.
Performance
& Management
- Concurrent Clients:
Supports up to 1020 concurrent clients, making it ideal for
high-density deployments.
- SSID Numbers:
Up to 16 SSIDs for flexible network segmentation.
- Management:
Supports management via Omada Hardware Controllers (OC300/OC200), Omada
Software Controller, or Omada Cloud-Based Controller for
centralized, remote management.
- Web-Based Management:
Offers easy-to-use HTTP/HTTPS interface for managing network
settings.
- OFDMA:
Supports OFDMA for more efficient data transmission in busy
networks.
- Email Alerts:
Get real-time alerts via email for network status updates.
Security
- Advanced Security:
Includes VLAN, Access Control, Rogue AP Detection, Captive
Portal Authentication, and support for up to 4000 MAC Filters.
- Wireless Isolation:
Ensures isolation between clients to enhance network security.
- WPA3 Support:
Provides WPA3 for stronger encryption and protection against
unauthorized access.
Package
Contents
- EAP625-Outdoor HD Access Point
- 2 Detachable Antennas
- Installation Guide
- Mounting Kit
- Waterproof Kit
Warranty
- 1-year warranty
(without adapter).
