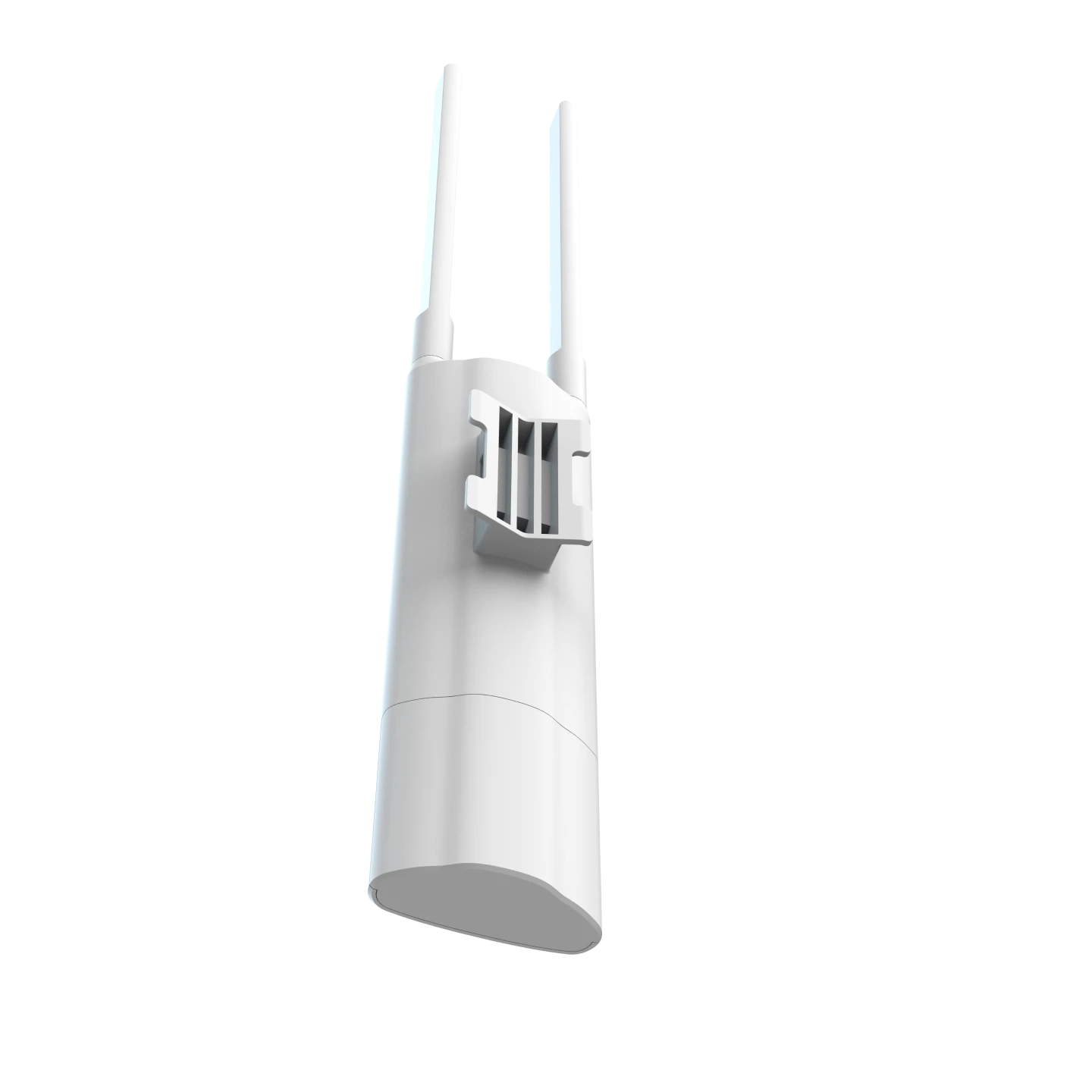

Ruijie RG-RAP52-OD Outdoor Wireless Access Point

The Ruijie RG-RAP52-OD is a high-performance outdoor wireless access point, ideal for extending Wi-Fi coverage in outdoor environments. With its 1300 Mbps data transfer rate and IP65 waterproof rating, this device is built to withstand challenging weather conditions while delivering reliable and fast wireless performance.

Features

• Network Standards: Supports IEEE 802.11ac Wave 2 for advanced wireless technology and performance.
• Data Transfer Rates: Offers speeds of up to 400 Mbps at 2.4 GHz and 867 Mbps at 5 GHz, with a total of 1.267 Gbps per AP.
• Dual-Band Wireless: Operates on 2.4 GHz and 5 GHz bands for efficient use of available spectrum and reduced interference.
• Antenna Configuration: Equipped with 2 external antennas for optimal outdoor coverage and performance.
• Security Protocols: Supports WPA (TKIP), WPA2 (AES), and WPA-PSK encryption for secure wireless communication.
• Max. Concurrent Clients: Supports up to 110 concurrent clients, ensuring reliable performance in dense environments.
• Operating Mode: Can be configured in AP Mode and Routing Mode, making it versatile for various network setups.
• Unified Networking: Supports local or remote management through the Ruijie Cloud app, along with unified monitoring and configuration via the platform.
• Mesh Management: Allows for seamless extension of coverage with mesh networking capabilities.

Design & Build

• Waterproof & Durable: The IP65 waterproof rating ensures the device is fully protected against dust and water, making it suitable for outdoor installations in various weather conditions.
• Lightning Protection: Comes with 4KV lightning protection, safeguarding the device from electrical surges.

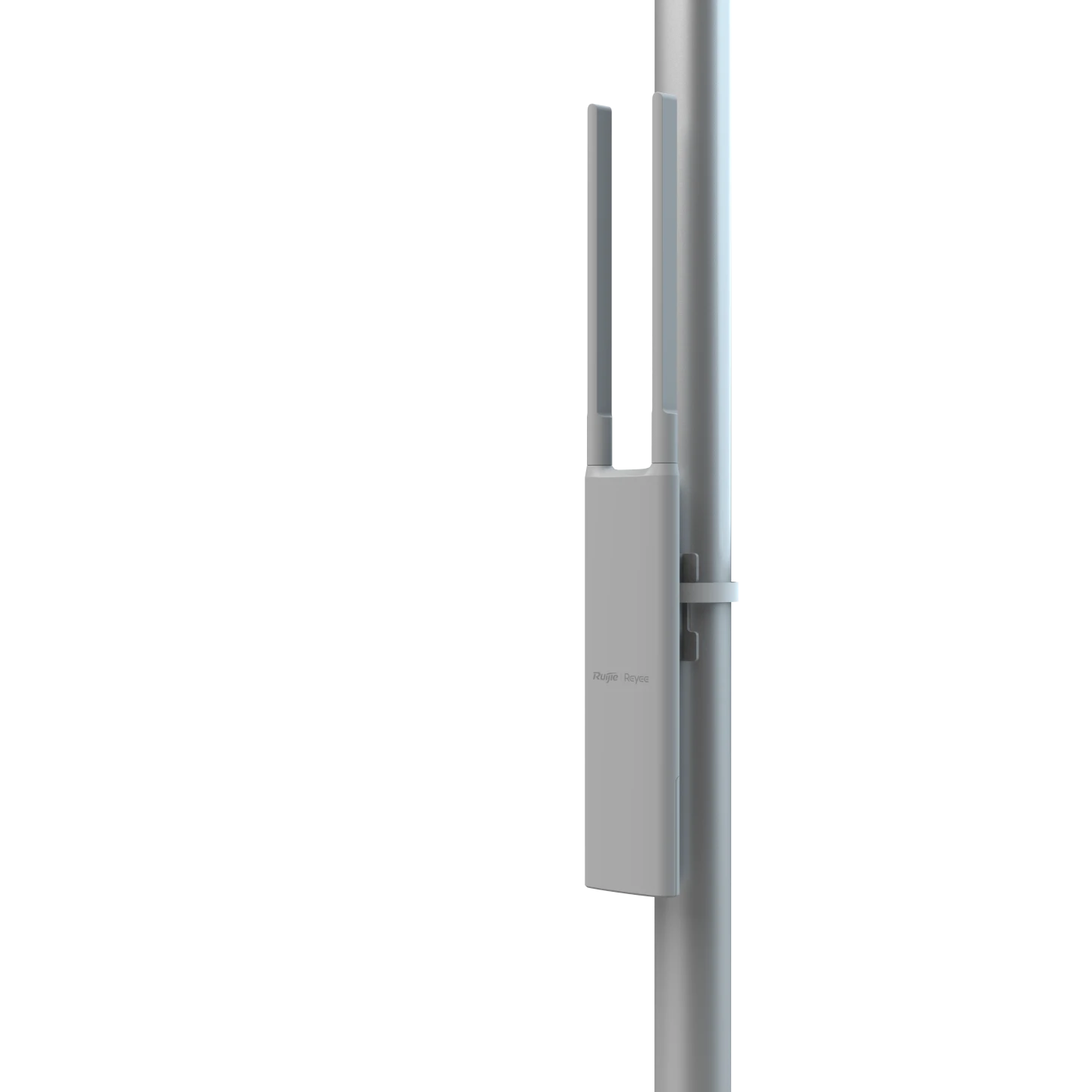

• Mounting Options: Designed for pole or wall mounting, offering flexibility for installation in outdoor environments.
• Dimensions: 220 x 50 x 35.7 mm with a weight of <= 400 gm, making it compact and easy to install.
• LED Indicators: Features a system LED indicator for easy monitoring of the device’s status.

Performance & Security

• Throughput: Provides up to 400 Mbps at 2.4 GHz and up to 867 Mbps at 5 GHz, totaling 1.267 Gbps for seamless connectivity.
• DHCP Support: Fully supports DHCP, ensuring easy network configuration and management.
• MTBF: Has an MTBF of >400,000 hours, ensuring long-term reliability and durability.

Power & Environmental

• Power Consumption: Operates with IEEE 802.3af standard PoE and 24V passive PoE power supply, with a maximum power consumption of <= 14W.
• Operating Temperature: Suitable for use in temperatures ranging from -30°C to +70°C.
• Storage Temperature: Can be stored in environments with temperatures from -40°C to +75°C.
• Operating Humidity: Functions in 10% to 95% RH (non-condensing), ideal for various weather conditions.
• Storage Humidity: Suitable for storage in 10% to 95% RH (non-condensing).

Package Contents

• Ruijie RG-RAP52-OD Access Point
• User Manual

Warranty

The Ruijie RG-RAP52-OD comes with a 3-year warranty, ensuring reliable performance and support.
