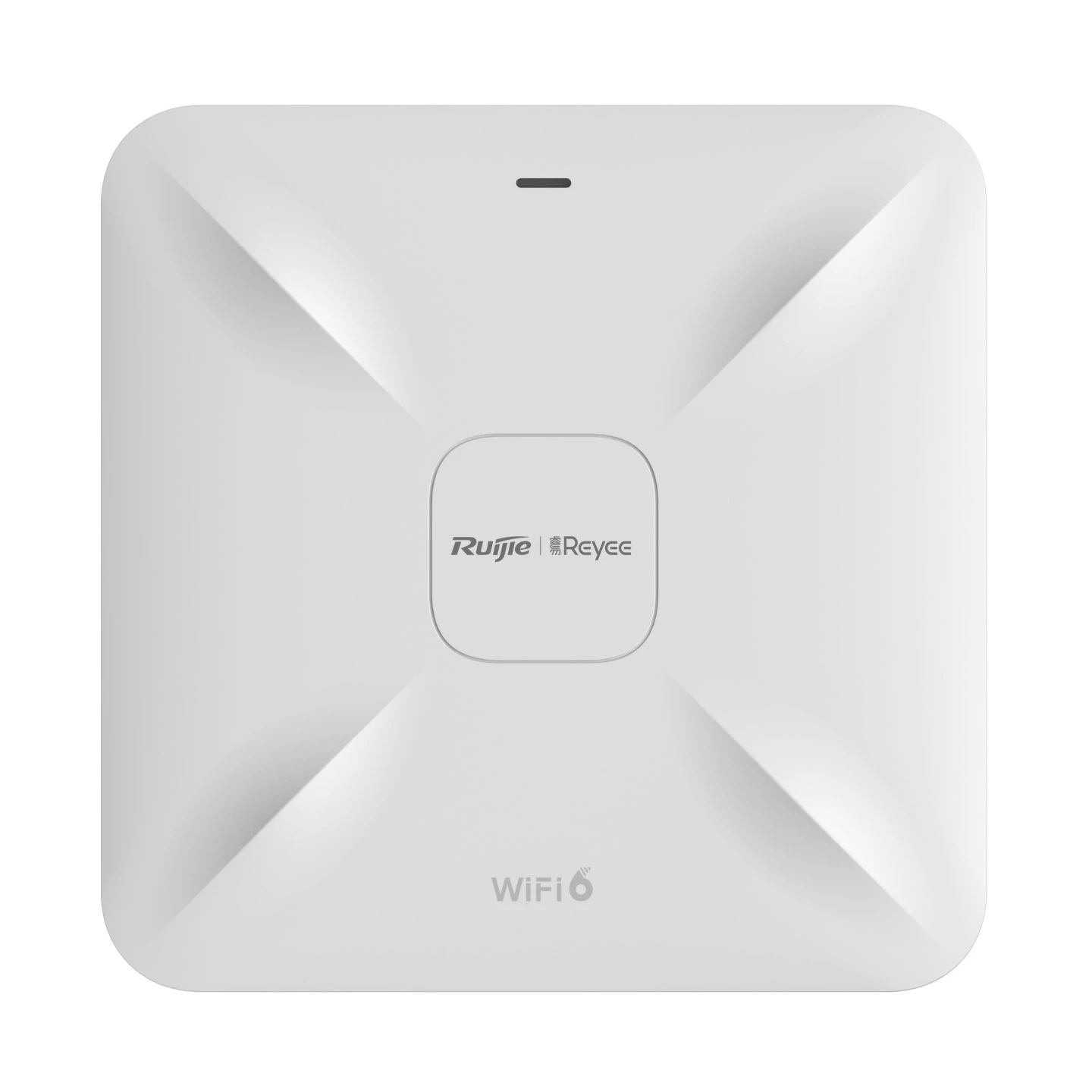

Ruijie RG-RAP2260(E) Dual-Band Access Point

The Ruijie RG-RAP2260(E) is a high-performance Wi-Fi 6 (802.11ax) access point designed for medium to large-scale networks. Offering 3202 Mbps total throughput, this model provides exceptional speed and efficiency for demanding environments. With dual-band operation, support for 4x4 MU-MIMO, and cloud management, it is ideal for businesses, offices, and high-density spaces where reliable and fast wireless connectivity is essential.

Features

• Network Standards: Complies with 802.11ax (Wi-Fi 6) for improved speed, capacity, and efficiency compared to previous Wi-Fi generations.
• Data Transfer Rates: Offers a combined throughput of 3202 Mbps with 2.4 GHz reaching up to 574 Mbps and 5 GHz providing up to 2402 Mbps.
• Wireless Bands: Dual-band support on 2.4 GHz and 5 GHz frequencies for better performance and reduced interference.
• MU-MIMO Support: 4x4 MU-MIMO for simultaneous high-speed connections to multiple devices, enhancing the overall network efficiency.
• Max. Concurrent Clients: Capable of supporting up to 512 concurrent clients, making it suitable for high-traffic areas.
• SSID Support: Supports up to 8 SSIDs, offering flexibility in network segmentation and security.
• Operating Modes: Supports Access Point mode and Routing mode, providing versatile deployment options.

Design & Build

• LED Indicators: Includes a single green light indicator for easy monitoring of the device’s status.

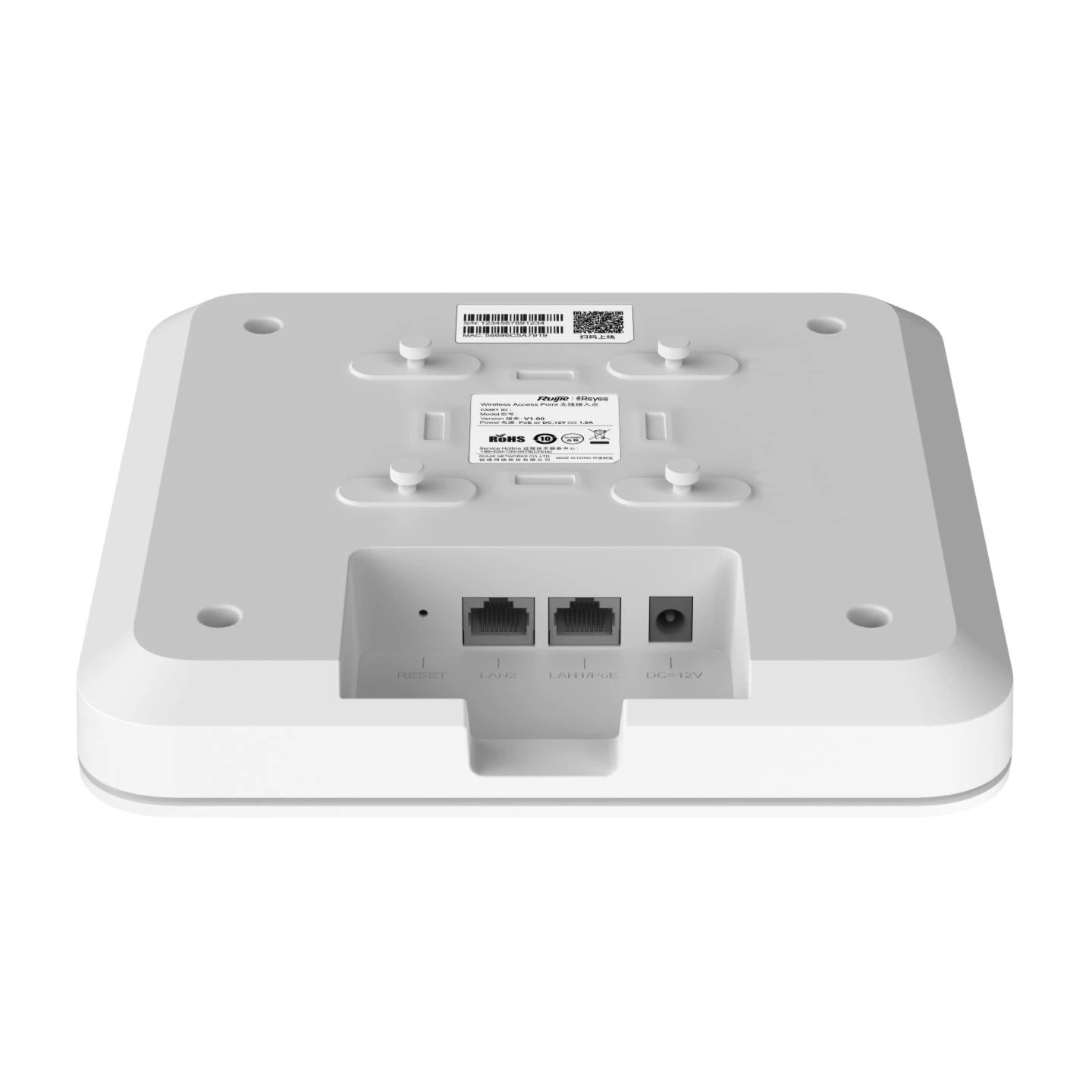

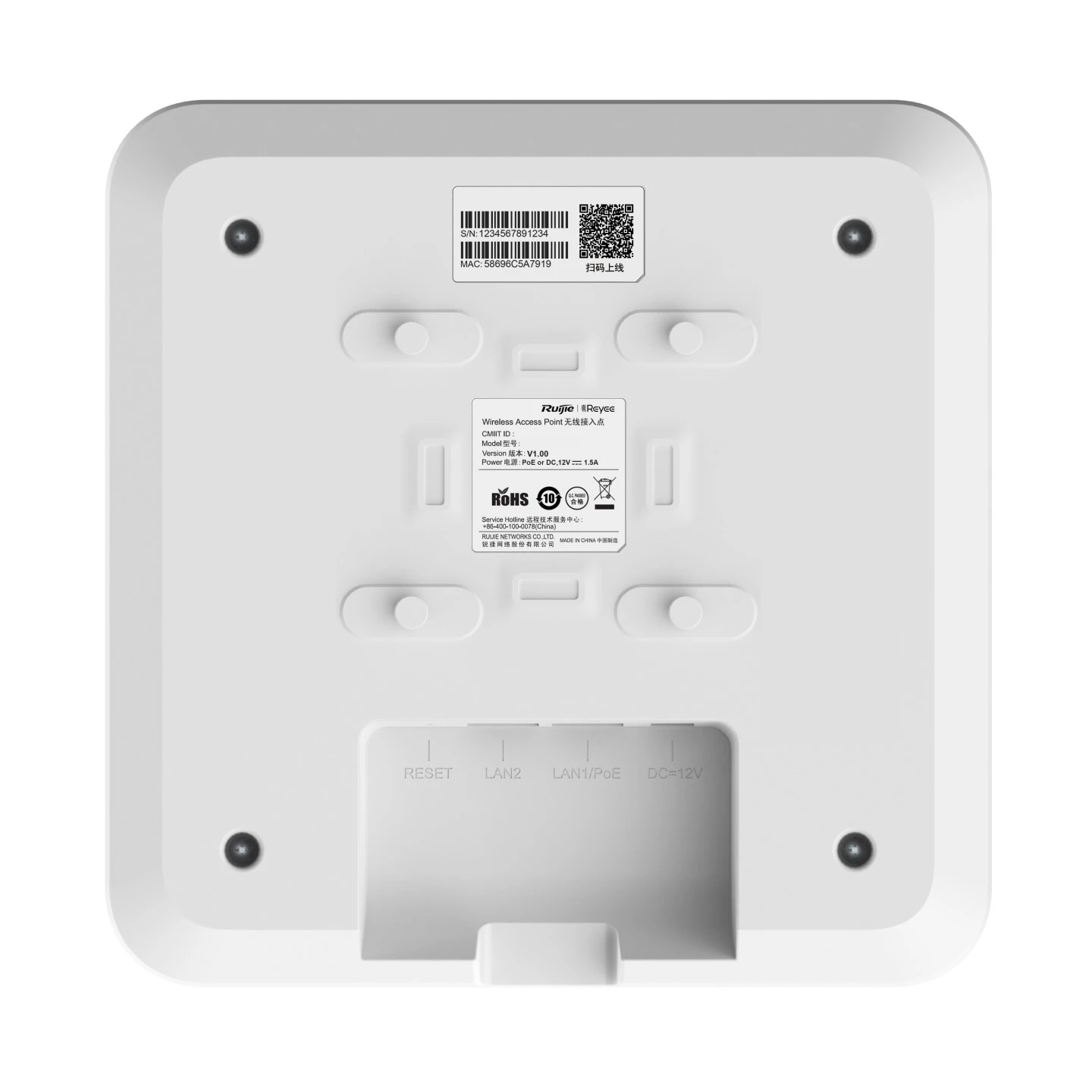

• Mounting Options: Designed for easy ceiling or wall mounting, offering flexibility in installation.
• Compact Dimensions: Measures 220 x 220 x 35mm, with a weight of 1.05 kg (excluding mounting kits), providing a compact and robust design.
• Color: Available in white, blending seamlessly into office or business environments.

Performance & Security

• OFDM/OFDMA: Supports OFDM for better frequency utilization, improving overall network capacity and reducing latency.
• Wireless Security: Supports industry-standard security protocols, ensuring a safe and secure wireless connection (specific protocols not listed).

Power & Environmental

• Power Supply: Requires a 12V/1.5A DC adapter, and also supports 802.3at PoE for flexible installation options.
• Power Consumption: Maximum power consumption of <25.4W, ensuring energy efficiency.
• Operating Temperature: Designed to operate in environments with temperatures ranging from 0°C to 40°C.
• Humidity Range: Suitable for operation in environments with 55% to 95% humidity (non-condensing).
• Storage Temperature: Can be stored in temperatures ranging from -40°C to +70°C, making it adaptable to different climates.

Package Contents

• Ruijie RG-RAP2260(E) Access Point
• 1 x Mounting Bracket
• 2 x Cross Pan Head Screws
• 2 x Expansion Anchors
• 1 x Quick Start Guide

Warranty

Comes with a 3-year warranty (excluding the adapter).
