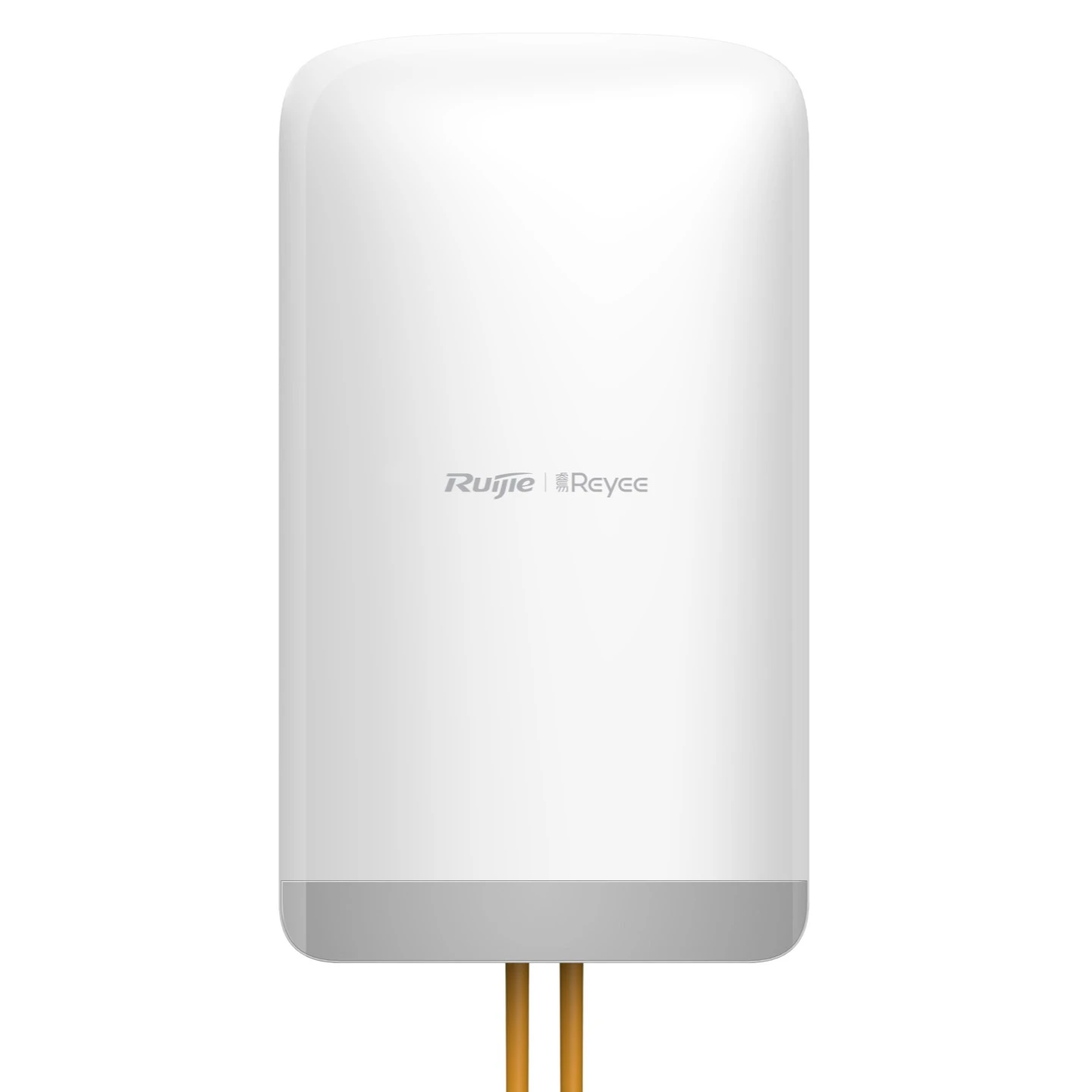

Ruijie RG-EST350 V2 Outdoor Wireless Bridge

The Ruijie RG-EST350 V2 is an advanced outdoor wireless bridge designed to provide long-range connectivity with a 5 km range. Operating on the 5 GHz band, it offers speeds of up to 867 Mbps and is equipped with high-performance features to ensure reliable wireless communication in outdoor environments.

Features

• Network Standards: Supports IEEE 802.11ac, Wave 2 for enhanced wireless performance.
• Data Transfer Rates: Achieves a maximum throughput of 867 Mbps for stable high-speed communication.
• Outdoor Range: Provides coverage up to 5 km, making it ideal for large outdoor areas or remote connections.
• Single Band Operation: Operates exclusively on the 5 GHz frequency for reduced interference and better performance.
• Antenna Configuration: Equipped with internal 15 dBi antennas for improved range and signal strength.
• MU-MIMO Support: Supports Multi-User MIMO for simultaneous communication with multiple clients, enhancing network efficiency.
• Transmission Power: Adjustable transmission power of up to 400 mW (26 dBm) for optimal coverage.
• Operating Mode: Select between Normal, High performance, or Anti-interference modes to suit different environmental needs.
• Management: Supports EWeb, Cloud, and APP management for easy configuration and monitoring.
• Web-Based Management: Fully manageable through EWeb interface for remote and local configurations.
• Protection: Designed with IP54 waterproof rating and 4 kV lightning protection to ensure durability in outdoor conditions.

Design & Build

• Weather-Resistant: The IP54 rating provides protection against dust and water, making it suitable for outdoor deployment in challenging weather.
• Durability: The 4 kV lightning protection and V0 level flame retardant ensure that the device can withstand electrical surges and high temperatures.

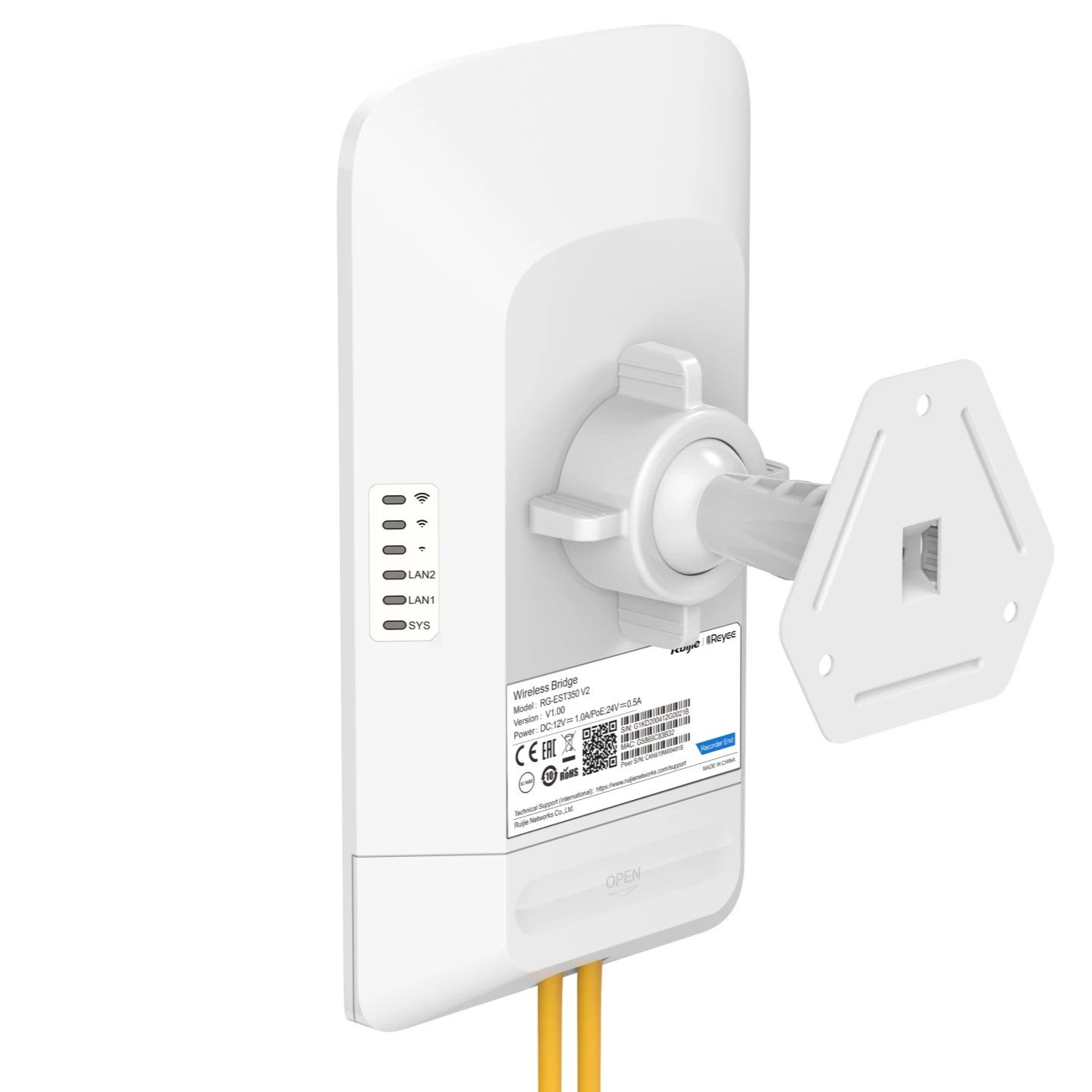

• Mounting Options: Can be wall-mounted or pole-mounted, offering flexibility for installation.
• Dimensions: 230 x 132 x 48 mm, with a weight of 500 gm, making it compact and easy to install in various outdoor locations.

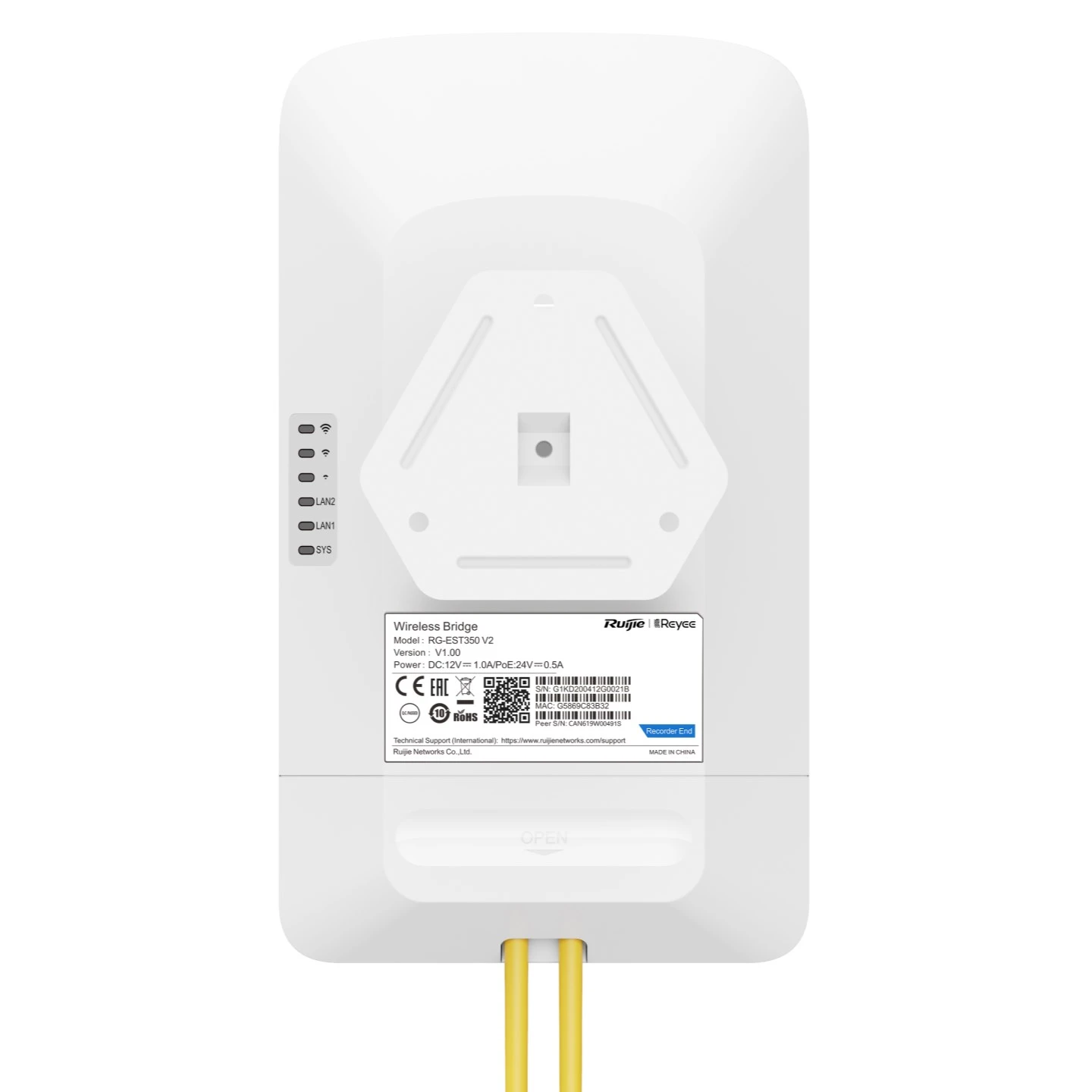

• LED Indicators: Features LED indicators for monitoring the device’s status.

Performance & Security

• Throughput: Delivers 867 Mbps on the 5 GHz band, ensuring stable and high-speed performance.
• DHCP Support: Fully supports DHCP for easy network configuration.
• MTBF: Boasts a MTBF of > 400,000 hours, indicating excellent reliability and long operational life.
• Security: No specific security protocols mentioned but supports WPA, WPA2, and similar encryption standards.

Power & Environmental

• Power Supply: Can be powered via 12V DC or 24V Passive PoE with a maximum power consumption of <10W.
• Operating Temperature: Suitable for use in extreme temperatures ranging from -30°C to +65°C.
• Storage Temperature: Can be stored in environments with temperatures from -40°C to +85°C.
• Operating Humidity: Functions in 5% to 95% RH (non-condensing) conditions.
• Storage Humidity: Suitable for storage in 5% to 95% RH (non-condensing).

Package Contents

• Ruijie RG-EST350 V2 Access Point
• 2 x Wireless Bridge/Antenna
• 2 x PoE Injector
• 2 x Mounting Bracket

Warranty

The Ruijie RG-EST350 V2 comes with a 3-year warranty, ensuring long-term reliability and support.
