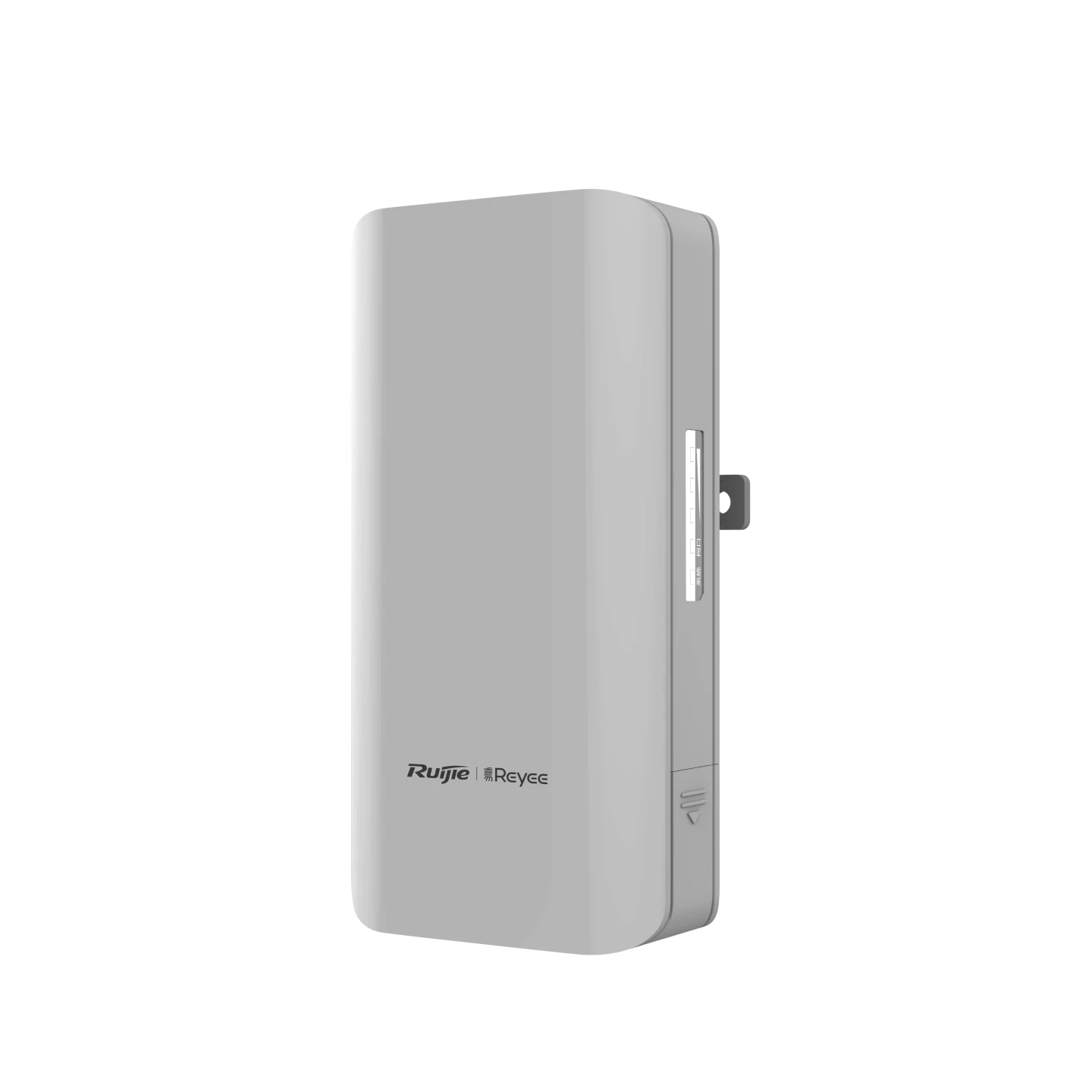

Ruijie RG-EST310 V2 5GHz 1KM Wireless Bridge
Key Specification
‣ Network Standards:
IEEE 802.11ac Wave 2
‣ Connectivity – Single Band
‣ Data Transfer Rates – 867 Mbps
‣ Interface(s) - 1
x 10/100Base-T
‣ Antenna (Type & Qty)
- Unmentioned
Product Specification
|
Brand |
Ruijie |
|
Model |
Ruijie
RG-EST310 V2 |
|
P/N |
N/A |
|
Components* |
Network
Standards: IEEE 802.11ac, Wave2 Data
Transfer Rates: 867 Mbps Outdoor
Range: 1KM WAN Network
Standard: Not Applicable LAN
Network Standard: 10/100 Memory:
64MB Storage
(MB/GB/TB): 8MB Storage
Type: Flash |
|
Interface |
Interface(s): 1 x 10/100Base-T Number of WAN Port: No Number of LAN Port: 1 |
|
Wireless |
Band: Single Frequency:
5 GHz Bluetooth:
No Antenna
(Type & Qty): Unmentioned Antenna
Gain: 10 dBi Antenna
Placement: Internal MU-MIMO
Support: Yes Multi-User
MIMO: Yes Transmission
Power: <=400 mW(26 dBm) (adjustable) |
|
Management |
Throughput: 867 Mbps Operating Mode: Normal / High performance /
Anti-interference Management: EWeb/Cloud/APP Web-Based Management: EWeb |
|
Performance |
Protection:
IP54, 4 kV Lightning Protection, V0 level flame retardant . Waterproof
Level/Grade: IP54 IP
Rating: IP54 Lightning
Protection: 4KV |
|
Technical Info |
Outdoor Use: Yes DHCP: Yes MTBF: > 400,000 hours |
|
Security |
N/A |
|
Power Attributes |
Power Method: 12 VDC / 24V Passive PoE Max. Power Consumption: < 7W |
|
Environmental |
Operating
Temperature: -30 to 55 Degree C Operating
Humidity: 5% to 95% (non-condensing) Storing/Storage
Temperature: -40 to 70 degree C Storing/Storage
Humidity: 5% to 95% (non-condensing) |
|
Physical Attributes |
LED Indicators: Yes Mounting: Yes Mount Options: Wall / Pole Dimensions: 147 x 76 x 37mm Color: Gray Weight (gm): 350 gm Packet Contents: Ruijie RG-EST310 V2 Access
Point, 2 x Wireless Bridge/Antenna, 2 x PoE Injector, 2 x Mounting Bracket |
|
Warranty |
3 year
(Without Adapter) |
|
* Product may vary with different Kit or Version |
|
Product Details
Ruijie
RG-EST310 V2 Outdoor Wireless Bridge
The Ruijie RG-EST310 V2 is an
outdoor wireless bridge designed for reliable long-range connectivity
over distances up to 1 km. Operating on the 5 GHz band, it
provides a maximum throughput of 867 Mbps and is built for challenging
outdoor environments with its IP54 protection and lightning
protection.
Features
- Network Standards:
Supports IEEE 802.11ac, Wave 2 for high-speed wireless performance.
- Data Transfer Rates:
Provides up to 867 Mbps throughput on the 5 GHz band.
- Outdoor Range:
Coverage of up to 1 km, suitable for medium-range outdoor wireless
networking.
- Single Band Operation:
Operates on the 5 GHz frequency for less interference and improved
performance.
- Antenna Configuration:
Equipped with internal 10 dBi antennas for enhanced signal strength
and stability.
- MU-MIMO Support:
Multi-User MIMO technology enables simultaneous communication with
multiple devices, enhancing overall network efficiency.
- Transmission Power:
Adjustable power up to 400 mW (26 dBm) for optimal coverage.
- Operating Mode:
Choose from Normal, High performance, or Anti-interference
modes based on environmental requirements.
- Management:
Supports EWeb, Cloud, and APP management for flexible
configuration and monitoring.
- Web-Based Management:
Managed via EWeb interface for remote and local settings.
- Protection:
IP54 waterproof rating and 4 kV lightning protection for
durability in outdoor environments.
Design
& Build
- Weather-Resistant:
The IP54 rating ensures protection against dust and water, ideal
for outdoor use.
- Durability:
Designed to withstand electrical surges with 4 kV lightning protection
and V0 level flame retardant materials.

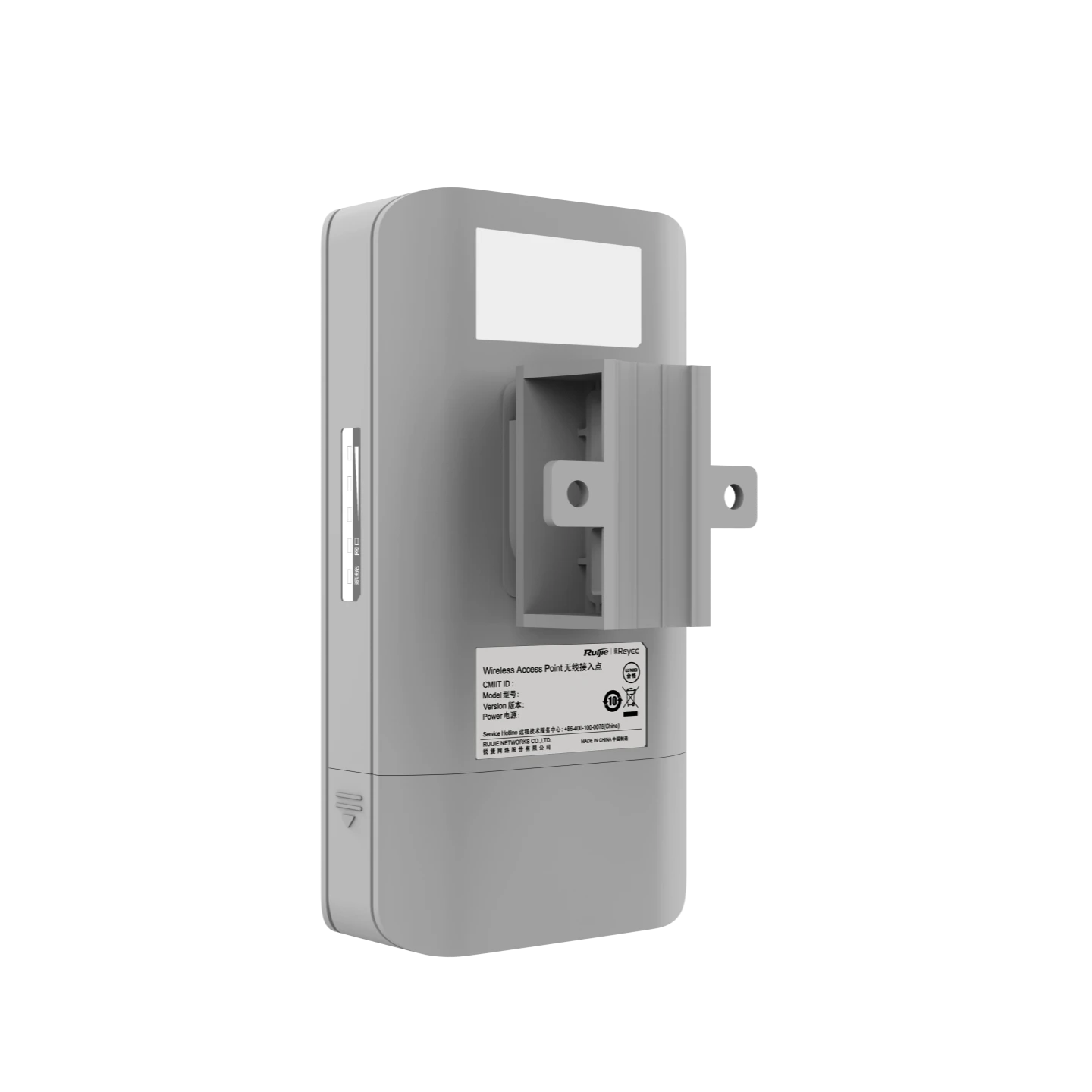

- Mounting Options:
Can be mounted on walls or poles, offering flexibility in installation.
- Compact Size:
Dimensions of 147 x 76 x 37 mm with a lightweight design of 350
gm for easy handling and installation.
- LED Indicators:
Equipped with LED indicators to show the device's operational
status.
Performance
& Security
- Throughput:
Offers 867 Mbps of throughput on the 5 GHz band, providing a stable
wireless connection.
- DHCP Support:
Built-in DHCP support for easy network configuration.
- MTBF:
MTBF of > 400,000 hours, ensuring long-term reliability.
- Security:
While no specific security protocols are listed, it supports common
encryption standards like WPA, WPA2, and AES.
Power
& Environmental
- Power Supply:
Powered by 12V DC or 24V Passive PoE with a maximum power
consumption of <7W.
- Operating Temperature:
Designed for use in environments with temperatures from -30°C to +55°C.
- Storage Temperature:
Can be stored at temperatures ranging from -40°C to +70°C.
- Operating Humidity:
Suitable for environments with 5% to 95% RH (non-condensing).
- Storage Humidity:
Suitable for storage with 5% to 95% RH (non-condensing).
Package
Contents
- Ruijie RG-EST310 V2 Access Point
- 2 x Wireless Bridge/Antenna
- 2 x PoE Injector
- 2 x Mounting Bracket
Warranty
Comes with a 3-year warranty
for added peace of mind, excluding the adapter.
