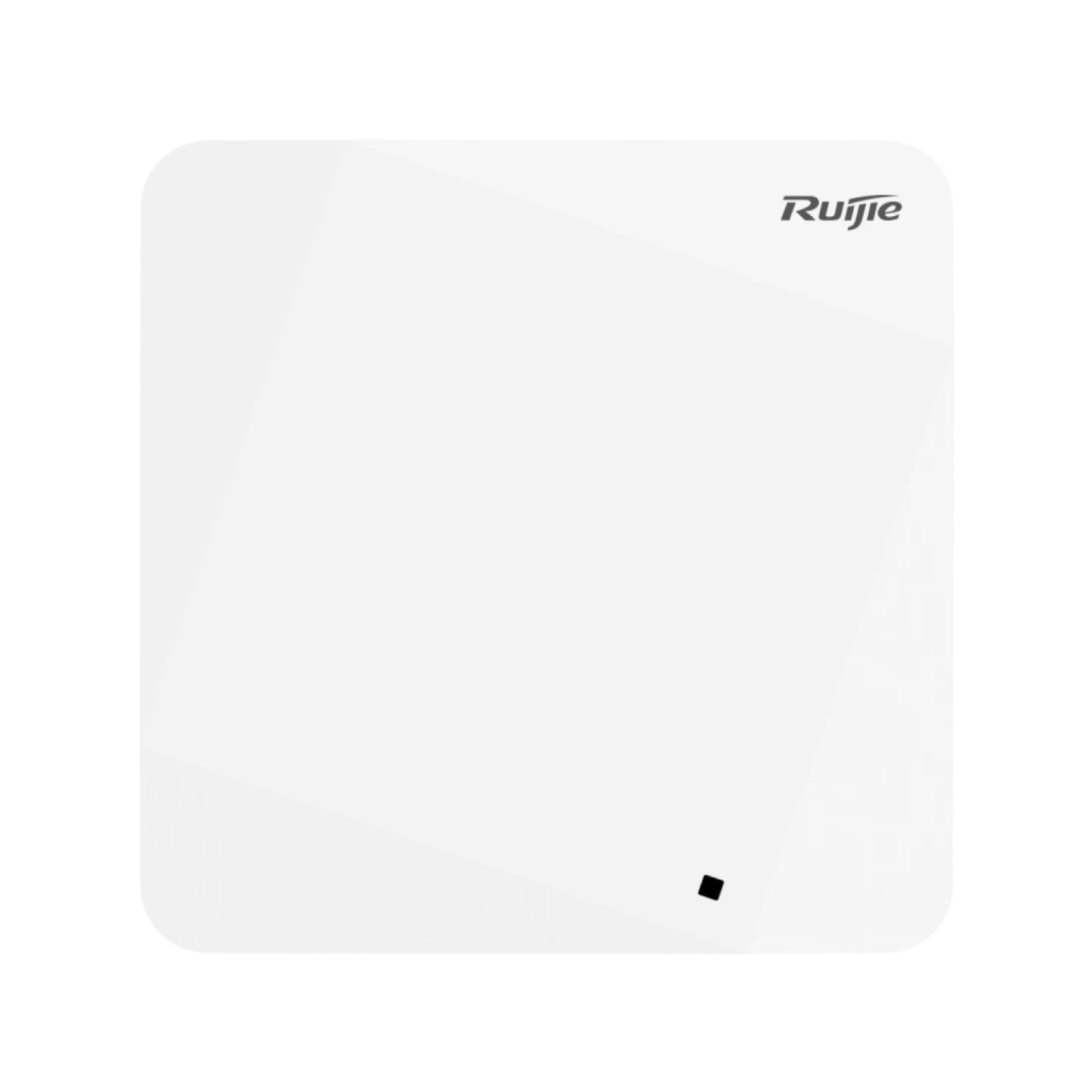

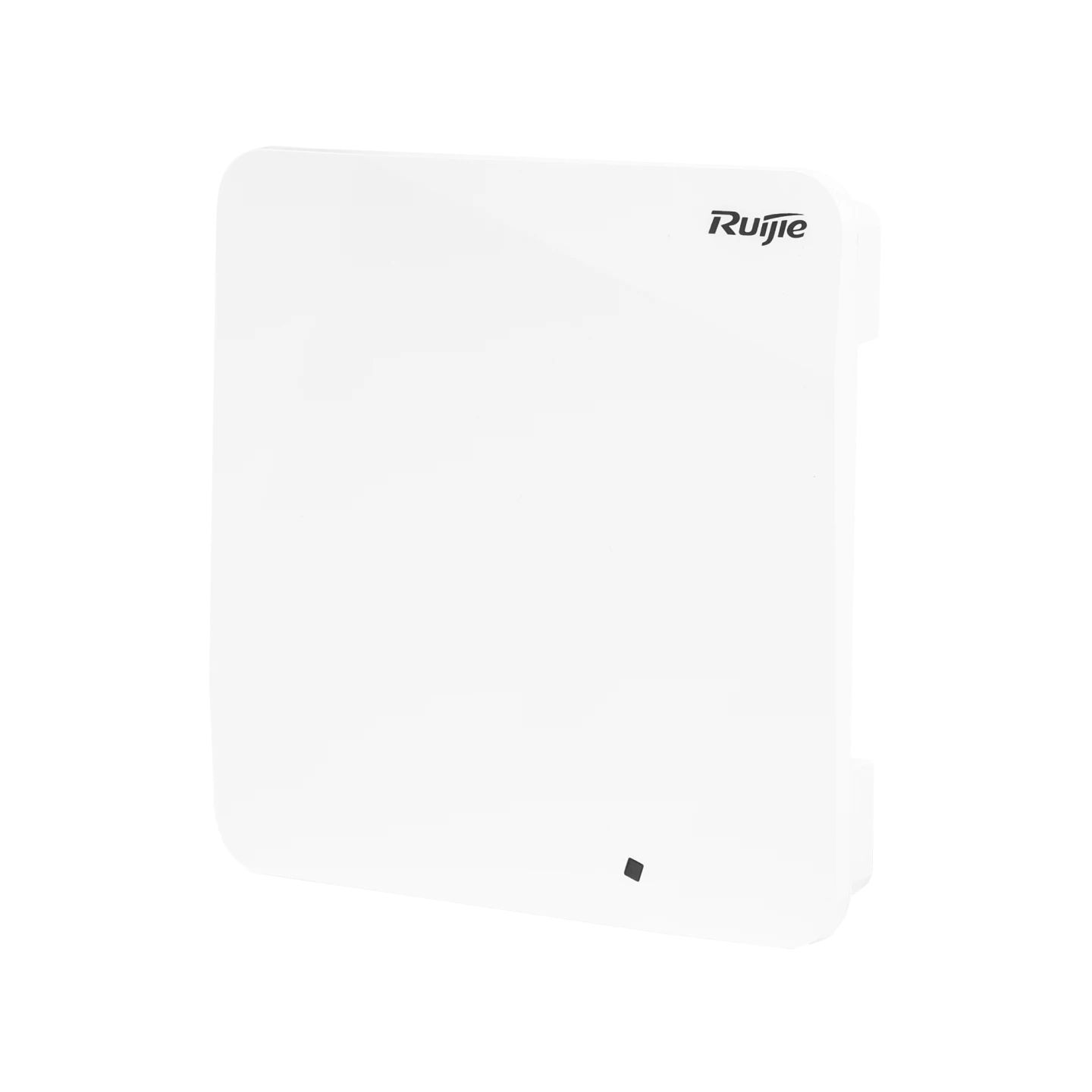

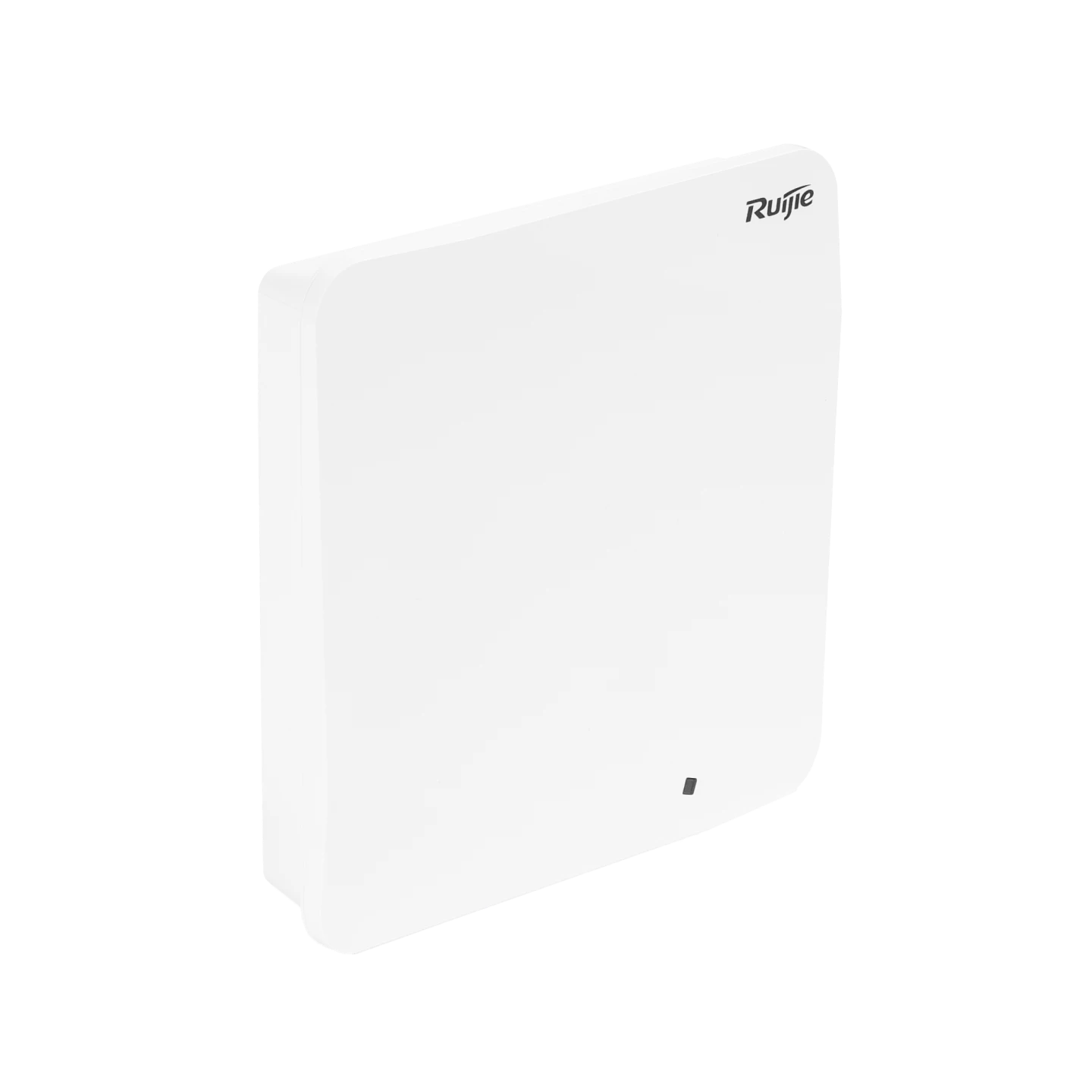

Ruijie RG-AP720-L Wireless Access Point

The Ruijie RG-AP720-L is a dual-band wireless access point designed to support 802.11b/g/n/ac standards, providing reliable and fast wireless performance with 1167 Mbps throughput. Ideal for both business and home users, this access point ensures stable connectivity and efficient network management.

Features

• Network Standards: Supports 802.11b/g/n/ac, offering broad compatibility and robust wireless performance.
• Data Transfer Rates: Provides a total data rate of 1167 Mbps — 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, ideal for high-speed internet and multi-device environments.
• Dual-Band Wireless: Operates on 2.4 GHz and 5 GHz bands for optimal performance, with reduced interference.
• MU-MIMO Support: Includes MU-MIMO technology, allowing simultaneous data transmission to multiple devices for more efficient network use.
• Wireless Security: Offers WPA, WPA-PSK, WPA2 (AES), and WEP security protocols for a secure network.
• SSID Numbers: Supports up to 32 SSIDs, allowing for advanced network segmentation and secure guest access.
• Operating Mode: Configured in Access Point mode, offering enhanced wireless connectivity for various environments.
• Management: Can be managed via SNMP, Eweb (web-based management), and offers remote management options for flexibility.

Design & Build

• Antenna Configuration: Equipped with 2 internal antennas, providing good wireless coverage with 4.3 dBi (2.4 GHz) and 5.7 dBi (5 GHz) antenna gain.
• Transmission Power: The access point offers 26 dBm transmission power for extended range and signal strength.
• Mounting Options: Mountable on both ceiling and wall for flexible installation.
• Dimensions: 194 x 194 x 37 mm, weighing 0.42 kg, making it compact and easy to install in various environments.
• LED Indicators: Features a multi-color system status LED to easily monitor the device's performance.

Performance & Security

• Throughput: Delivers 1167 Mbps total throughput with 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, ensuring fast speeds and stable performance for multiple devices.
• VPN Pass-Through: Supports PPPoE client, providing secure network access for remote users.
• Guest Network Support: Includes guest network functionality, allowing isolated access for guests while securing the primary network.
• Security: Kensington lock slot for physical security, preventing theft and unauthorized tampering.

Power & Environmental

• Power Consumption: The device operates on 12V DC/1.5A power supply and PoE (802.3af), with a maximum power consumption of 12.95W.
• Operating Temperature: Suitable for environments ranging from 0°C to 50°C.
• Storage Temperature: Can be stored in temperatures from -40°C to 70°C.
• Operating Humidity: Designed to function in 5% to 95% humidity (non-condensing).
• Storage Humidity: Withstands 5% to 95% non-condensing humidity for reliable long-term storage.

Package Contents

• Ruijie RG-AP720-L Access Point
• 1 x Mounting Bracket
• 1 x Key to the Securing Latch
• 4 x Wall Anchors
• 1 x Cross Recessed Pan Head Self-Tapping Screw
• 1 x Quick Start Guide

Warranty

The Ruijie RG-AP720-L comes with a 3-year warranty (without adapter), ensuring long-term reliability and performance.
