NZXT N7 Z790 (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard with White Cover #N7-Z79XT-W1
Key Specification
Product Specification
|
Brand |
Nzxt |
|
Model |
Nzxt N7 Z790 (Wi-Fi 6E) |
|
Color |
White |
|
CPU Data |
Chipset Brand: Intel Chipset: Intel Z790 Sockets Supported: LGA1700 Built-in Processor: N/A Supported CPU: Intel 14th, 13th, and
12th Generation Core i9/ Core i7/ Core i5 Processors. Generation: 12th/13th/14th |
|
Memory
Support |
Memory Type: DDR5 Memory MHz: 7200+(O.C.) / 7000(O.C.)/
6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/
5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC, un-buffered Memory Channel: Dual Memory Slot: 4 Memory Max: 192GB |
|
Storage Info |
Storage Interface: 6.0Gb/s M.2/SSD Expansion Slot: 3 M.2/SSD Expansion : 3 x M.2 Slot (1 x
M.2 Type 2242/2260/2280 support PCIe 4.0 x4, 1 x M.2 Type
2242/2260/2280/22110 support PCIe 4.0 x4, 1 x M.2 Type 2242/2260/2280 support
PCIe 4.0 x4) |
|
Graphics
Info |
Multi-GPU Support: N/A PCI Express Slot: PCI Express 1 x PCIe 5.0
x16 slot supports x16 mode, 2 x PCIe 4.0 x16 slots support x4 mode, 2 x PCIe
3.0 x1 slots. |
|
Audio & Video |
Audio Chipset: Realtek ALC1220P Codec Audio Channel – 7.1 |
|
Network
& Connectivity |
LAN Chipset: Realtek RTL8125BG 2.5G LAN LAN Speed (Mbps): 10/ 100/ 1000/ 2500/ 5000Mbps WiFi: Yes WiFi Technology: Wi-Fi 6E Bluetooth: Bluetooth 5.3 |
|
Ports Data |
USB Port: 2 x USB 2.0 Type-A, 1 x USB
3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1 Type-C VGA Port: N/A HDMI Port: 1 Display: N/A SATA Port: 4 |
|
Technical
Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 4 x NZXT RGB LED connectors,
2 x 5V ARGB LED connector Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported Operating System: Windows 10,11
Supported Operating System: Compatible
with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor. |
|
Warranty |
3 year |
|
* Product
may vary with different Kit or Version |
|
Product Details
Nzxt

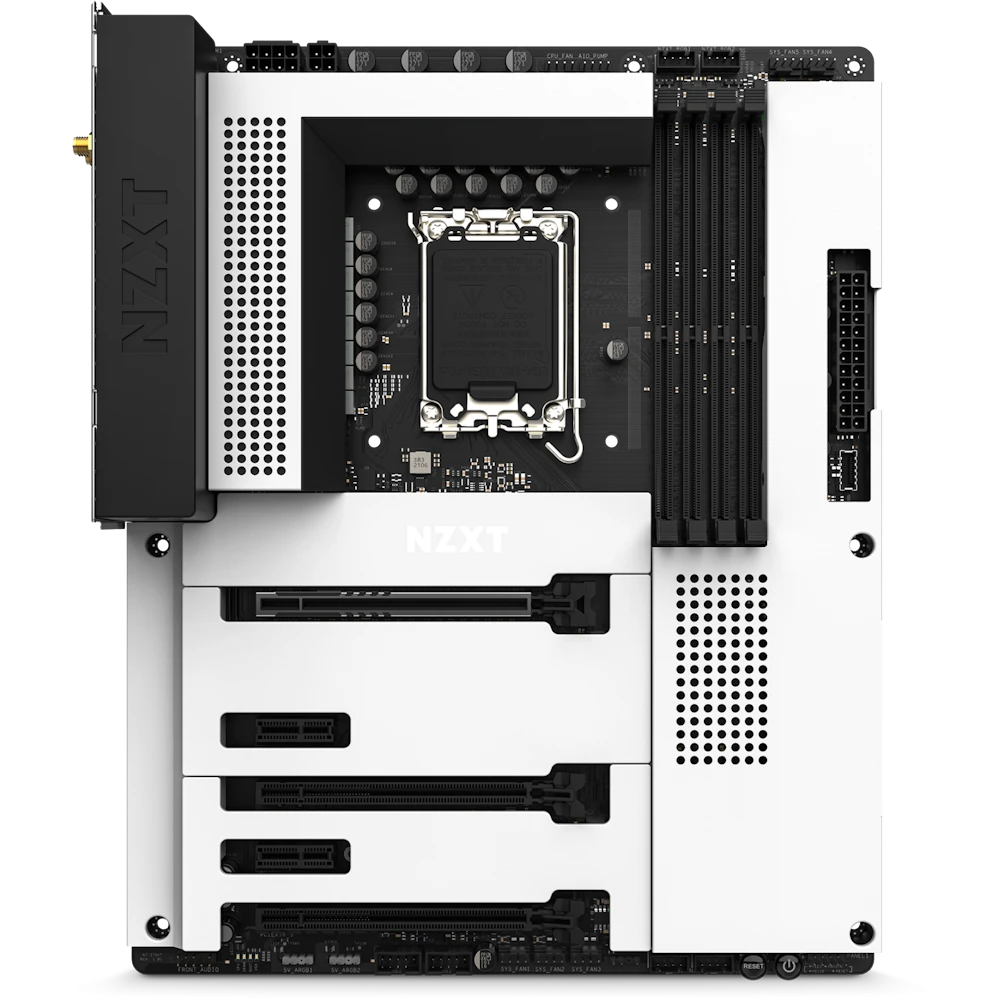

N7 Z790 (Wi-Fi 6E) Motherboard (White)
The Nzxt N7 Z790 (Wi-Fi 6E)
motherboard in White is designed for high-performance builds, offering
support for the latest Intel 12th, 13th, and 14th Gen Core processors
with the Intel Z790 chipset. This motherboard provides DDR5 memory
support with overclocking capabilities of up to 7200+ MHz and ensures
ultra-fast connectivity with Wi-Fi 6E and Bluetooth 5.3. The
sleek white design with integrated ARGB lighting makes this motherboard
an eye-catching component for your PC build.
Features
- Intel Z790 Chipset
with LGA1700 socket for Intel 12th/13th/14th Gen Core i9/i7/i5
processors
- DDR5 Memory
support with overclocking up to 7200+ MHz
- Dual Channel Memory
with a maximum capacity of 192GB
- Wi-Fi 6E
for the fastest wireless speeds
- Bluetooth 5.3
for seamless device connectivity
Storage
and Expansion
- 3 x M.2 Slots:
- 1 x M.2 PCIe 4.0 x4
for fast storage devices (2242/2260/2280)
- 1 x M.2 PCIe 4.0 x4
supporting multiple M.2 drive sizes (2242/2260/2280/22110)
- 1 x M.2 PCIe 4.0 x4
for additional expansion (2242/2260/2280)
- SATA 6Gb/s Ports:
4 for additional storage options
Graphics
and Display
- PCI Express Slots:
- 1 x PCIe 5.0 x16 slot for high-end GPUs (x16 mode)
- 2 x PCIe 4.0 x16 slots for other expansions (x4 mode)
- 2 x PCIe 3.0 x1 slots for peripherals
- HDMI Port:
1 for direct display connection
Audio
and Video
- Realtek ALC1220P Codec for 7.1-channel HD audio
- Provides excellent sound quality for gaming, media, and
professional use
Network
and Connectivity
- Realtek RTL8125BG 2.5G LAN for high-speed wired network connections
(10/100/1000/2500/5000Mbps)
- Wi-Fi 6E
for ultra-fast wireless performance

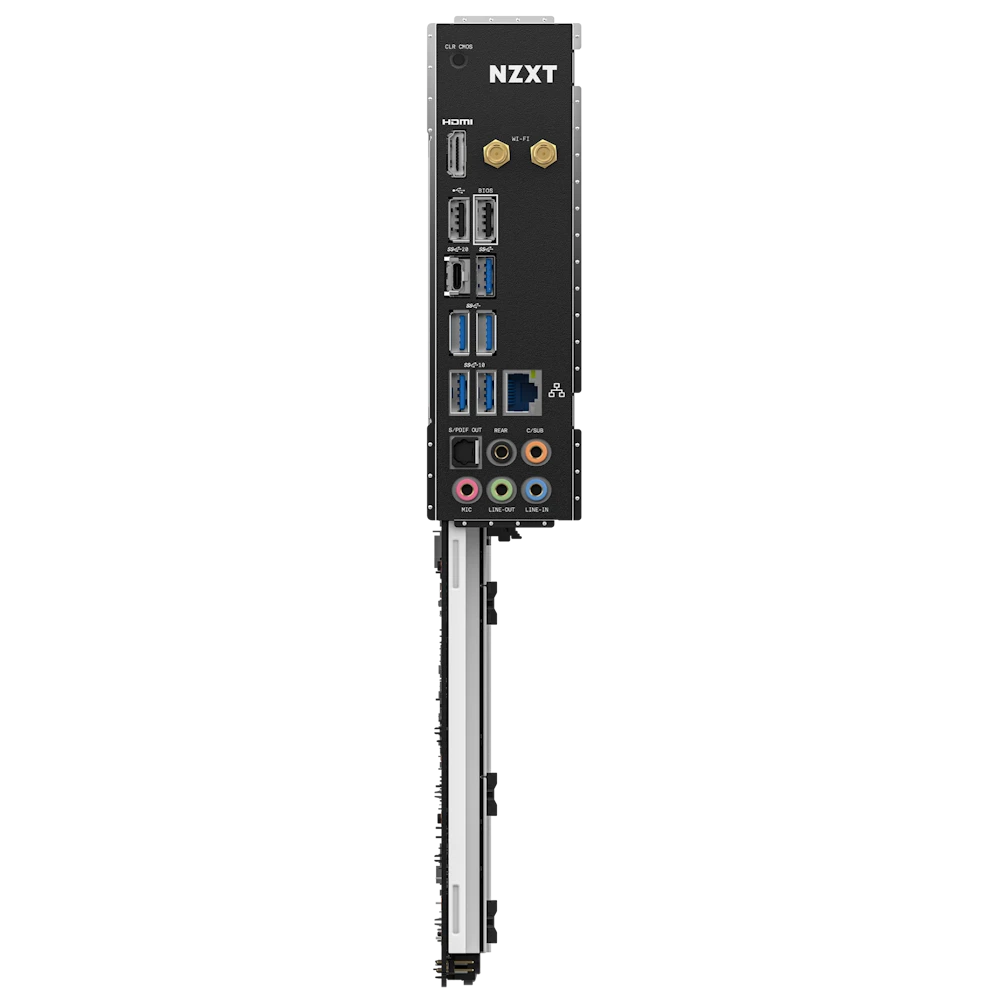

- USB Ports:
- 2 x USB 2.0 Type-A
- 1 x USB 3.2 Gen 2x2 Type-C
- 2 x USB 3.2 Gen 2 Type-C
- 3 x USB 3.2 Gen 1 Type-C
- SATA Ports:
4 for connecting additional storage devices
- RGB LED connectors:
- 4 x NZXT RGB LED connectors
- 2 x 5V ARGB LED connectors for customizable lighting

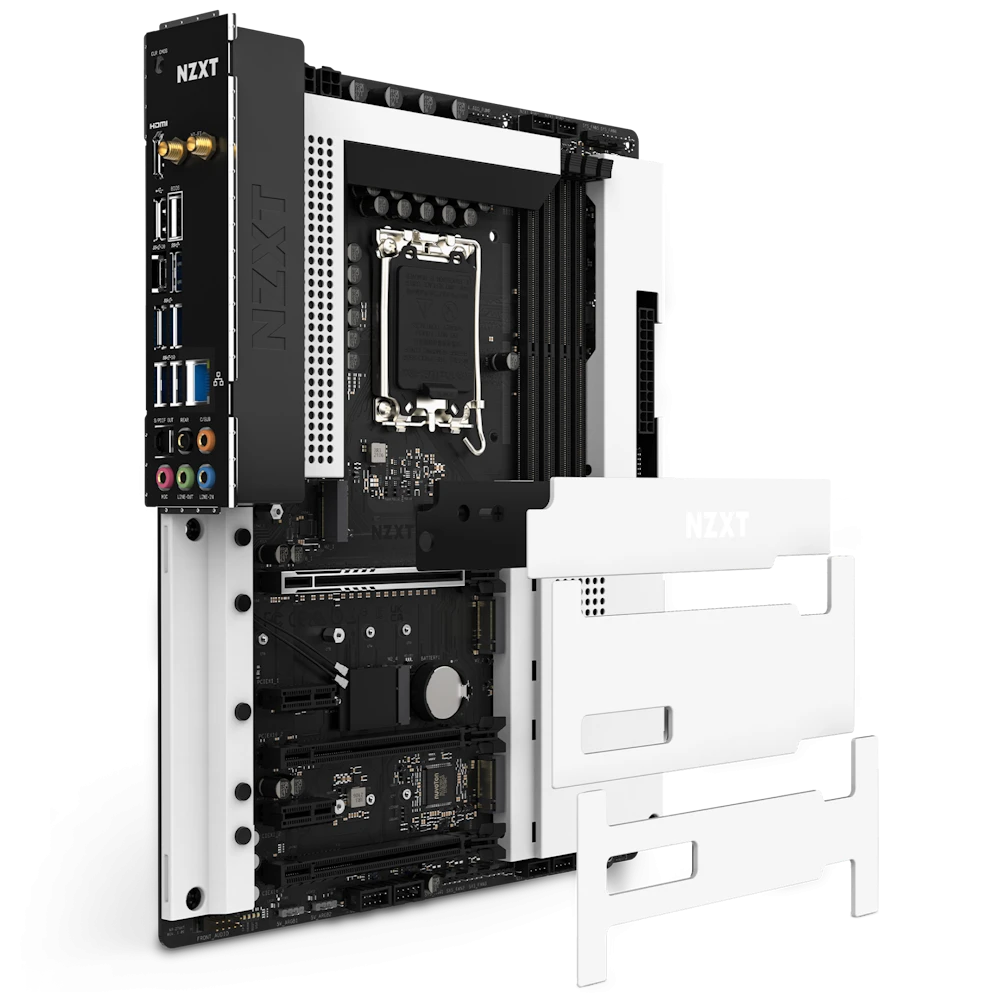

Design
and Build
- Form Factor:
ATX for compatibility with most cases
- Color:
White for a clean, modern aesthetic
- Heatsink:
Integrated for efficient cooling
- Cable Management:
Front routing for a tidy setup
- ARGB Support:
Full RGB lighting customization with included connectors
Power
and Efficiency
- Approximate Power Consumption: 70W
- Designed for efficient performance and low power usage
Compatibility
and Warranty
- Operating System Support: Windows 10 and Windows 11
- CPU Compatibility:
Supports LGA1700 socket Intel 12th, 13th, and 14th Gen Core
processors
- Warranty:
3-year warranty from Nzxt
Price
and Availability
The Nzxt N7 Z790 (Wi-Fi 6E) White
motherboard is available for purchase at Computer Village Agrabad, Chattogram,
Bangladesh. For the latest pricing and availability, please check directly
at the store.
