NZXT N7 Z790 (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard with Black Cover #N7-Z79XT-B1
Key Specification
Product Specification
|
Brand |
Nzxt |
|
Model |
Nzxt N7 Z790 (Wi-Fi 6E) |
|
Color |
Black |
|
CPU Data |
Chipset Brand: Intel Chipset: Intel Z790 Sockets Supported: LGA1700 Built-in Processor: N/A Supported CPU: Intel 14th, 13th, and
12th Generation Core i9/ Core i7/ Core i5 Processors. Generation: 12th/13th/14th |
|
Memory
Support |
Memory Type: DDR5 Memory MHz: 7200+(O.C.) / 7000(O.C.)/
6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/
5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC, un-buffered Memory Channel: Dual Memory Slot: 4 Memory Max: 192GB |
|
Storage Info |
Storage Interface: 6.0Gb/s M.2/SSD Expansion Slot: 3 M.2/SSD Expansion : 3 x M.2 Slot (1 x
M.2 Type 2242/2260/2280 support PCIe 4.0 x4, 1 x M.2 Type
2242/2260/2280/22110 support PCIe 4.0 x4, 1 x M.2 Type 2242/2260/2280 support
PCIe 4.0 x4) |
|
Graphics
Info |
Multi-GPU Support: N/A PCI Express Slot: PCI Express 1 x PCIe 5.0
x16 slot supports x16 mode, 2 x PCIe 4.0 x16 slots support x4 mode, 2 x PCIe
3.0 x1 slots. |
|
Audio & Video |
Audio Chipset: Realtek ALC1220P Codec Audio Channel – 7.1 |
|
Network
& Connectivity |
LAN Chipset: Realtek RTL8125BG 2.5G LAN LAN Speed (Mbps): 10/ 100/ 1000/ 2500/ 5000Mbps WiFi: Yes WiFi Technology: Wi-Fi 6E Bluetooth: Bluetooth 5.3 |
|
Ports Data |
USB Port: 2 x USB 2.0 Type-A, 1 x USB
3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1 Type-C VGA Port: N/A HDMI Port: 1 Display: N/A SATA Port: 4 |
|
Technical
Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 4 x NZXT RGB LED connectors,
2 x 5V ARGB LED connector Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported Operating System: Windows 10,11
Supported Operating System: Compatible
with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor. |
|
Warranty |
3 year |
|
* Product
may vary with different Kit or Version |
|
Product Details
Nzxt

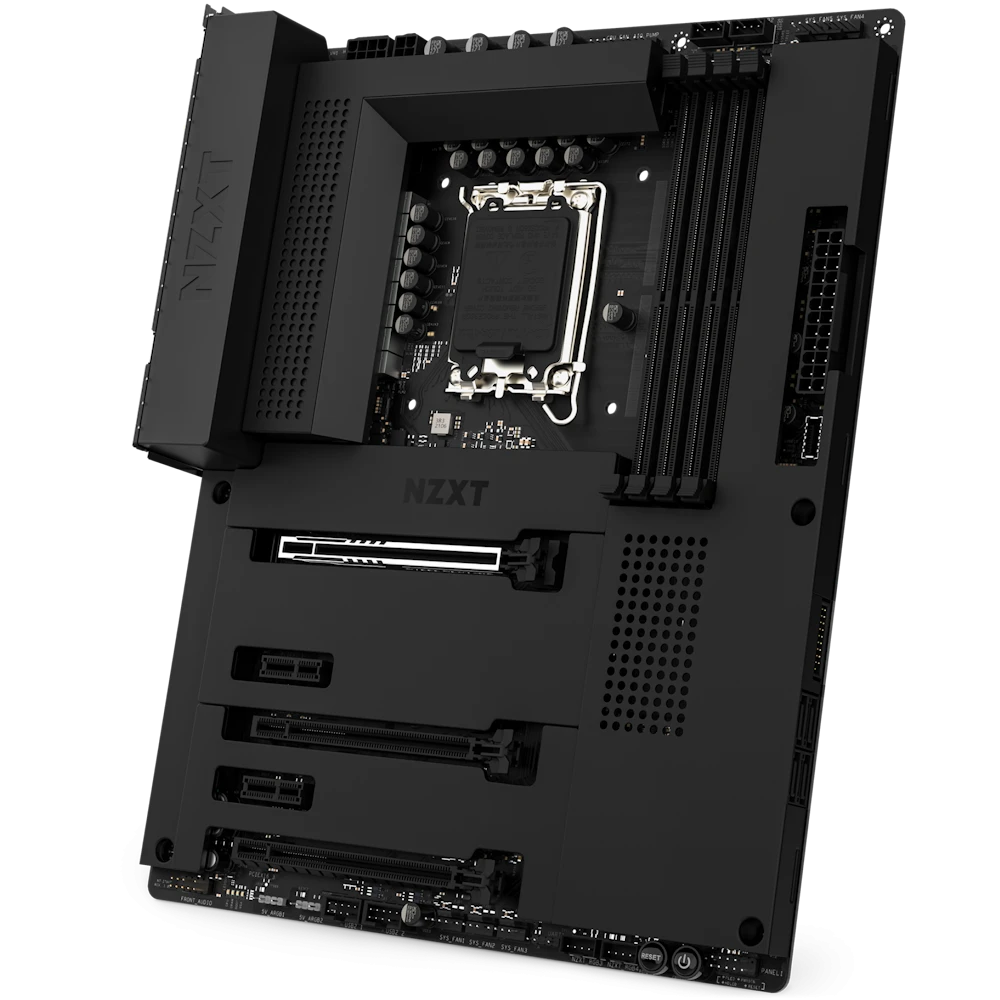

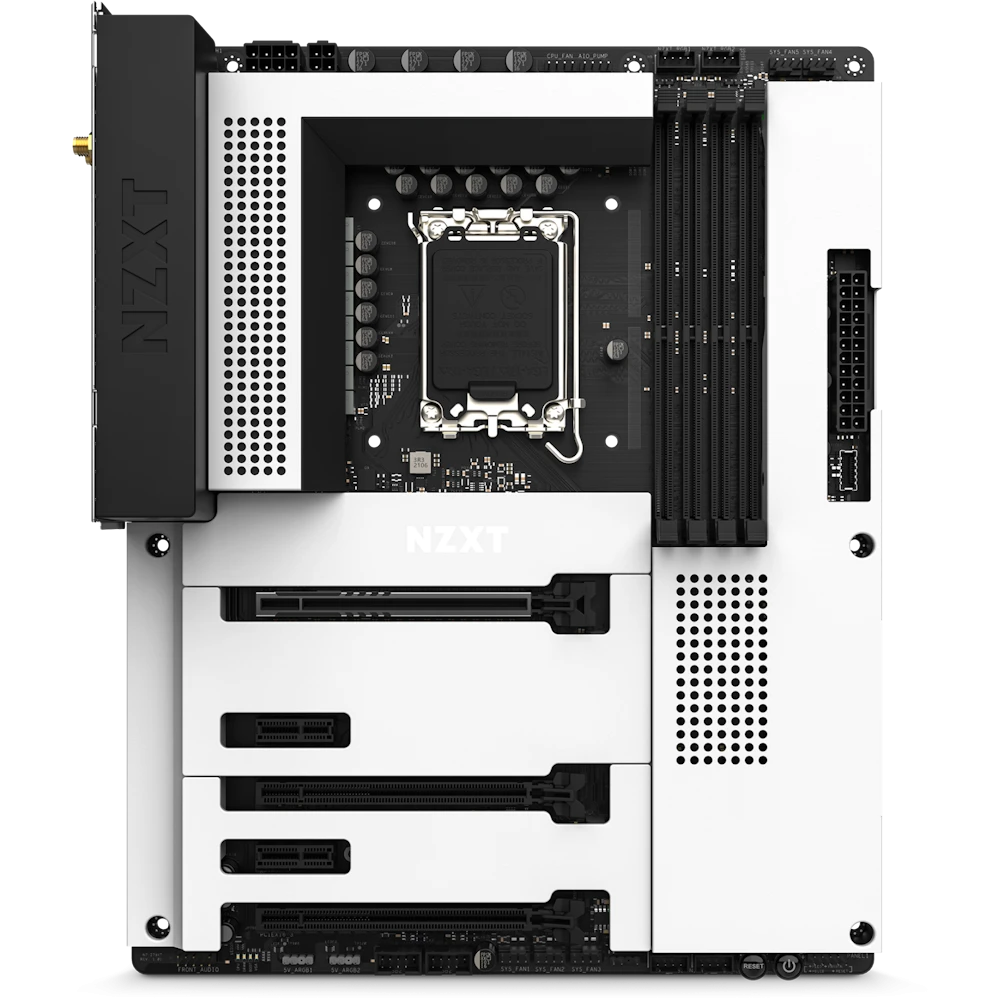

N7 Z790 (Wi-Fi 6E) Motherboard
The Nzxt N7 Z790 (Wi-Fi 6E)
motherboard combines cutting-edge technology with sleek design. Built with the Intel
Z790 chipset, it offers full support for Intel 12th, 13th, and 14th
Generation Core i9/i7/i5 processors and DDR5 memory for
high-performance computing. Equipped with Wi-Fi 6E, it ensures
ultra-fast wireless connectivity, while the ARGB lighting adds a touch
of style to your build. The ATX form factor ensures compatibility with a
wide range of cases for an easy, flexible installation.
Features
- Intel Z790 Chipset
with LGA1700 socket for Intel 12th/13th/14th Gen Core i9/i7/i5
processors
- DDR5 Memory
support with overclocking up to 7200+ MHz
- Dual Channel Memory
with a maximum capacity of 192GB
- Wi-Fi 6E
for high-speed wireless internet
- Bluetooth 5.3
for seamless device connectivity
Storage
and Expansion
- 3 x M.2 Slots:
- 1 x M.2 PCIe 4.0 x4
for high-speed storage (2242/2260/2280)
- 1 x M.2 PCIe 4.0 x4
supporting a variety of M.2 drive sizes (2242/2260/2280/22110)
- 1 x M.2 PCIe 4.0 x4
for additional expansion (2242/2260/2280)
- SATA 6Gb/s Ports:
4 for additional storage options
Graphics
and Display
- PCI Express Slots:
- 1 x PCIe 5.0 x16 slot for high-speed GPUs (x16 mode)
- 2 x PCIe 4.0 x16 slots for additional expansion (x4 mode)
- 2 x PCIe 3.0 x1 slots for peripherals
- HDMI Port:
1 for direct display output
Audio
and Video
- Realtek ALC1220P Codec for 7.1-channel HD audio
- High-quality sound for gaming, media, and professional
use
Network
and Connectivity
- Realtek RTL8125BG 2.5G LAN for ultra-fast wired network speeds
(10/100/1000/2500/5000Mbps)
- Wi-Fi 6E
for enhanced wireless performance

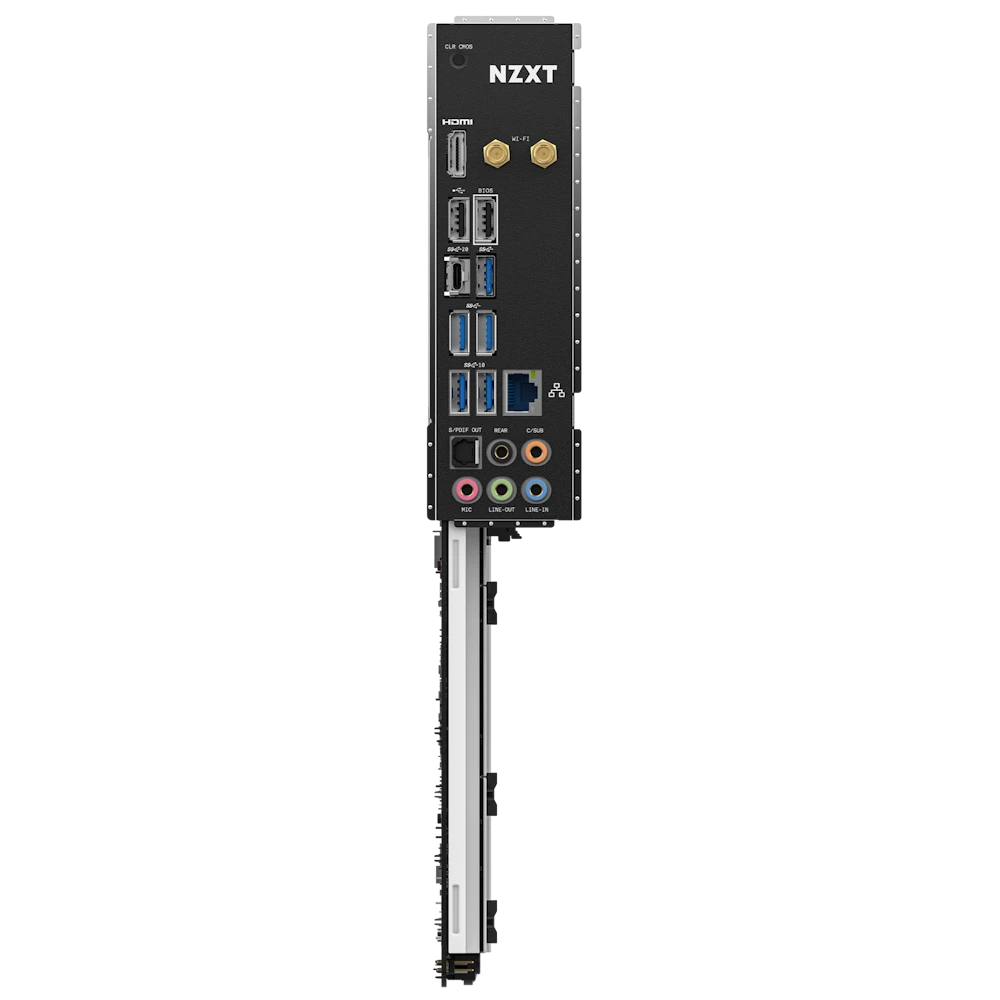

- USB Ports:
- 2 x USB 2.0 Type-A
- 1 x USB 3.2 Gen 2x2 Type-C
- 2 x USB 3.2 Gen 2 Type-C
- 3 x USB 3.2 Gen 1 Type-C
- SATA Ports:
4 for additional storage connectivity
- RGB LED connectors:
- 4 x NZXT RGB LED connectors
- 2 x 5V ARGB LED connectors for customizable lighting effects
Design
and Build
- Form Factor:
ATX for compatibility with a wide range of cases
- Color:
Black for a sleek, modern look
- Heatsink:
Integrated for effective thermal management
- Cable Management:
Front routing for a tidy setup
- ARGB Support:
Create custom lighting setups with integrated RGB connectors
Power
and Efficiency
- Approximate Power Consumption: 70W
- Designed to deliver power-efficient performance without
compromising on speed
Compatibility
and Warranty
- Operating System Support: Windows 10 and Windows 11
- CPU Compatibility:
Supports LGA1700 socket, compatible with Intel 12th, 13th, and
14th Gen Core Processors
- Warranty:
3-year warranty from Nzxt
Price
and Availability
The Nzxt N7 Z790 (Wi-Fi 6E)
motherboard is available for purchase at Computer Village Agrabad, Chattogram,
Bangladesh. For the latest pricing and availability, please check directly
at the store.
