Brand

MSI

Model

MSI Z890 GAMING PLUS (Wi-Fi 7)

Color

Black

CPU Data

Chipset Brand: Intel

Chipset: Intel Z890

Sockets Supported: LGA1851

Supported CPU: Intel Core Ultra Processors (Series 2)

Generation: Ultra

Memory Support

Memory Type: DDR5

Memory MHz: 9200 - 6400 (OC)MT/s/ 6400 - 4800 (JEDEC)MT/s

Memory Channel: Dual

Memory Slot: 4

Memory Max: 256GB

Storage Info

Storage Interface: 6.0Gb/s

M.2/SSD Expansion Slot: 4

M.2/SSD Expansion Slot Details: 4 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices)

Graphics Info

PCI Express Slot: 3 x PCI-E x16, 1x PCI-E x1 (PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset))

Audio & Video

Audio Chipset: Realtek ALC897 Codec

Audio Channel - 7.1

Network & Connectivity

LAN Chipset: Intel Killer E5000 5Gbps LAN

LAN Speed (Mbps): 10/ 100/ 1000/ 2500/ 5000Mbps

WiFi : Yes

WiFi Technology: Intel Killer BE1750x Wi-Fi 7 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth: Bluetooth 5.4

Ports Data

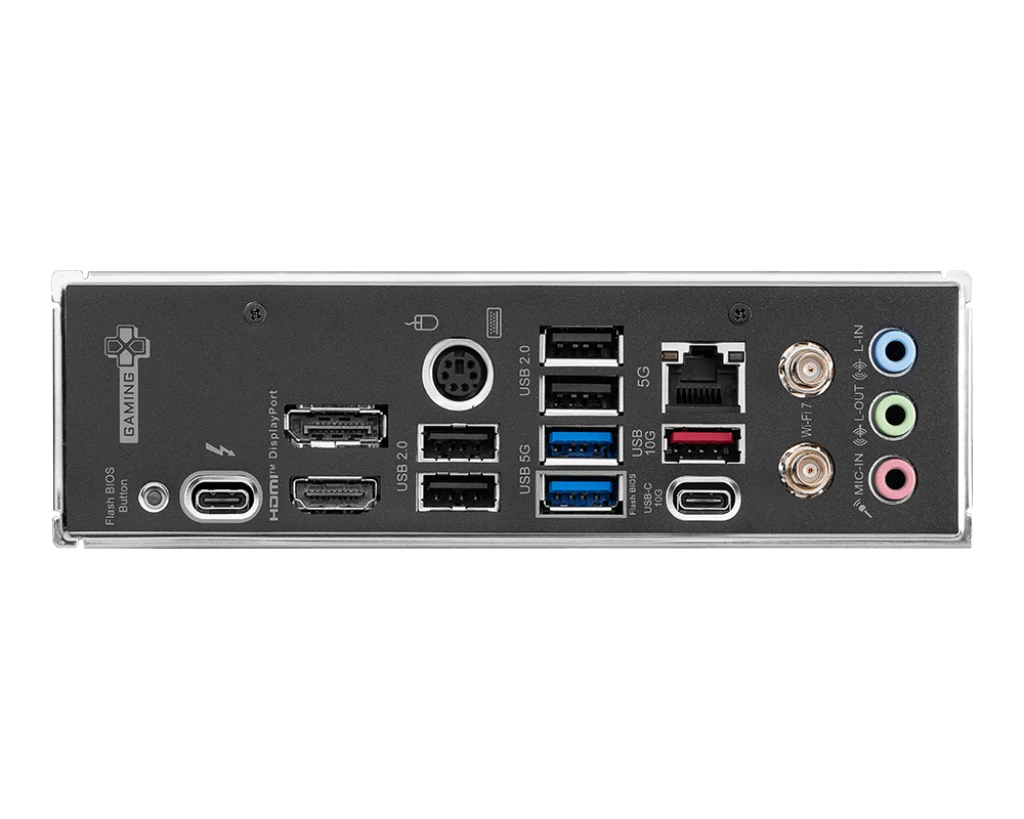

USB Port: 4 x USB 2.0, 2 x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1 x Thunderbolt 4 40Gbps (Type-C)

HDMI Port: 1

DisplayPort (DP): 1

SATA Port: 4 x SATA

Thunderbolt: 1

TPM Port: 1

Technical Data

Cable Management: Front

Heatsink: Yes

RGB Support: ARGB

RGB Connector: 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB)

Approx. Power Consumption: 70W

Form Factor: ATX

Compatibility

Supported Operating System: Windows 11

Warranty

3 Year

* Product may vary with different Kit or Version
