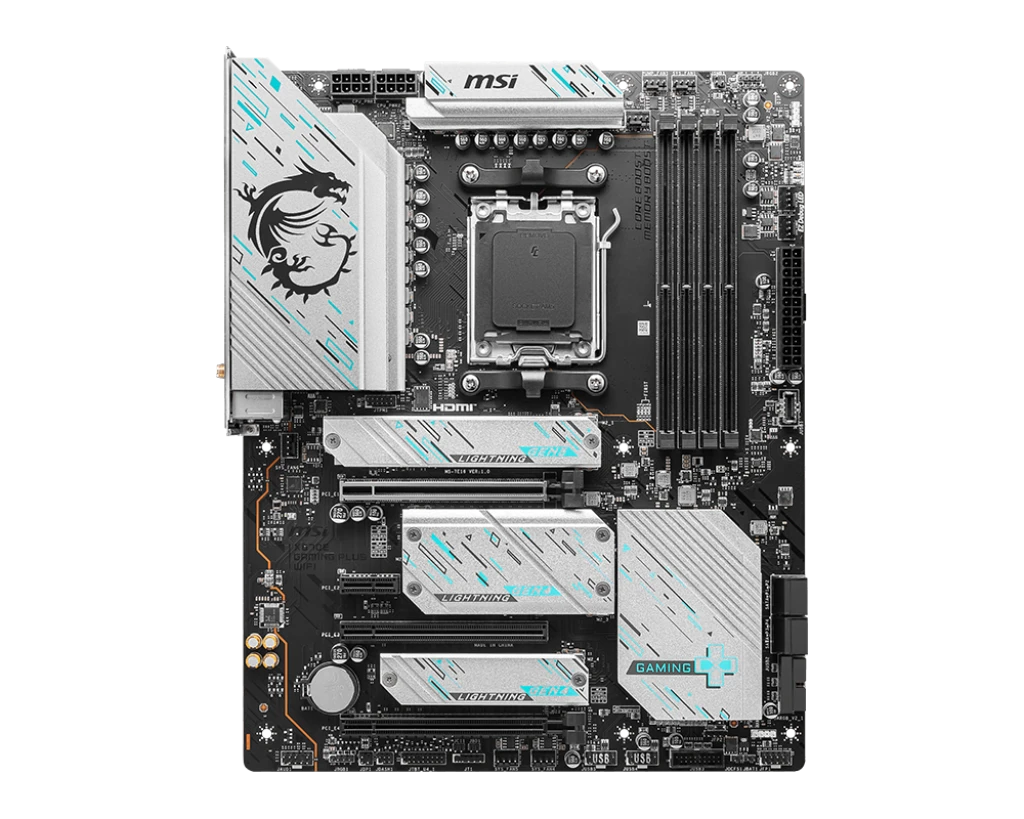

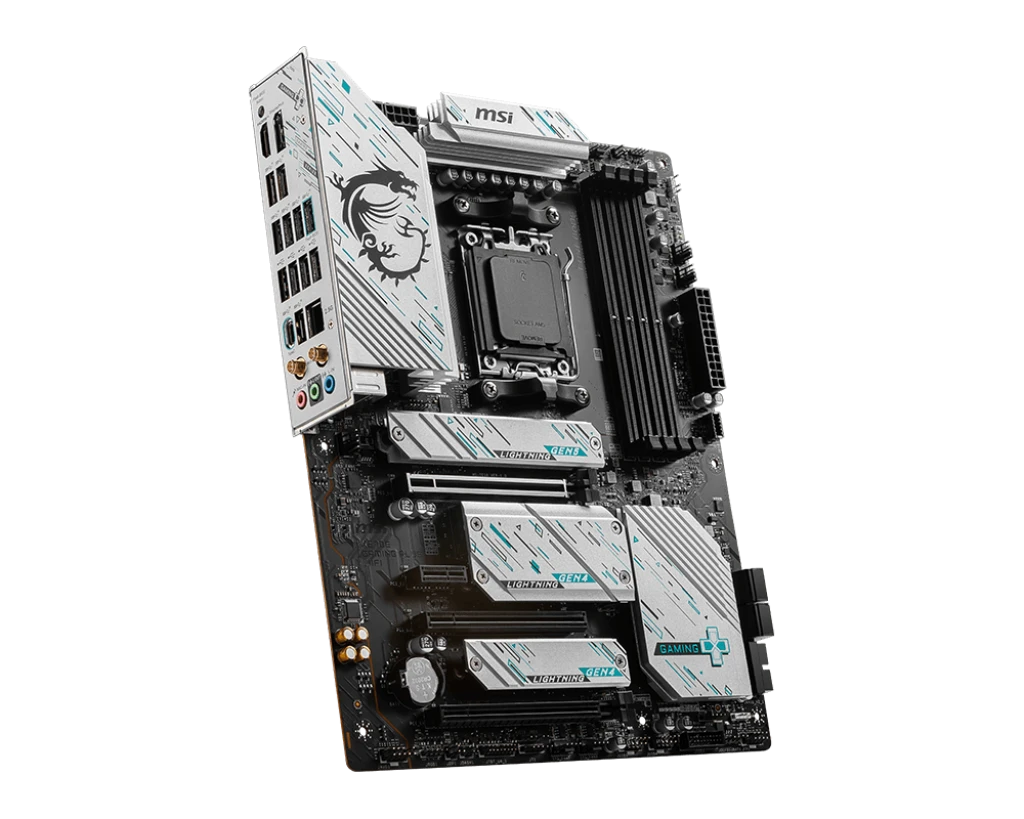

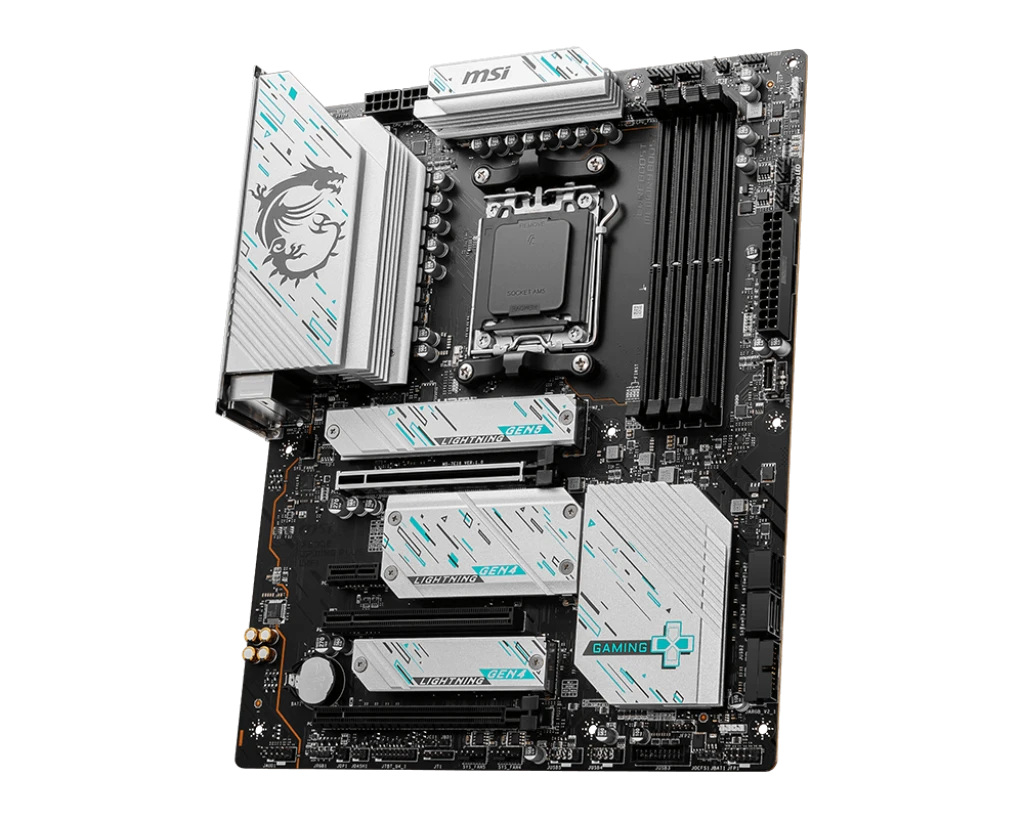

MSI X670E GAMING PLUS (Wi-Fi 6E) DDR5 AMD AM5 Socket Gaming Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI
X670E GAMING PLUS |
|
Color |
Black & Silver |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD X670 Sockets
Supported: AM5 Supported
CPU: AMD Ryzen 8000/ 7000 Series Desktop Processors Generation:
Not Applicable |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7800+(OC)/ 7600(OC)/ 7400(OC)/
7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz non-ECC,
un-buffered Memory Channel: Dual Memory Slot: 4 Memory Slot (Additional Info): 4 x DDR5
UDIMM Memory Max: 192GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 4 M.2/SSD
Expansion Slot Details: 4 x M.2 (1. supports up to PCIe 5.0 x4 , supports
22110/2280 devices, 2. supports up to PCIe 4.0 x4 , supports 2280/2260
devices, 3. supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 4.
supports up to PCIe 4.0 x4 , supports 2280/2260 devices. |
|
Graphics Info |
PCI Express Slot: 3 x PCI-E x16 slot, 1 x
PCI-E x1 slot |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8125BG LAN Speed (Mbps): 10/ 100/ 1000/ 2500Mbps WiFi : Yes WiFi Technology: AMD Wi-Fi 6E, 802.11 a/ b/
g/ n/ ac/ ax Bluetooth: Bluetooth 5.3 |
|
Ports Data |
USB
Port: 4 x USB 2.0 Type-A, 4 x USB 3.2 Gen 1 5Gbps Type-A, 3 x USB 3.2 Gen 2
10Gbps Type-A, 1 x USB 3.2 Gen 2x2 20Gbps Type-C HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 4 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 2 x Addressable V2 RGB LED
connector (JARGB_V2), 2 x RGB LED connector(JRGB) Approx. Power Consumption: 90W Form Factor: ATX |
|
Compatibility |
Supported
Operating System: Windows 11/10 64-bit Compatible
Products: AMD Ryzen 8000/ 7000 Series Desktop Processors |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
X670E GAMING PLUS ATX Motherboard
The MSI X670E GAMING PLUS
motherboard offers premium performance with the AMD X670 chipset and
support for the latest AMD Ryzen 7000/8000 series processors. It
features DDR5 memory, PCIe 5.0 support, and top-tier connectivity
options, making it an excellent choice for gamers and professionals who demand
cutting-edge technology.
Features
- AMD X670 chipset
with AM5 socket for AMD Ryzen 7000/8000 series processors
- DDR5 memory support
up to 192GB at speeds up to 7800+(OC) MHz
- Dual-channel memory
with 4 DIMM slots
- 7.1-channel audio
powered by Realtek ALC897 codec
- RGB support
for a customizable lighting experience with 2 x Addressable V2 RGB
connectors and 2 x RGB LED connectors
Storage
Options
- 4 x M.2 slots:
- 1 x PCIe 5.0 x4 (supports 22110/2280 devices)
- 2 x PCIe 4.0 x4 (supports 2280/2260 devices)
- 1 x PCIe 4.0 x4 (supports 2280/2260 devices)
- 4 x SATA 6Gb/s
ports for additional storage options
Graphics
& Expansion
- 3 PCIe slots:
- 3 x PCIe x16 slots for GPUs and expansion cards
- 1 x PCIe x1 slot for additional expansion
- Ideal for high-performance graphics cards and storage
devices
Connectivity
Options
- Realtek RTL8125BG 2.5Gbps LAN for faster wired internet
- AMD Wi-Fi 6E
(802.11 a/b/g/n/ac/ax) for high-speed wireless connections
- Bluetooth 5.3
for reliable wireless device connectivity

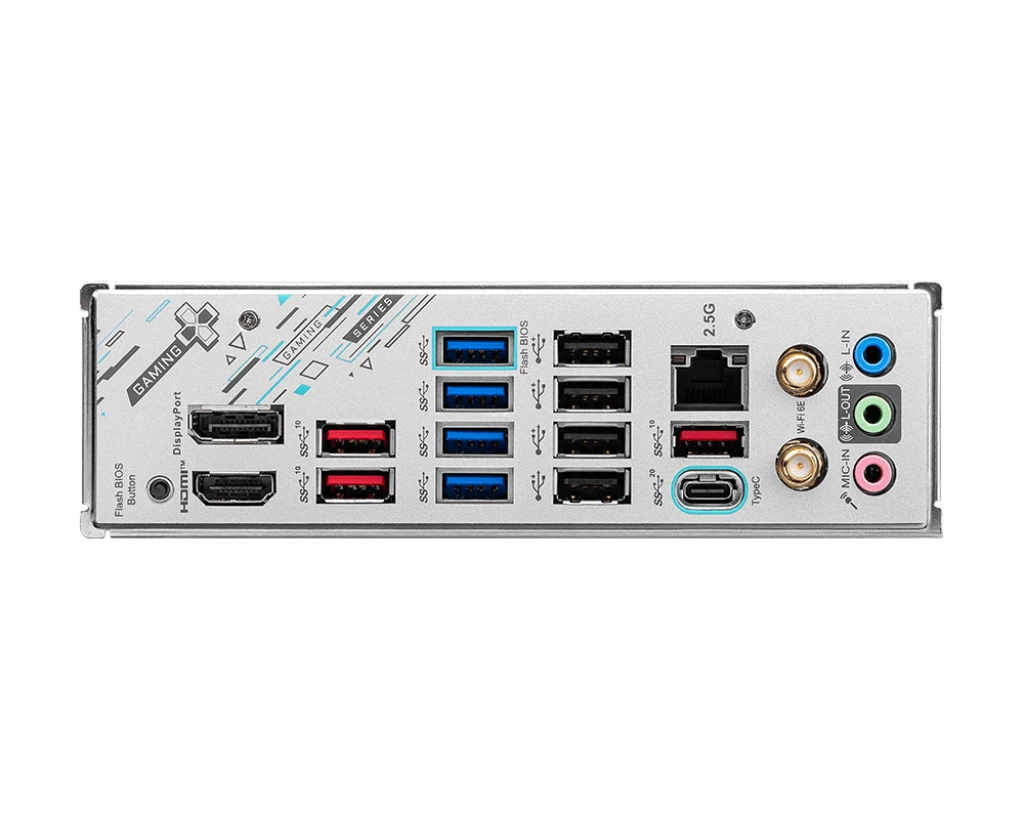

I/O
Ports
- 4 x USB 2.0 Type-A
- 4 x USB 3.2 Gen 1 5Gbps Type-A
- 3 x USB 3.2 Gen 2 10Gbps Type-A
- 1 x USB 3.2 Gen 2x2 20Gbps Type-C
- 1 x HDMI
and 1 x DisplayPort for external displays
- 4 x SATA 6Gb/s
ports for extra storage devices
Design
and Build
- ATX form factor
with sleek black & silver design
- Built-in heatsink for enhanced thermal
performance
- Front cable management system for a neat and tidy build
- ARGB
lighting support for a fully customizable aesthetic
Power
& Efficiency
- Approx. power consumption: 90W
- Designed to handle high-end processors and GPUs without
compromising power efficiency
Warranty
Information
- Comes with a 3-year warranty for peace of mind
and reliability
Price
and Availability
The MSI X670E GAMING PLUS
motherboard is available now at Computer Village Agrabad, Chattogram,
Bangladesh. It’s an excellent choice for those looking for a
high-performance, feature-packed motherboard for gaming, content creation, and
professional use.
