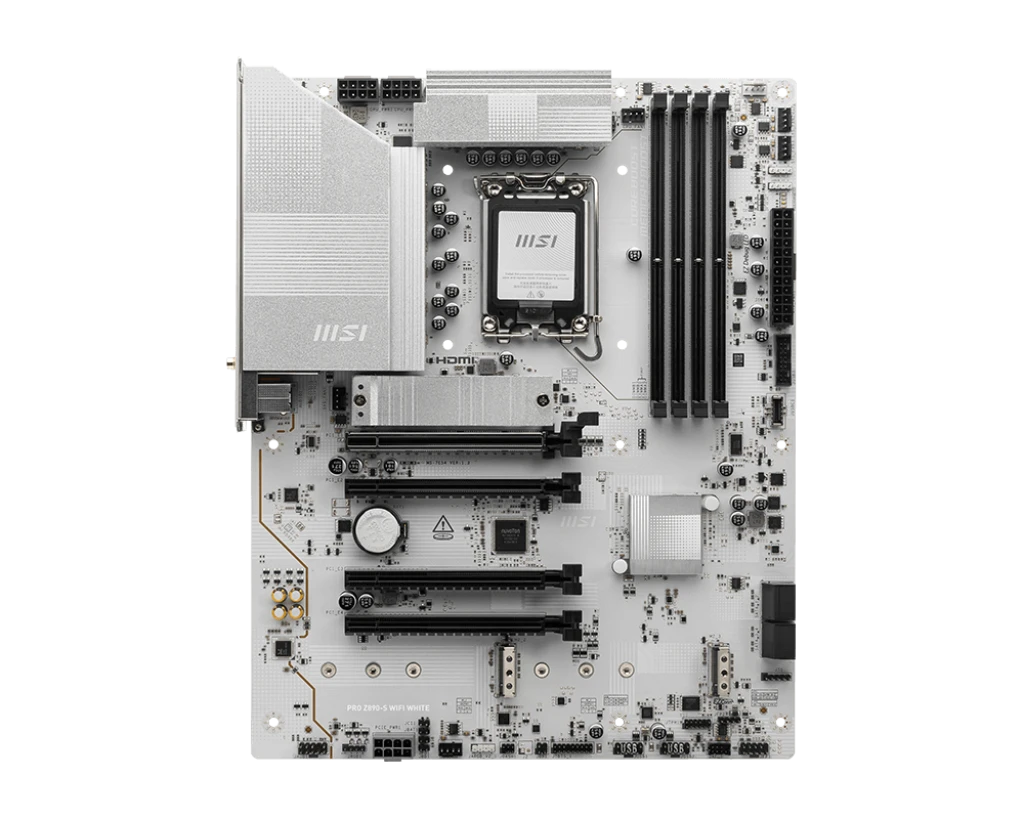

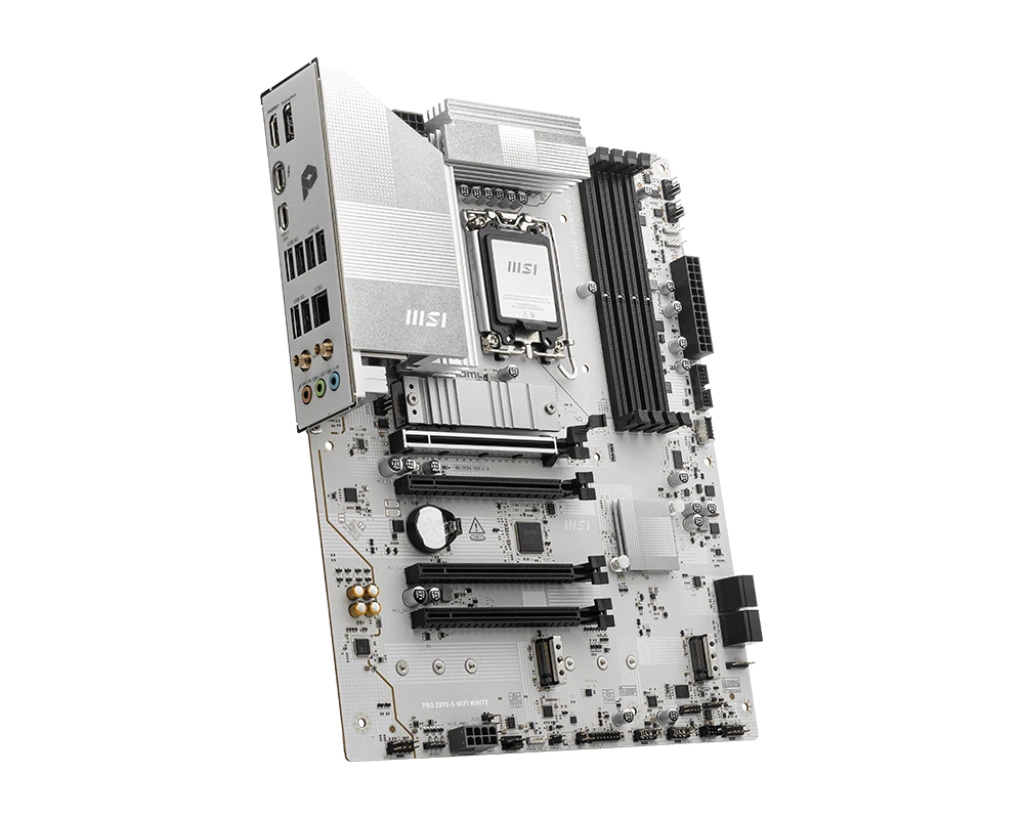

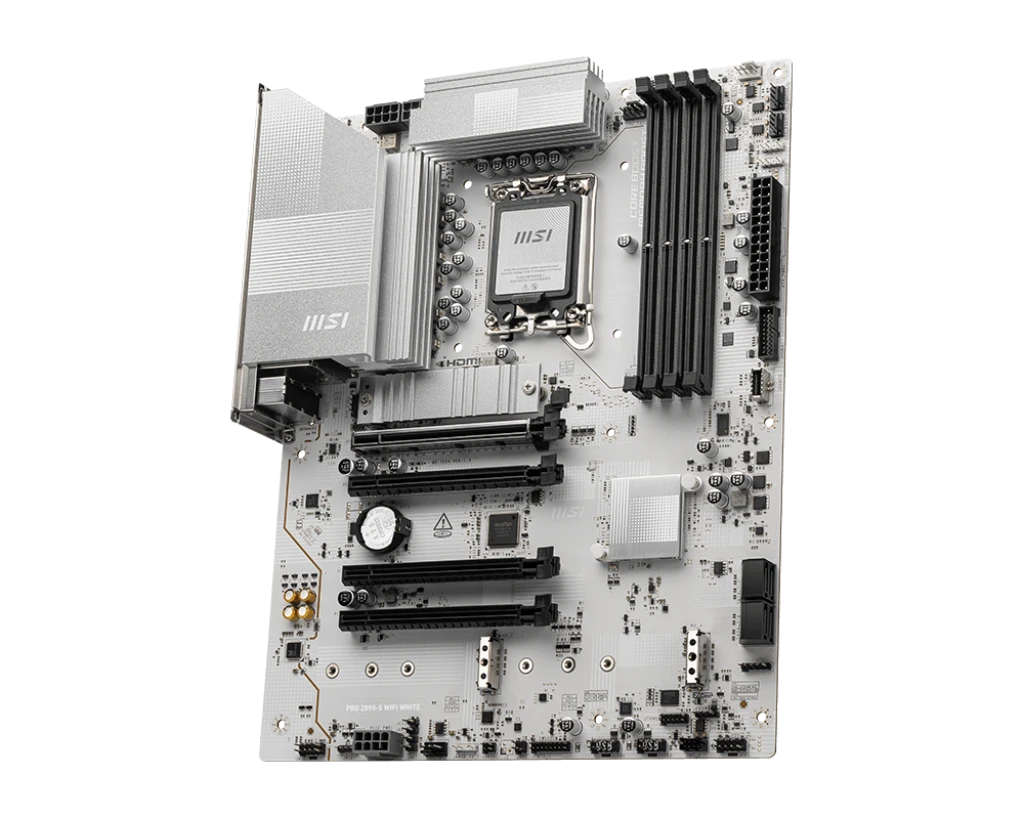

MSI PRO Z890-S (Wi-Fi 7) DDR5 White (Intel Core Ultra LGA1851 Socket) ATX Motherboard #PRO Z890-S WIFI WHITE
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO Z890-S (Wi-Fi 7) |
|
Color |
White |
|
CPU Data |
Chipset Brand: Intel Chipset: Intel B860 Sockets Supported: LGA1851 Built-in Processor: N/A Supported CPU: Intel Core Ultra
Processors (Series 2) Generation: Ultra |
|
Memory
Support |
Memory Type: DDR5 Memory MHz: 8800(O.C)/ 8600(O.C)/ 8400(O.C)/
8266(O.C)/ 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C)/ 7800(O.C)/ 7600(O.C.)/
7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400/ 6200/ 6000/
5800/ 5600MHz ECC, non-ECC Un-buffered DIMM. Memory Channel: Dual Memory Slot: 3 Memory Max: 256GB |
|
Storage Info |
Storage Interface: 6.0Gb/s M.2/SSD Expansion Slot: 4 M.2/SSD Expansion : 3 x M.2 Slot (1 x
M.2 type 2280/2260/2242 supports up to PCIe 5.0 x4, 1 x M.2 type
2280/2260/2242 supports up to PCIe 4.0 x4, 1 x M.2 type 2280/2260/2242
supports up to PCIe 4.0 x4 / SATA) |
|
Graphics
Info |
Multi-GPU Support: N/A PCI Express Slot: 4 x PCI-E x16 slot |
|
Audio & Video |
Audio Chipset: Realtek 8125D Audio Channel – 7.1 |
|
Network
& Connectivity |
LAN Chipset: Realtek 8126 5Gbps LAN LAN Speed (Mbps): 10/ 100/ 1000/ 2500/ 5000Mbps WiFi: Yes WiFi Technology: Wi-Fi 7 Bluetooth: Bluetooth 5.4 |
|
Ports Data |

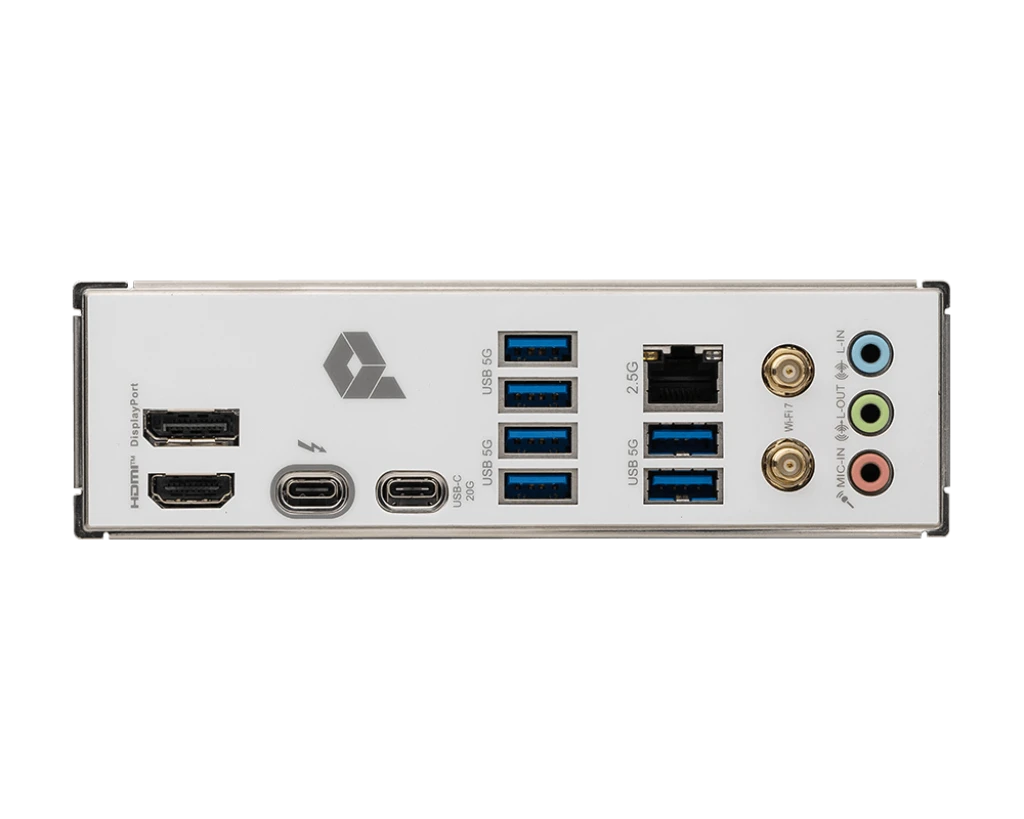

USB Port: 4 x USB 5Gbps Type-A, 1 x USB
20Gbps Type-C, 2 x USB 5Gbps Type-A VGA Port: N/A HDMI Port: 1 Display: 1 SATA Port: 4 Thunderbolt: 1 TPM Port: 1 |
|
Technical
Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 3x Addressable V2 RGB LED
connector (JARGB_V2), 1x RGB LED connector(JRGB) Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported Operating System: Windows 11 Supported Operating System: Compatible
with LGA1851 Core Ultra Processors (Series 2) |
|
Warranty |
3 year |
|
* Product
may vary with different Kit or Version |
|
Product Details
MSI
PRO Z890-S ATX (Wi-Fi 7) Motherboard
The MSI PRO Z890-S ATX
motherboard is designed for professionals and enthusiasts who require
cutting-edge performance and connectivity. With Intel Core Ultra (Series 2)
processor support, Wi-Fi 7, and DDR5 memory compatibility, this motherboard
is built for speed and stability. It offers four M.2 slots for fast
storage expansion, Wi-Fi 7 technology, and enhanced Bluetooth 5.4
support, making it perfect for high-performance builds. The white color
design gives it a sleek, modern look, adding both functionality and
aesthetic appeal to any setup.
Features
- Intel B860 Chipset
designed for Intel Core Ultra (Series 2) processors
- LGA1851 Socket
compatibility for Intel Core Ultra Processors (Series 2)
- DDR5 Memory
support with speeds ranging from 5600 MHz to 8800 MHz
(overclocked)
- Dual Channel Memory Architecture for improved memory bandwidth
- Wi-Fi 7
technology for ultra-fast, next-gen wireless performance
- Bluetooth 5.4
for high-speed wireless data transfer and device connection
- ARGB Support
with customizable RGB lighting for a personalized look
Storage
and Expansion
- 3 x M.2 Slots
for high-speed storage devices:
- M.2_1
supports PCIe 5.0 x4 for 2280/2260/2242 devices
- M.2_2
supports PCIe 4.0 x4 for 2280/2260/2242 devices
- M.2_3
supports PCIe 4.0 x4 / SATA for 2280/2260/2242 devices
- 4 x SATA 6Gb/s
ports for additional storage drives
Graphics
and Display
- 4 x PCI-E x16 slots
for flexible GPU and expansion card options
- 1 x HDMI Port
for display output to compatible monitors
Audio
and Video
- Realtek 8125D
chipset for superior 7.1-channel audio performance
- Ideal for gaming, content creation, and immersive
multimedia experiences
Network
and Connectivity
- Realtek 8126 5Gbps LAN Chipset for high-speed wired networking
- USB Ports:
- 4 x USB 5Gbps Type-A
- 1 x USB 20Gbps Type-C
- 2 x USB 5Gbps Type-A
- 1 x Thunderbolt 4 (40Gbps) Type-C for high-speed data transfer and external
device support
- SATA Ports:
4
- TPM Header
for enhanced security features
Design
and Build
- Form Factor:
ATX for full-sized cases
- Color:
Elegant white design that complements modern setups
- RGB Support:
- 3 x Addressable V2 RGB connectors (JARGB_V2)
- 1 x RGB LED connector (JRGB)
- Integrated Heatsinks
for efficient cooling
- Cable Management:
Front routing for easy organization
Power
and Efficiency
- Approximate Power Consumption: 70W
- Designed for efficient power usage while maintaining
top-tier performance
Compatibility
and Warranty
- Operating System Support: Windows 11
- CPU Compatibility:
Compatible with Intel Core Ultra Processors (Series 2) on LGA1851
- Warranty:
3-year warranty from MSI
Price
and Availability
The MSI PRO Z890-S ATX (Wi-Fi 7)
motherboard is available for purchase at Computer Village Agrabad, Chattogram,
Bangladesh. For the latest pricing and availability, please check directly
at the store.
