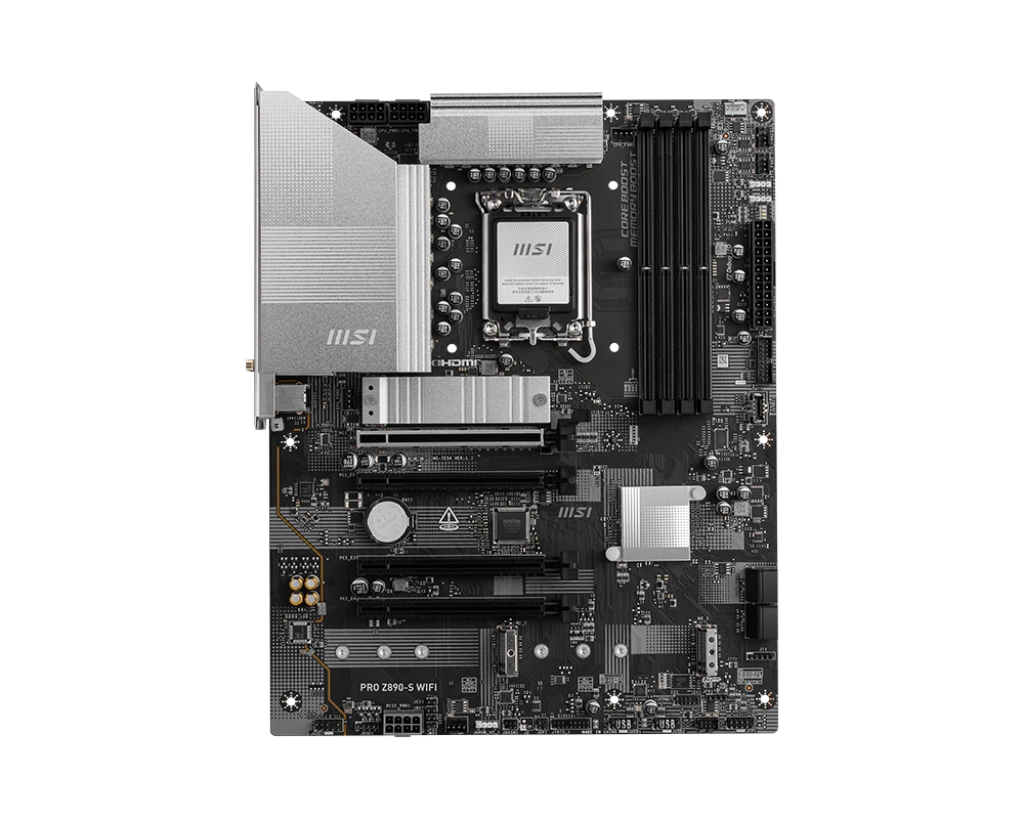

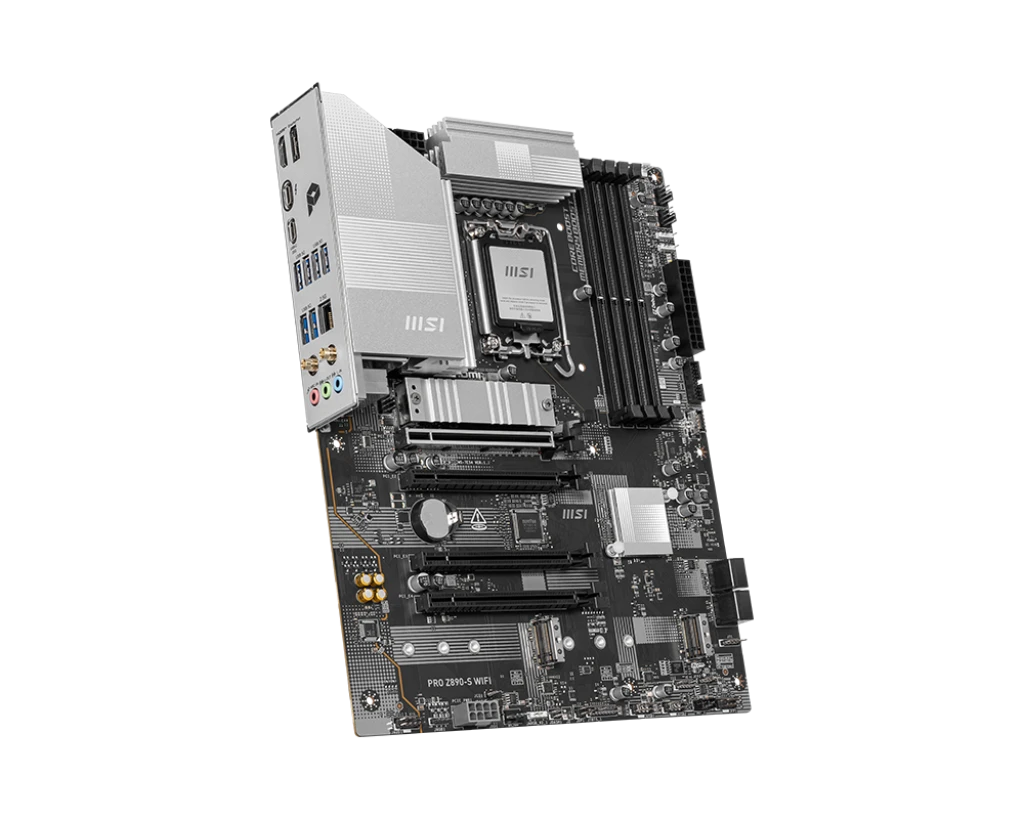

MSI PRO Z890-S (Wi-Fi 7) DDR5 Black (Intel Core Ultra LGA1851 Socket) ATX Motherboard #PRO Z890-S WIFI
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO Z890-S (Wi-Fi 7) |
|
Color |
Black |
|
CPU Data |
Chipset Brand: Intel Chipset: Intel B860 Sockets Supported: LGA1851 Built-in Processor: N/A Supported CPU: Intel Core Ultra
Processors (Series 2) Generation: Ultra |
|
Memory
Support |
Memory Type: DDR5 Memory MHz: 8800(O.C)/ 8600(O.C)/ 8400(O.C)/
8266(O.C)/ 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C)/ 7800(O.C)/ 7600(O.C.)/
7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400/ 6200/ 6000/
5800/ 5600MHz ECC, non-ECC Un-buffered DIMM. Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage Info |
Storage Interface: 6.0Gb/s M.2/SSD Expansion Slot: 3 M.2/SSD Expansion : 3 x M.2 Slot (1 x
M.2 type 2280/2260/2242 supports up to PCIe 5.0 x4, 1 x M.2 type
2280/2260/2242 supports up to PCIe 4.0 x4, 1 x M.2 type 2280/2260/2242
supports up to PCIe 4.0 x4 / SATA) |
|
Graphics
Info |
Multi-GPU Support: N/A PCI Express Slot: 4 x PCI-E x16 slot |
|
Audio & Video |
Audio Chipset: REALTEK ALC897 Codec Audio Channel – 7.1 |
|
Network
& Connectivity |
LAN Chipset: Realtek 8125D LAN Speed (Mbps): 10/ 100/ 1000/ 2500/ 5000Mbps WiFi: Yes WiFi Technology: Wi-Fi 7 Bluetooth: Bluetooth 5.4 |
|
Ports Data |
USB Port: 4 x USB 5Gbps Type-A, 1 x USB
20Gbps Type-C, 2 x USB 5Gbps Type-A VGA Port: N/A HDMI Port: 1 Display: 1 SATA Port: 4 Thunderbolt: 1 TPM Port: 1 |
|
Technical
Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 3x Addressable V2 RGB LED
connector (JARGB_V2), 1x RGB LED connector(JRGB) Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported Operating System: Windows 11 Supported Operating System: Compatible
with LGA1851 Core Ultra Processors (Series 2) |
|
Warranty |
3 year |
|
* Product
may vary with different Kit or Version |
|
Product Details
MSI
PRO Z890-S ATX (Wi-Fi 7) Motherboard
The MSI PRO Z890-S ATX is a
robust, high-performance motherboard designed to meet the demands of
professional users, content creators, and gamers. With support for the Intel
Core Ultra (Series 2) processors and the latest Wi-Fi 7 technology,
this motherboard delivers exceptional performance and connectivity. It offers
superior memory support, including DDR5 with overclocking, and expands
storage options with multiple M.2 slots and PCIe 5.0. With Realtek
ALC897 audio, 7.1-channel sound, and advanced RGB support, the MSI
PRO Z890-S is a versatile choice for any powerful setup.
Features
- Intel B860 Chipset
for optimal performance with Intel Core Ultra (Series 2) processors
- LGA1851 Socket
compatible with Intel Core Ultra Processors (Series 2)
- DDR5 Memory
support up to 256GB with overclocking capabilities up to 8800
MHz
- Dual Channel Memory Architecture for enhanced processing speed
- Wi-Fi 7
support for faster and more reliable wireless connections
- Bluetooth 5.4
for improved device compatibility
- Thunderbolt 4 (40Gbps) for ultra-fast external connectivity
Storage
and Expansion
- 3 x M.2 Slots:
- 1 x PCIe 5.0 x4
(supports 2280/2260/2242 devices)
- 2 x PCIe 4.0 x4
(supports 2280/2260/2242 devices)
- 1 x PCIe 4.0 x4 / SATA (supports 2280/2260/2242 devices)
- 4 x SATA 6Gb/s
ports for additional storage options
Graphics
and Display
- 4 x PCI-E x16 Slots
for expansion cards and additional GPUs
- 1 x HDMI Port
for display output
Audio
and Video
- Realtek ALC897 Codec
for high-quality 7.1-channel audio
- Ideal for immersive sound in gaming, movies, and
professional applications
Network
and Connectivity
- LAN Chipset:
Realtek 8125D with support for 5Gbps Ethernet speeds

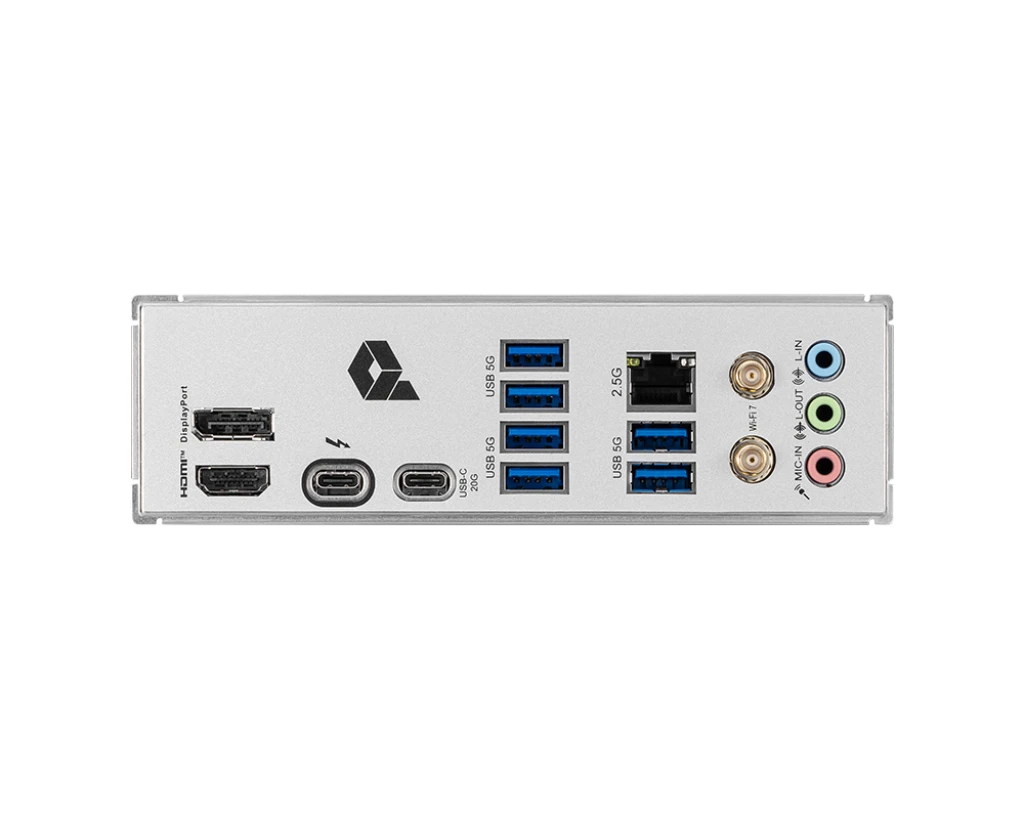

- USB Ports:
- 4 x USB 5Gbps Type-A
- 1 x USB 20Gbps Type-C
- 2 x USB 5Gbps Type-A
- SATA Ports:
4
- 1 x HDMI Port
for video output
- Thunderbolt 4
for fast data and device connections
- TPM Header:
1 for enhanced security
Design
and Build
- Form Factor:
ATX for full-sized cases
- Color:
Sleek black design for a professional and modern aesthetic
- RGB Support:
- 3 x Addressable V2 RGB connectors (JARGB_V2)
- 1 x RGB LED connector (JRGB)
- Integrated Heatsinks
for optimal thermal management
- Cable Management:
Front cable routing for a clean setup
Power
and Efficiency
- Approximate Power Consumption: 70W
- Provides efficient energy usage while maintaining high
performance
Compatibility
and Warranty
- Operating System Support: Windows 11
- CPU Compatibility:
Compatible with Intel Core Ultra Processors (Series 2) on LGA1851
- Warranty:
3-year warranty from MSI
Price
and Availability
The MSI PRO Z890-S ATX (Wi-Fi 7)
motherboard is available for purchase at Computer Village Agrabad, Chattogram,
Bangladesh. Please inquire at the store for the latest pricing and
availability details.
