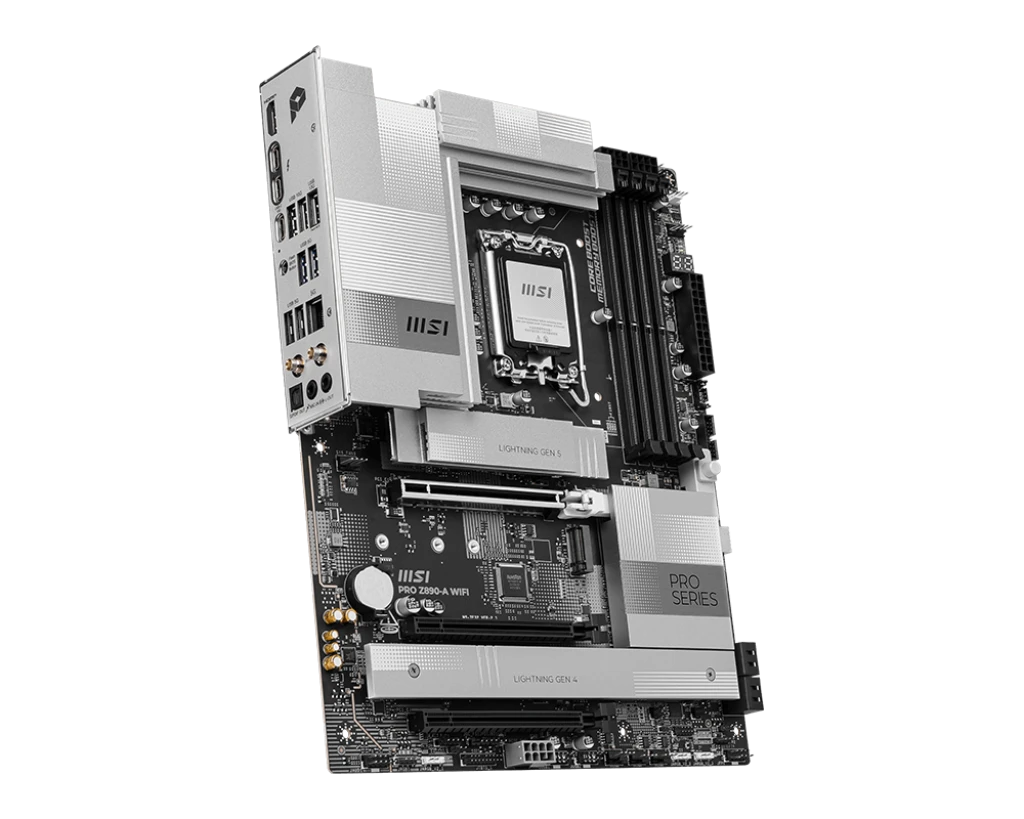

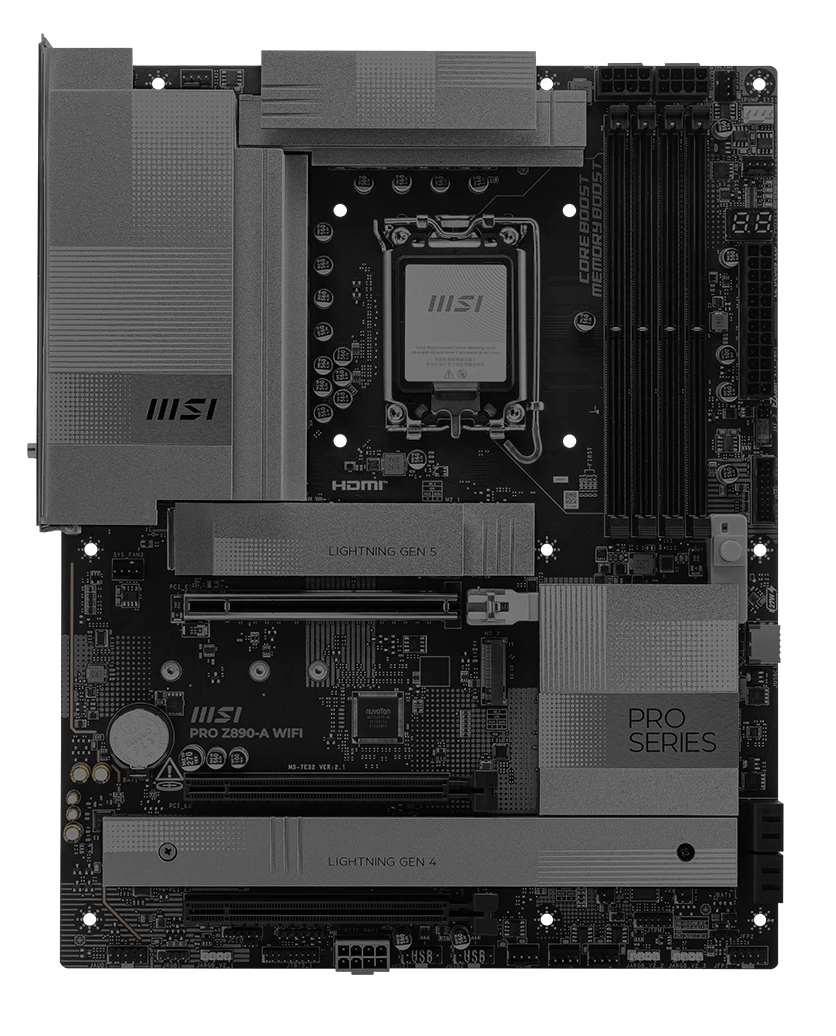

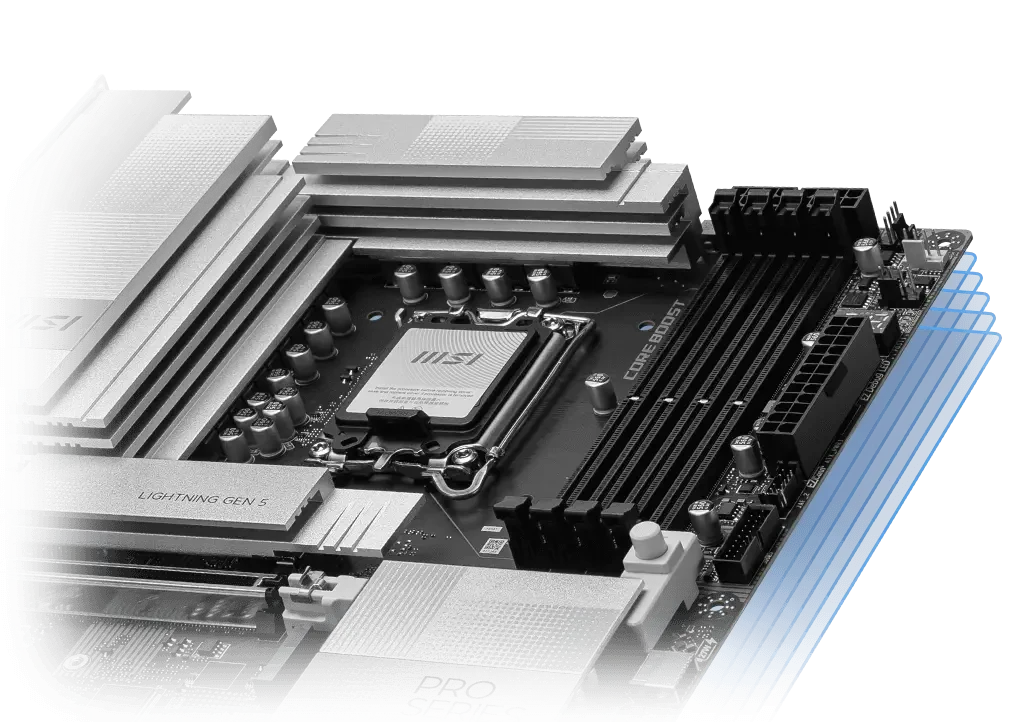

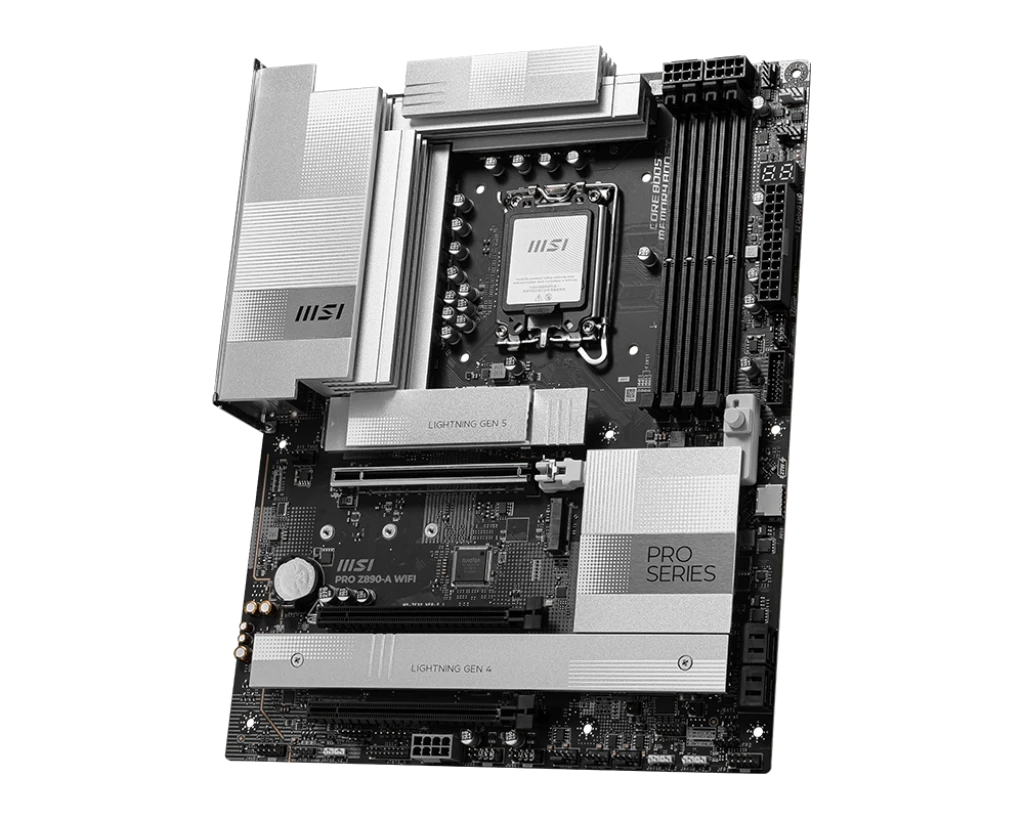

MSI PRO Z890-A (Wi-Fi 7) DDR5 Intel Motherboard
Key Specification
‣ Chipset - Intel Z890
‣ Sockets Supported - LGA1851
‣ Supported CPU - Intel Core Ultra Processors (Series 2)
‣ Generation - Ultra
‣ Memory Slot - 4
‣ Memory Max - 256GB
‣ Form Factor - ATX
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO
Z890-A (Wi-Fi 7) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel Z890 Sockets
Supported: LGA1851 Supported
CPU: Intel Core Ultra Processors (Series 2) Generation:
Ultra |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 9200 - 6400 (OC)MT/s/ 6400 -
4800 (JEDEC)MT/s Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 4 M.2/SSD
Expansion Slot Details: 4 x M.2 (M.2_1 Source (From CPU) supports up to PCIe
5.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to
PCIe 4.0 x4 , supports 22110/2280/2260 devices, M.2_3 Source (From Chipset)
supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_4 Source
(From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports
2280/2260/2242 devices) |
|
Graphics Info |
PCI Express Slot: 3 x PCI-E x16 (PCI_E1 Gen
PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 4.0 supports up to x4
(From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC1220P Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 8126 5Gbps LAN LAN Speed (Mbps): 10/ 100/ 1000/ 2500/
5000Mbps WiFi : Yes WiFi Technology: Intel Wi-Fi 7 802.11 a/ b/
g/ n/ ac/ ax/ be Bluetooth: Bluetooth 5.4 |
|

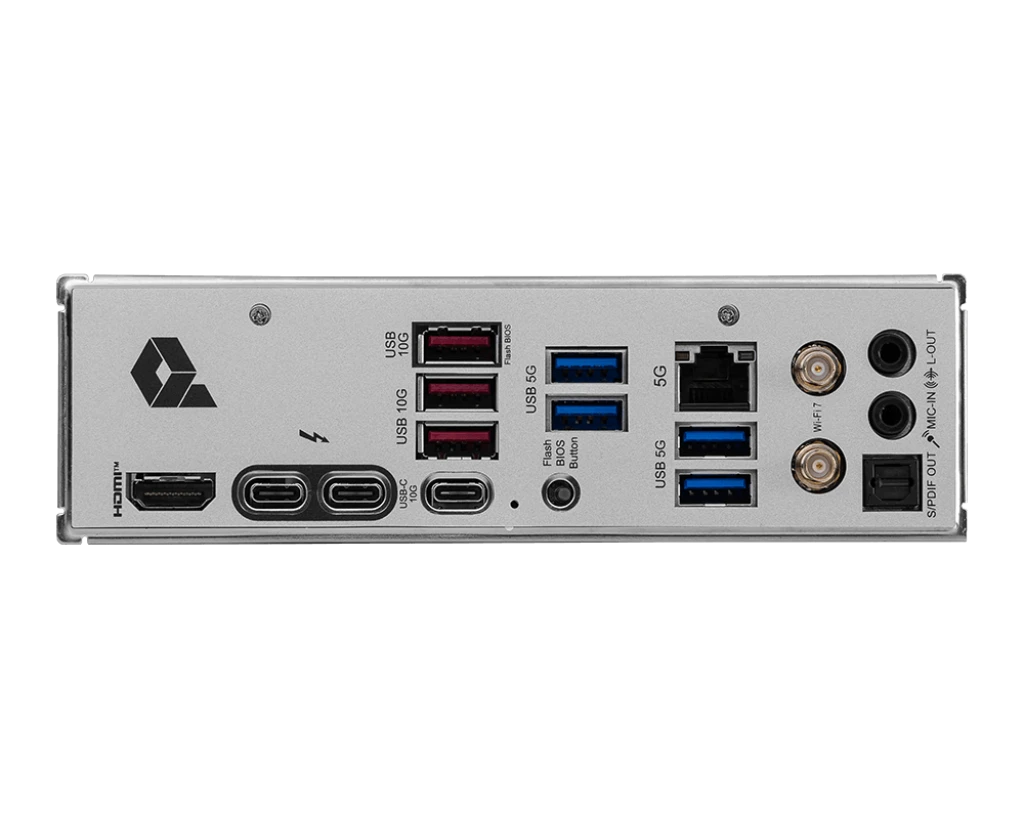

Ports Data |
USB
Port: 4 x USB 5Gbps Type-A, 3 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C HDMI
Port: 1 SATA
Port: 4 x SATA Thunderbolt:
2 TPM
Port: 1 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 3 x Addressable V2 RGB LED
connector (JARGB_V2), 1x RGB LED connector (JRGB) Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported
Operating System: Windows 11 |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
PRO Z890-A (Wi-Fi 7) ATX Motherboard
The MSI PRO Z890-A (Wi-Fi 7)
is a top-tier Intel Z890 chipset motherboard designed for Intel Core
Ultra Processors (Series 2). Featuring cutting-edge Wi-Fi 7 support
and DDR5 memory compatibility, this motherboard is tailored for
professionals and enthusiasts seeking high performance, robust features, and
future-proof connectivity.
Features
- Intel Z890 chipset
with LGA1851 socket for Intel Core Ultra Processors (Series 2)
- DDR5 memory
support with speeds ranging from 9200 MT/s (OC) to 4800 MT/s
(JEDEC)
- Dual-channel memory architecture with 4 DIMM slots,
supporting up to 256GB
- Realtek ALC1220P
audio codec for 7.1 channel high-definition audio
Storage
Options
- 4 x M.2 slots
for high-speed storage:
- 2 x PCIe 5.0 x4
slots (supports 2280/2260 devices from the CPU)
- 2 x PCIe 4.0 x4
slots (supports 2280/2260/2242 devices from the chipset)
- 4 x SATA 6Gb/s
ports for additional storage devices
Graphics
& Expansion
- 3 x PCIe x16 slots
for GPUs and expansion cards, with support for PCIe 5.0 and PCIe 4.0
- PCI_E1 Gen PCIe 5.0
supports up to x16 from the CPU
- PCI_E2/PCI_E3 Gen PCIe 4.0 supports up to x4
Connectivity
Options
- 1 x Realtek 5G Ethernet LAN for reliable wired networking
- Intel Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) for high-speed wireless connectivity
- Bluetooth 5.4
for wireless peripherals
- USB Ports:
- 4 x USB 5Gbps Type-A,
3 x USB 10Gbps Type-A, and 1 x USB 10Gbps Type-C
- HDMI
and Thunderbolt 4 for display and data transfer
- TPM port
for enhanced security
Design
and Build
- ATX form factor
for full-sized builds with solid performance
- Front cable management for neat and organized system builds
- Heatsinks
included for better thermal performance during intensive tasks
- ARGB RGB support
for customizable lighting effects
Power
& Efficiency
- Approximate power consumption: 70W
- Efficient power delivery for reliable operation of high-end processors and GPUs
Warranty
Information
- 3-year warranty
for long-term durability and peace of mind
Price
and Availability
The MSI PRO Z890-A (Wi-Fi 7)
motherboard is available for purchase at Computer Village Agrabad, Chattogram,
Bangladesh, catering to those looking to build high-performance Intel-based
systems.
