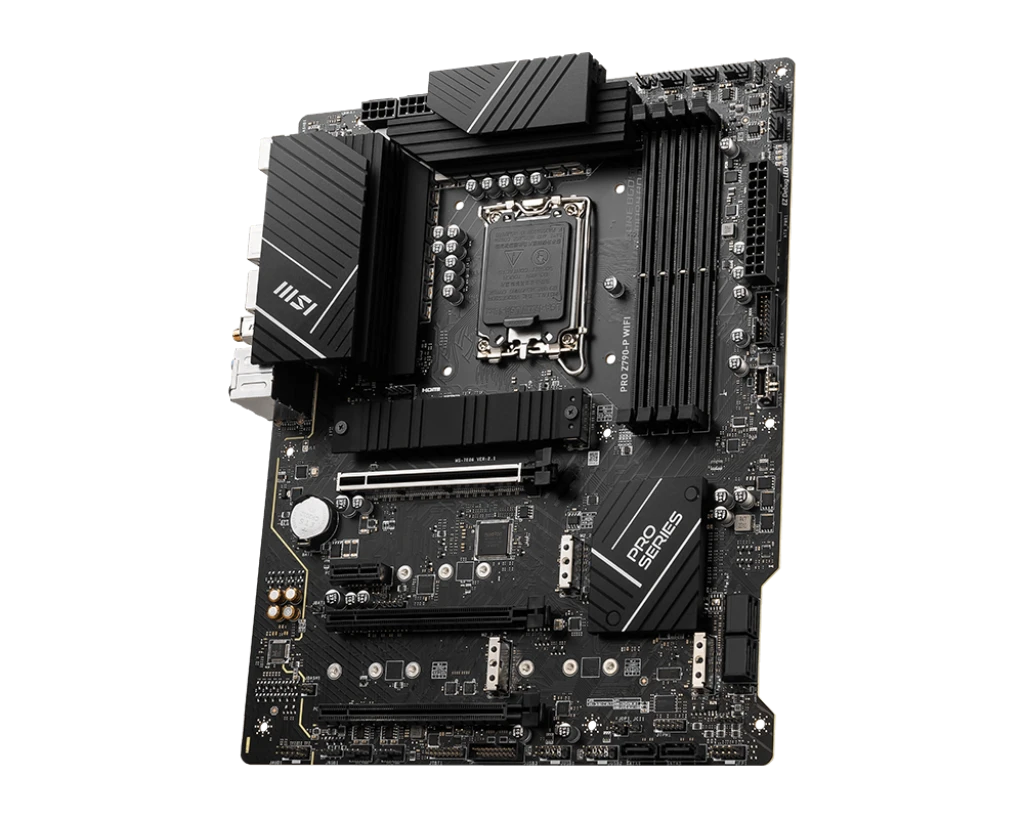

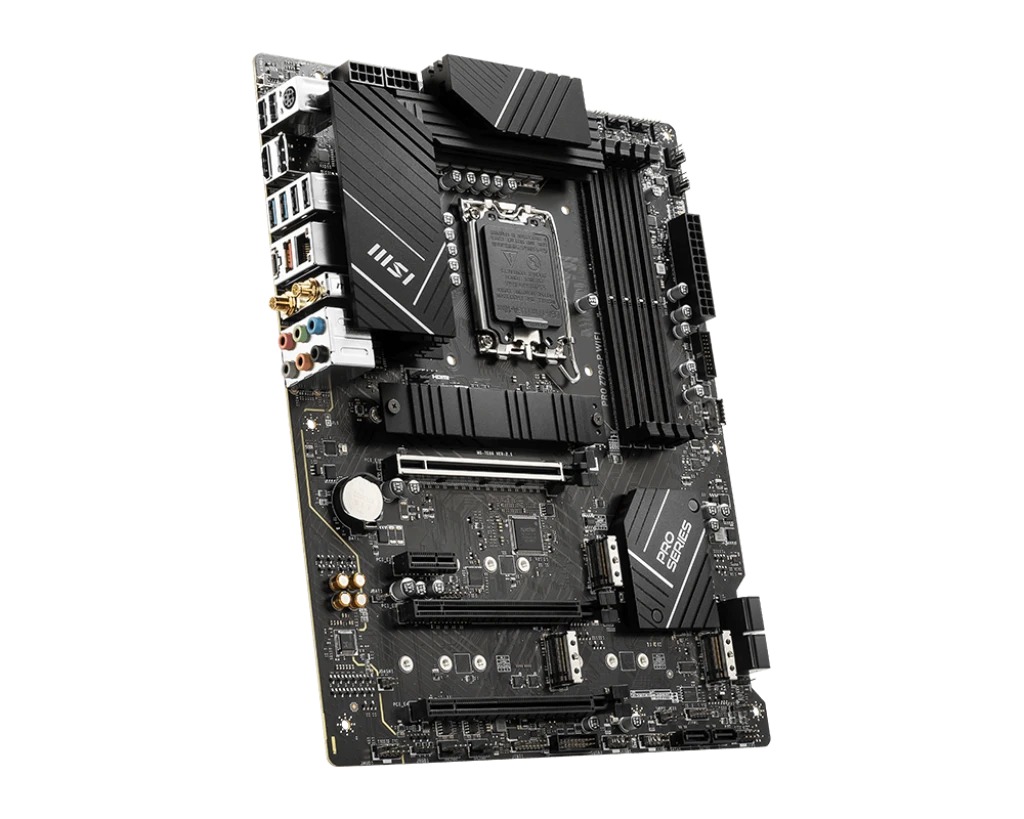

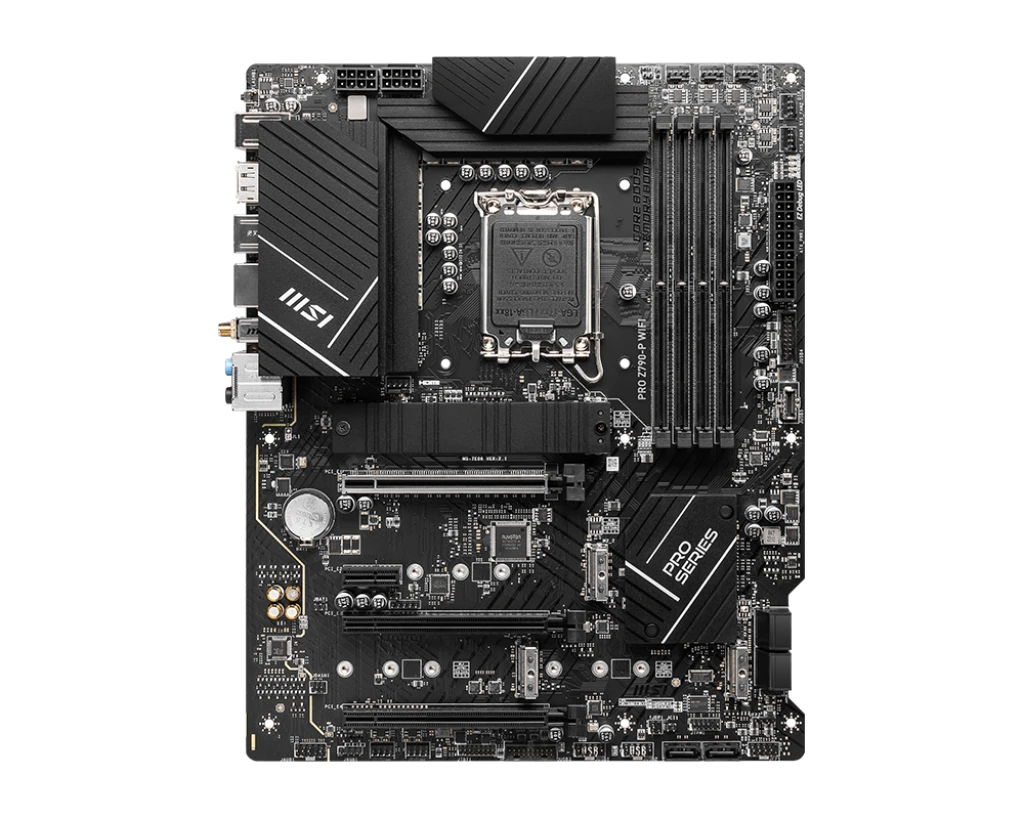

MSI PRO Z790-P (Wi-Fi 6E) DDR5 Intel LGA1700 Socket Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
Msi PRO
Z790-P (Wi-Fi 6E) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel Z790 Sockets
Supported: LGA1700 Supported
CPU: 12th/13th/14th Gen Intel Core, Pentium Gold and Celeron Processors Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7000+(OC)/ 6800(OC)/ 6600(OC)/
6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/
5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)MHz non-ECC & Un-buffered Memory Memory Channel: Dual Memory Slot: 4 Memory Slot (Additional Info): Supports
Intel® XMP3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports
non-ECC, un-buffered memory. Memory Max: 128GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 4 M.2/SSD
Expansion Slot Details: 4 x M.2 (1 x M.2, PCIe 4.0 x4, supports
22110/2280/2260/2242), (1 x M.2, PCIe 4.0 x4, supports 2280/2260/2242), (2 x
M.2, PCIe 4.0 x4 / SATA, supports 2280/2260/2242) |
|
Graphics Info |
PCI Express Slot: 1 x PCIe 5.0 x16 slot, 1 x
PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Intel 2.5Gbps LAN LAN Speed (Mbps): 10/100/1000/2500Mbps WiFi : Yes WiFi Technology: Intel Wi-Fi 6E, MU-MIMO
TX/RX, 2.4GHz / 5GHz / 6GHz Bluetooth: Bluetooth 5.2 |
|
Ports Data |
USB
Port: 4 x USB 2.0 Type-A, 2 x USB 3.2 Gen1 Type A, 1 x USB 3.2 Gen2 Type A, 1
x USB 3.2 Gen 2 Type-C HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 6 x SATA TPM
Port: 1 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 2 x Addressable V2 RGB LED
connector (JARGB_V2), 1x RGB LED connector(JRGB) Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported
Operating System: Windows 11/ 10 Compatible
Products: LGA1700 Socket 14th, 13th and 12th Generation Intel Core, Pentium
Gold and Celeron Intel Processors. |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
PRO Z790-P ATX Motherboard (Wi-Fi 6E)
The MSI PRO Z790-P is
engineered for professionals, content creators, and PC builders seeking
performance, expandability, and reliability. Built on the powerful Intel
Z790 chipset, it supports 12th, 13th, and 14th Gen Intel Core processors,
DDR5 memory, and advanced Wi-Fi 6E connectivity. With robust
storage options, future-ready PCIe 5.0 slots, and efficient power delivery,
it’s designed to power high-end systems with ease.
Features
- Supports 12th, 13th & 14th Gen Intel Core,
Pentium Gold & Celeron processors
- Intel Z790 chipset
with LGA1700 socket
- DDR5 support
up to 7000+(OC) MHz
- Supports Dual-Channel architecture with 4
DIMM slots, up to 128GB
- Optimized for Intel® XMP 3.0 OC profiles
- Realtek ALC897 Codec
delivers 7.1-channel HD audio
- Compatible with Windows 10 and 11
Storage
Options
- 4 x M.2 slots
- 1 x PCIe 4.0 x4 (22110/2280/2260/2242)
- 1 x PCIe 4.0 x4 (2280/2260/2242)
- 2 x PCIe 4.0 x4 / SATA (2280/2260/2242)
- 6 x SATA 6Gb/s ports
for additional storage
Graphics
& Expansion
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x16 slot
- 2 x PCIe 3.0 x1 slots
- Offers superior GPU bandwidth and multi-expansion
card support
Connectivity
Options
- Intel Wi-Fi 6E
with MU-MIMO and Tri-band (2.4GHz / 5GHz / 6GHz)
- Bluetooth 5.2
for modern wireless peripherals
- Intel 2.5Gbps LAN
for faster wired connections

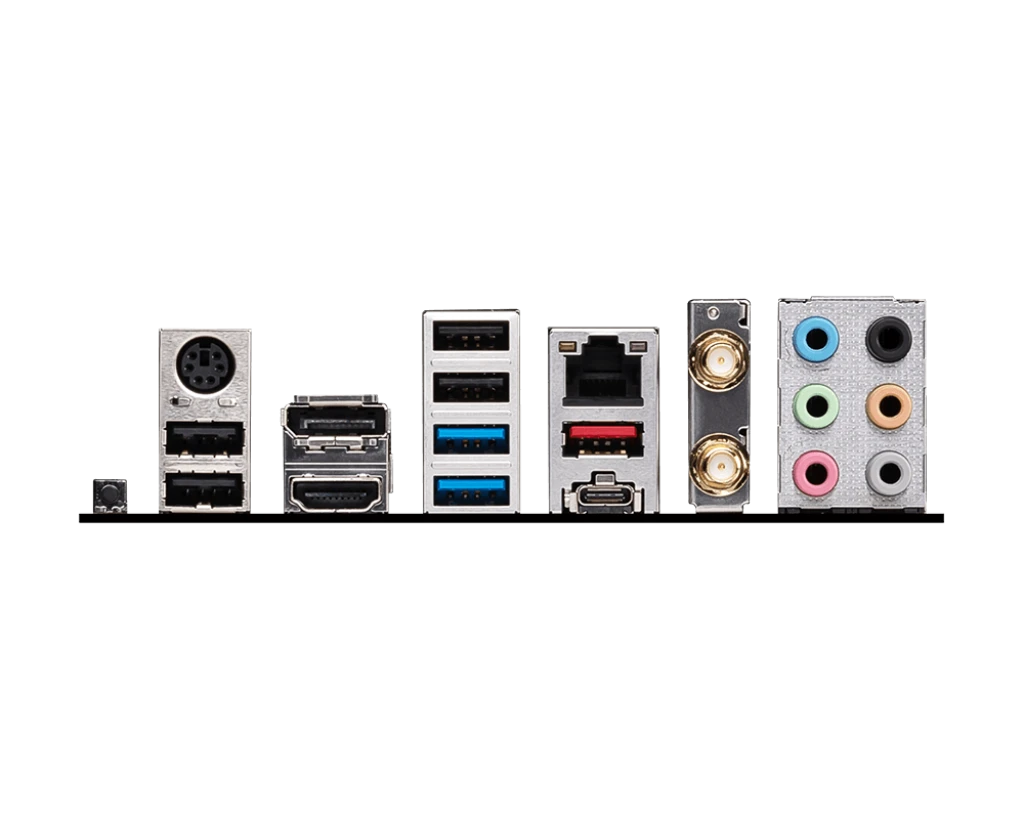

I/O
Ports
- 4 x USB 2.0 Type-A ports
- 2 x USB 3.2 Gen1 Type-A ports
- 1 x USB 3.2 Gen2 Type-A port
- 1 x USB 3.2 Gen2 Type-C port
- 1 x HDMI port
- 1 x DisplayPort
- 1 x TPM header
Design
and Build
- ATX form factor
with sleek black finish
- Efficient front cable management layout
- Integrated heatsinks for thermal control
- ARGB lighting support
with:
- 2 x Addressable V2 RGB headers (JARGB_V2)
- 1 x RGB header (JRGB)
Power
& Efficiency
- Approx. power consumption: 70W
- Reliable power phase design for system stability
Warranty
Information
- Backed by a 3-year manufacturer warranty
Price
and Availability
Available now at Computer Village
Agrabad, Chattogram, Bangladesh. A dependable and forward-looking
choice for powerful Intel-based ATX PC builds in both professional and
enthusiast environments.
