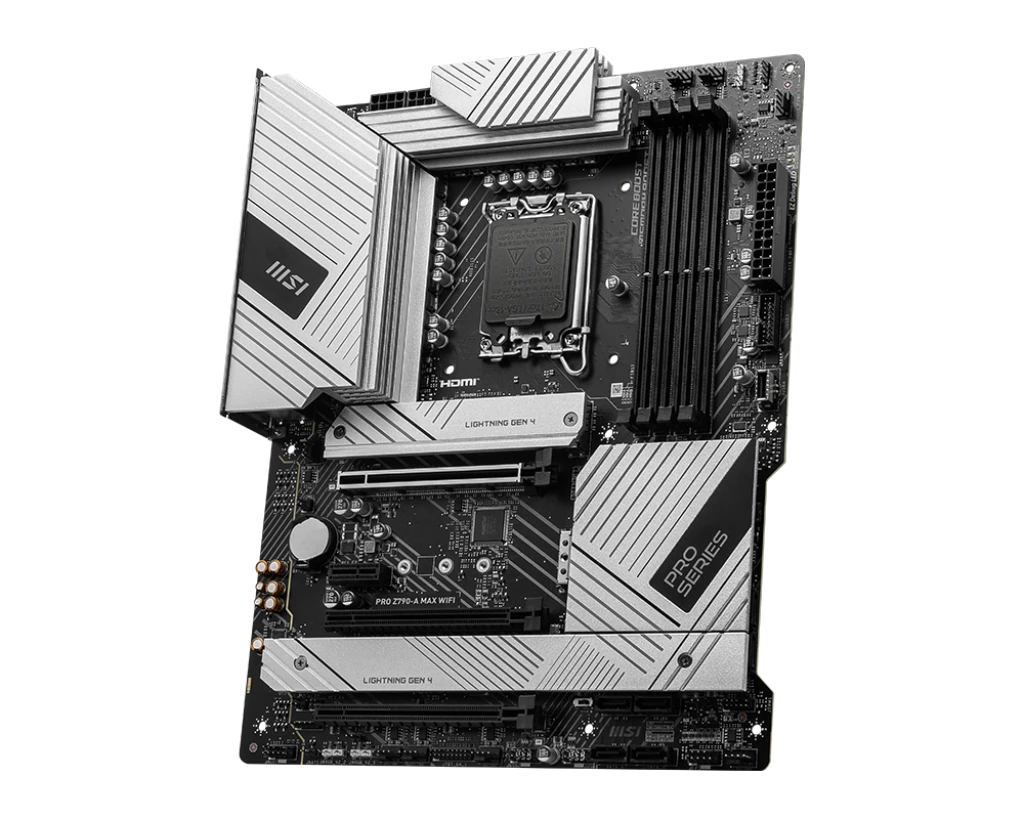

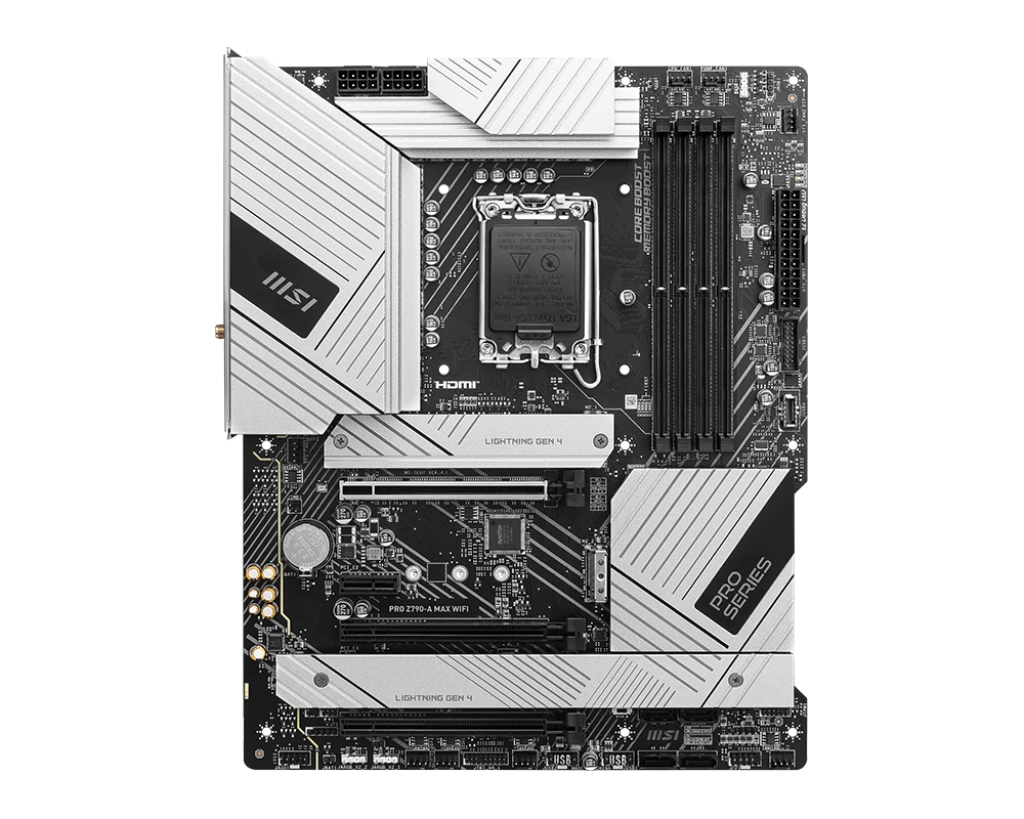

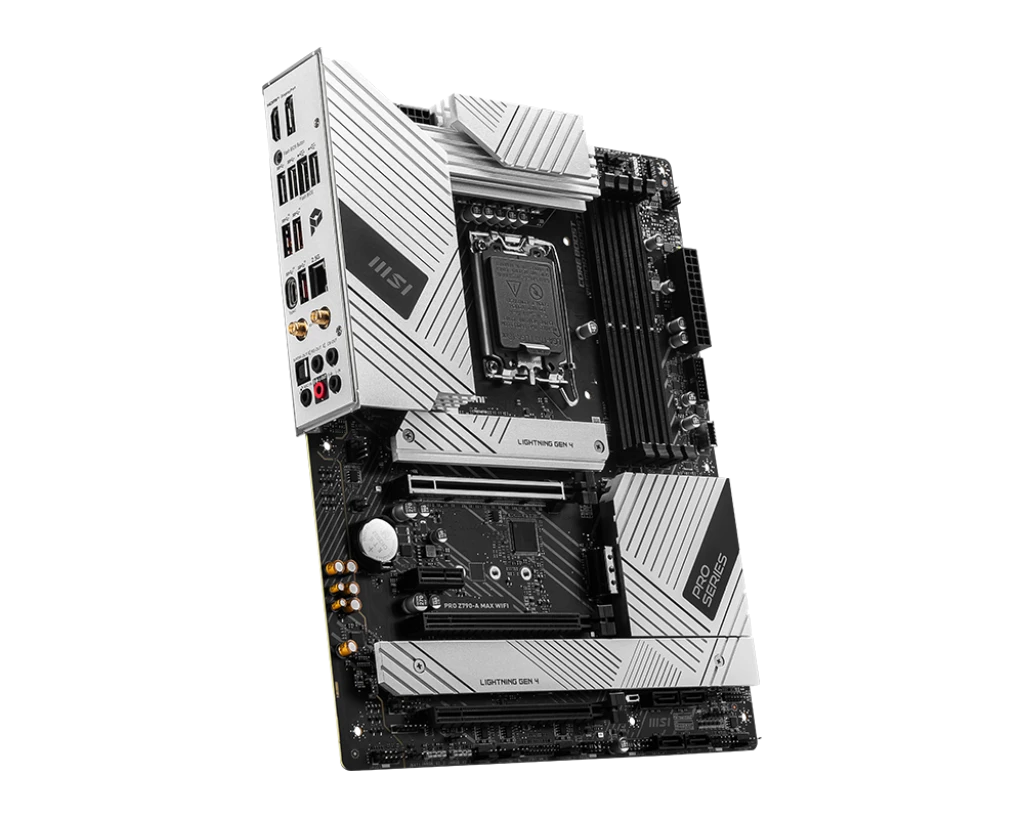

MSI PRO Z790-A MAX (Wi-Fi 7) Intel Motherboard
Key Specification
‣ Chipset - Intel Z790
‣ Sockets Supported - LGA1700
‣ Supported CPU - Intel Core 14th/ 13th/ 12th Gen Processors, Intel
Pentium Gold and Celeron Processors
‣ Generation - 2th/13th/14th
‣ Memory Slot - 4
‣ Memory Max - 192GB
‣ Form Factor - ATX
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO
Z790-A MAX (Wi-Fi 7) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel Z790 Sockets
Supported: LGA1700 Supported
CPU: Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and
Celeron Processors Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7800+(OC)/ 7600(OC)/ 7400(OC)/
7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Memory Channel: Dual Memory Slot: 4 Memory Max: 192GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 4 M.2/SSD
Expansion Slot Details: 4 x M.2 (1 x M.2 Source (From CPU) supports up to
PCIe 4.0 x4, supports 22110/2280/2260/2242 devices, 1 x M.2 Source (From
Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices, 2 x M.2
Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports
2280/2260/2242 devices) |
|
Graphics Info |
PCI Express Slot: 3 x PCI-E x 16, 1 x PCI-E
x 1 (1 x PCI Gen PCIe 5.0 supports up to x16 (From CPU), 2 x PCI Gen PCIe 3.0
supports up to x1 (From Chipset), 1 x PCI Gen PCIe 4.0 supports up to x4
(From Chipset)) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC4080 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Intel 2.5Gbps LAN LAN Speed (Mbps): 10/ 100/ 1000/ 2500Mbps WiFi : Yes WiFi Technology: Wi-Fi 7 802.11 a/ b/ g/ n/
ac/ ax/ be Bluetooth: Bluetooth 5.4 |
|
Ports Data |
USB
Port: 2 x USB 2.0, 2 x USB 3.2 Gen1 Type-A, 3 x USB 3.2 Gen2 Type-A, 1 x USB
3.2 Gen 2x2 Type-C HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 6 x SATA TPM
Port: Yes |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: RGB RGB Connector: 1 x RGB LED connector (JRGB) Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported
Operating System: Windows 11 |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
PRO Z790-A MAX ATX Motherboard (Wi-Fi 7)
The MSI PRO Z790-A MAX
motherboard combines Intel's Z790 chipset with the latest Wi-Fi 7
technology to deliver exceptional performance for Intel Core 12th, 13th,
and 14th Gen processors. Whether you are building a high-performance
workstation or gaming PC, this motherboard provides ample support for DDR5
memory and fast storage options, ensuring your system is future-ready.
Features
- Intel Z790 chipset
with LGA1700 socket for Intel Core 12th, 13th, and 14th Gen
processors
- Supports DDR5 memory with up to 192GB at
speeds of 7800+(OC) MHz
- Dual-channel memory
with 4 DIMM slots
- High-definition 7.1-channel audio with Realtek
ALC4080 codec
- Wi-Fi 7
and Bluetooth 5.4 for superior wireless connectivity
- RGB support
for customizable lighting with 1 RGB LED connector
Storage
Options
- 4 x M.2 slots:
- 1 x PCIe 4.0 x4 (from CPU) – supports
22110/2280/2260/2242 devices
- 1 x PCIe 4.0 x4 (from Chipset) – supports
2280/2260/2242 devices
- 2 x PCIe 4.0 x4 / SATA mode (from Chipset) –
supports 2280/2260/2242 devices
- 6 x SATA 6Gb/s
ports for additional storage
Graphics
& Expansion
- 3 PCIe slots:
- 1 x PCIe 5.0 x16 (from CPU)
- 2 x PCIe 3.0 x1 (from Chipset)
- 1 x PCIe 4.0 x4 (from Chipset)
- Ideal for high-performance graphics cards and other
expansion cards
Connectivity
Options
- Intel 2.5Gbps LAN
for ultra-fast wired internet
- Wi-Fi 7
(2.4GHz/5GHz/6GHz/7GHz) for the latest wireless speeds and low latency
- Bluetooth 5.4
for reliable wireless device connections

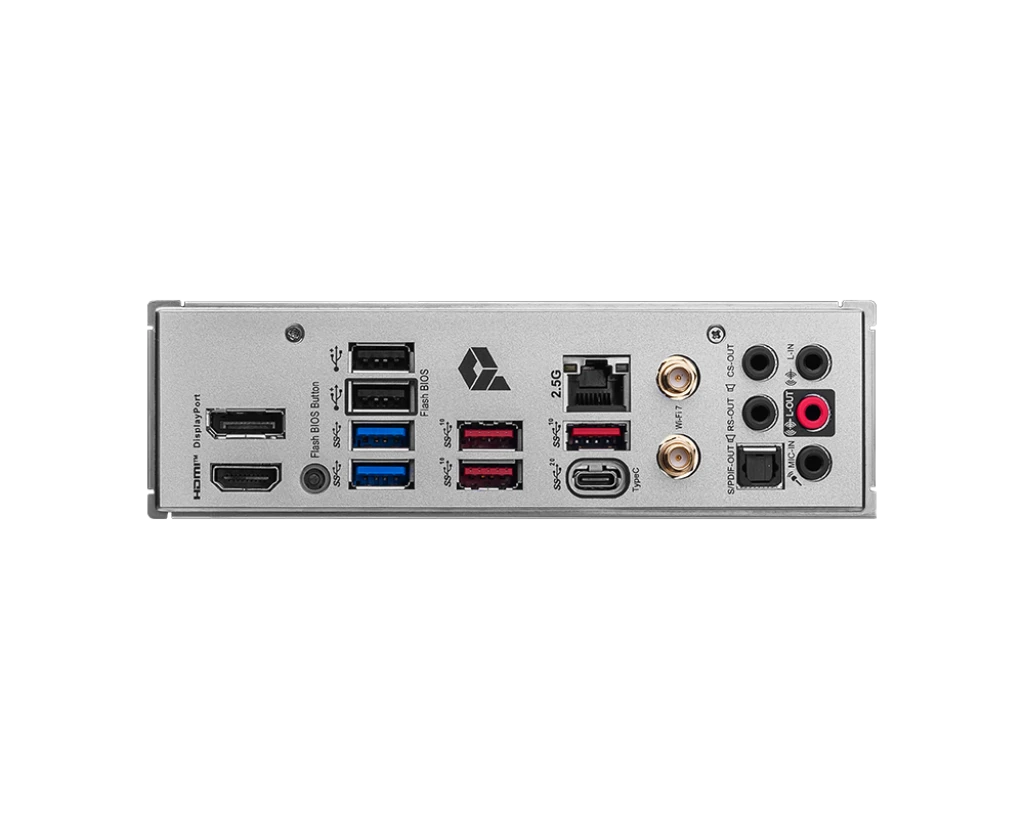

I/O
Ports
- 2 x USB 2.0
- 2 x USB 3.2 Gen 1 Type-A
- 3 x USB 3.2 Gen 2 Type-A
- 1 x USB 3.2 Gen 2x2 Type-C
- 1 x HDMI
and 1 x DisplayPort for external display options
- 6 x SATA 6Gb/s
ports
- TPM port
for enhanced security
Design
and Build
- ATX form factor
with a professional black finish
- Built-in heatsinks for better thermal
performance
- Front cable management for a clean and organized system build
- RGB support
with 1 x RGB LED connector for custom lighting effects
Power
& Efficiency
- Approx. power consumption: 70W
- Designed for optimal performance, ideal for long-term
stability
Warranty
Information
- Comes with a 3-year warranty for added peace of
mind
Price
and Availability
The MSI PRO Z790-A MAX
motherboard is available now at Computer Village Agrabad, Chattogram,
Bangladesh. Perfect for those looking for a robust and high-performance
motherboard supporting the latest Intel Core processors.
