MSI PRO H610M-G DDR5 Intel Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO
H610M-G |
|
Color |
Grey |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel H610 Sockets
Supported: LGA1700 Built-in
Processor: Unmentioned Supported
CPU: Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and
Celeron Processors Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 5600(O.C.)/ 5400(O.C.)/
5200(O.C.)/ 4800/ 4000MHz non-ECC, un-buffered memory Memory Channel: Dual Memory Slot: 2 Memory Max: 96GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion Slot Details: 1 x M.2 (1 x M.2 Source (From Chipset) supports up to
PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices) |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Integrated with Processor Multi-GPU Support: Unmentioned PCI Express Slot: 1 x PCI-e x 16, 1 x PCI-e
x 1 (PCI_e1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0
supports up to x1 (From Chipset)) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Intel I219V 1Gbps LAN LAN Speed (Mbps): 10/ 100/ 1000Mbps WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 1 Type-A VGA
Port: 1 DVI
Port: Unmentioned HDMI
Port: 1 DisplayPort
(DP): 1 IDE
Port: Unmentioned SATA
Port: 4 x SATA Thunderbolt:
Unmentioned TPM
Port: Yes |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: RGB RGB Connector: 2 x Addressable RGB LED
connector(JRAINBOW) Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11, Windows 10 Compatible
Products: Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen &
13th Gen) |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
PRO H610M-G Micro-ATX Motherboard

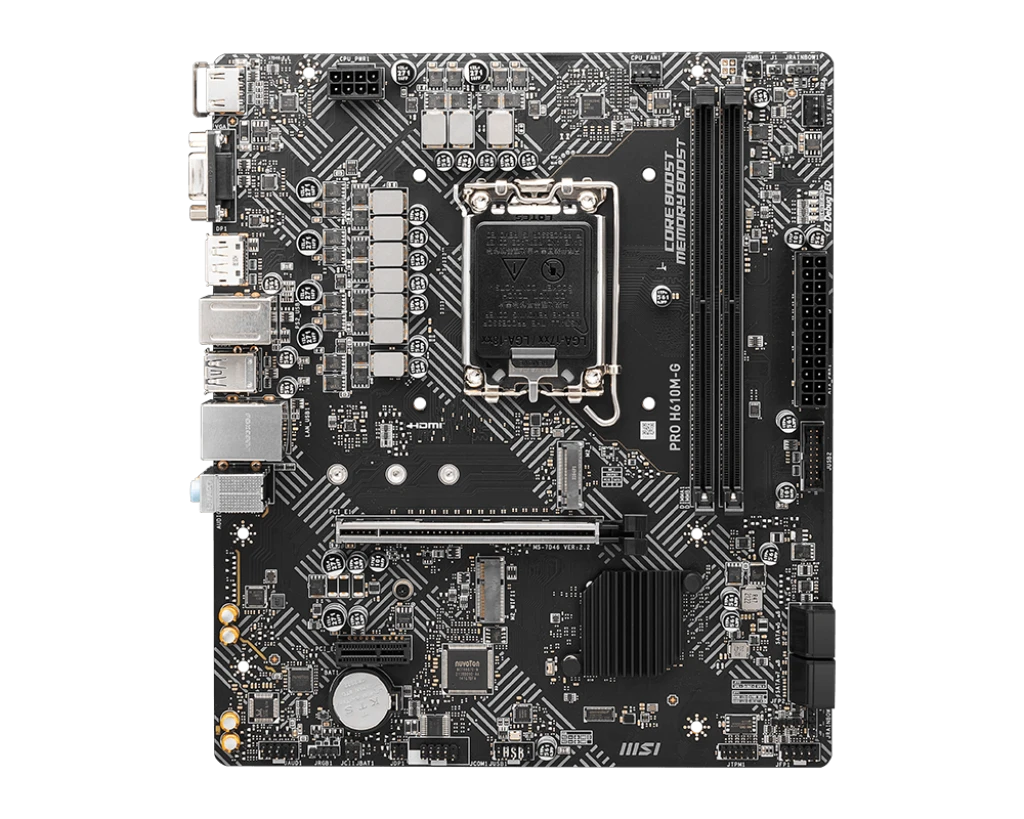

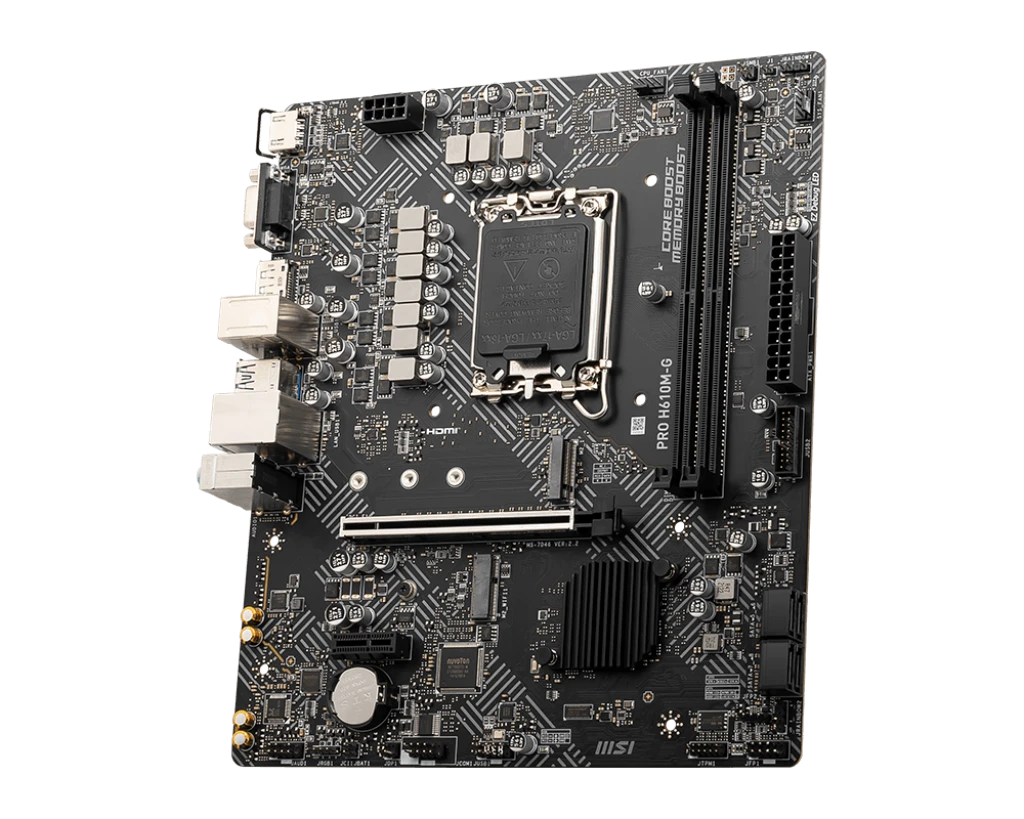

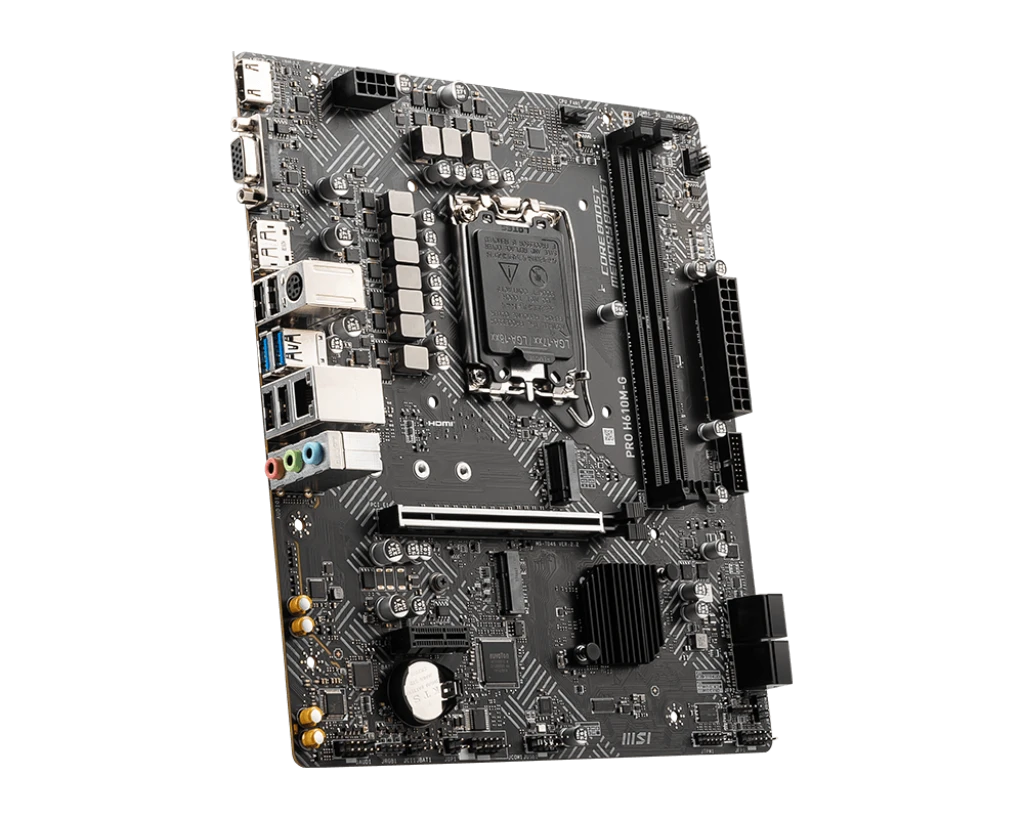

The MSI PRO H610M-G
motherboard is a highly functional and budget-friendly Micro-ATX
solution, designed for Intel 12th, 13th, and 14th Gen Core processors.
It provides modern connectivity, efficient memory support, and essential
features for building reliable systems for productivity or general use.
Features
• Processor Support:
Supports 12th, 13th, and 14th Gen Intel Core processors, including Pentium
Gold and Celeron processors with the LGA1700 socket.
• Memory Support:
Supports DDR5 memory with speeds ranging from 4800 MHz to 5600+ MHz
(OC), with a maximum capacity of 96GB.
• Audio:
Realtek ALC897 codec for 7.1-channel high-definition audio.
Storage
and Expansion
• SATA Ports:
4 x SATA III (6Gb/s) ports for connecting storage devices.
• M.2 Slot:
1 x M.2 slot (supports PCIe 3.0 x4 and SATA modes) for high-speed SSDs,
with support for 2280/2260/2242 devices.
Graphics
and Expansion
• Integrated Graphics:
Supports integrated graphics via the processor.
• PCIe Slot:
1 x PCIe 4.0 x16 slot (from CPU) and 1 x PCIe 3.0 x1 slot for
expansion cards.
Connectivity
Options

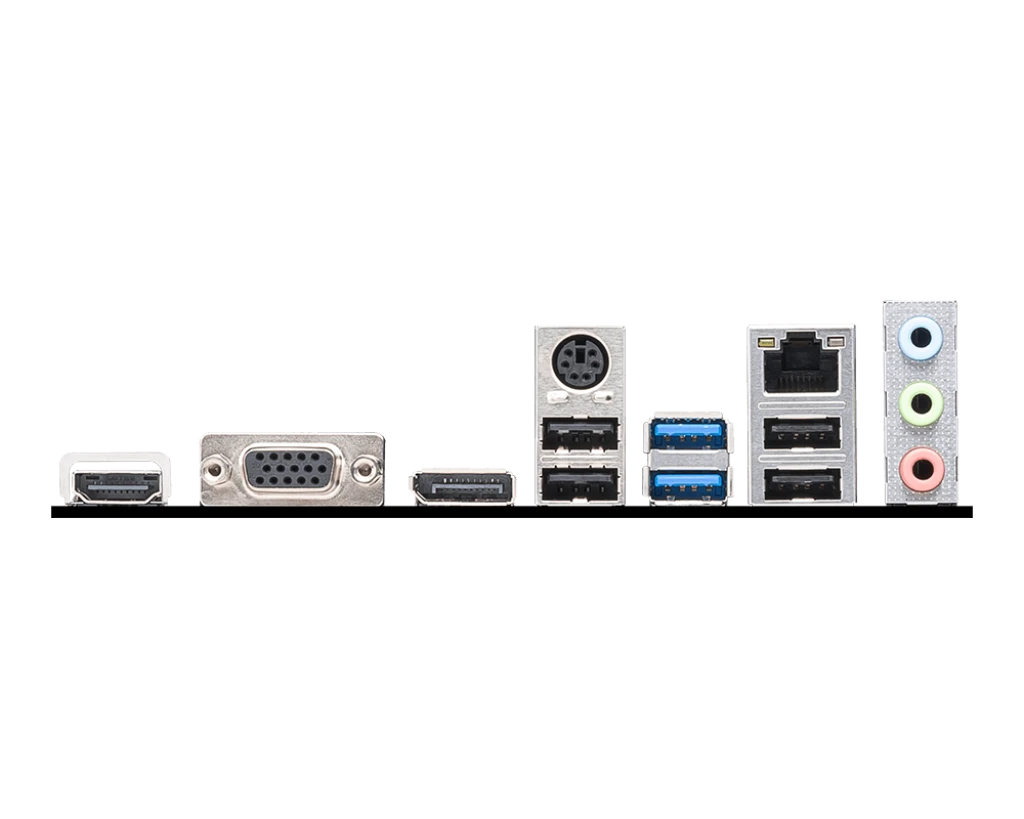

• USB Ports:
4 x USB 2.0 and 2 x USB 3.2 Gen 1 Type-A ports for peripherals.
• Video Outputs:
1 x HDMI, 1 x VGA, and 1 x DisplayPort (DP) for display
connectivity.
Network
and Audio
• LAN Chipset:
Intel I219V Gigabit Ethernet for 1Gbps network speeds
(10/100/1000Mbps).
• Audio Chipset:
Realtek ALC897 codec providing 7.1-channel surround sound.
Design
and Build
• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• Cable Management: Front cable management for a neat build.
• RGB Support:
Supports RGB with 2 x Addressable RGB LED connectors (JRAINBOW).
Compatibility
• Supported Operating System:
Windows 10, Windows 11
• Compatible Products:
Supports Intel Core i9/i7/i5/i3, Pentium Gold, and Celeron
processors for 12th, 13th, and 14th Gen.
Warranty
Information
• Warranty: 3-year warranty.
Price
and Availability
The MSI PRO H610M-G
motherboard is available for purchase at various retailers, offering a great
balance between performance and cost for 12th, 13th, and 14th Gen Intel
processors.
