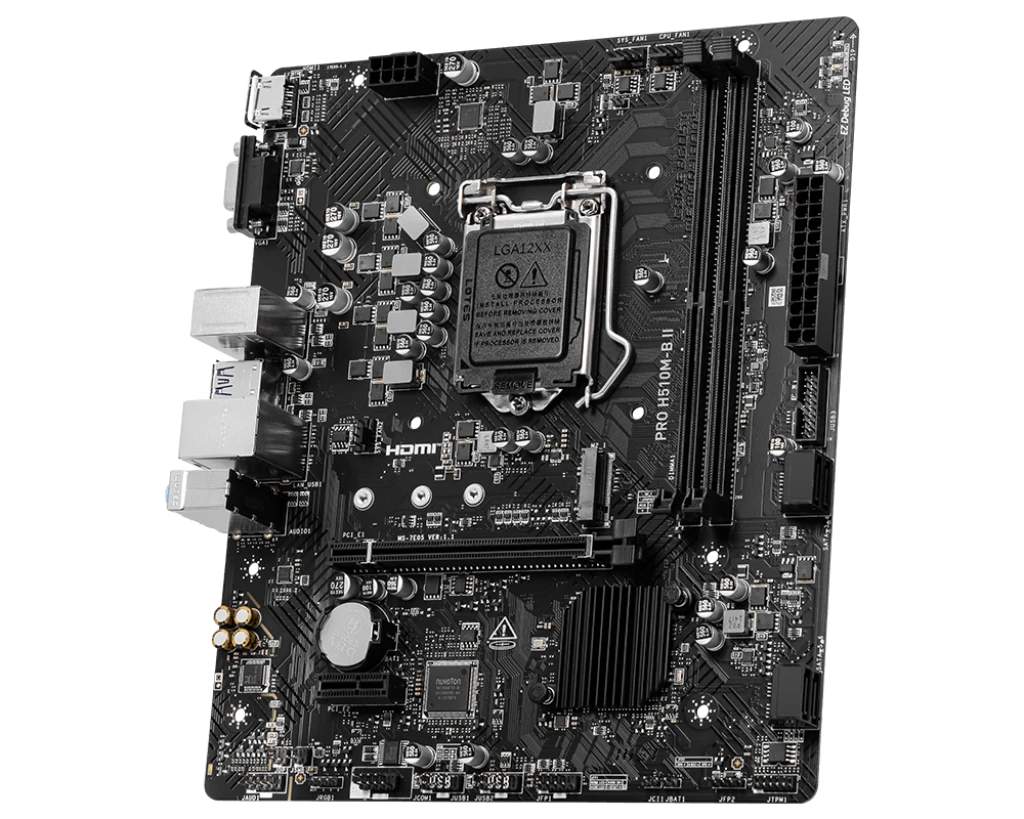

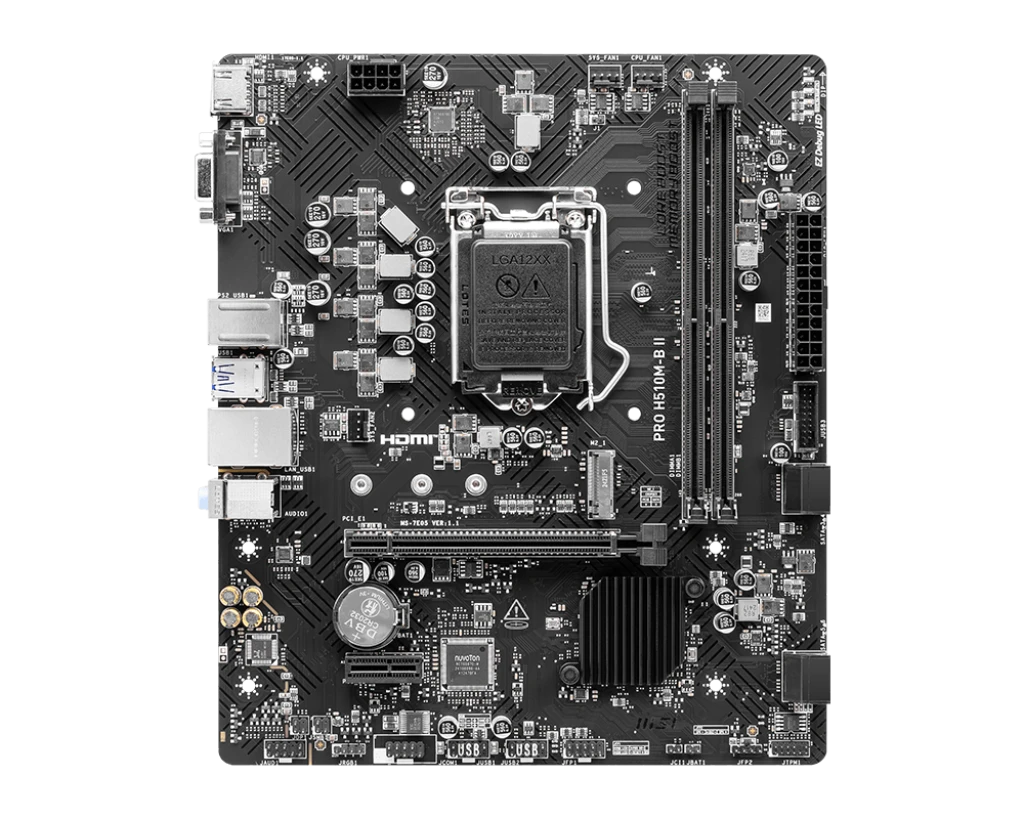

MSI PRO H510M-B II Micro-ATX Motherboard

The MSI PRO H510M-B II is a compact yet capable micro-ATX motherboard built to support 10th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA 1200 socket. Tailored for business users, home office setups, or budget gaming builds, this motherboard delivers reliable performance, efficient power management, and robust connectivity, all packed into a sleek black micro-ATX form factor.

Features

• Processor Compatibility: The PRO H510M-B II is designed to support 10th Generation Intel Core, Pentium Gold, and Celeron processors. Whether you're assembling a workstation or a personal desktop, this board ensures seamless performance with Intel's LGA 1200 platform.
• Memory Support: Equipped with dual-channel DDR4 memory slots, the motherboard supports memory speeds of 2133/2666/2933 MHz, and up to 64GB of total memory, providing enough bandwidth and capacity for multitasking and everyday computing.

Storage and Expansion

• M.2 Slot: This board comes with 1 x M.2 slot supporting PCIe 3.0 x4 and SATA mode, allowing for high-speed SSDs and faster system boot times.
• SATA Ports: Users can install additional hard drives or SSDs via 4 x SATA 6Gb/s ports, ideal for expanding storage needs.
• PCIe Slots:
• 1 x PCI-E x16 slot to support a dedicated graphics card for improved visual performance.
• 1 x PCI-E x1 slot for add-on cards like Wi-Fi adapters or capture cards.

Graphics and Display

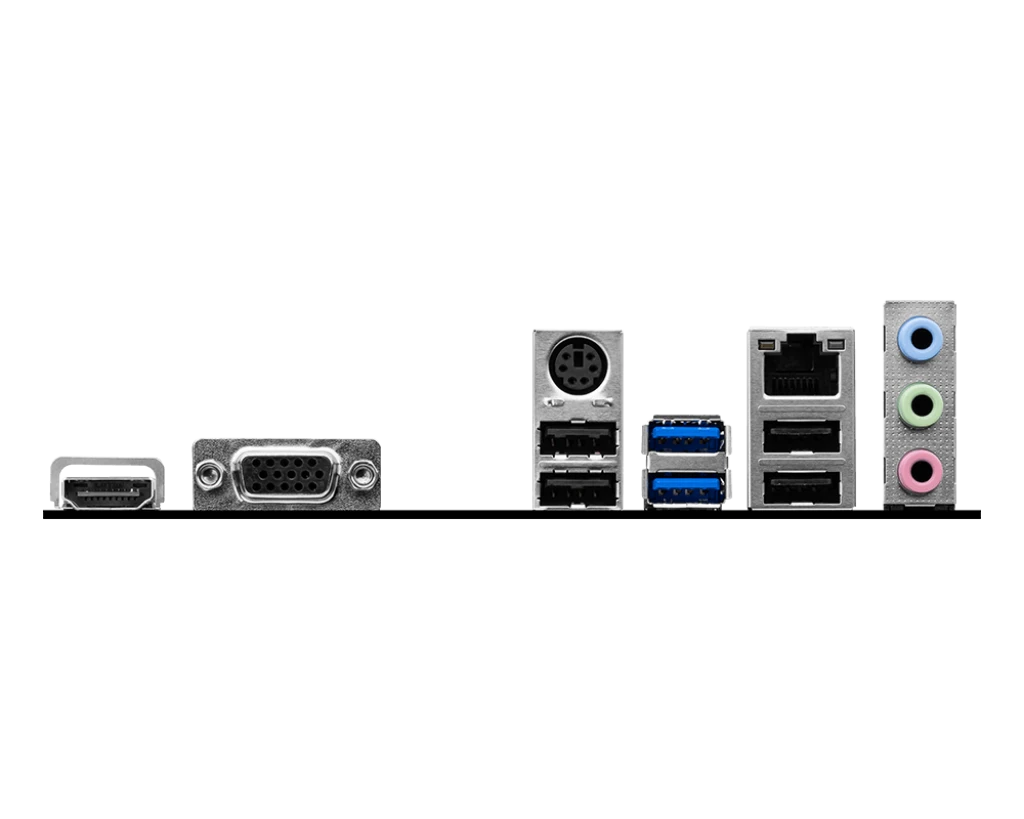

• Integrated Graphics Support: While it lacks multi-GPU support, the board includes 1 x HDMI port and 1 x VGA port for display output. This makes it compatible with most modern and legacy monitors.
• Display Flexibility: The dual display output options enable versatile setups for work or basic multimedia tasks.

Audio and Networking

• Audio Quality: Featuring the Realtek ALC897 Codec, this motherboard offers 7.1-channel high-definition audio, providing immersive sound for movies, games, or video calls.
• Networking: The Realtek 8111H Gigabit LAN chipset supports 10/100/1000 Mbps speeds, ensuring stable internet connectivity for daily use, online gaming, or video streaming.

Connectivity Options

• USB Ports:
• 2 x USB 5Gbps Type-A ports for fast data transfer.
• 4 x USB 2.0 ports for peripherals such as keyboard, mouse, and other legacy devices.
• RGB Support: The board includes 1 x RGB LED connector (JRGB) for users who want to add a personalized lighting setup inside their case.
• TPM Support: Includes support for TPM (Trusted Platform Module) to enhance security for enterprise or Windows 11 installations.

Design and Build

Designed with reliability in mind, the MSI PRO H510M-B II comes in a micro-ATX form factor, ideal for smaller cases without sacrificing connectivity. Front cable management, basic heatsink cooling, and RGB support provide a well-rounded user experience for casual and entry-level PC builders.

Compatibility and Warranty

• Operating System Compatibility: Supports both Windows 10 and Windows 11, making it ready for current and future software environments.
• Processor Compatibility: Compatible with Intel 10th Gen Core, Pentium Gold, and Celeron processors via the LGA 1200 socket.
• Warranty: Comes with a 3-year warranty, providing users peace of mind and confidence in MSI’s build quality.

Price and Availability

The MSI PRO H510M-B II motherboard is available now at Computer Village Agrabad, Chattogram, Bangladesh. Visit the store or contact them for current pricing and availability.
