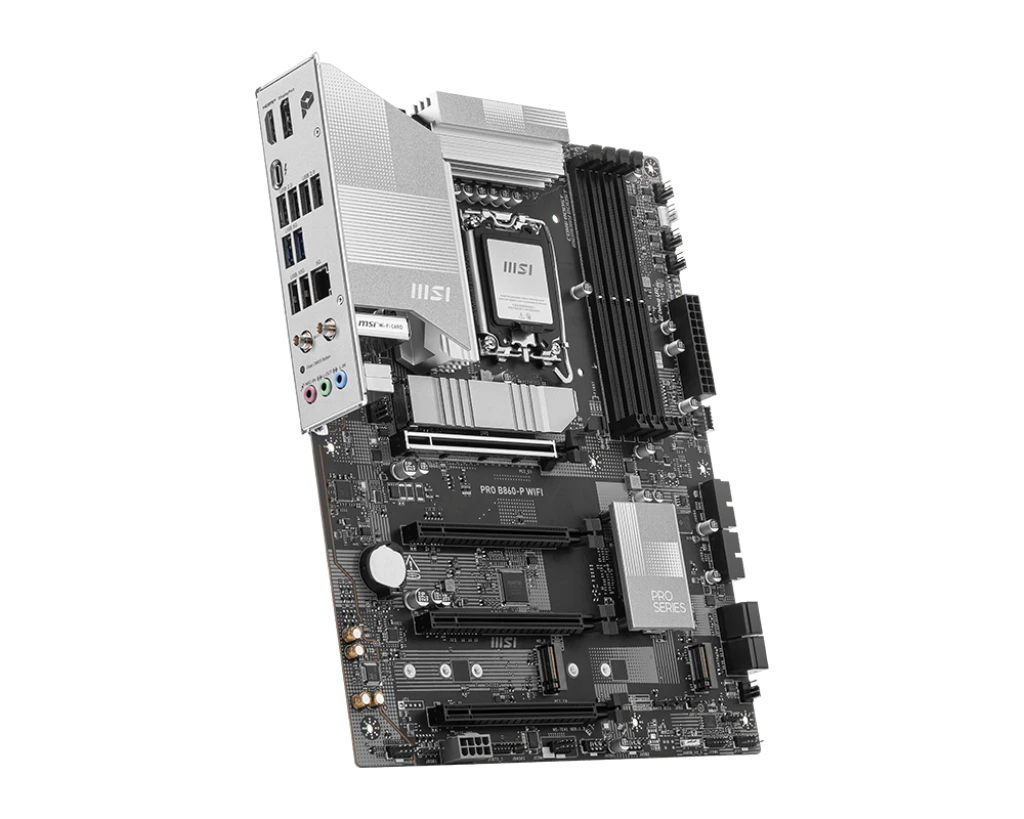

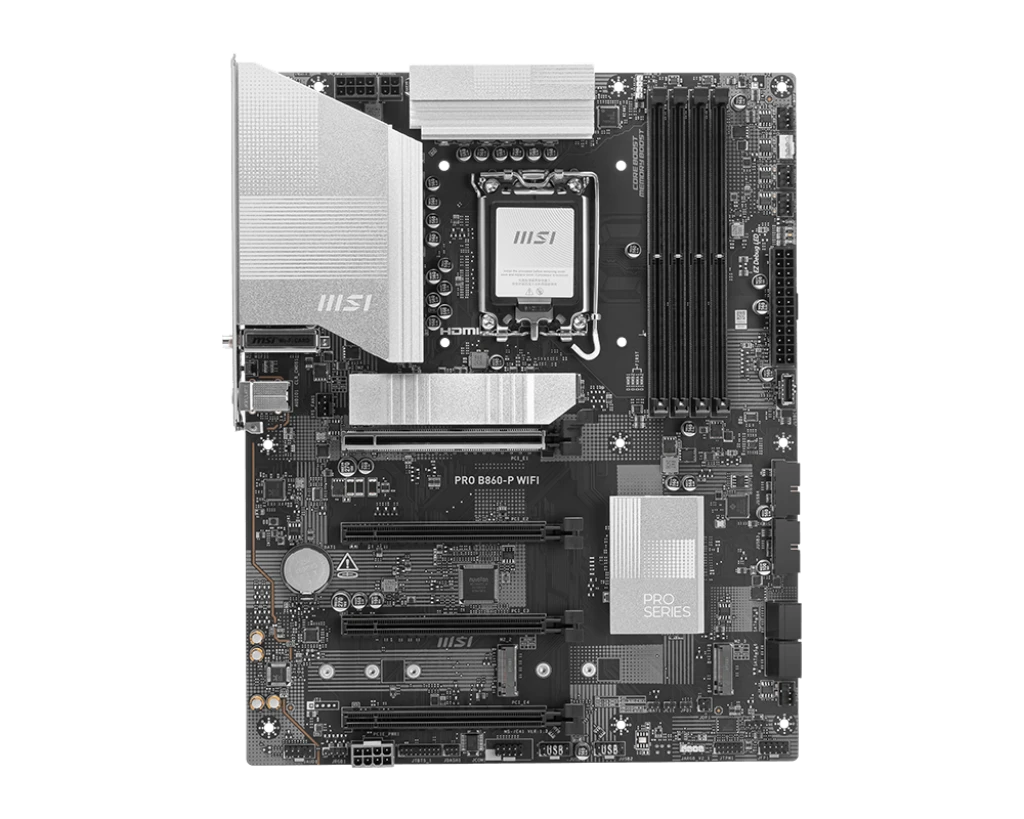

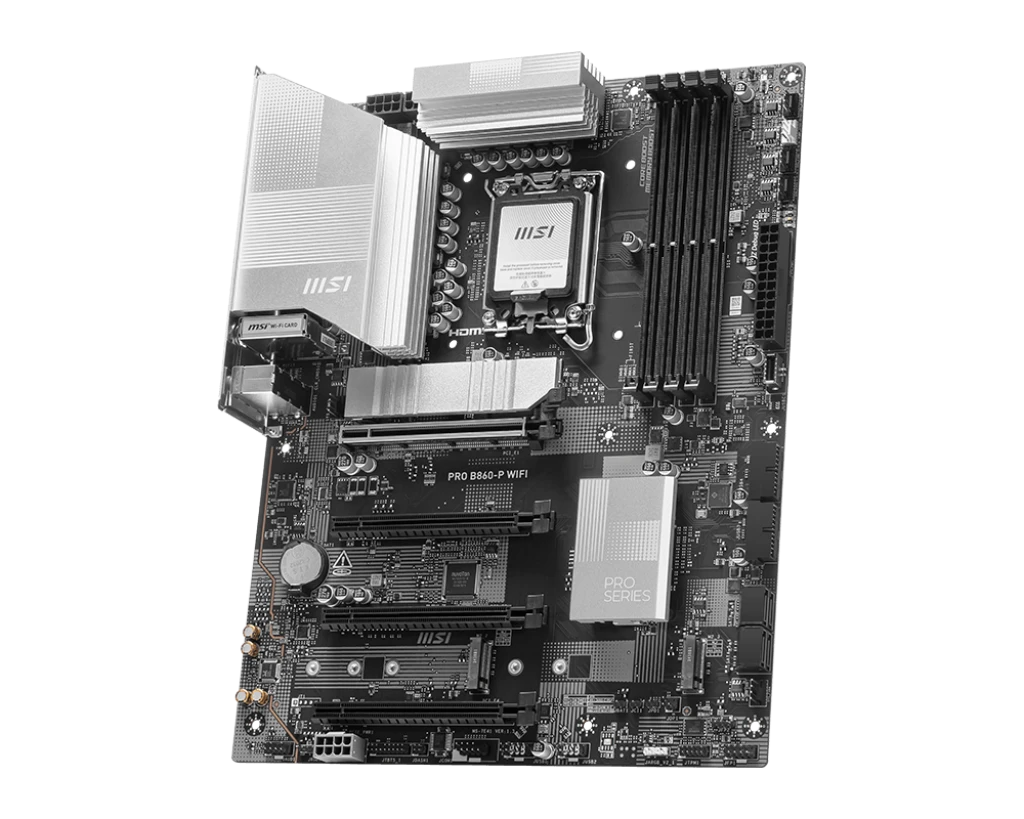

MSI PRO B860-P ATX Motherboard

The MSI PRO B860-P is a high-performance ATX motherboard engineered for productivity, reliability, and compatibility with Intel Core Ultra Series 2 processors on the LGA1851 socket. Designed for professionals and system builders, it delivers solid performance with DDR5 support, PCIe Gen 5 expansion, and a robust thermal solution. Whether you’re building a business workstation or a stable home PC, this board ensures exceptional efficiency and future-ready features.

Features

• Intel B860 Chipset: Built for the latest Intel Core Ultra (Series 2) CPUs.
• LGA1851 CPU Socket: Fully supports Intel’s new Ultra Generation processors.
• DDR5 Memory Ready: Supports speeds up to 8800 MT/s (OC) and 4800 MT/s (JEDEC) with a max capacity of 256GB across 4 DIMMs.
• PCIe Expansion:
• PCI_E1: PCIe 5.0 x16 (from CPU)
• PCI_E2: PCIe 4.0 x1 (from Chipset)
• PCI_E3: PCIe 4.0 x4 (from Chipset)
• PCI_E4: PCIe 4.0 x1 (from Chipset)

Storage and Expansion

• 3 x M.2 Slots:
• 1 x PCIe 5.0 x4 (2280/2260/2242)
• 1 x PCIe 4.0 x4 (2280/2260)
• 1 x PCIe 4.0 x2 (2280)
• 4 x SATA III 6Gb/s connectors for traditional SSDs/HDDs

Graphics and Display

• Integrated Graphics Output: 1 x HDMI port available (if CPU includes iGPU)
• Multi-GPU Support: Not applicable but includes multiple PCIe x16 slots for add-on cards

Audio and Video

• Audio Codec: REALTEK ALC897
• 7.1-Channel High-Definition Audio for immersive media experiences

Network and Connectivity

• Realtek 8126 5Gbps LAN: Offers fast, stable wired networking
• No onboard Wi-Fi or Bluetooth in this model (check Wi-Fi 7 variant for wireless features)

Connectivity Options

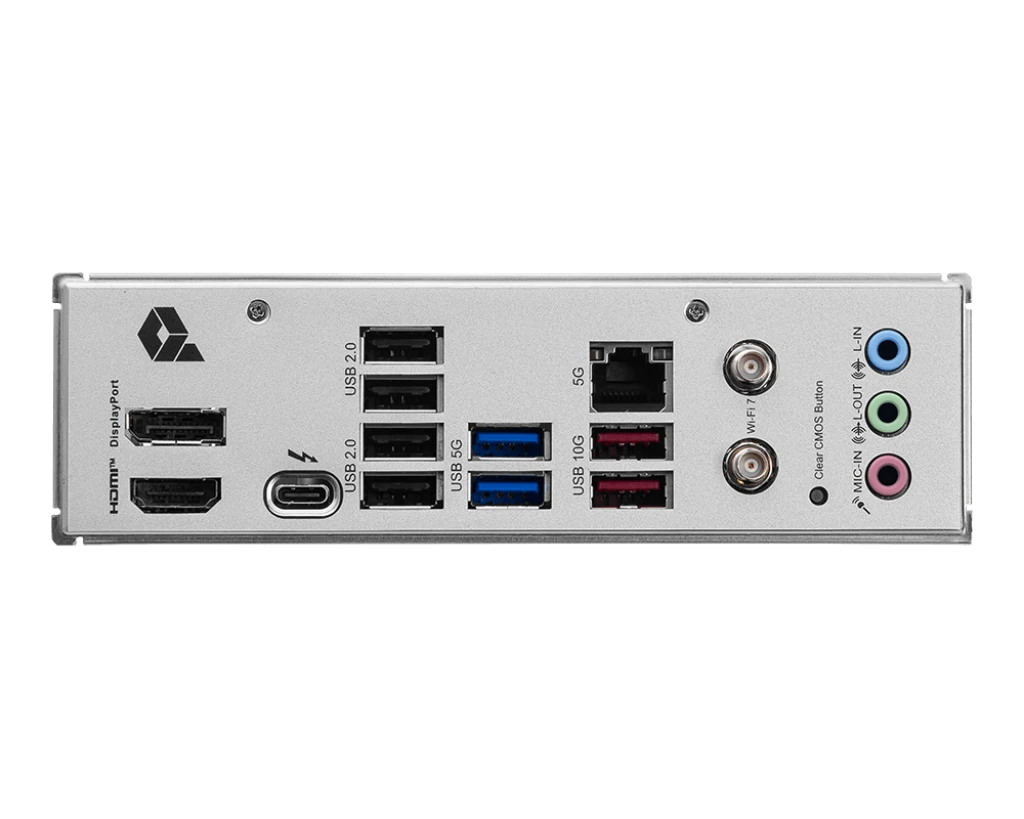

• USB Ports:
• 4 x USB 2.0 Type-A
• 2 x USB 5Gbps Type-A
• 2 x USB 10Gbps Type-A
• 1 x Thunderbolt 4 (40Gbps) Type-C
• Display Output: 1 x HDMI
• SATA Ports: 4 x SATA III
• Thunderbolt: 1 x Thunderbolt 4 (Type-C)
• TPM Header: Onboard header for TPM 2.0 module

Design and Build

• Form Factor: ATX, ideal for spacious mid and full tower cases
• Color: Sleek black PCB design with business-class aesthetics
• ARGB Lighting Support:
• 2 x JARGB_V2 (Addressable RGB connectors)
• 1 x JRGB (Standard RGB connector)
• Heatsink Equipped: For better thermal performance and system longevity
• Cable Management: Front layout support for organized builds

Power and Efficiency

• Power Consumption: Approximately 70W under standard usage
• Thermal Optimization: Enhanced heatsink placement ensures efficient heat dissipation

Compatibility and Warranty

• Operating System Support: Windows 11 64-bit
• CPU Support: Compatible with Intel Core Ultra Series 2 on LGA1851 socket
• Warranty: Backed by a 3-year manufacturer warranty

Price and Availability

The MSI PRO B860-P motherboard is available at Computer Village Agrabad, Chattogram, Bangladesh. Please contact the store for up-to-date pricing and stock information.
