MSI PRO B760M-P DDR5 Intel Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO
B760M-P |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Built-in
Processor: Unmentioned Supported
CPU: 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron
Processors LGA1700 Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 6800+(OC)/ 6600(OC)/ 6400(OC)/
6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/
5000(JEDEC)/ 4800(JEDEC)MHz non-ECC, un-buffered memory Memory Channel: 2 Memory Slot: 4 Memory Slot (Additional Info): 4 x DDR5 Memory Max: 96GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: Unmentioned M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion Slot Details: 1 x M.2 Source (From CPU) supports up to PCIe 4.0 x4
, supports 2280/2260/2242 devices, 1 x M.2 Source (From Chipset) supports up
to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Integrated with Processor Multi-GPU Support: Unmentioned PCI Express Slot: 1x PCI-E x16 slot, 2x
PCI-E x1 slot |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8111H Gigabit LAN LAN Speed (Mbps): 0/100/1000 Mbps WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 4 x USB 2.0 Type-A , 1 x USB 3.2 Gen 1 5Gbps (Type-A), 1 x USB 3.2 Gen
2 10Gbps (Type-C) VGA
Port: 1 DVI
Port: Unmentioned HDMI
Port: 1 DisplayPort
(DP): 1 IDE
Port: Unmentioned SATA
Port: 4 Thunderbolt:
Unmentioned TPM
Port: Unmentioned |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Yes FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: RGB RGB Connector: 1x RGB LED connector(JRGB) Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11 64-bit, Windows 10 64-bit Compatible
Products: Unmentioned |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
PRO B760M-P Micro-ATX Motherboard

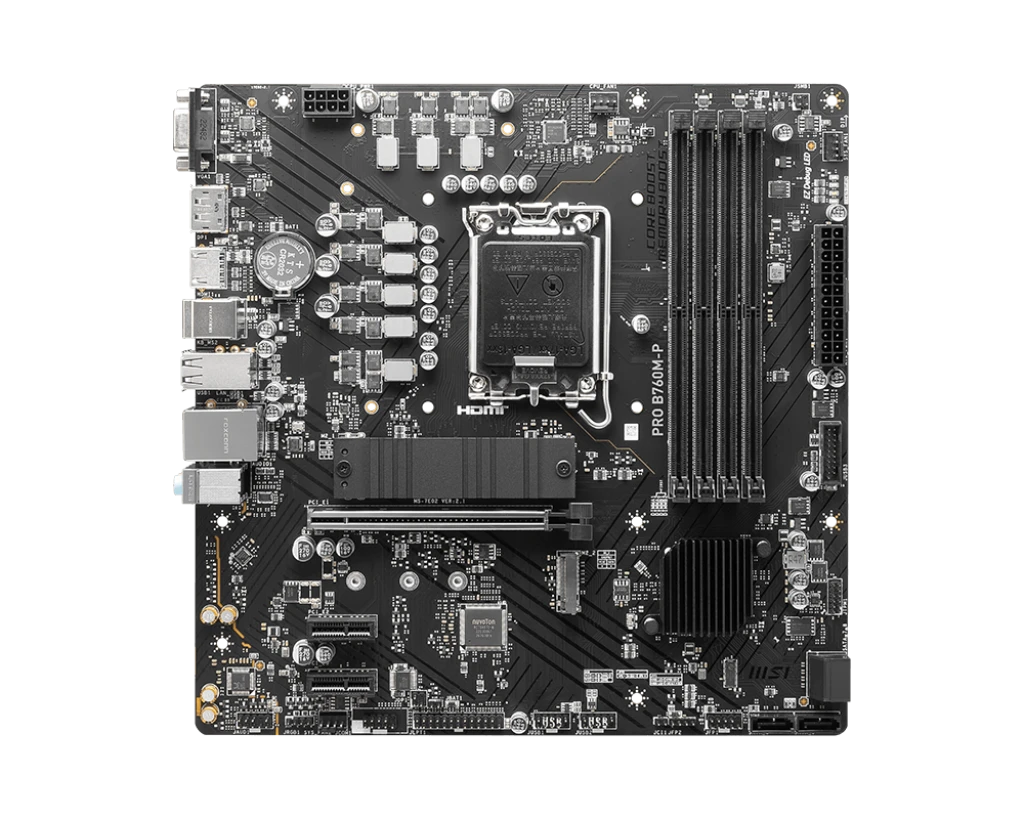

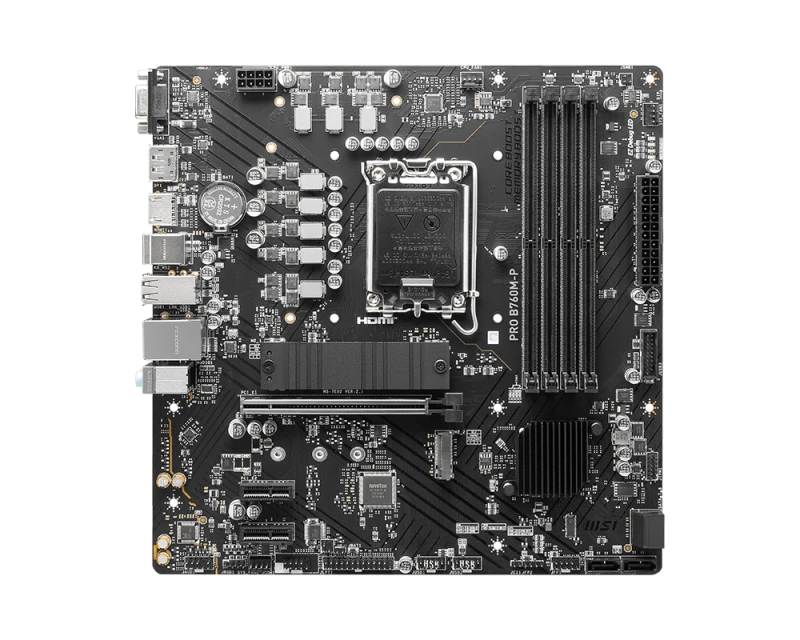

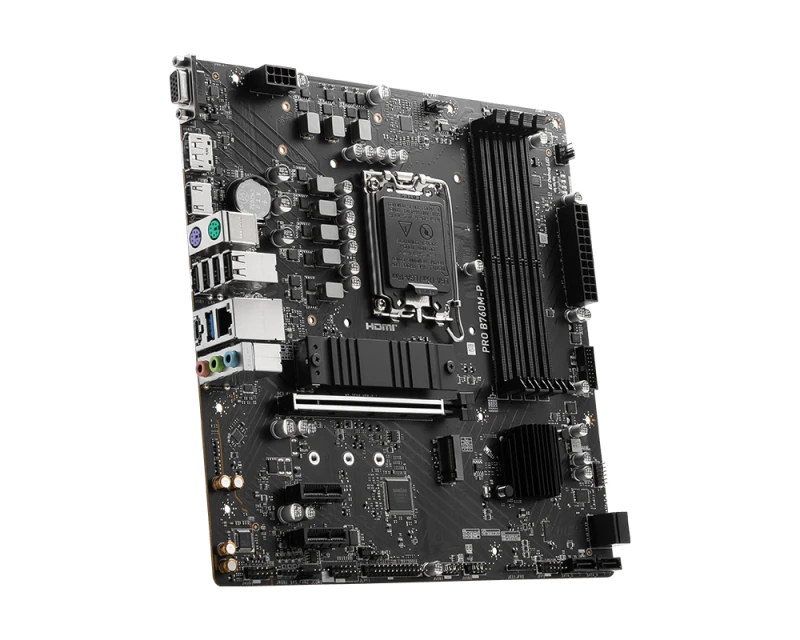

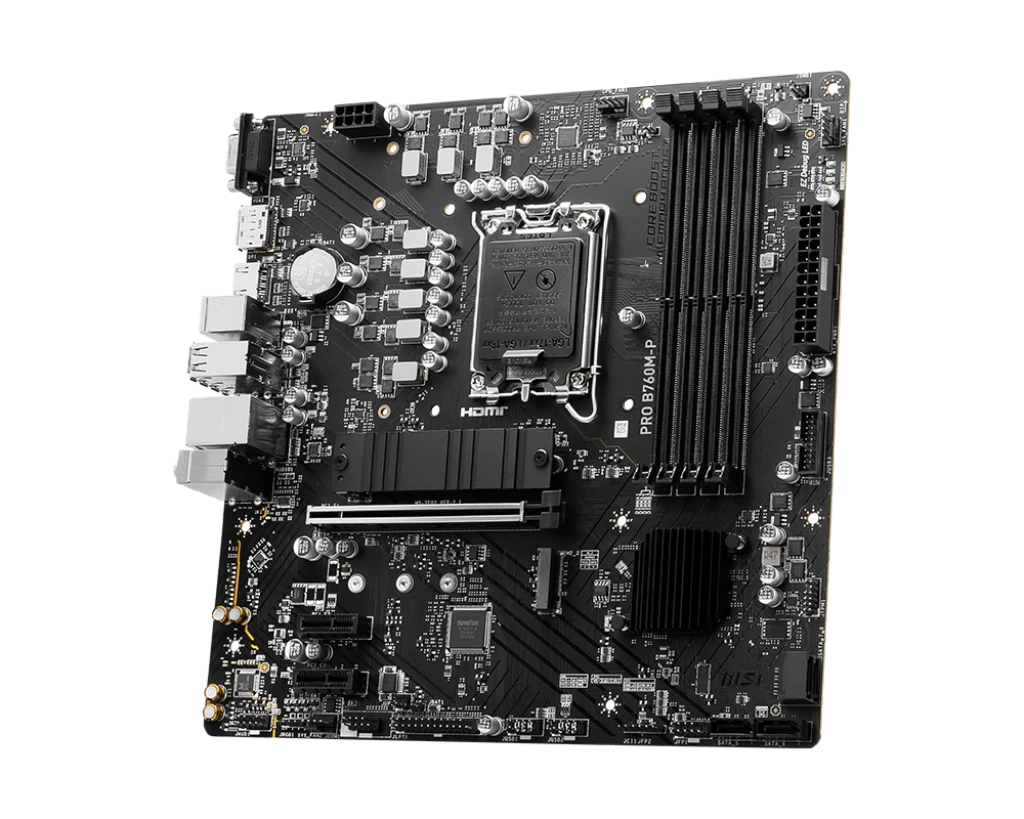

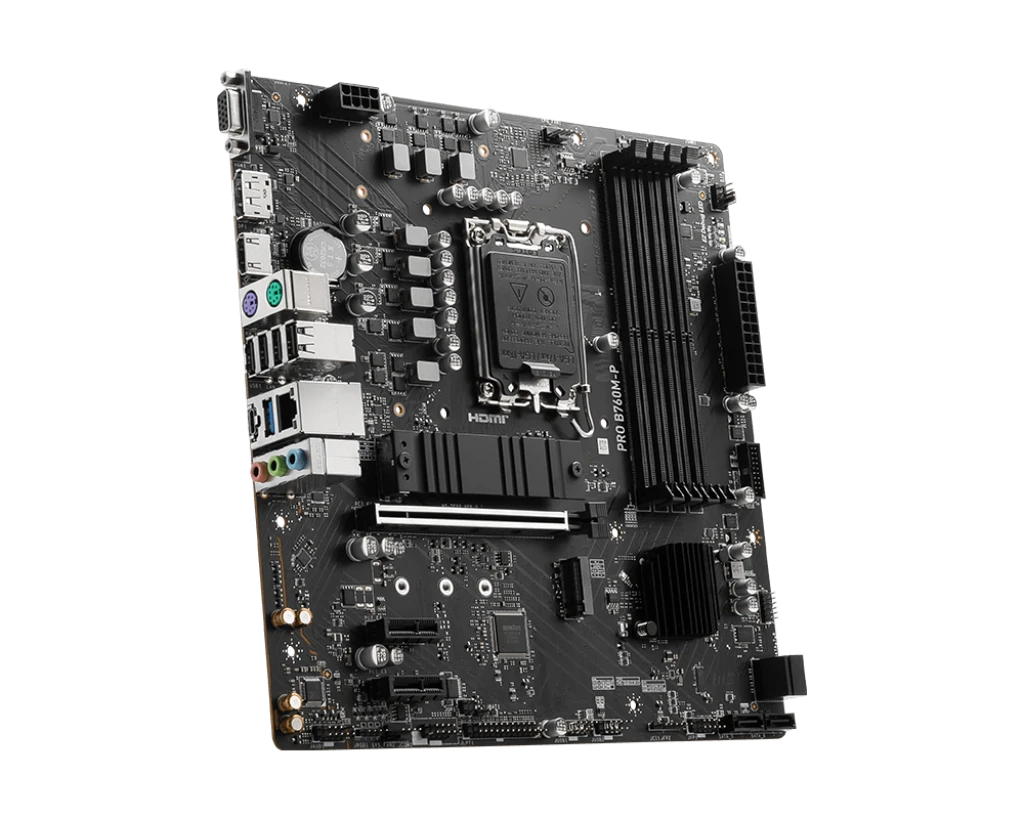

The MSI PRO B760M-P
motherboard is a Micro-ATX motherboard that utilizes the Intel B760
chipset, designed to support 12th, 13th, and 14th Gen Intel Core
processors. It’s an excellent choice for building a high-performance
workstation or home PC, providing advanced memory support, expansion options,
and robust connectivity.
Features
• Processor Compatibility:
Supports 12th, 13th, and 14th Gen Intel Core Processors, as well as Pentium
Gold and Celeron processors with the LGA1700 socket.
• Chipset: Intel B760 chipset for powerful and stable
performance.
• Memory Support:
Supports DDR5 memory, with speeds up to 6800 MHz (OC), and a
maximum capacity of 96GB across 4 slots.
• Audio:
Onboard Realtek ALC897 Codec for 7.1-channel high-definition
audio.
Storage
and Expansion
• M.2 Slots:
2 x M.2 slots:
1 x M.2 (From CPU) supports up to PCIe 4.0 x4 and 2280/2260/2242
devices.
1 x M.2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode and 2280/2260/2242
devices.
• SATA Ports:
4 x SATA 6Gb/s ports for additional storage options.
Graphics
and Expansion
• PCIe Slots:
1 x PCIe 4.0 x16 slot for a dedicated graphics card.
2 x PCIe x1 slots for additional expansion cards.
• Integrated Graphics:
Supports integrated graphics via processor for basic gaming and media
tasks.
• Multi-GPU Support: Not mentioned.
Connectivity
Options

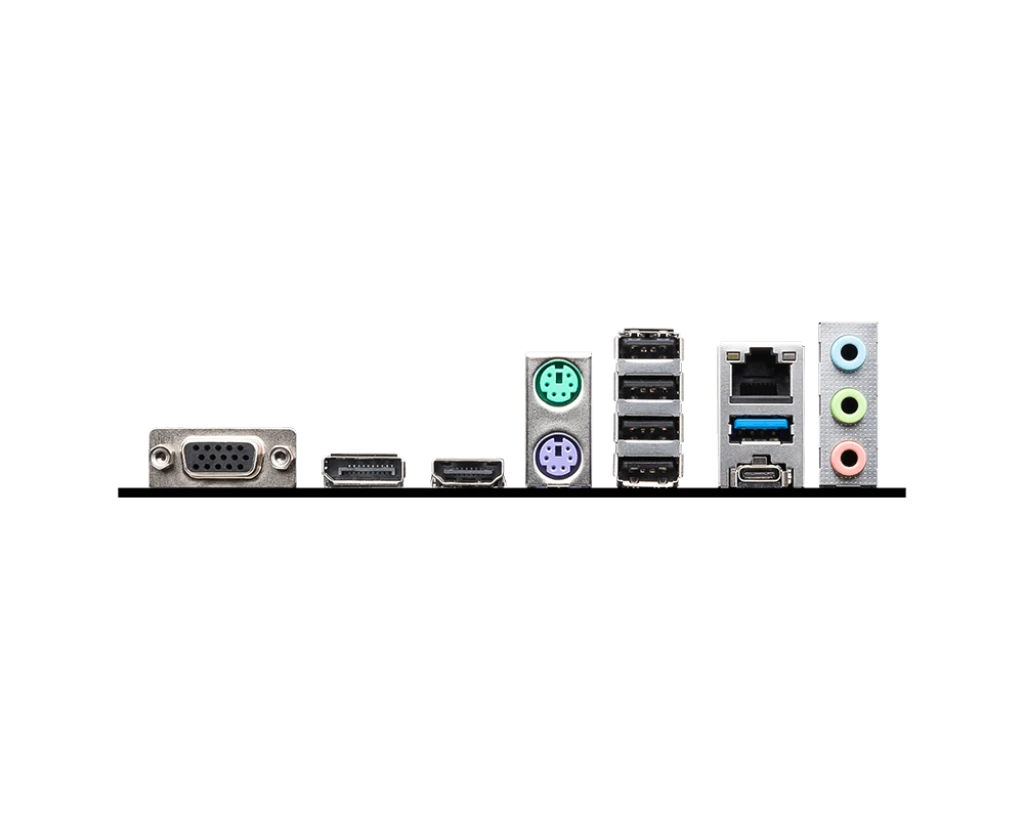

• USB Ports:
4 x USB 2.0 Type-A
1 x USB 3.2 Gen 1 5Gbps Type-A
1 x USB 3.2 Gen 2 10Gbps Type-C
• Video Outputs:
1 x VGA
1 x HDMI
1 x DisplayPort (DP)
Network
and Audio
• LAN Chipset:
Realtek RTL8111H for Gigabit Ethernet (10/100/1000 Mbps).
• Audio Chipset:
Realtek ALC897 codec for high-definition audio.
Design
and Build
• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• Color Scheme: Black
• Heatsink: Yes
• RGB Support: Supports RGB lighting with 1 x RGB LED
connector (JRGB) for additional customization.
Compatibility
• Supported Operating System:
Windows 10 (64-bit)
Windows 11 (64-bit)
Warranty
Information
• Warranty: 3 years.
Price
and Availability
The MSI PRO B760M-P
motherboard is available at Computer Village Agrabad, Chattogram, Bangladesh
and is an excellent choice for building powerful, efficient systems with the
latest Intel processors.
