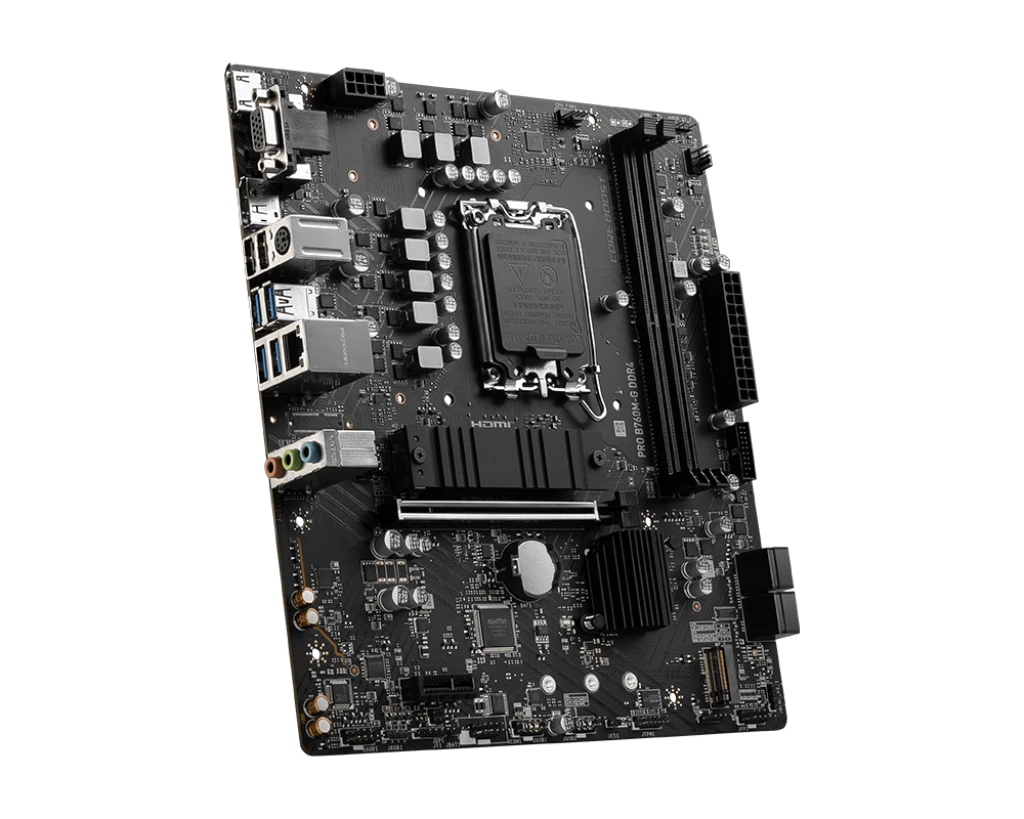

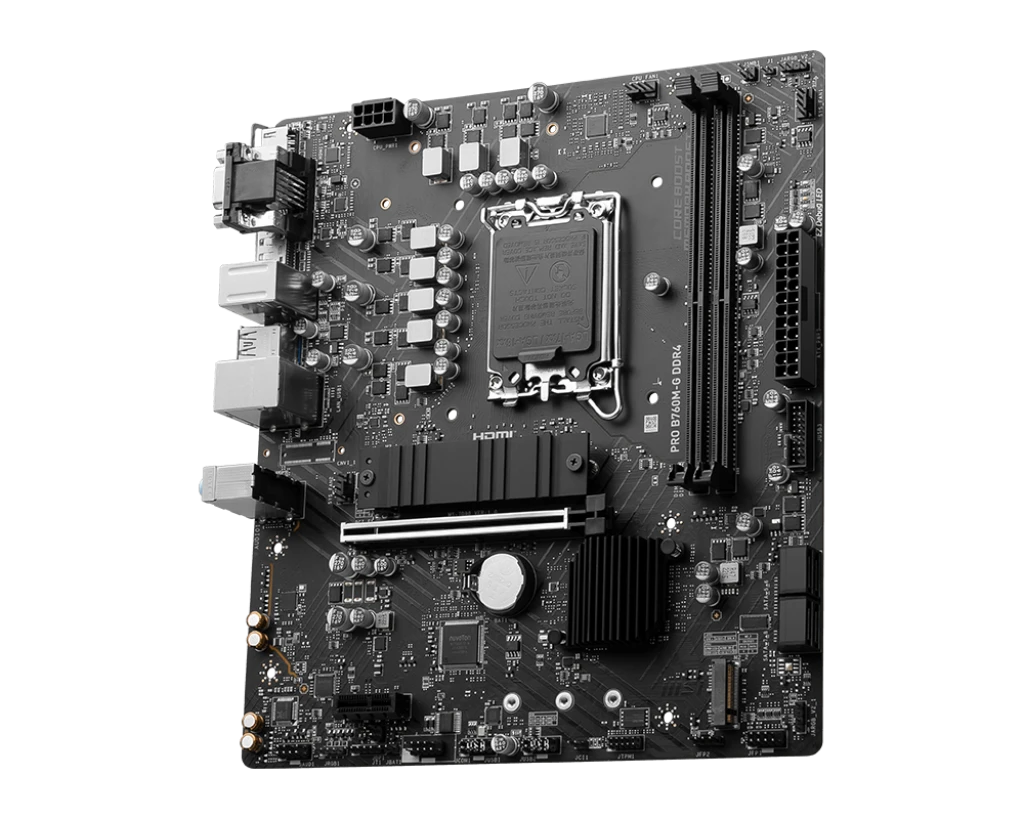

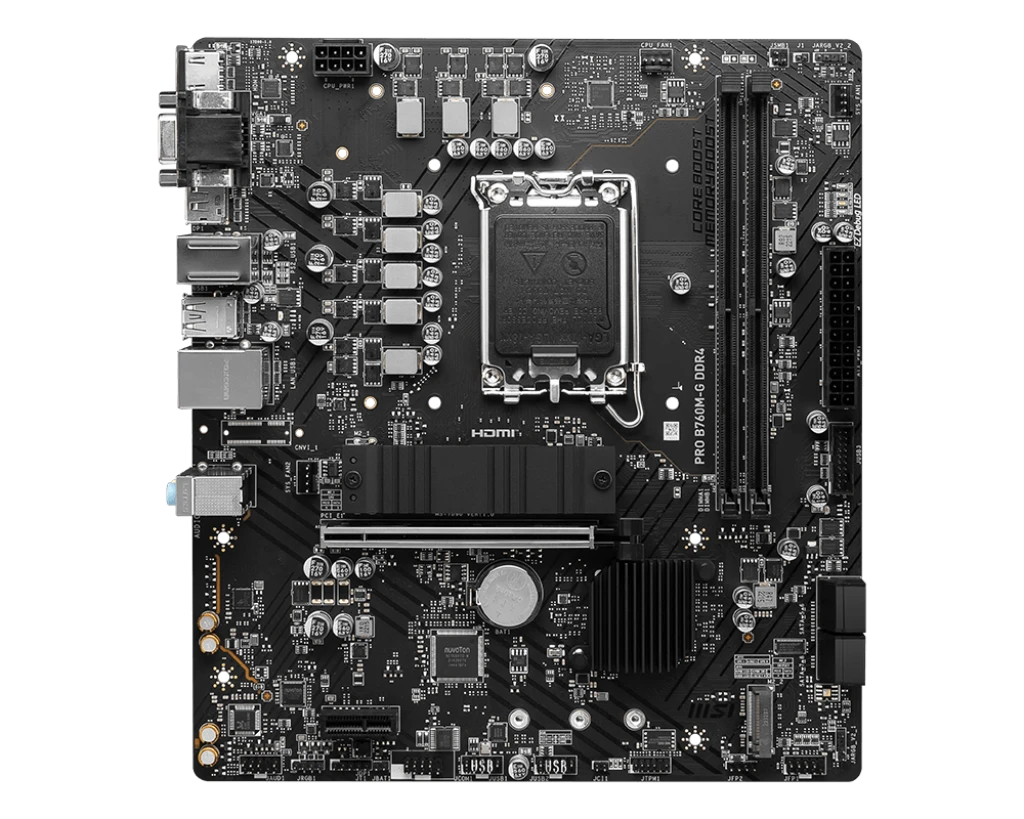

MSI PRO B760M-G DDR4 motherboard is designed to provide powerful, reliable, and efficient performance for a wide range of computing needs. Built with a focus on stability and enhanced performance, it supports the latest Intel® Core™ 12th, 13th, and 14th Gen processors as well as Intel® Pentium® Gold and Celeron® processors, making it a versatile choice for both home and office use.

CPU and Chipset Support

The PRO B760M-G DDR4 features the Intel® B760 chipset and an LGA 1700 socket, which offers excellent compatibility with the most recent Intel® Core™ processors. This ensures support for cutting-edge performance and scalability, making it an ideal choice for users looking to build a high-performance workstation or gaming PC.

Memory Support

This motherboard supports 2 x DDR4 DIMM slots, allowing a maximum memory capacity of 64GB. The PRO B760M-G DDR4 supports overclocking with speeds of up to 4800 MHz (OC) for 1DPC 1R and up to 4600 MHz for 1DPC 2R, offering significant bandwidth for demanding tasks like gaming, content creation, and heavy multitasking. Additionally, it supports Intel® Extreme Memory Profile (XMP) for further performance tuning.

Storage and Expansion

The motherboard comes with 2 x M.2 slots and 4 x SATA 6Gb/s ports for ample storage expansion options. It supports RAID 0, RAID 1, RAID 5, and RAID 10 configurations, allowing users to optimize storage performance and data redundancy. M.2_1 offers PCIe 4.0 x4 speeds, while M.2_2 supports both PCIe 4.0 x4 and SATA modes, providing flexibility for different storage setups.

Graphics and Connectivity

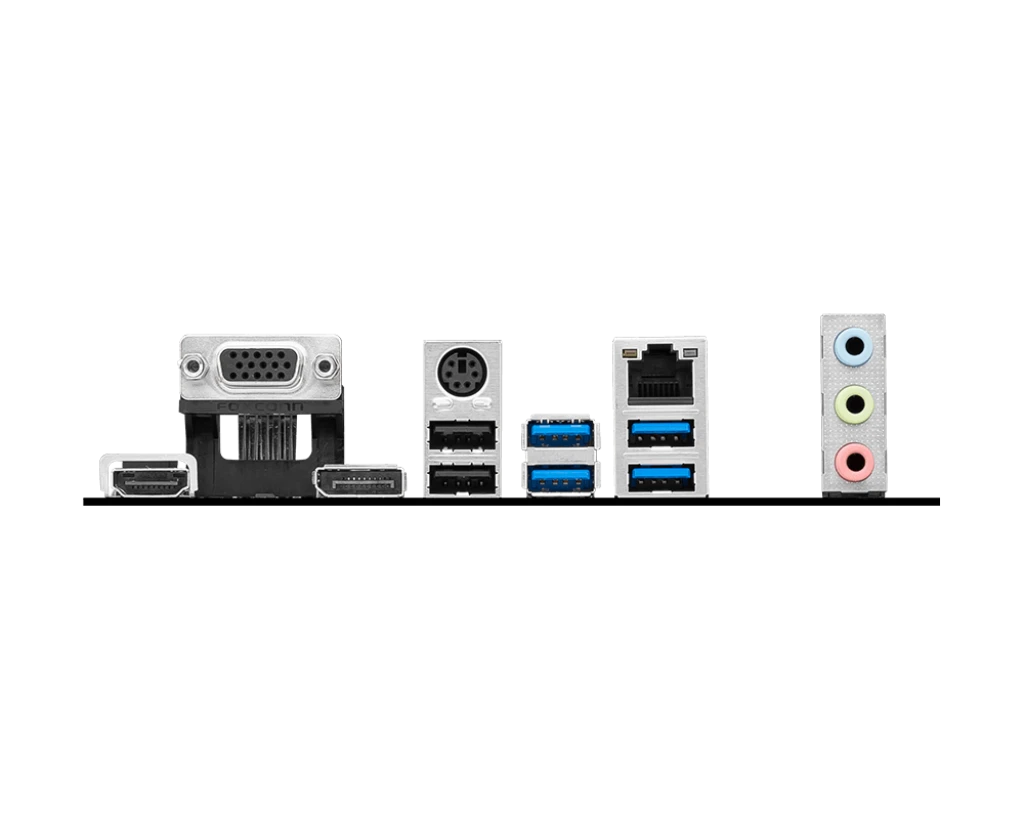

For visual output, the PRO B760M-G DDR4 offers a variety of video outputs, including HDMI™, DisplayPort, and VGA ports, ensuring compatibility with a wide range of displays. The Realtek® RTL8125B 2.5Gbps LAN offers fast and stable networking performance, ideal for gamers and professionals needing reliable connectivity.

PCI Expansion and Internal Features

The motherboard is equipped with 1 x PCIe 4.0 x16 slot and 1 x PCIe 3.0 x1 slot, providing expansion for additional graphics cards, sound cards, or network adapters. Additionally, there are several internal connectors, including support for RGB LED lighting and TPM 2.0, ensuring customizable aesthetics and enhanced security.

Audio and Special Features

For audio, the Realtek® ALC897 Codec provides 7.1-channel high-definition audio, ensuring clear, immersive sound. The motherboard features EZ Debug LEDs to aid in troubleshooting and diagnosing potential issues. Lightning Gen 4 PCIe with Steel Armor enhances durability and reduces signal interference.

Software and Warranty

The MSI Center software allows for easy system monitoring and tweaking, while tools like AIDA64 Extreme and Intel Extreme Tuning Utility help with performance tuning. Backed by a 3-year warranty, the PRO B760M-G DDR4 motherboard is a reliable, long-lasting choice for building your next high-performance PC.

With a blend of power, flexibility, and stability, the MSI PRO B760M-G DDR4 is a solid choice for users who want a high-performance motherboard for gaming, productivity, or content creation.
