MSI PRO B760M-E DDR5 Intel Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO
B760M-E |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Built-in
Processor: Unmentioned Supported
CPU: Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and
Celeron Processors Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 6400+(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Memory Channel: Dual Memory Slot: 2 Memory Max: 128GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion Slot Details: 1 x M.2 (supports up to PCIe 4.0 x4 / SATA mode,
supports 2280/2260/2242 devices) |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Integrated with Processor Multi-GPU Support: Unmentioned PCI Express Slot: 1x PCI-E x16 slot, 1x
PCI-E x1 slot (PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen
PCIe 3.0 supports up to x1 (From Chipset)) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8111H Gigabit LAN LAN Speed (Mbps): 10/100/1000Mb/s WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 4 x USB 2.0, 2 x USB 3.2 Gen 1 Type A VGA
Port: 1 DVI Port:
Unmentioned HDMI
Port: 1 DisplayPort
(DP): Unmentioned IDE
Port: Unmentioned SATA
Port: 4 Thunderbolt:
Unmentioned TPM
Port: 1 |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: RGB RGB Connector: 1 x RGB LED connector (JRGB) Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11, 10 Compatible
Products: Intel Core i9/ i7/ i5/ i3, Pentium, Celeron processors. LGA1700
socket. |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
PRO B760M-E Micro-ATX Motherboard

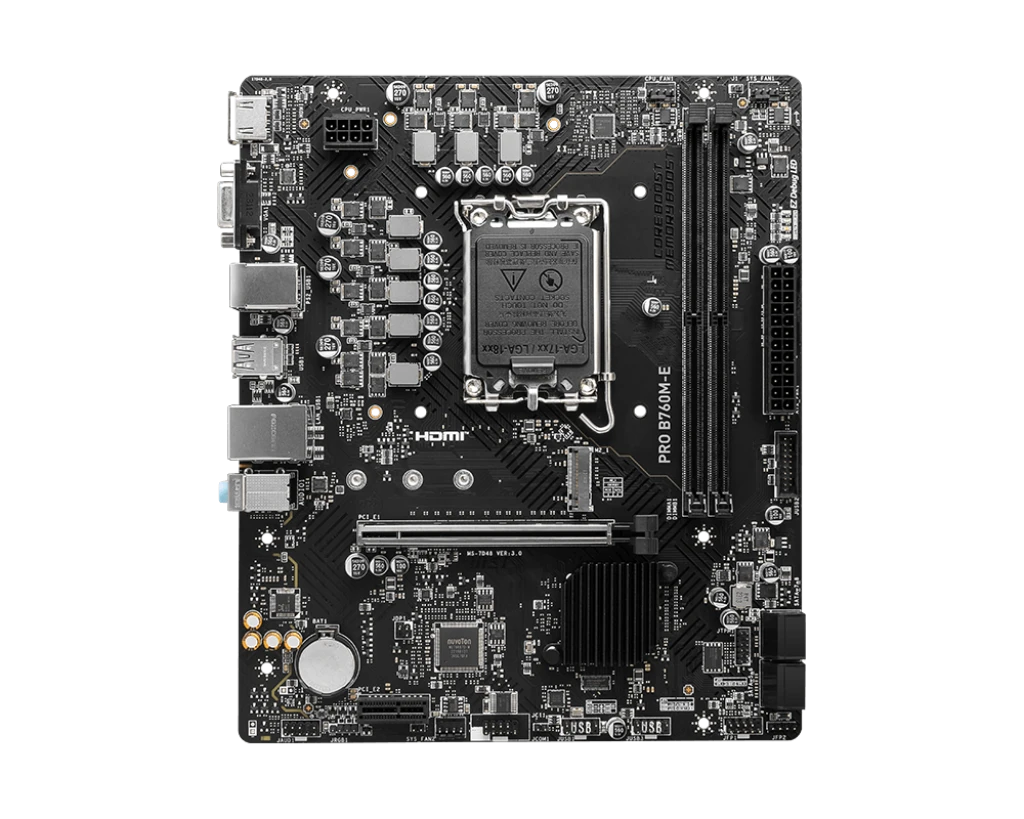

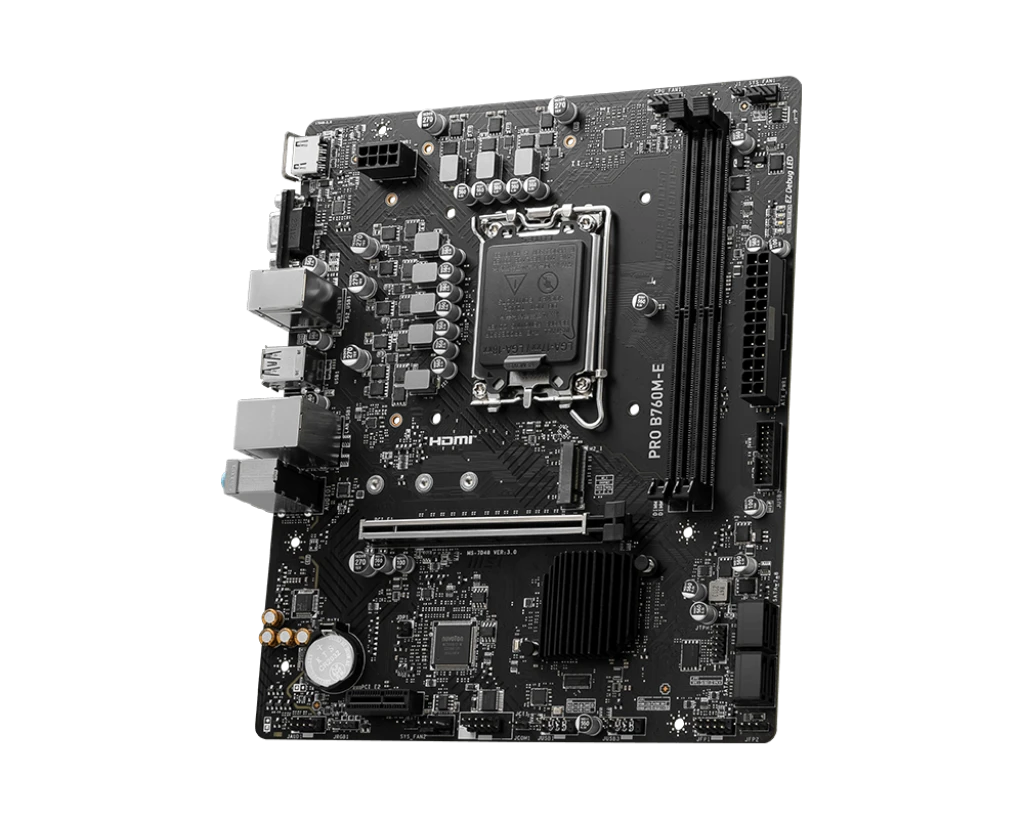

The MSI PRO B760M-E
motherboard is a high-performance Micro-ATX board designed to support
Intel's 12th, 13th, and 14th Gen Core processors. It is perfect for
building a powerful yet affordable system for general productivity and gaming,
offering modern connectivity and memory support.
Features
• Processor Support:
Supports Intel Core 12th/13th/14th Gen, Intel Pentium Gold, and Celeron
processors with the LGA1700 socket.
• Memory Support:
Supports DDR5 memory with speeds ranging from 4800 MHz to 6400+ MHz
(OC), with a maximum capacity of 128GB.
• Audio:
Realtek ALC897 codec for 7.1-channel high-definition audio.
Storage
and Expansion
• SATA Ports:
4 x SATA III (6Gb/s) ports for storage devices.
• M.2 Slot:
1 x M.2 slot (supports PCIe 4.0 x4 or SATA mode) for high-speed SSDs,
with support for 2280/2260/2242 devices.
Graphics
and Expansion
• Integrated Graphics:
Supports integrated graphics via the processor.
• PCIe Slot:
1 x PCIe 4.0 x16 (from CPU) and 1 x PCIe 3.0 x1 slot for
expansion cards.
Connectivity
Options

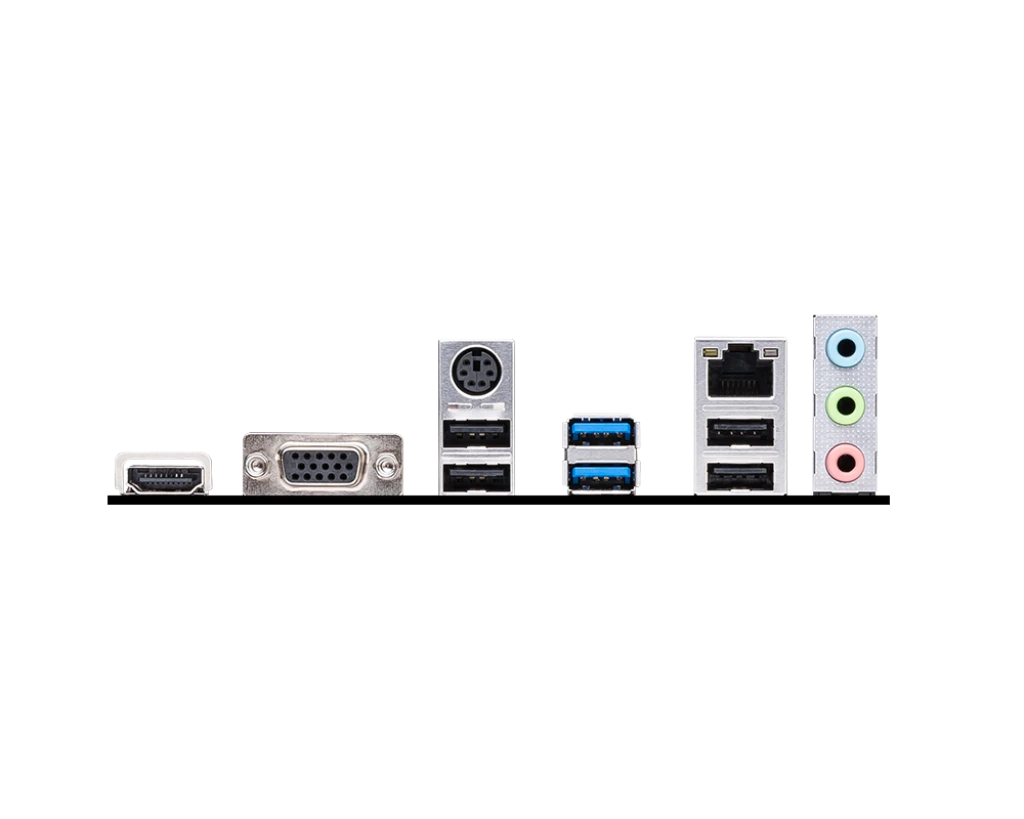

• USB Ports:
4 x USB 2.0, 2 x USB 3.2 Gen 1 Type-A ports for peripherals.
• Video Outputs:
1 x HDMI and 1 x VGA port for display connectivity.
Network
and Audio
• LAN Chipset:
Realtek RTL8111H Gigabit Ethernet for 1Gbps network speeds
(10/100/1000Mbps).
• Audio Chipset:
Realtek ALC897 codec providing 7.1-channel surround sound.
Design
and Build
• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• Cable Management: Front cable management for a tidy build.
• RGB Support:
Supports RGB with 1 x RGB LED connector (JRGB).
Compatibility
• Supported Operating System:
Windows 10, Windows 11
• Compatible Products:
Supports LGA1700 socket for Intel Core i9/i7/i5/i3, Pentium,
and Celeron processors.
Warranty
Information
• Warranty: 3-year warranty.
Price
and Availability
The MSI PRO B760M-E motherboard is available at various retailers and is a solid choice for building modern systems with support for 12th, 13th, and 14th Gen Intel processors
