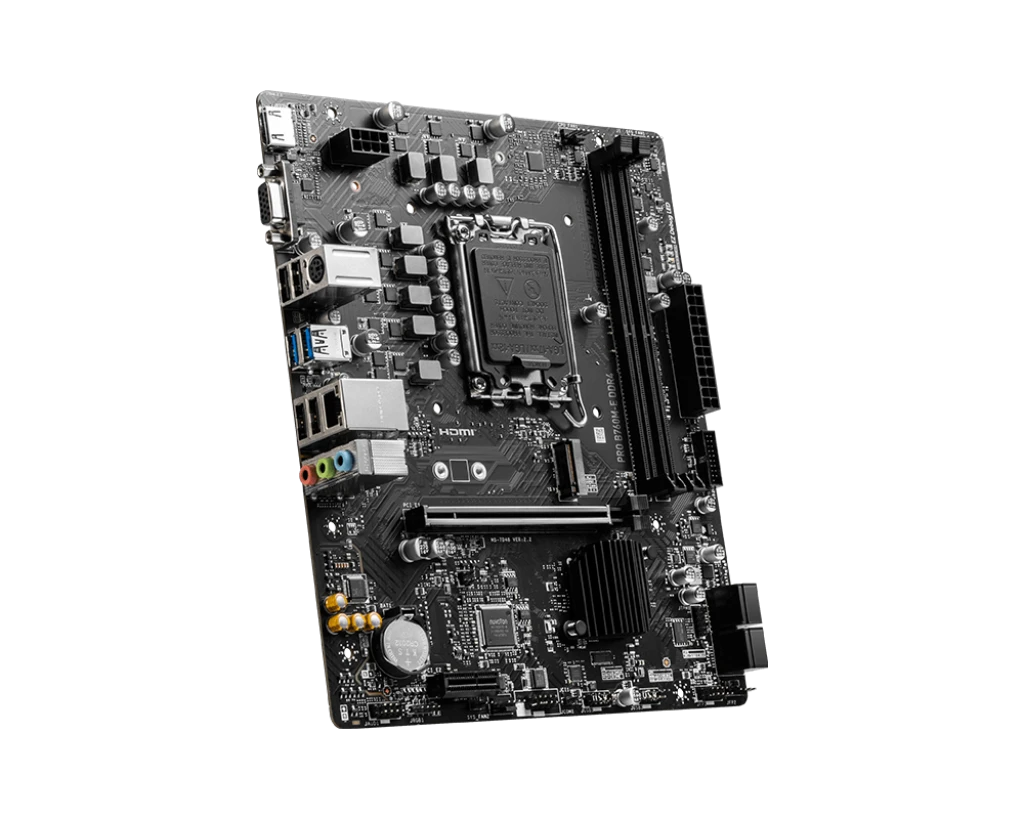

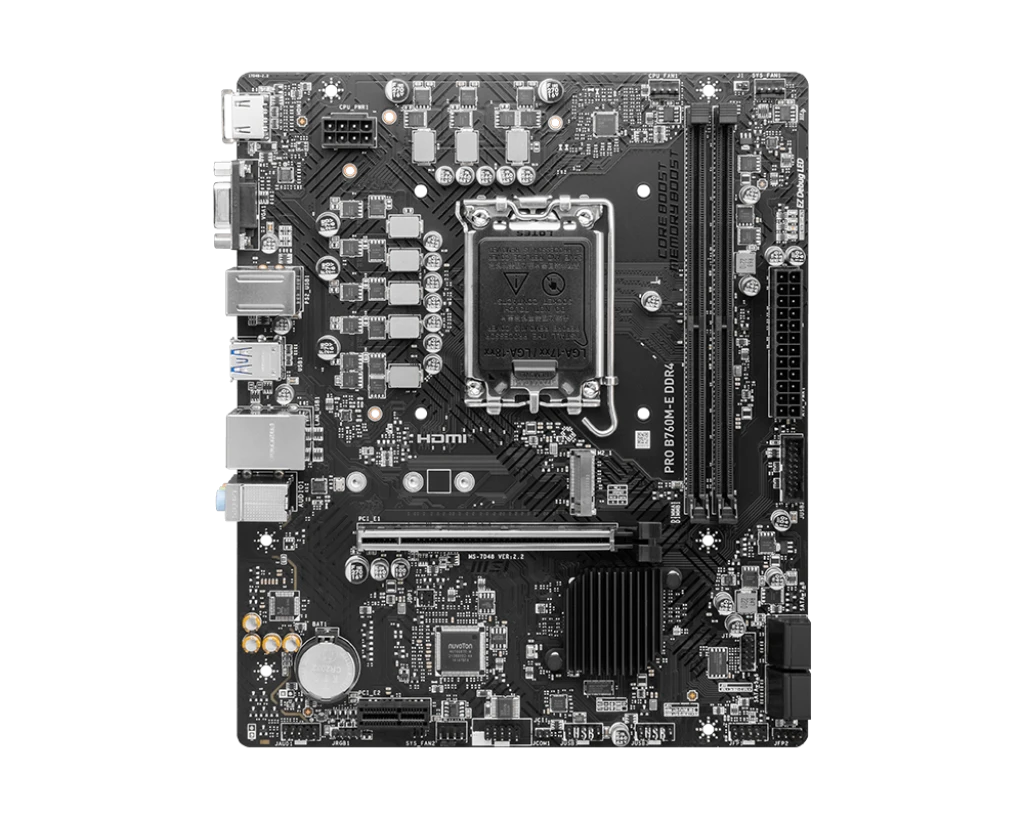

MSI PRO B760M-E DDR4 Intel LGA1700 Socket Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO
B760M-E DDR4 |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Built-in
Processor: Unmentioned Supported
CPU: 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron
Processors Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 4800(OC)/ 4600(OC)/ 4400(OC)/
4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/
3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/
2133(JEDEC) Memory Channel: Dual Memory Slot: 2 Memory Slot (Additional Info): 2 x DDR4 Memory Max: 64GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion Slot Details: 1 x M.2 (M.2_1 Source (From Chipset) supports up to
PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices) |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Integrated with Processor Multi-GPU Support: Unmentioned PCI Express Slot: 1 x PCIe x16, 1 x PCIe x1 |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8111H LAN Speed (Mbps): Unmentioned WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 4 x USB 2.0, 2 x USB 3.2 Gen1 Type A VGA
Port: 1 DVI
Port: Unmentioned HDMI
Port: 1 DisplayPort
(DP): Unmentioned IDE
Port: Unmentioned SATA
Port: 4 x SATA Thunderbolt:
Unmentioned TPM
Port: Yes |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: RGB RGB Connector: 1x RGB LED connector(JRGB) Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10, Windows 11 Compatible
Products: Intel Core i9/ i7/ i5/ i3, Pentium, Celeron processors. LGA1700
socket. |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
PRO B760M-E DDR4 Micro-ATX Motherboard
The MSI PRO B760M-E DDR4 is a
Micro-ATX motherboard equipped with the Intel B760 chipset,
designed to support 12th, 13th, and 14th Gen Intel Core processors with
the LGA1700 socket. This motherboard provides reliable memory and
storage options, making it a solid choice for building a capable workstation or
home PC.
Features
• Processor Compatibility:
Supports 12th, 13th, and 14th Gen Intel Core Processors, along with Pentium
Gold and Celeron processors using the LGA1700 socket.
• Chipset: Intel B760 chipset delivers stable and powerful
performance.
• Memory Support:
Supports DDR4 memory with speeds up to 4800 MHz (OC), and a
maximum capacity of 64GB across 2 slots.
• Audio:
Onboard Realtek ALC897 Codec for 7.1-channel high-definition
audio.
Storage
and Expansion
• M.2 Slot:
1 x M.2 slot (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
compatible with 2280/2260/2242 devices.
• SATA Ports:
4 x SATA 6Gb/s ports for additional storage options.
Graphics
and Expansion
• PCIe Slots:
1 x PCIe x16 slot for dedicated graphics cards.
1 x PCIe x1 slot for additional expansion cards.
• Integrated Graphics:
Supports integrated graphics via the processor for basic graphics
performance.
• Multi-GPU Support: Not mentioned.
Connectivity
Options

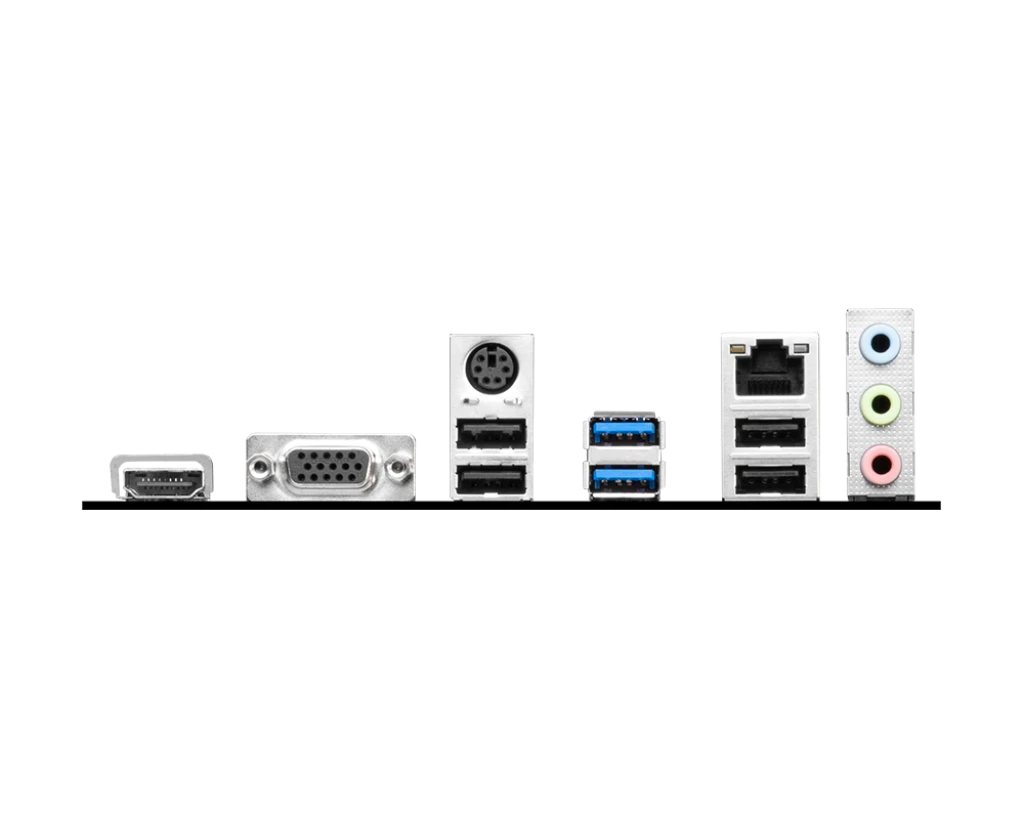

• USB Ports:
4 x USB 2.0
2 x USB 3.2 Gen 1 Type-A
• Video Outputs:
1 x VGA
1 x HDMI
Network
and Audio
• LAN Chipset:
Realtek RTL8111H for Gigabit Ethernet.
• Audio Chipset:
Realtek ALC897 codec for high-definition audio.
Design
and Build
• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• Color Scheme: Black
• RGB Support: Supports RGB lighting with 1 x RGB LED
connector (JRGB) for additional customization.
• TPM Port: Yes
Compatibility
• Supported Operating System:
Windows 10 and Windows 11 (64-bit)
Warranty
Information
• Warranty: 3 years.
Price
and Availability
The MSI PRO B760M-E DDR4
motherboard is available at Computer Village Agrabad, Chattogram, Bangladesh,
offering a reliable platform for building powerful systems with the latest
Intel processors.
