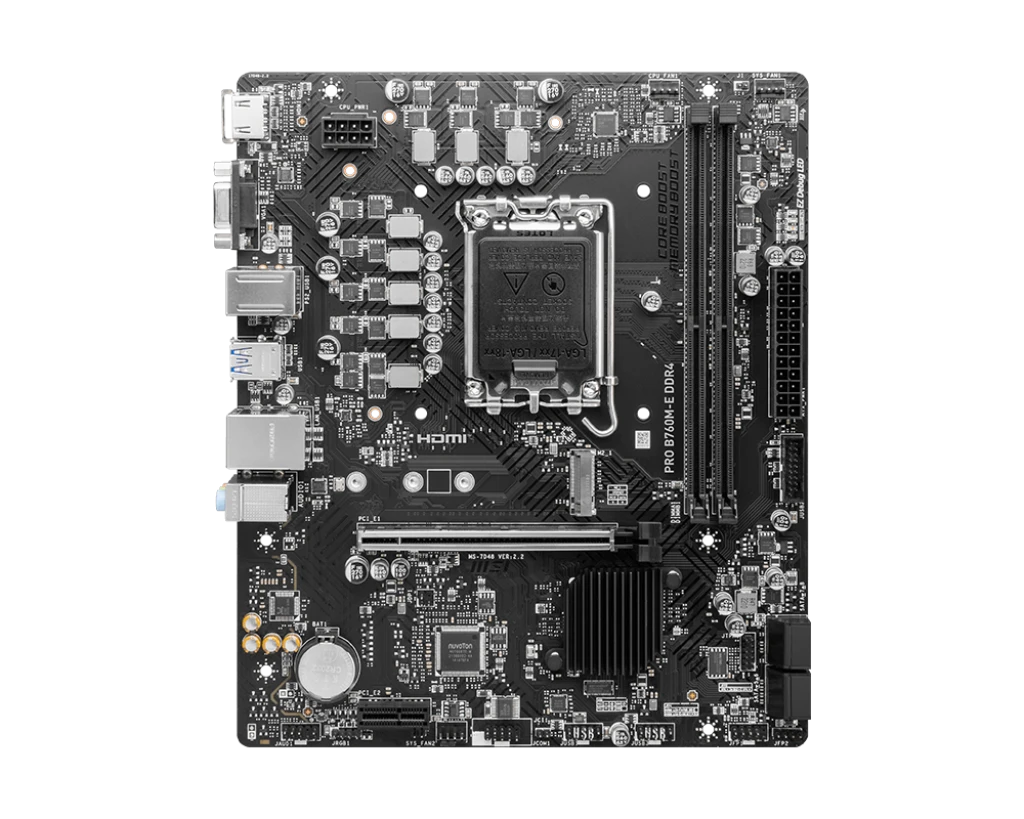

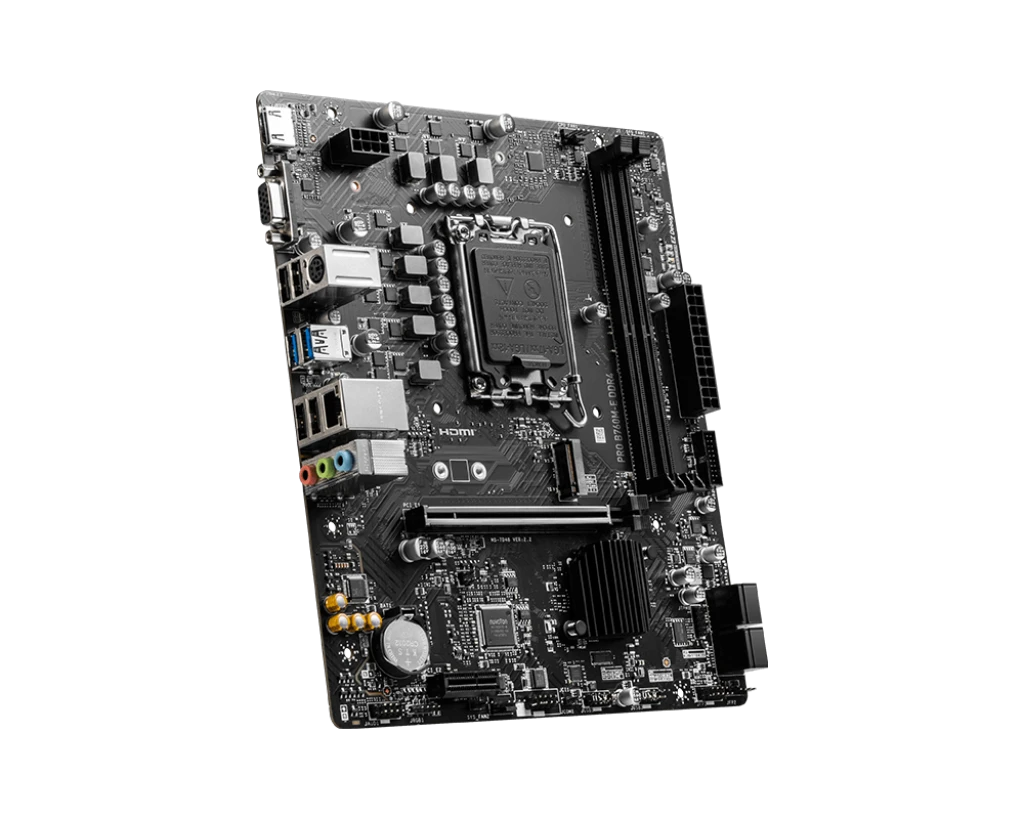

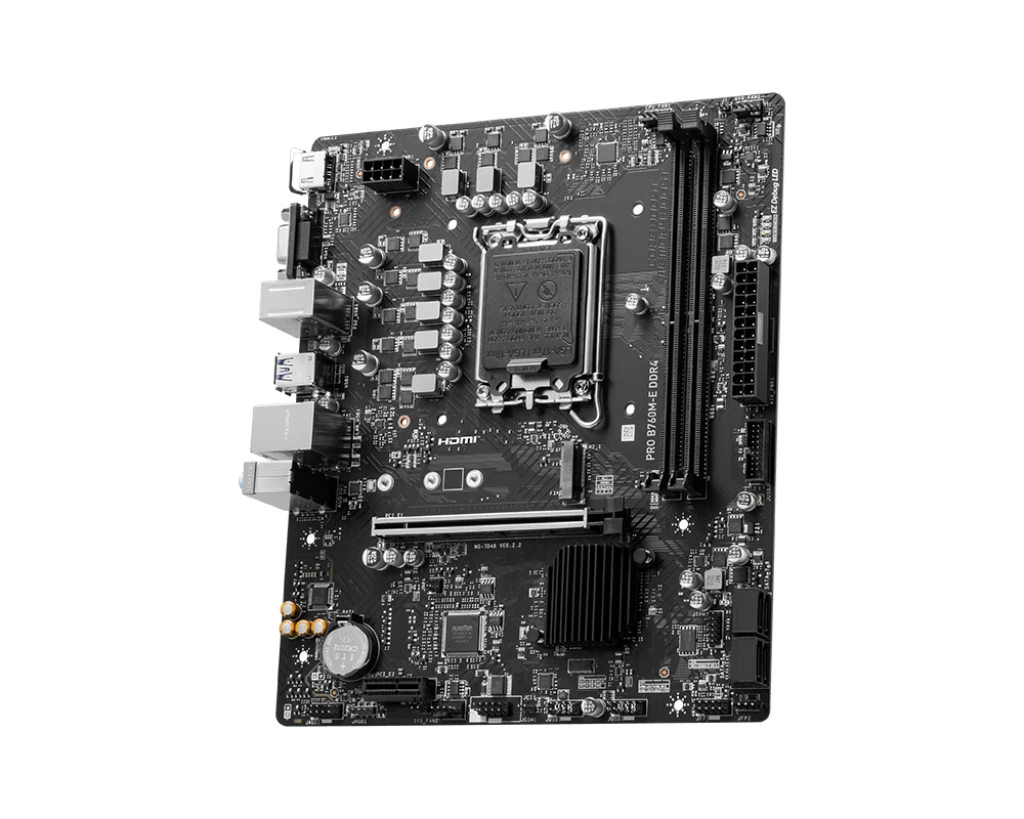

The MSI PRO B760M-E DDR4 motherboard is designed to meet the needs of professionals and gamers looking for a reliable, high-performance platform. Built with the Intel® B760 chipset and an LGA 1700 socket, it supports the latest Intel® Core™ 14th, 13th, and 12th Gen processors, as well as Intel® Pentium® Gold and Celeron® processors. This makes it an excellent choice for those seeking compatibility with Intel's newest CPU offerings while ensuring optimal performance for various computing tasks.

CPU and Chipset Support

The PRO B760M-E DDR4 motherboard offers robust support for a range of Intel® Core™ processors with the Intel® B760 chipset, delivering the perfect balance of power and efficiency. Whether you're building a system for gaming, content creation, or productivity, this motherboard provides the essential foundation for your processor's performance.

Memory Support

Equipped with 2 x DDR4 DIMM slots, this motherboard supports a maximum of 64GB of memory, offering the flexibility to handle demanding tasks. It supports high-frequency memory, including overclocking speeds of up to 4800 MHz (OC) for 1DPC 1R and up to 4600 MHz for 1DPC 2R. With Intel® Extreme Memory Profile (XMP) support, users can fine-tune their memory settings for enhanced performance and stability.

Storage Options

The PRO B760M-E DDR4 features 1 x M.2 slot and 4 x SATA 6Gb/s ports, allowing ample storage expansion. It supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices, enabling faster data transfer and redundancy options. The M.2 slot, which supports PCIe 4.0 x4 and SATA modes, accommodates a wide range of storage devices for improved system responsiveness.

Graphics and Connectivity

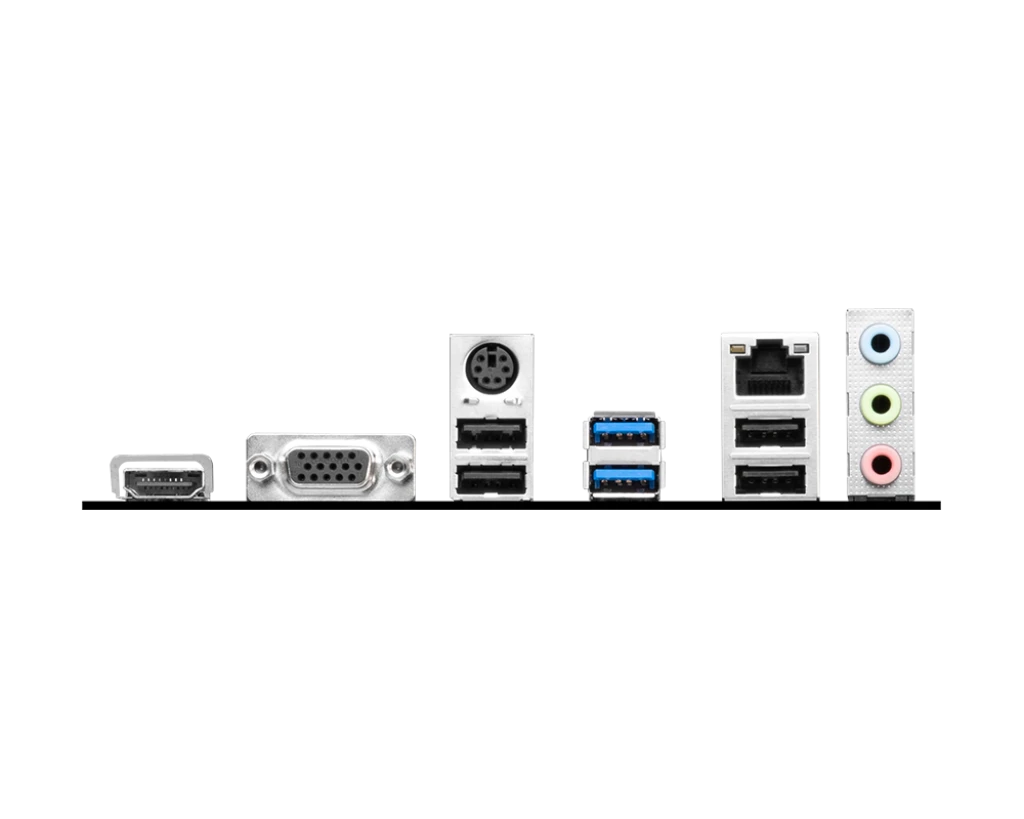

For display options, the motherboard comes with 1 x HDMI™, 1 x VGA, and 1 x DisplayPort, ensuring compatibility with various monitors and display technologies. The Realtek® RTL8111H Gigabit LAN provides reliable network connectivity for online gaming, video conferencing, or content streaming, while the multiple USB ports, including 2 x USB 5Gbps Type-A (rear), offer fast data transfer rates for peripherals.

PCI Expansion and Internal Features

The PRO B760M-E DDR4 includes 1 x PCIe 4.0 x16 and 1 x PCIe 3.0 x1 slots for GPU and additional expansion cards. Internal connectors include RGB LED headers, TPM 2.0 support, and USB headers, enabling customization and expandability.

Audio and Software

With the Realtek® ALC897 Codec, this motherboard supports 7.1-channel high-definition audio for immersive sound quality. It is also bundled with MSI Center, AIDA64 Extreme - MSI Edition, and Intel Extreme Tuning Utility for system optimization.

Warranty

The MSI PRO B760M-E DDR4 motherboard is backed by a 3-year warranty, ensuring long-term durability and performance. Whether for personal or professional use, it provides an excellent foundation for any system build.
