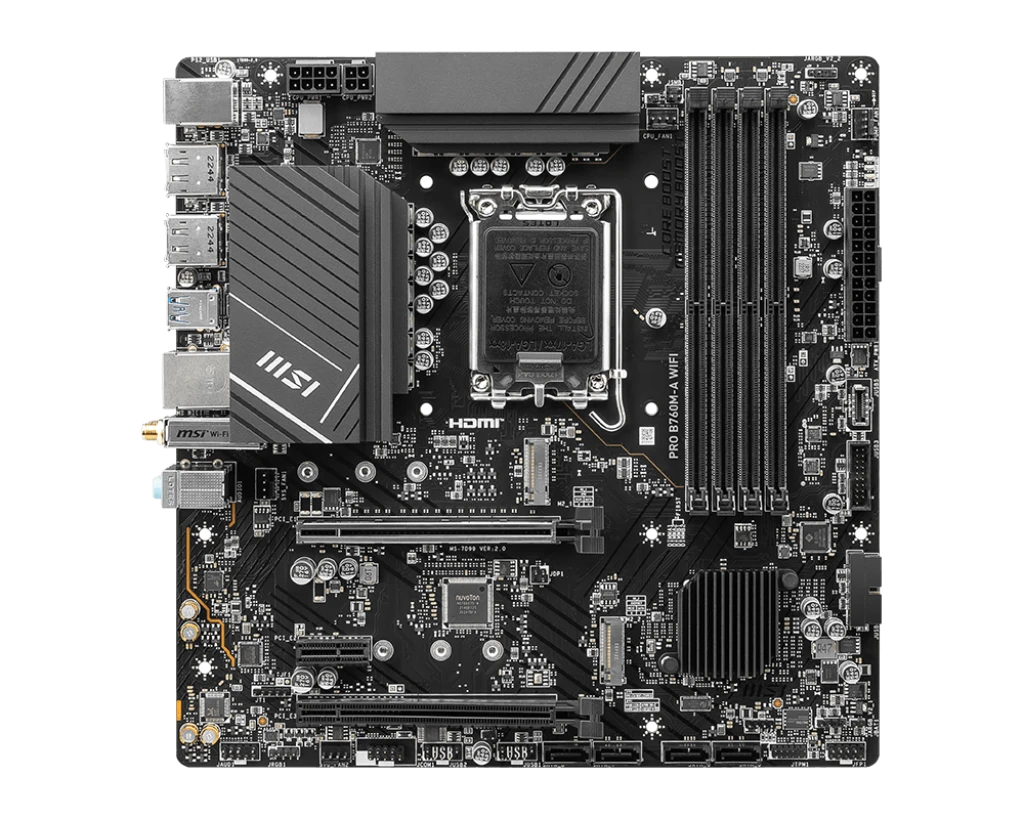

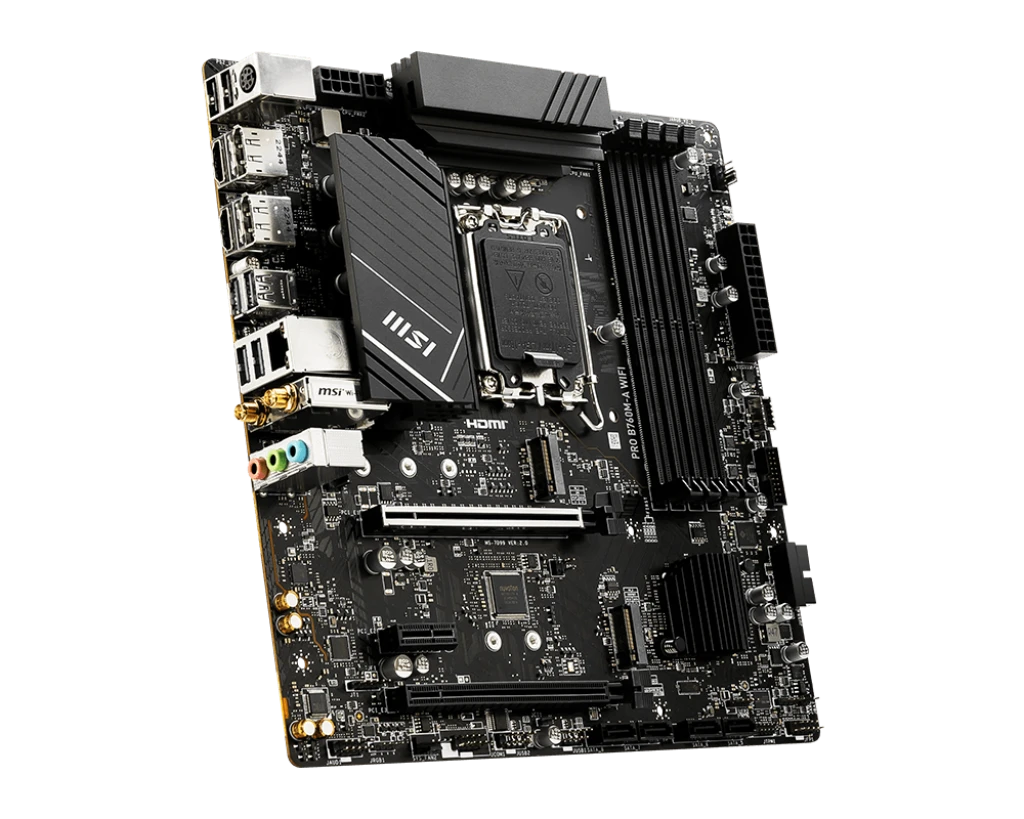

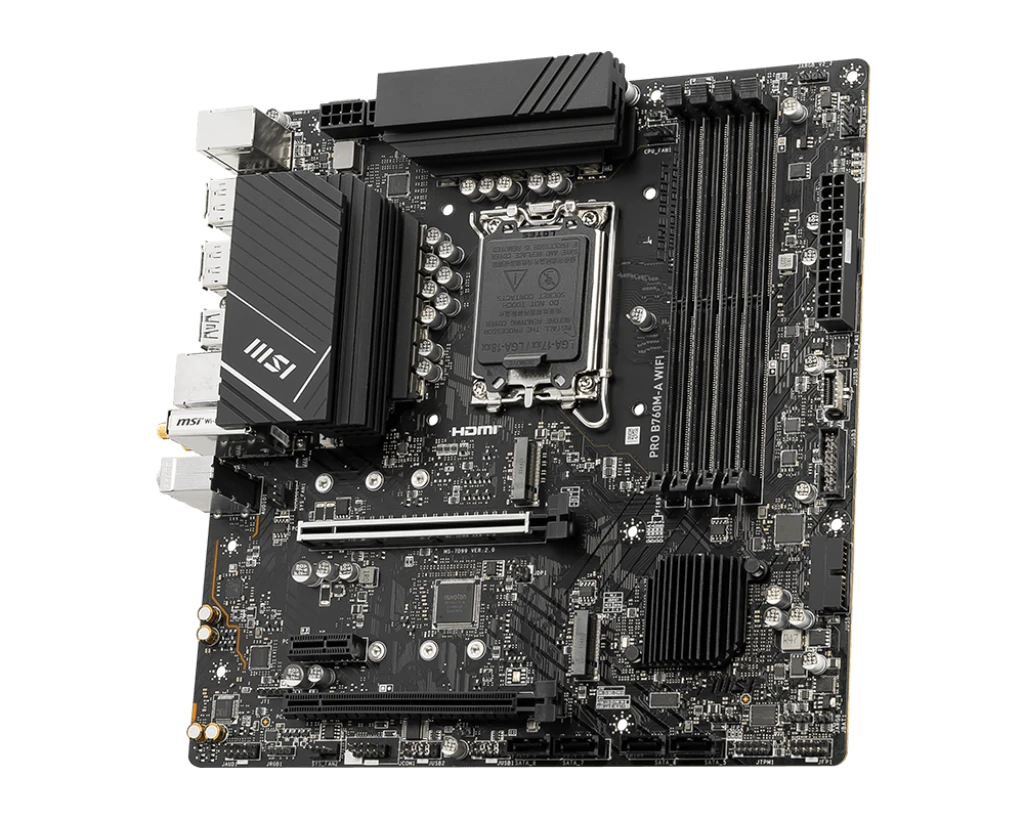

MSI PRO B760M-A (Wi-Fi 6E) DDR5 Micro-ATX Motherboard

The MSI PRO B760M-A (Wi-Fi 6E) is a compact and powerful Micro-ATX motherboard, engineered to deliver modern performance and connectivity for Intel's 12th, 13th, and 14th Gen processors on the LGA1700 socket. With support for DDR5 memory, PCIe 4.0, dual M.2 slots, Wi-Fi 6E, and 2.5G LAN, this motherboard strikes a perfect balance for productivity-focused users and PC builders.

Features

Built on the Intel B760 chipset, this board supports a wide range of Intel CPUs, including Core i3 to i9, as well as Pentium Gold and Celeron processors. It supports high-performance DDR5 memory up to 192GB, with speeds reaching 6800+ MHz (OC), ideal for demanding multitasking and future-ready systems.

Storage and Expansion

Equipped with 2 x M.2 slots, the MSI PRO B760M-A offers flexible and fast storage options:

• M.2_1 (From CPU) supports PCIe 4.0 x4 for ultra-fast NVMe SSDs.
• M.2_2 (From Chipset) supports PCIe 4.0 x4 or SATA mode, allowing versatile storage configurations.

Additionally, 4 x SATA 6.0Gb/s ports are included for traditional hard drives or SSDs.

Graphics and Expansion Slots

This motherboard features multiple PCIe expansion options:

• PCI_E1 (Gen 4.0 x16) – From CPU
• PCI_E2 (Gen 3.0 x1) – From Chipset
• PCI_E3 (Gen 4.0 x4) – From Chipset

Display support is robust with 2 x HDMI ports and 2 x DisplayPorts, accommodating multiple displays or high-resolution setups.

Audio and Networking

Enjoy immersive sound with the Realtek ALC897 7.1-channel audio codec, and high-speed, stable networking via the Realtek RTL8125BG 2.5G LAN. For wireless connectivity, the board includes Wi-Fi 6E and Bluetooth 5.3, delivering fast wireless speeds and stable connections for peripherals and streaming.

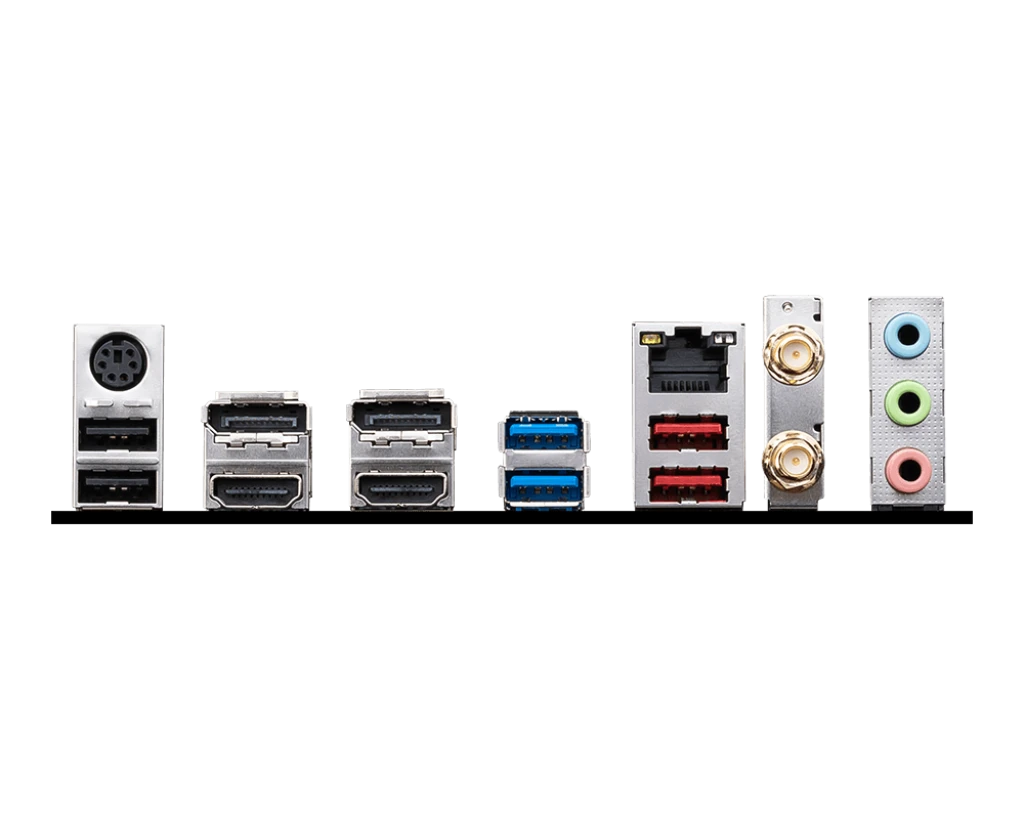

Connectivity Options

• 2 x USB 3.2 Gen 2 Type-A
• 2 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0
• 2 x HDMI
• 2 x DisplayPort

These ports provide seamless peripheral connectivity, fast file transfers, and versatile display support.

Design and Build

The MSI PRO B760M-A comes in a sleek Black design, built in the Micro-ATX form factor. It includes heatsinks for better thermal control and supports RGB lighting via 1 x RGB LED connector, adding visual customization to your build. Front cable management ensures a clean interior setup.

Power & Efficiency

With an approximate power consumption of 60W, this board provides energy-efficient performance while handling a wide range of computing tasks with ease.

Warranty Information

The motherboard is backed by a 3-year warranty, ensuring long-term reliability and peace of mind.

Price and Availability

The MSI PRO B760M-A (Wi-Fi 6E) is now available at Computer Village Agrabad, Chattogram, Bangladesh. With support for DDR5, dual M.2 slots, next-gen connectivity, and robust networking, it’s a smart choice for professionals, creators, and gamers building a powerful and efficient Intel-based system.
