MSI PRO B650M-P DDR5 AMD Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO
B650M-P |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B650 Sockets
Supported: AM5 Supported
CPU: AMD Ryzen 8000/ 7000 Series Desktop Processors Generation:
Not Applicable |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7200+(OC)/ 7000(OC)/ 6800(OC)/
6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/
5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz non-ECC, un-buffered memory Memory Channel: Dual Memory Slot: 4 Memory Slot (Additional Info): 4 x DDR5 Memory Max: 256GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion Slot Details: 2 x M.2 Slots ( 1 x M.2 Source (From CPU) supports up
to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 Source (From Chipset)
supports up to PCIe 4.0 x4 , supports 2280/2260 devices) |
|
Graphics Info |
PCI Express Slot: 1 x PCI-E x16 slot, 2 x
PCI-E x1 slot |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 8125BG 2.5G LAN LAN Speed (Mbps): 10/100/1000/2500Mbps |
|

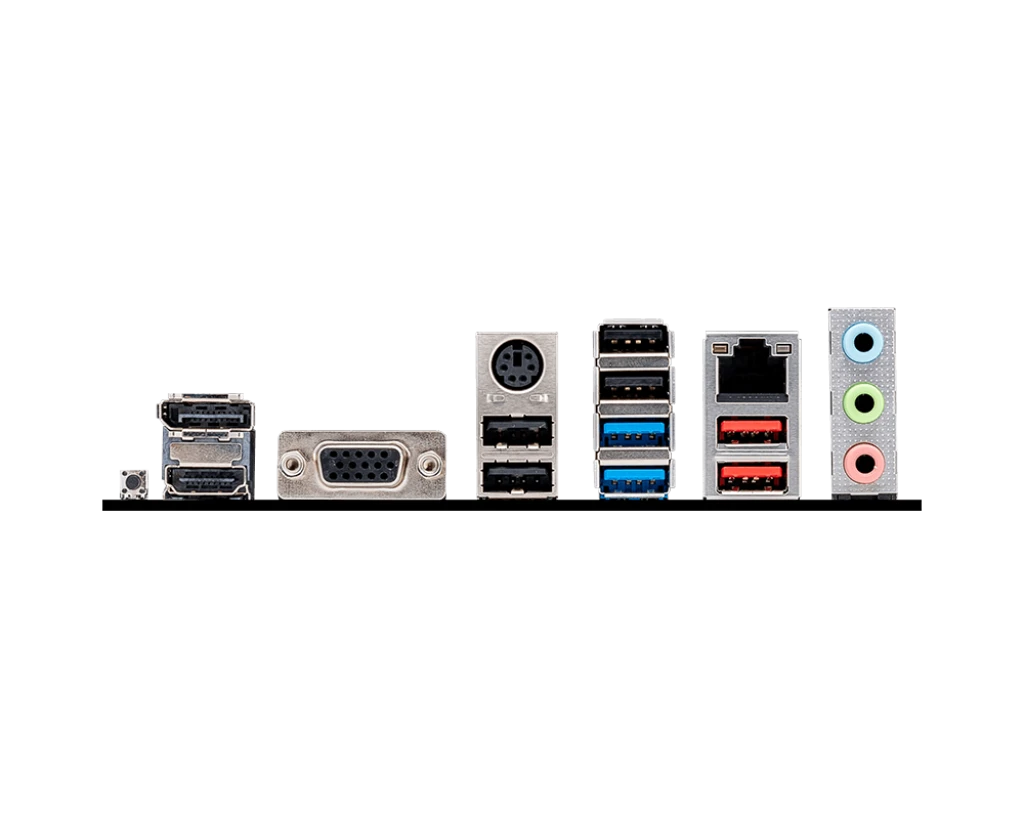

Ports Data |
USB
Port: 4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 1 Type-A, 2 x USB 3.2 Gen 2 Type-A VGA Port:
1 HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 4 x SATA TPM
Port: 1 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: RGB RGB Connector: 2 x Addressable V2 RGB LED
connector (JARGB V2), 2 x RGB LED connector(JRGB) Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / 11 Compatible
Products: Socket AM5 Ryzen 8000/ 7000 Series Processors |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
PRO B650M-P DDR5 Micro-ATX Motherboard
The MSI PRO B650M-P is a
dependable and performance-focused Micro-ATX motherboard built around
the AMD B650 chipset, designed to support the latest AMD Ryzen 8000
and 7000 Series Desktop Processors. With advanced connectivity, impressive
memory support, and robust construction, it's ideal for users building
productivity systems, home PCs, or budget-friendly gaming rigs with next-gen
hardware.
Features
The motherboard supports DDR5
memory up to a whopping 256GB, with overclocking speeds up to 7200+
MHz. It offers dual-channel architecture and 4 DDR5 slots,
ensuring smooth multitasking, faster performance, and future-ready
expandability for demanding workloads.
Storage
and Expansion
Storage options are solid, with:
- 2 x M.2 PCIe 4.0 x4 slots (one from CPU, one from chipset) supporting 2280/2260
devices for fast NVMe SSDs
- 4 x SATA 6.0Gb/s ports for traditional hard drives or SATA SSDs
This configuration delivers fast
boot times and ample room for storage upgrades.
Graphics
and PCIe Slots
- 1 x PCI-E x16 slot
(for GPU)
- 2 x PCI-E x1 slots
(for expansion cards)
The board also features integrated
display outputs including:
- 1 x HDMI
- 1 x DisplayPort
- 1 x VGA port
(great for legacy monitor support)
These provide multiple options for
integrated graphics setups.
Audio
and Networking
Enjoy clear sound through the Realtek
ALC897 Codec with 7.1-channel HD audio support, suitable for
entertainment and productivity alike. Networking is powered by a Realtek
8125BG 2.5G LAN chipset, offering speeds up to 2500Mbps for smooth
online experiences in gaming, streaming, and downloading.
Connectivity
Options
- USB Ports:
- 4 x USB 2.0 Type-A
- 2 x USB 3.2 Gen 1 Type-A
- 2 x USB 3.2 Gen 2 Type-A
- Video Outputs:
1 x HDMI, 1 x DisplayPort, 1 x VGA
- SATA Ports:
4 x SATA
- TPM Header:
1 x TPM port for enhanced security
These ports support all essential
modern and legacy devices, ensuring excellent overall compatibility.
Design
and Build
The MSI PRO B650M-P features a black
PCB design with subtle professional aesthetics. Built in the Micro-ATX
form factor, it fits easily into most cases. The board includes heatsinks
for stability and longevity, and it comes with 2 x Addressable RGB (JARGB
V2) and 2 x RGB LED headers (JRGB) for advanced lighting
customization and sync with MSI Mystic Light.
Power
& Efficiency
With an approximate power draw of
60W, this motherboard delivers efficient operation while still handling the
performance needs of modern Ryzen processors.
Warranty
Information
The product comes with a standard 3-year
warranty, offering reliability and peace of mind for long-term use.
Price
and Availability
The MSI PRO B650M-P DDR5
Motherboard is now available at Computer Village Agrabad, Chattogram,
Bangladesh. Ideal for entry-level AM5 builds or users seeking high memory
capacity and next-gen connectivity in a compact size, this board balances
affordability and performance beautifully.
