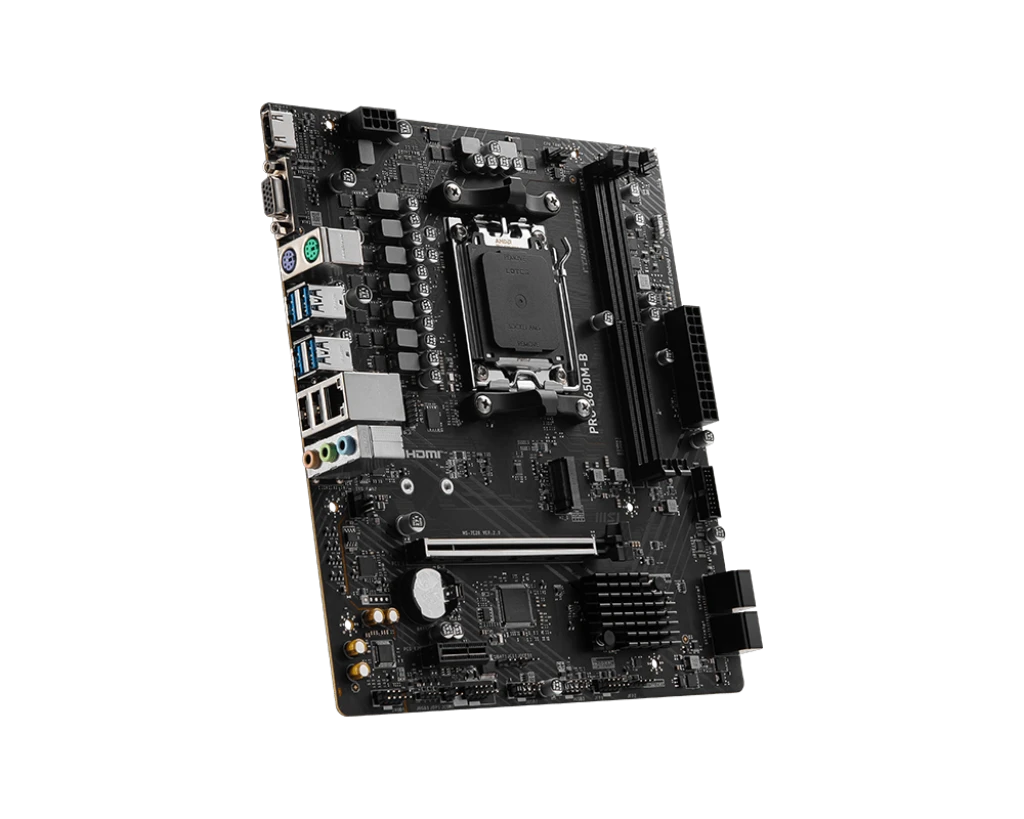

MSI PRO B650M-B motherboard is a versatile and reliable platform designed to support the latest AMD Ryzen™ 9000/8000/7000 Series Desktop Processors. Featuring the AMD B650 chipset and a Socket AM5, this motherboard offers robust features, high-performance capabilities, and expandability, making it an excellent choice for users building a modern system for gaming, content creation, and professional workloads.

Performance and Memory Support

The PRO B650M-B supports 2x DDR5 memory slots, with a maximum memory capacity of 128GB. This makes it ideal for high-end computing, including multitasking, gaming, and content creation. The motherboard is compatible with DDR5 memory speeds ranging from 4800 MHz to 6800+ MHz (OC), providing users with exceptional overclocking potential. For performance enthusiasts, the 1DPC 1R configuration can achieve speeds of up to 6800+ MHz, while 1DPC 2R configurations support speeds up to 6000+ MHz. This offers superior memory bandwidth and responsiveness, especially when paired with AMD EXPO profiles for optimized memory performance.

Storage Options and Expansion

The PRO B650M-B is equipped with advanced storage capabilities, including 1x M.2 slot (M.2_1) supporting PCIe 4.0 x4 for fast data transfer speeds, as well as 4x SATA 6G ports for traditional storage devices. The motherboard supports RAID 0, RAID 1, and RAID 10 configurations, enabling users to enhance storage performance and data redundancy. The M.2_1 slot supports 2280/2260 devices, providing flexibility for different SSD sizes.

Graphics and Display

The motherboard provides 1x HDMI™ port with support for HDMI™ 2.1, allowing for high-quality video output with a maximum resolution of 4K at 60Hz. Additionally, it includes a VGA port that supports resolutions up to 2048x1536 at 50Hz and 2048x1280 at 60Hz, providing compatibility with older monitors or dual-display setups.

Networking and Connectivity

For fast networking, the PRO B650M-B integrates the Realtek® RTL8125BG 2.5G LAN controller, ensuring high-speed and stable internet connectivity. This is particularly beneficial for online gaming, media streaming, and large file transfers. The motherboard is equipped with multiple expansion slots, including 1x PCI-E x16 slot for high-performance graphics cards, and 1x PCI-E x1 slot for additional expansion cards, providing flexibility for system upgrades.

USB and I/O Ports

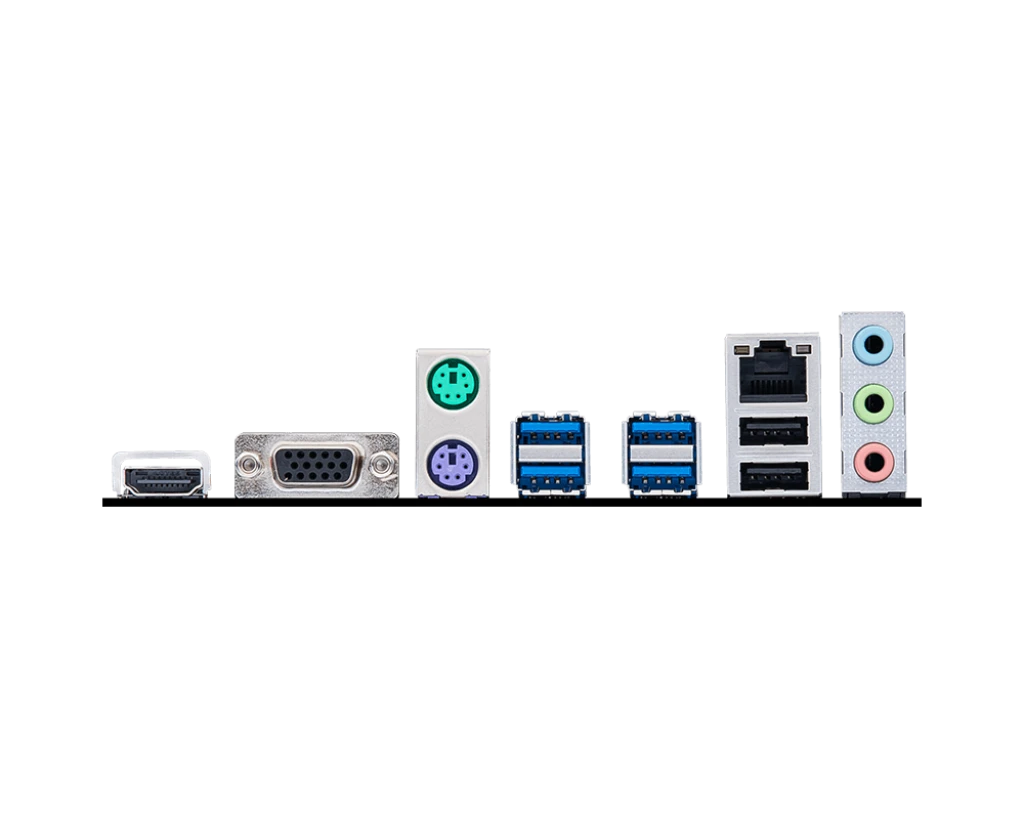

Connectivity is further enhanced with a wide array of USB ports. On the rear panel, you'll find 4x USB 3.2 Gen 1 Type-A ports for fast data transfer, along with 2x USB 2.0 ports for legacy peripherals. The motherboard also includes 2x USB 5Gbps Type-A ports on the front panel, enabling quick access for devices like external hard drives and flash drives. With 2x USB 2.0 ports available on the front, users can easily connect various peripherals without cluttering the back I/O.

Audio and BIOS

The PRO B650M-B motherboard features Realtek® ALC897 Codec, providing 7.1-channel high-definition audio for immersive sound quality, making it an excellent choice for gaming and media playback. The motherboard uses UEFI AMI BIOS with 256 Mb flash memory, offering a user-friendly interface for system customization. Additionally, the 4x EZ Debug LED assists with troubleshooting during installation, ensuring a smooth setup process.

Additional Features

This motherboard comes with several additional features, including NUVOTON NCT6687D-R Controller Chip, and support for TPM 2.0. The MSI Center software allows users to optimize their system's performance, while CPU-Z MSI GAMING, Norton 360, and AIDA64 Extreme - MSI Edition ensure that your system runs securely and efficiently.

Warranty

The MSI PRO B650M-B motherboard is backed by a 3-year warranty, offering peace of mind and reliable support for your system build.

With its high-speed memory support, advanced storage options, robust connectivity, and solid expansion capabilities, the MSI PRO B650M-B motherboard is a powerful choice for building a modern desktop system. Whether you're focused on gaming, content creation, or productivity, this motherboard offers the reliability and performance you need to tackle any task.
