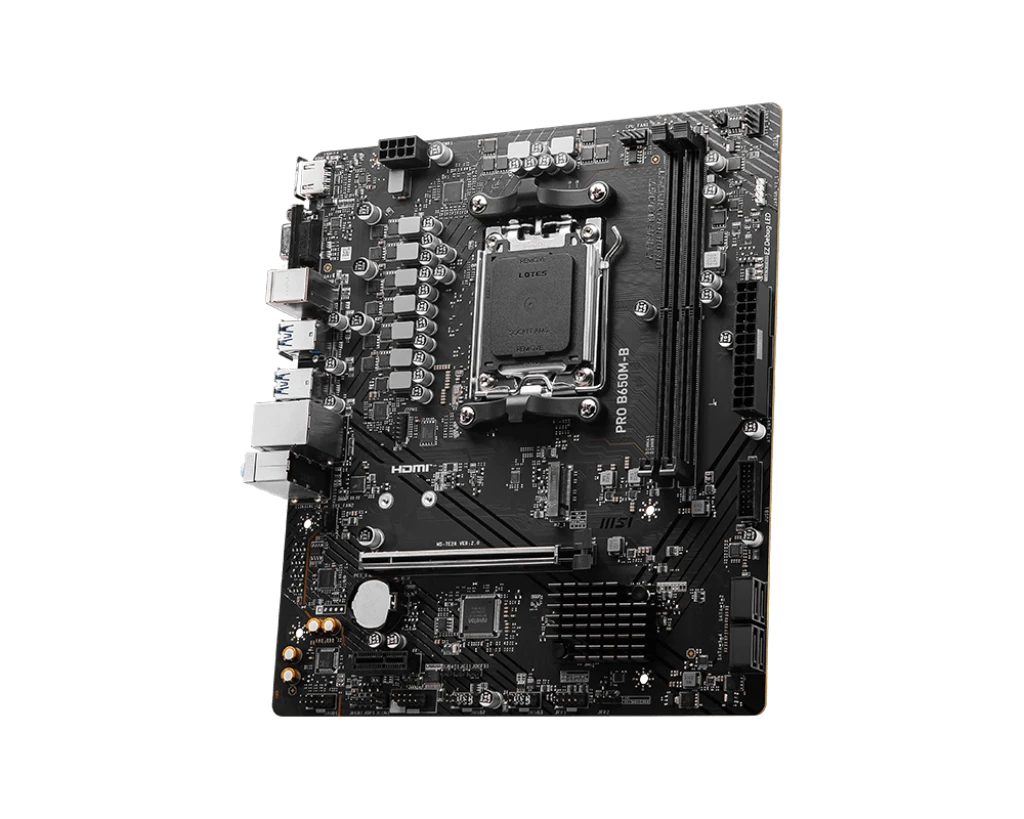

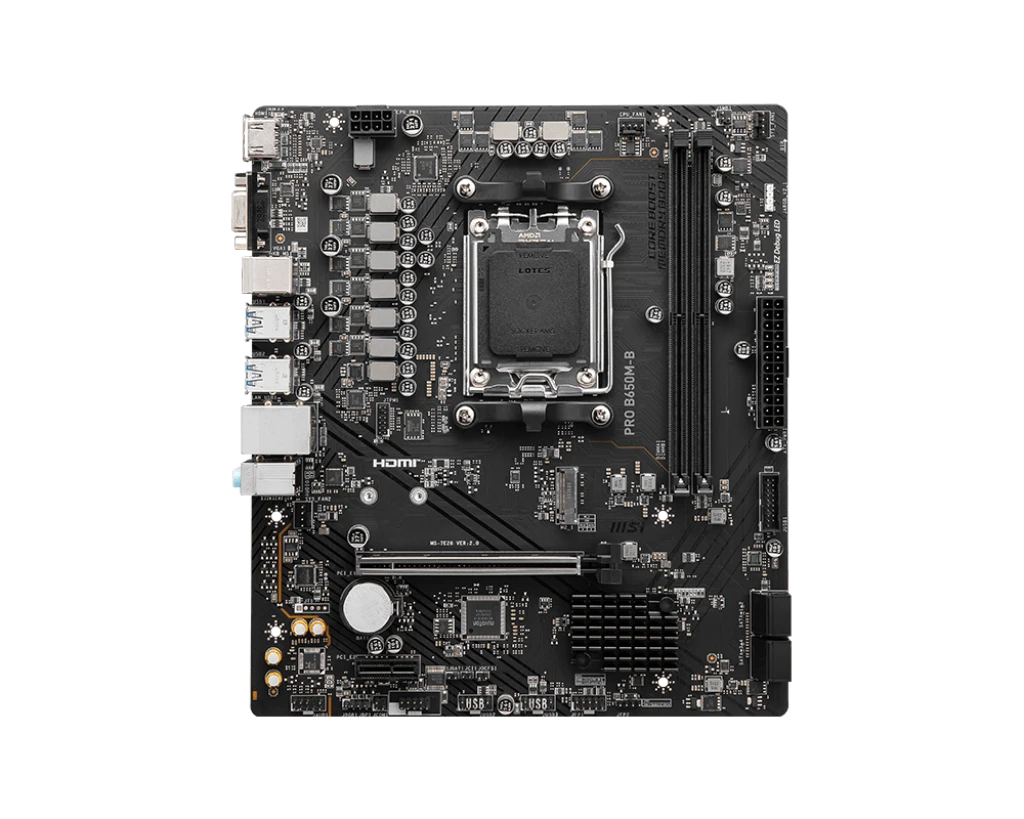

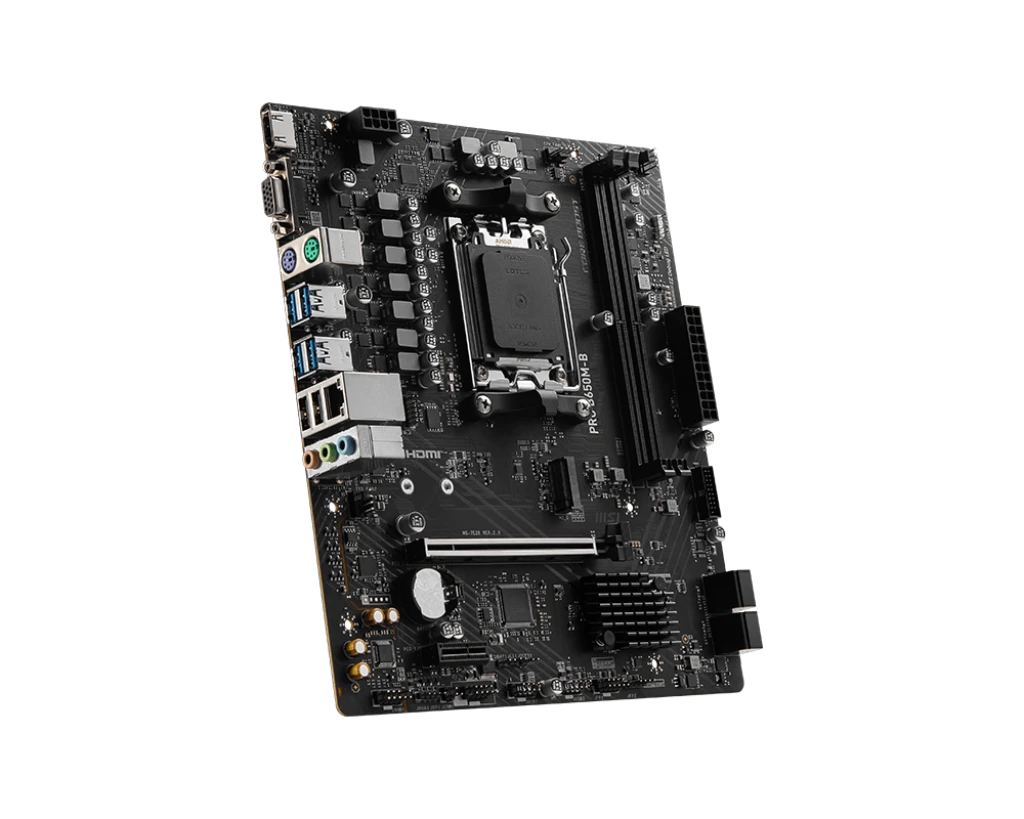

MSI PRO B650M-B DDR5 AMD Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO
B650M-B |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B650 Sockets
Supported: AM5 Built-in
Processor: Unmentioned Supported
CPU: AMD Ryzen 8000/ 7000 Series Desktop Processors Generation:
N/A |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 6800+(OC)/ 6600(OC)/ 6400(OC)/
6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC)
MHz Non-ECC, Unbuffered. Memory Channel: Dual Memory Slot: 2 Memory Max: 128GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion Slot Details: 1 x M.2 Slot (supports up to PCIe 4.0 x4 , supports
2280/2260) |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Integrated with Processor Multi-GPU Support: Unmentioned PCI Express Slot: 1x PCI-E x16 slot, 1x
PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen
PCIe 3.0 supports up to x1 (From Chipset) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8125BG LAN Speed (Mbps): 10/ 10/ 1000/ 2500Mbps WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 4 x USB 3.2 Gen1 Type A, 2 x USB 2.0 VGA
Port: 1 DVI
Port: Unmentioned HDMI
Port: 1 DisplayPort
(DP): Unmentioned IDE
Port: Unmentioned SATA
Port: 4 Thunderbolt:
Unmentioned TPM
Port: 1 |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: RGB RGB Connector: 1 x Addressable V2 RGB LED
connector (JARGB_V2), 1 x RGB LED connector(JRGB) Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11 / 10 Compatible
Products: Socket AM5 Ryzen 8000/ 7000 Series Desktop Processors |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
PRO B650M-B Micro-ATX Motherboard
The MSI PRO B650M-B is a
reliable Micro-ATX motherboard that offers solid performance and
versatility for users building systems with AMD Ryzen 8000/7000 Series
processors. With DDR5 memory support and PCIe 4.0 compatibility,
it delivers high-speed connectivity and future-proof capabilities for gaming,
content creation, and productivity needs.
Features
• Processor Compatibility: Supports AMD Ryzen 8000/7000 Series processors on AM5
socket
• Chipset: AMD B650, designed for high-performance and
reliability
• Memory Support: Dual-channel DDR5 memory, up to 128GB,
speeds from 4800MHz to 6800MHz (OC)
• Audio: Realtek ALC897 Codec for 7.1-channel
high-definition audio
Storage
Support
• M.2 Slot:
1 x M.2 slot (supports PCIe 4.0 x4, 2280/2260 sizes) for fast SSD
storage
• SATA Ports:
4 x SATA 6Gb/s connectors for additional storage devices
Expansion
and Graphics
• PCIe Slots:
1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot
• Integrated Graphics: Integrated graphics with the processor (No dedicated
GPU required for basic tasks)
Connectivity
Options

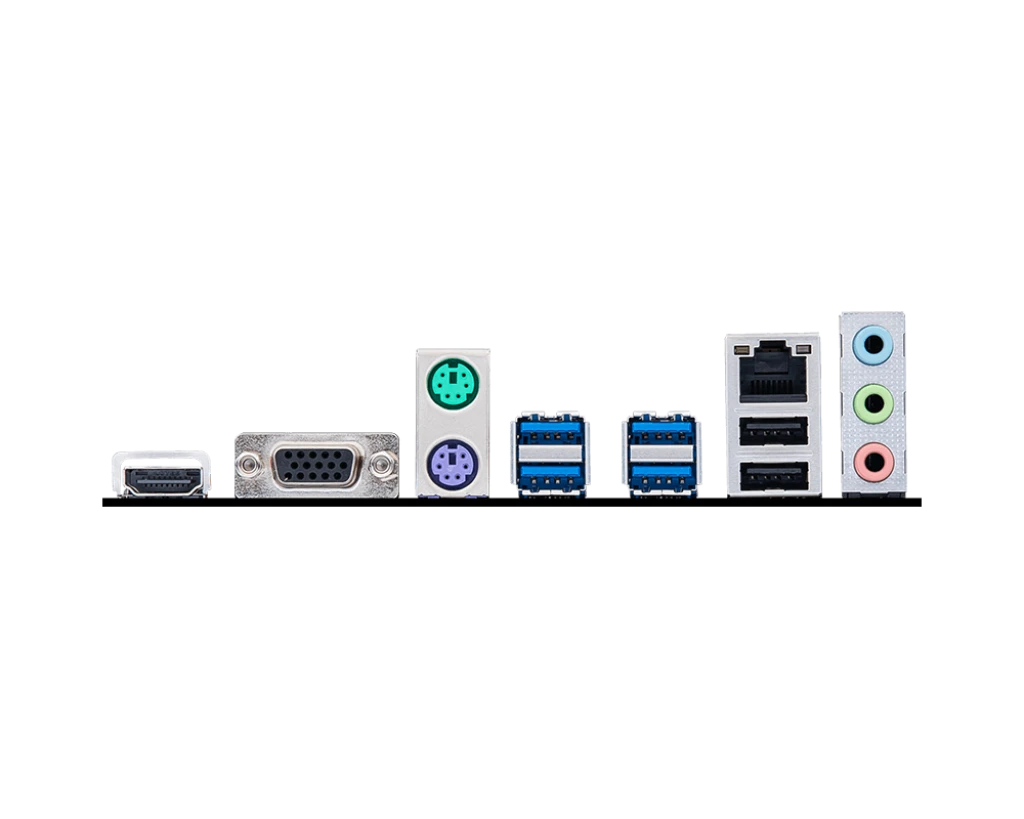

• USB Ports:
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
• Video Outputs:
1 x HDMI port
1 x VGA port
• Additional Ports:
1 x TPM header for Trusted Platform Module integration
Design
and Build
• Form Factor: Micro-ATX
• Color Scheme: Black
• RGB Lighting: Supports RGB with 1 x Addressable V2 RGB LED
connector and 1 x RGB LED connector
Power
and Efficiency
• Power Consumption: Approx. 60W
• Power Management: Optimized for energy efficiency
Warranty
Information
• Warranty: 3 Years official manufacturer warranty
Price
and Availability
Available now at Computer Village
Agrabad, Chattogram, Bangladesh, the MSI PRO B650M-B provides
excellent performance with DDR5 support and PCIe 4.0, making it
an ideal choice for building modern, high-performance systems.
