MSI PRO B650M-A (Wi-Fi 6E) DDR5 AMD AM5 Socket Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO
B650M-A (Wi-Fi 6E) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B650 Sockets
Supported: AM5 Supported
CPU: AMD Ryzen 7000 Series Generation:
Not Applicable |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 6000+(OC)/ 5800(OC)/ 5600(OC)/
5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC)MHz non-ECC, un-buffered memory Memory Channel: Dual Memory Slot: 4 Memory Slot (Additional Info): 4 x DIMM Memory Max: 128GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion Slot Details: 2 x M.2 slot (2 x M.2 PCIe 4.0 x4 , supports
2280/2260 ) |
|
Graphics Info |
PCI Express Slot: 2 x PCI-E x 16, 1 x PCI-E
x 1 (PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports
up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 8125BG LAN Speed (Mbps): 10/100/1000/2500 Mbps WiFi: Yes WiFi Technology: AMD Wi-Fi 6E Bluetooth: Bluetooth 5.2 |
|
Ports Data |
USB
Port: 4 x USB 3.2 Gen 1 Type A , 4 x USB 3.2 Gen 2 Type A HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 4 x SATA TPM
Port: 1 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: RGB RGB Connector: 2 x RGB LED connector Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11, Windows 10 Compatible
Products: Sockets Supported AM5: AMD Ryze 7000 Series Desktop Processors |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI

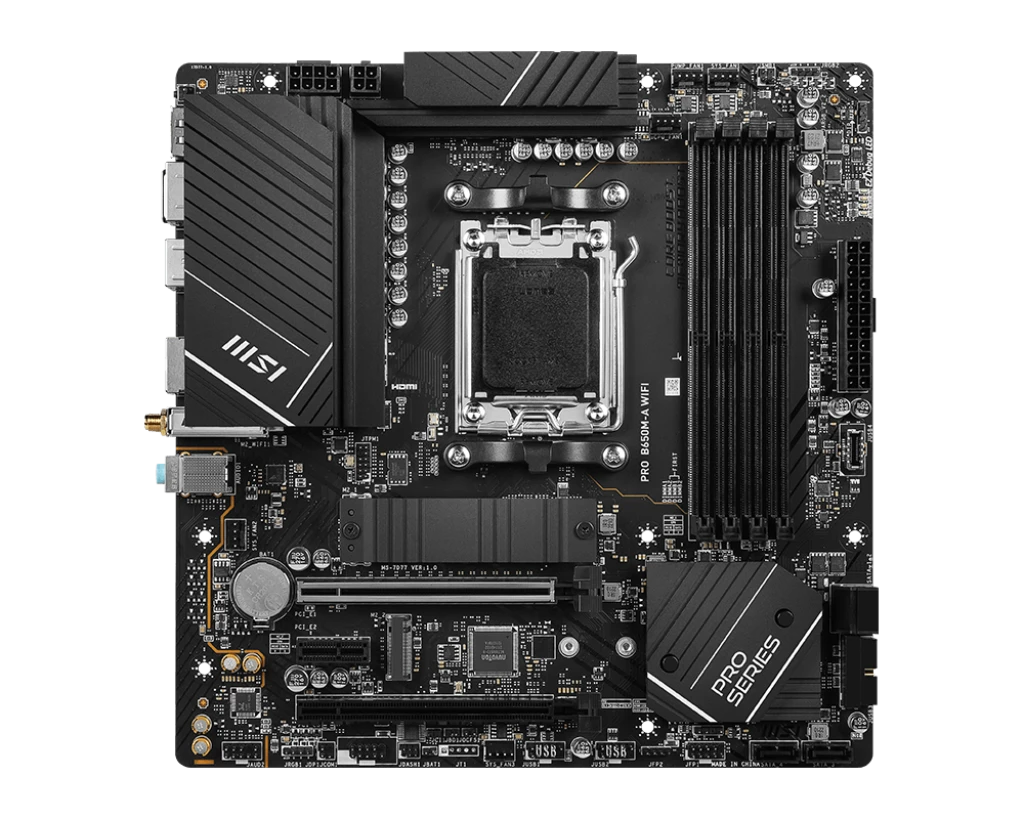

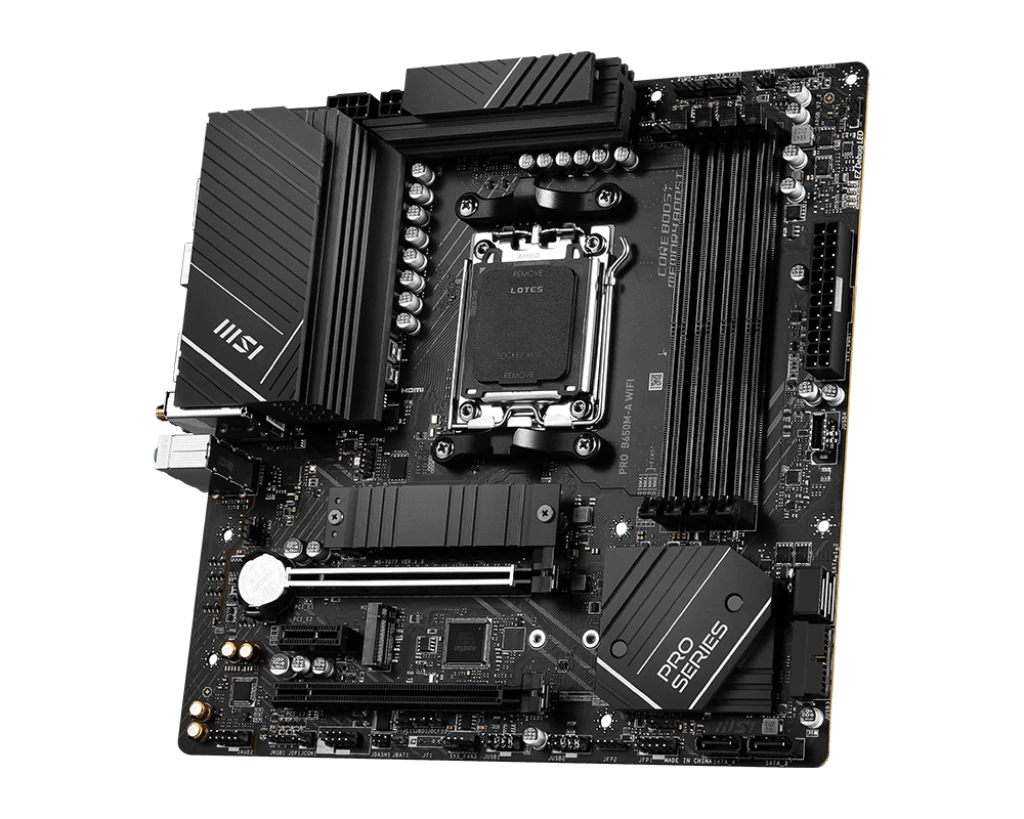

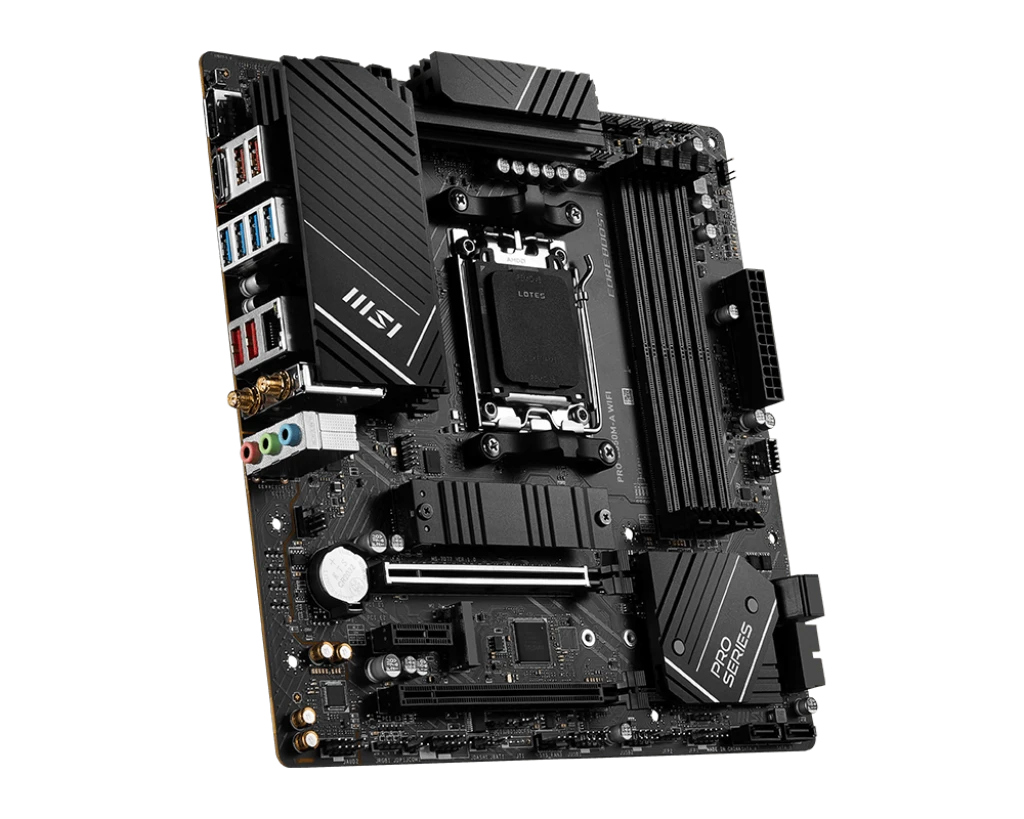

PRO B650M-A (Wi-Fi 6E) DDR5 Micro-ATX Motherboard
The MSI PRO B650M-A (Wi-Fi 6E)
is a solid mid-range Micro-ATX motherboard designed for AMD's latest Ryzen
7000 Series processors. Built on the AMD B650 chipset and supporting
the AM5 socket, it brings next-gen memory and connectivity features into
a compact and reliable form, ideal for business productivity, content creation,
or casual gaming setups.
Features
Engineered to support DDR5 memory,
this board allows up to 128GB of high-speed, non-ECC, un-buffered memory
with speeds up to 6000+ MHz (OC). Dual-channel architecture and 4
DIMM slots ensure efficient multitasking and future-ready performance.
Storage
and Expansion
The MSI PRO B650M-A offers dual
M.2 PCIe 4.0 x4 slots supporting up to 2280-sized NVMe SSDs,
delivering lightning-fast storage capabilities. Complementing the M.2 slots are
4 x SATA 6.0Gb/s ports for additional storage flexibility.
Graphics
and Expansion Slots
Expansion is handled via:
- 2 x PCI-E x16 slots
(Primary supports PCIe 4.0 from CPU)
- 1 x PCI-E x1 slot
(PCIe 3.0 from chipset)
This setup supports various GPU
configurations and additional expansion cards, making it adaptable to diverse
build needs. For display, the board includes 1 x HDMI and 1 x
DisplayPort, perfect for integrated graphics output.
Audio
and Networking
Enjoy crisp, immersive audio with
the Realtek ALC897 7.1-channel audio codec. For networking, the board
features a Realtek 8125BG 2.5G LAN chip providing high-speed Ethernet,
and built-in AMD Wi-Fi 6E with Bluetooth 5.2, ensuring seamless
wireless performance for gaming, streaming, or working.

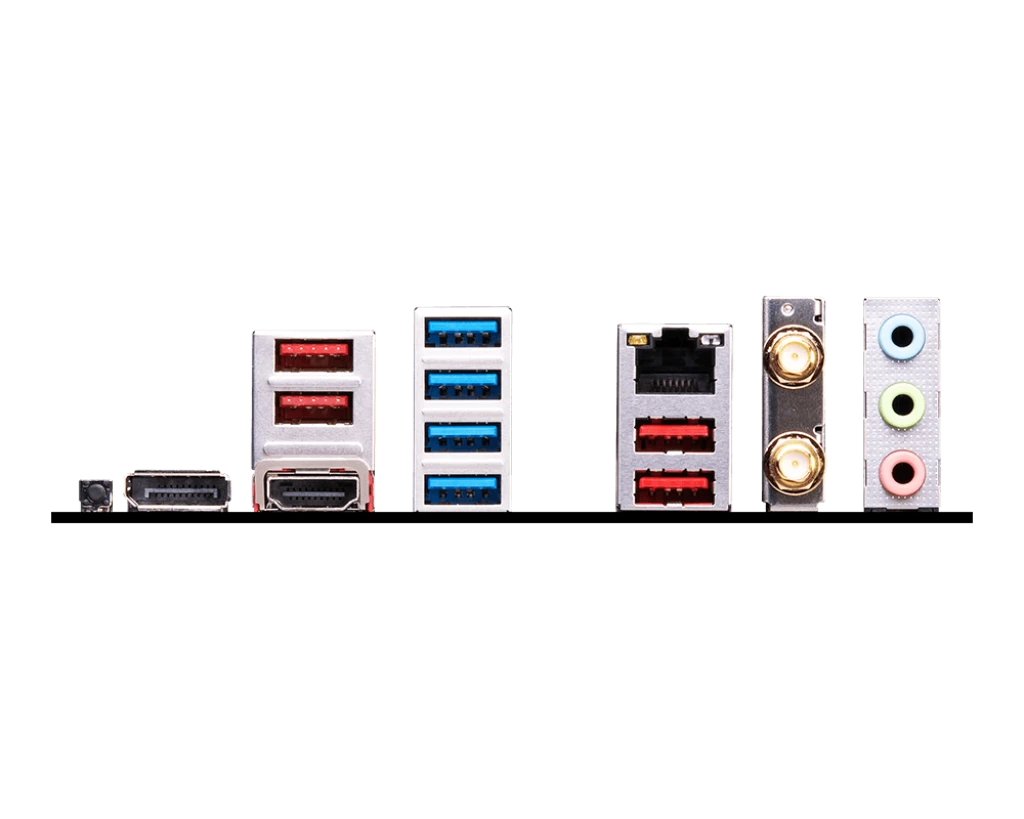

Connectivity
Options
- USB Ports:
4 x USB 3.2 Gen 1 Type-A, 4 x USB 3.2 Gen 2 Type-A
- Video Output:
1 x HDMI, 1 x DisplayPort
- Storage Expansion:
4 x SATA, 2 x M.2 PCIe 4.0
This array ensures wide compatibility
with modern peripherals and fast data transfer rates.
Design
and Build
The motherboard features a black
aesthetic with a professional, minimalist finish. The Micro-ATX form
factor fits in smaller cases without compromising expandability. It
includes heatsinks for critical components and 2 x RGB LED headers
to enable lighting customization, ideal for users looking to personalize their
builds.
Power
& Efficiency
Operating efficiently at around 60W
power consumption, the PRO B650M-A is a balanced board suitable for
mainstream usage scenarios without drawing excessive power.
Warranty
Information
Backed by a 3-year warranty,
users can expect reliable performance and customer support over the product's
lifespan.
Price
and Availability
The MSI PRO B650M-A (Wi-Fi 6E)
motherboard is available now at Computer Village Agrabad, Chattogram,
Bangladesh. With a strong set of features including DDR5, Wi-Fi
6E, PCIe 4.0, and robust expandability, it's an ideal choice for
AMD-based compact systems, productivity setups, or budget-friendly gaming rigs.
