MSI MPG Z890 CARBON (Wi-Fi 7) DDR5 Intel Gaming Motherboard #MPG Z890 CARBON WIFI
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI MPG Z890 CARBON (Wi-Fi 7) |
|
Color |
Black |
|
CPU Data |
Chipset Brand: Intel Chipset: Intel B860 Sockets Supported: LGA1851 Built-in Processor: N/A Supported CPU: Intel Core Ultra
Processors (Series 2) Generation: Ultra |
|
Memory
Support |
Memory Type: DDR5 Memory MHz: 9200+MT/s (OC)/ 8600+MT/s/
8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/
6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/
5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Non-ECC, Un-buffered memory Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage Info |
Storage Interface: 6.0Gb/s M.2/SSD Expansion Slot: 5 M.2/SSD Expansion : 5 x M.2 (1 x M.2,
supports up to PCIe 5.0 x4 , supports 2280/2260 devices, 1 x M.2,supports up
to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2, (From Chipset) supports
up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2, (From Chipset)
supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices, 1 x M.2, (From
Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices) |
|
Graphics
Info |
Multi-GPU Support: N/A PCI Express Slot: PCI Express 3 x PCI-E x16
slot |
|
Audio & Video |
Audio Chipset: Realtek ALC1220P Codec Audio Channel – 7.1 |
|
Network
& Connectivity |
LAN Chipset: 1 x Intel Killer E5000B 5G LAN,
1 x Intel I226V 2.5G LAN LAN Speed (Mbps): 10/ 100/ 1000/ 2500/ 5000Mbps WiFi: Yes WiFi Technology: Wi-Fi 7 Bluetooth: Bluetooth 5.4 |
|
Ports Data |
USB Port: 6 x USB 10Gbps Type-A, 2 x
Thunderbolt 4, 1 x USB 10Gbps Type-C, 4 x USB 10Gbps Type-A VGA Port: N/A HDMI Port: 1 Display: 1 SATA Port: 4 Thunderbolt: 2 TPM Port: 1 |
|
Technical
Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 1 x RGB LED connector(JRGB) Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported Operating System: Windows 11 Supported Operating System: Supports
Intel Core Ultra Processors (Series 2) LGA 1851 |
|
Warranty |
3 year |
|
* Product
may vary with different Kit or Version |
|
Product Details

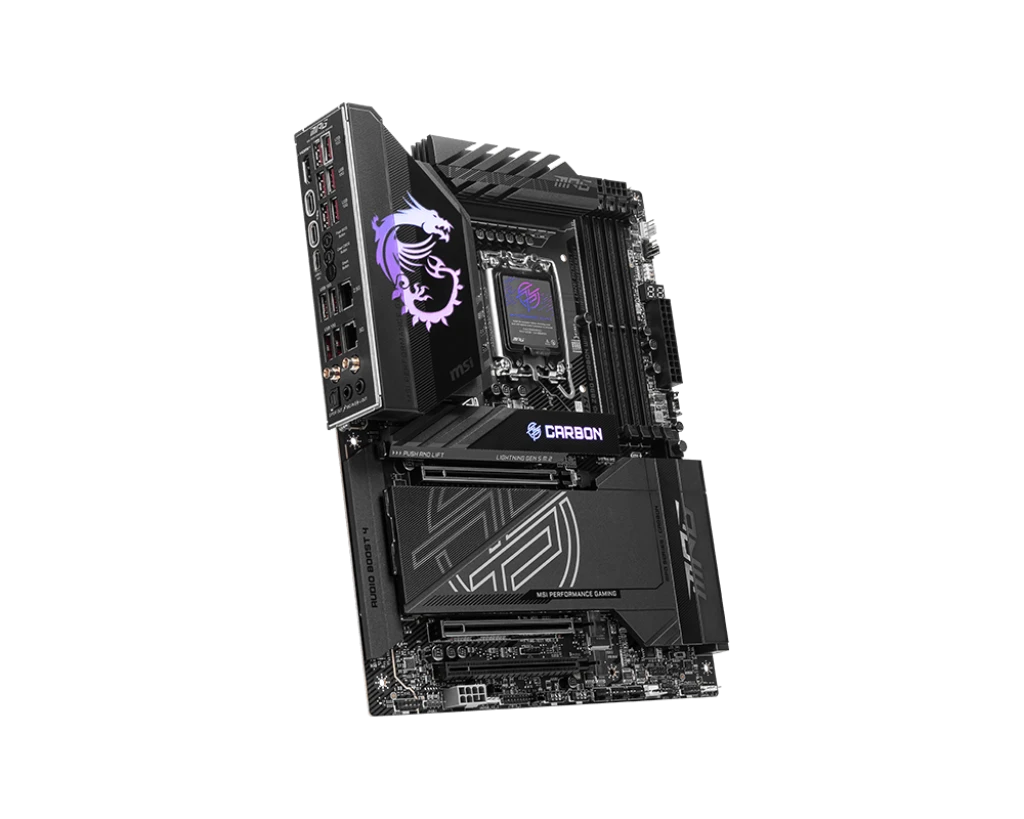

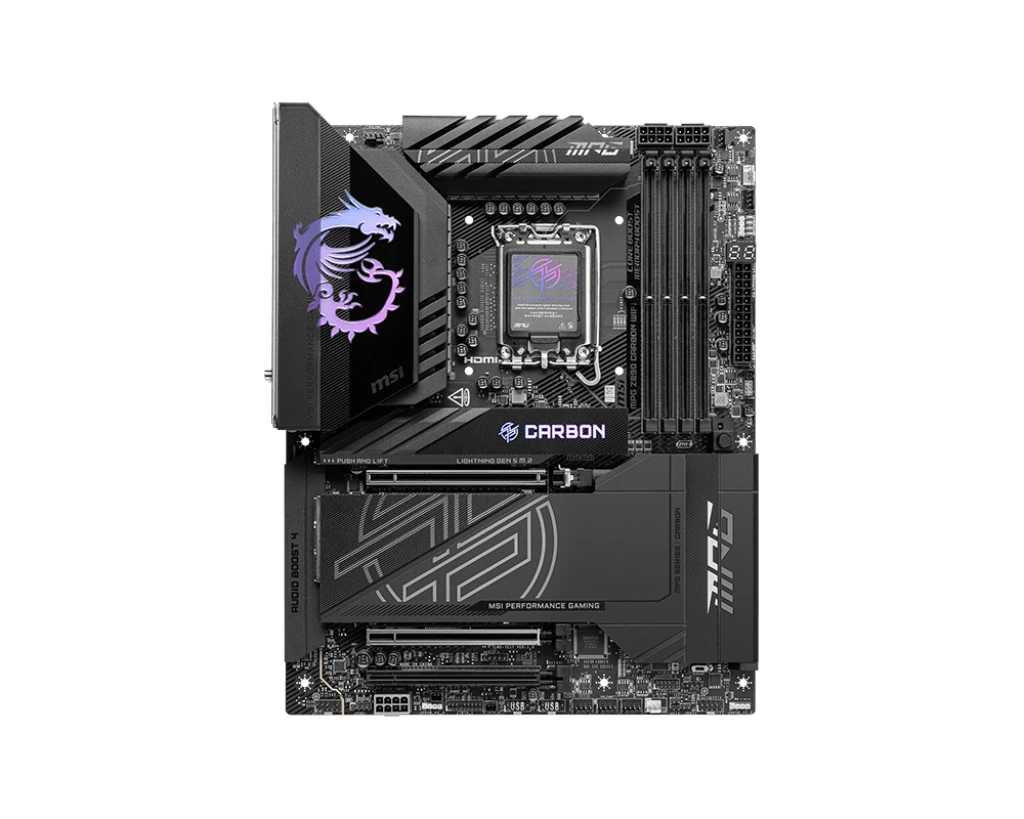

MSI
MPG Z890 CARBON (Wi-Fi 7) Motherboard
The MSI MPG Z890 CARBON (Wi-Fi 7)
motherboard is designed for high-performance enthusiasts, offering the latest Intel
Core Ultra Processors (Series 2) support with the Intel B860 chipset.
With Wi-Fi 7 technology, it ensures lightning-fast wireless speeds,
while DDR5 memory compatibility supports overclocking for maximum
performance. Featuring ARGB lighting and an ATX form factor, this
motherboard delivers an ideal platform for next-gen gaming and productivity
systems.
Features
- Intel B860 Chipset
for Intel Core Ultra Processors (Series 2)
- LGA1851 Socket
support for Intel Ultra Series Processors
- DDR5 Memory
with overclocking support up to 9200+ MHz
- Dual Channel Memory
with a maximum capacity of 256GB
- Wi-Fi 7
support for faster and more reliable wireless connections
- Bluetooth 5.4
for seamless device connectivity
Storage
and Expansion
- 5 x M.2 Slots
for ultra-fast storage:
- 1 x M.2 PCIe 5.0 x4
for the latest high-speed drives (2280/2260 devices)
- 1 x M.2 PCIe 4.0 x4
for up to PCIe 4.0 speeds (2280/2260 devices)
- 3 x M.2 PCIe 4.0 x4
(From Chipset) supporting a variety of drive sizes (2280/2260/22110
devices)
- 1 x M.2 SATA
mode (2280/2260 devices)
- SATA 6Gb/s Ports:
4
Graphics
and Display
- PCI Express Slots:
3 x PCI-E x16 slots for expansion cards
- Display Output:
1 (HDMI) for easy connection to displays
Audio
and Video
- Realtek ALC1220P Codec for 7.1-channel HD audio
- Enhanced audio experience for gaming and media
consumption
Network
and Connectivity
- Intel Killer E5000B 5G LAN for high-speed internet connectivity
(10/100/1000/2500/5000Mbps)
- Intel I226V 2.5G LAN
for additional wired network options
- Wi-Fi 7
for ultra-fast wireless performance

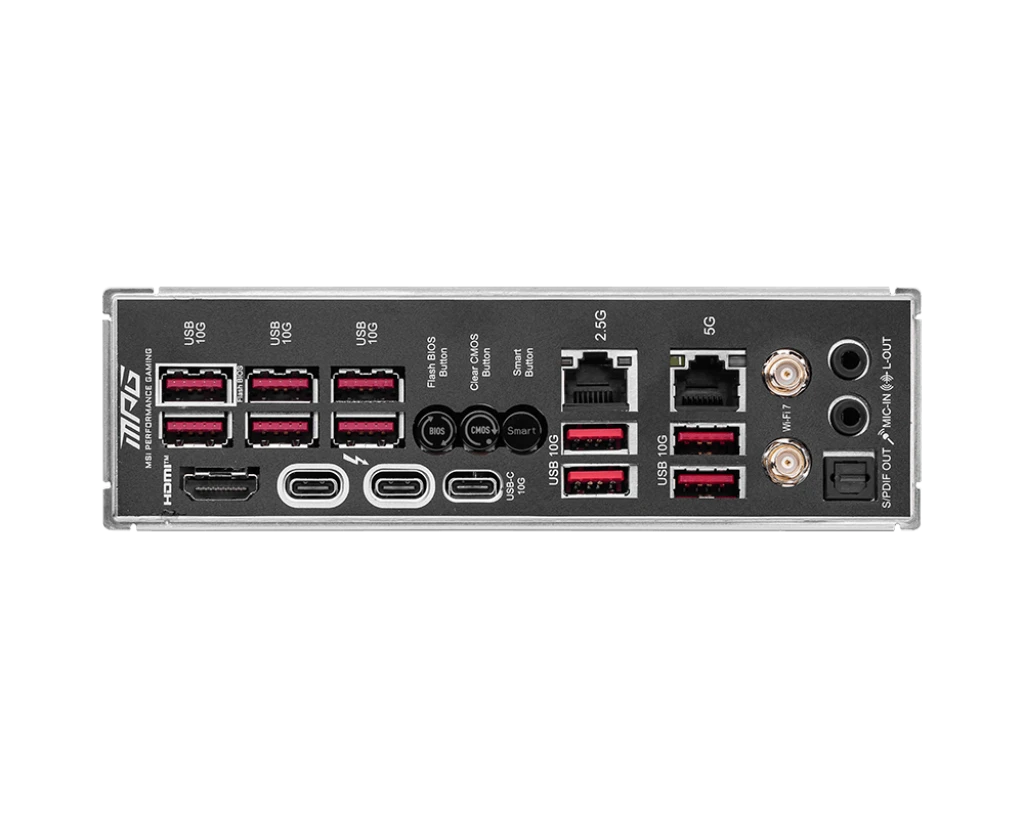

- USB Ports:
- 6 x USB 10Gbps Type-A
- 2 x Thunderbolt 4 (40Gbps Type-C)
- 1 x USB 10Gbps Type-C
- 4 x USB 10Gbps Type-A
- SATA Ports:
4
- TPM Port
for additional security
Design
and Build
- Form Factor:
ATX for full-sized cases
- Color:
Black with sleek, professional design
- RGB Support:
- 1 x RGB LED connector (JRGB)
- Integrated Heatsink
for efficient thermal management
- Cable Management:
Front routing for neat setup
Power
and Efficiency
- Approximate Power Consumption: 70W
- Designed for optimal performance with energy efficiency
in mind
Compatibility
and Warranty
- Operating System Support: Windows 11
- CPU Compatibility:
Supports Intel Core Ultra Processors (Series 2) with LGA1851
socket
- Warranty:
3-year warranty from MSI
Price
and Availability
The MSI MPG Z890 CARBON (Wi-Fi 7)
motherboard is available for purchase at Computer Village Agrabad, Chattogram,
Bangladesh. For the latest pricing and availability, please check directly
at the store.
