MSI MAG Z890 TOMAHAWK (Wi-Fi 7) DDR5 Intel Gaming Motherboard #MAG Z890 TOMAHAWK WIFI
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI MAG Z890 TOMAHAWK (Wi-Fi 7) |
|
Color |
Black |
|
CPU Data |
Chipset Brand: Intel Chipset: Intel B860 Sockets Supported: LGA1851 Built-in Processor: N/A Supported CPU: Intel Core Ultra
Processors (Series 2) Generation: Ultra |
|
Memory
Support |
Memory Type: DDR5 Memory MHz: 9200+MT/s (OC)/ 8600+MT/s/
8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/
6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/
5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Non-ECC, Un-buffered memory Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage Info |
Storage Interface: 6.0Gb/s M.2/SSD Expansion Slot: 4 M.2/SSD Expansion : 4 x M.2 (M.2_1
Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices,
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports
22110/2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0
x4 , supports 2280/2260/2242 devices, M.2_4 Source (From Chipset) supports up
to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices) |
|
Graphics
Info |
Multi-GPU Support: N/A PCI Express Slot: PCI Express 3 x PCI-E x16
slot |
|
Audio & Video |
Audio Chipset: Realtek ALC1220P Codec Audio Channel – 7.1 |
|
Network
& Connectivity |
LAN Chipset: Intel Killer E5000 5Gbps LAN Speed (Mbps): 10/ 100/ 1000/ 2500/ 5000Mbps WiFi: Yes WiFi Technology: Intel Killer BE1750x Wi-Fi
7 802.11 a/ b/ g/ n/ ac/ ax/ be Bluetooth: Bluetooth 5.4 |
|
Ports Data |

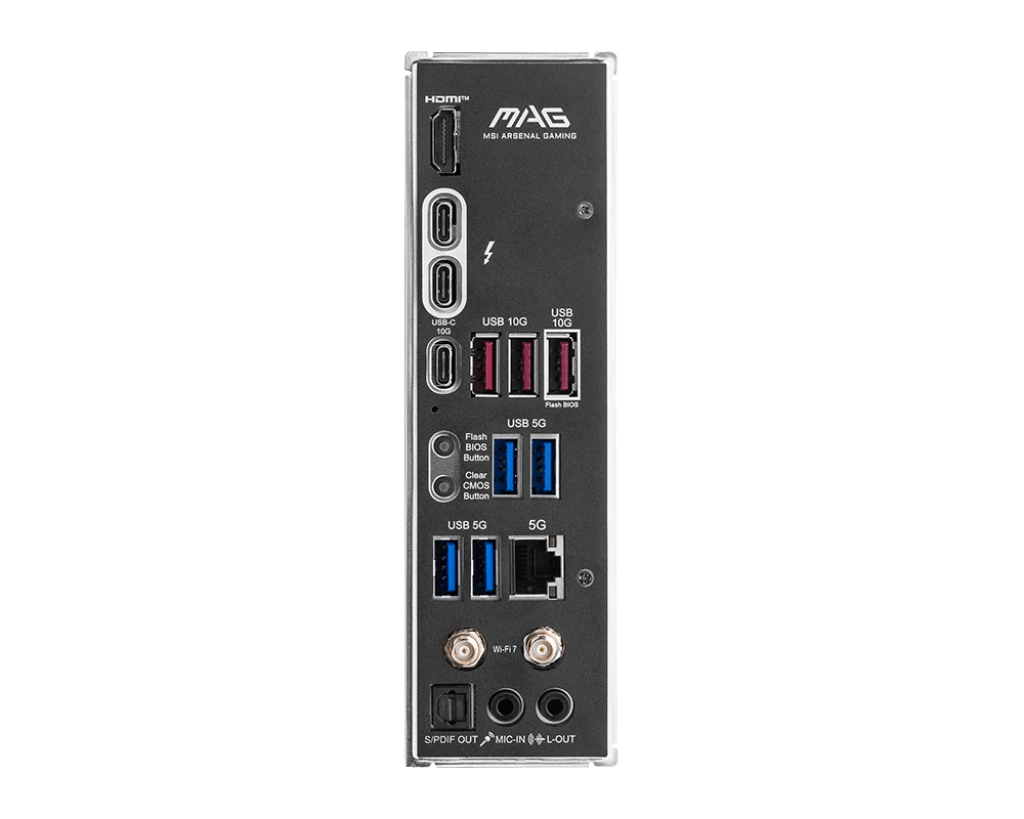

USB Port: 3 x USB 10Gbps Type-A, 2 x
USB 5Gbps Type-A, 2 x Thunderbolt 4 40Gbps (Type-C), 1 x USB 10Gbps Type-C, 2
x USB 5Gbps Type-A VGA Port: N/A HDMI Port: N/A Display: 1 SATA Port: 4 Thunderbolt: 2 TPM Port: 1 |
|
Technical
Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 1 x RGB LED connector(JRGB) Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported Operating System: Windows 11 Supported Operating System: Supports
Intel Core Ultra Processors (Series 2) LGA 1851 |
|
Warranty |
3 year |
|
* Product
may vary with different Kit or Version |
|
Product Details
MSI

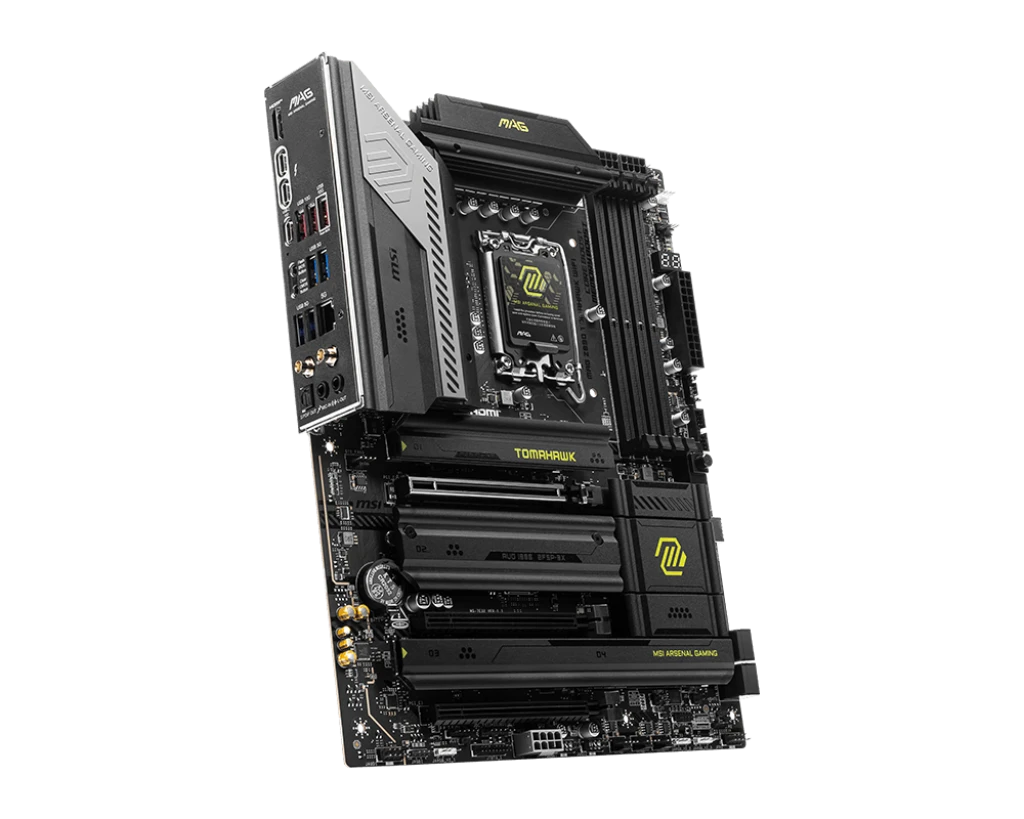

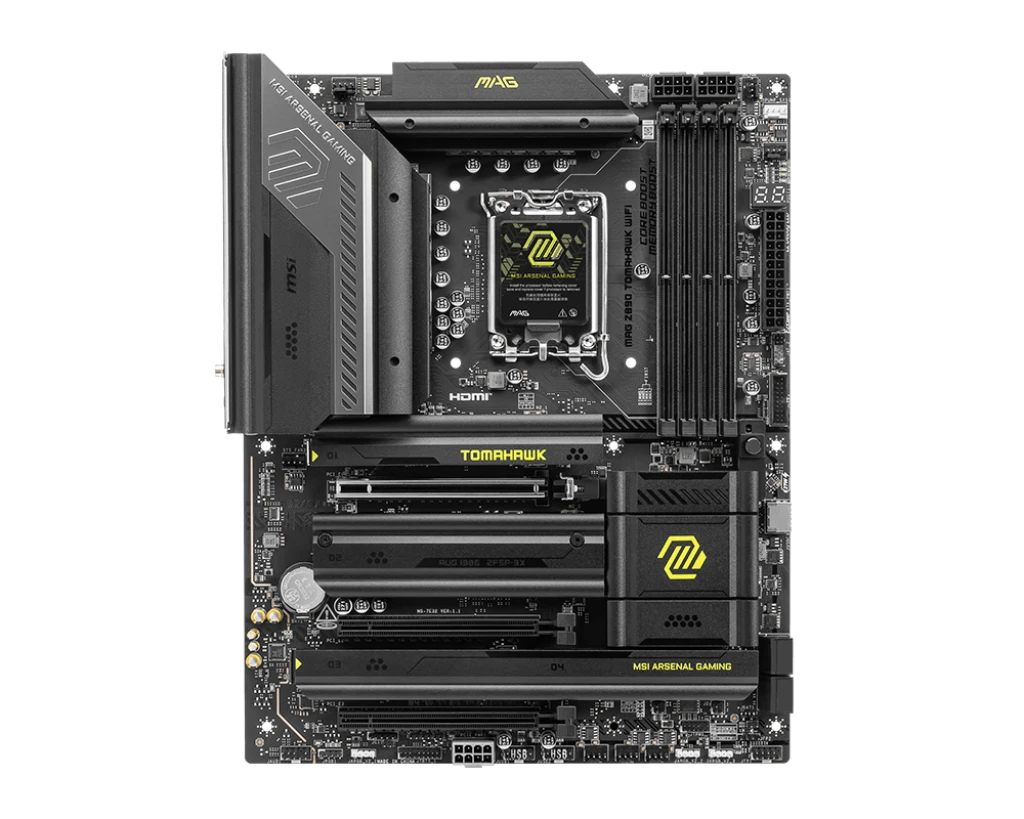

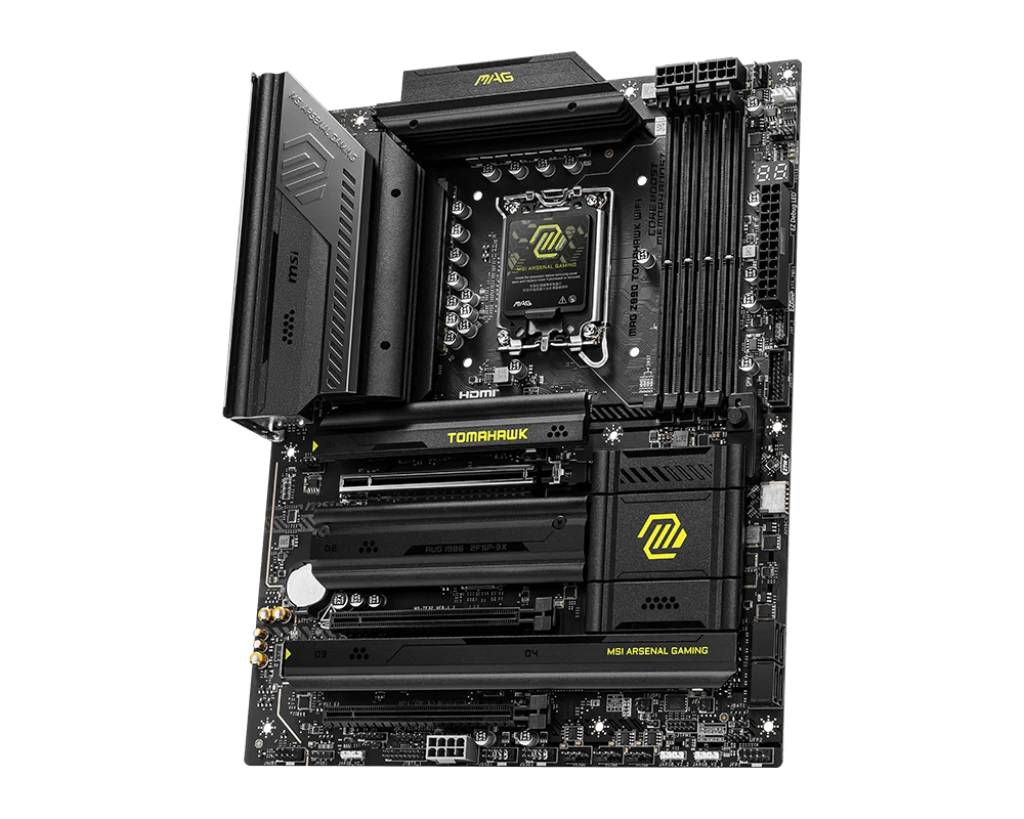

MAG Z890 TOMAHAWK (Wi-Fi 7) Motherboard
The MSI MAG Z890 TOMAHAWK
motherboard is designed for high-performance gaming and workstation builds,
equipped with cutting-edge Intel Core Ultra (Series 2) processor support
and the latest Wi-Fi 7 technology. With DDR5 memory support and PCIe
5.0 compatibility, this motherboard is built to handle intensive workloads,
high-speed storage, and superior graphics. The sleek black design and ARGB
lighting add a premium touch to any PC build, making it a top choice for
enthusiasts.
Features
- Intel B860 Chipset
with support for Intel Core Ultra (Series 2) processors
- LGA1851 Socket
for next-gen Intel CPUs
- DDR5 Memory
support with overclocked speeds up to 9200+ MT/s
- Dual Channel Memory Architecture for faster performance
- Wi-Fi 7 Technology
for ultra-fast wireless connectivity (802.11 a/b/g/n/ac/ax/be)
- Bluetooth 5.4
for improved wireless device pairing
Storage
and Expansion
- 4 x M.2 Slots
for high-speed storage devices:
- M.2_1
supports PCIe 5.0 x4 for 2280/2260 devices
- M.2_2
supports PCIe 4.0 x4 for 22110/2280/2260 devices
- M.2_3
supports PCIe 4.0 x4 for 2280/2260/2242 devices
- M.2_4
supports PCIe 4.0 x4 / SATA for 2280/2260/2242 devices
- SATA 6Gb/s Ports:
4 for additional storage options
Graphics
and Display
- 1 x PCI-E x16 Slot
for expansion cards
- Display Output:
1 (HDMI/VGA not available)
Audio
and Video
- Realtek ALC1220P
audio codec for 7.1-channel high-definition audio
- Immersive sound for gaming, media playback, and content
creation
Network
and Connectivity
- Intel Killer E5000 5Gbps LAN Chipset for high-speed wired networking
(10/100/1000/2500/5000Mbps)
- Intel Killer BE1750x Wi-Fi 7 for next-gen wireless networking performance
- USB Ports:
- 3 x USB 10Gbps Type-A
- 2 x USB 5Gbps Type-A
- 2 x USB 5Gbps Type-A
- 1 x USB 10Gbps Type-C
- 2 x Thunderbolt 4 (40Gbps) for high-speed data transfer
- SATA Ports:
4
- TPM Header
for enhanced security
Design
and Build
- Form Factor:
ATX for full-sized cases
- Color:
Black design with premium build quality
- RGB Support:
- 1 x RGB LED connector (JRGB)
- Integrated Heatsinks
for effective heat dissipation
- Cable Management:
Front cable routing for a cleaner, organized build
Power
and Efficiency
- Approximate Power Consumption: 70W
- Designed for efficient power delivery and stability
under heavy workloads
Compatibility
and Warranty
- Operating System Support: Windows 11
- CPU Compatibility:
Supports Intel Core Ultra (Series 2) processors with LGA1851
socket
- Warranty:
3-year warranty from MSI
Price
and Availability
The MSI MAG Z890 TOMAHAWK (Wi-Fi
7) motherboard is available for purchase at Computer Village Agrabad,
Chattogram, Bangladesh. For the latest pricing and availability, please
check directly at the store.
