MSI MAG X870 TOMAHAWK (Wi-Fi 7) DDR5 AMD Gaming Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI MAG
X870 TOMAHAWK (Wi-Fi 7) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD X870 Sockets
Supported: AM5 Supported
CPU: Ryzen 9000/ 8000/ 7000 Series Desktop Processors Generation:
Not Applicable |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 8400+(OC)/ 8200+(OC)/ 8000+(OC)/
7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/
6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/
5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Non-ECC, Un-buffered memory Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 4 M.2/SSD
Expansion Slot Details: 4 x M.2, ((1 x M.2, Source (From CPU) supports up to
PCIe 5.0 x4 , supports 22110/2280 devices), 1 x M.2 Source (From CPU)
supports up to PCIe 5.0 x4 , supports 2280/2260 devices), (1 x M.2, Source
(From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices), (1 x
M.2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260
devices)) |
|
Graphics Info |
Multi-GPU Support: AMD MULTI-GPU Support PCI Express Slot: 3 x PCI-E x16 slot |
|
Audio
& Video |
Audio
Chipset: Realtek ALC4080 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 8126-CG 5G LAN WiFi : Yes WiFi Technology: Wi-Fi 7 Bluetooth: Bluetooth 5.4 |
|
Ports Data |
USB
Port: 4 x USB 2.0, 3 x USB 5Gbps Type-A, 2 x USB 10Gbps Type-A, 1 x USB
10Gbps Type-C, 2 x USB 40Gbps Type-C HDMI
Port: 1 SATA
Port: 4 x SATA TPM
Port: 1 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: RGB Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported
Operating System: Windows 11 Compatible
Products: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5 |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|

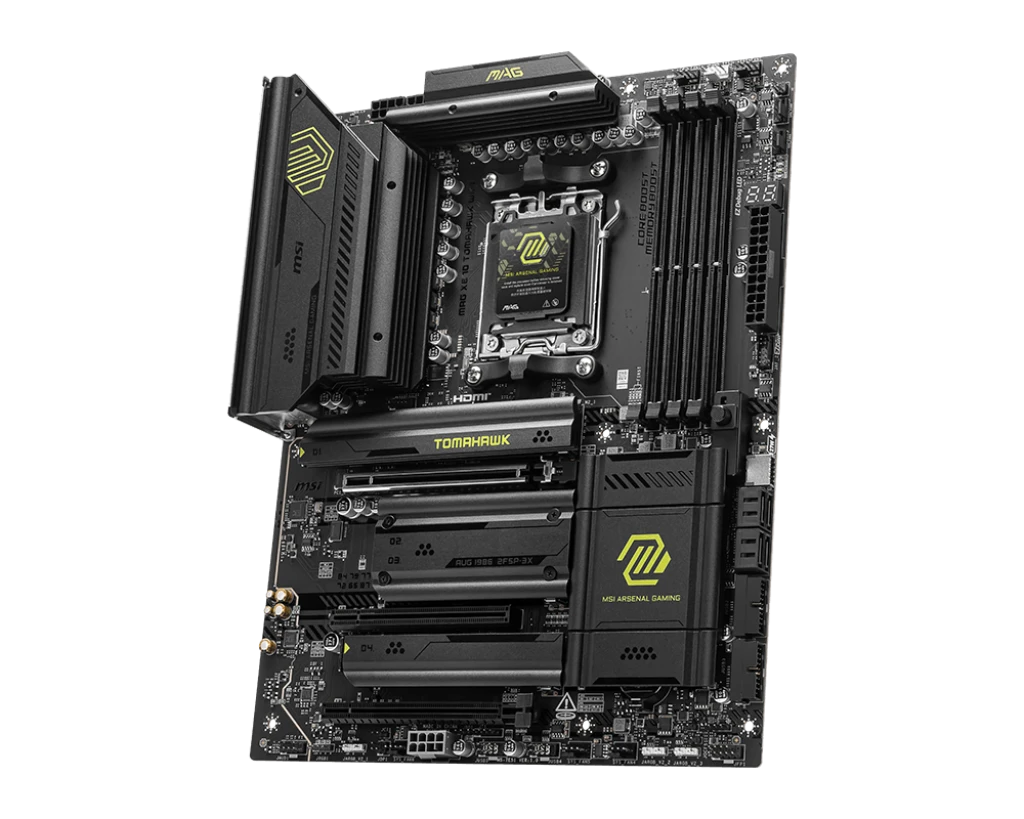

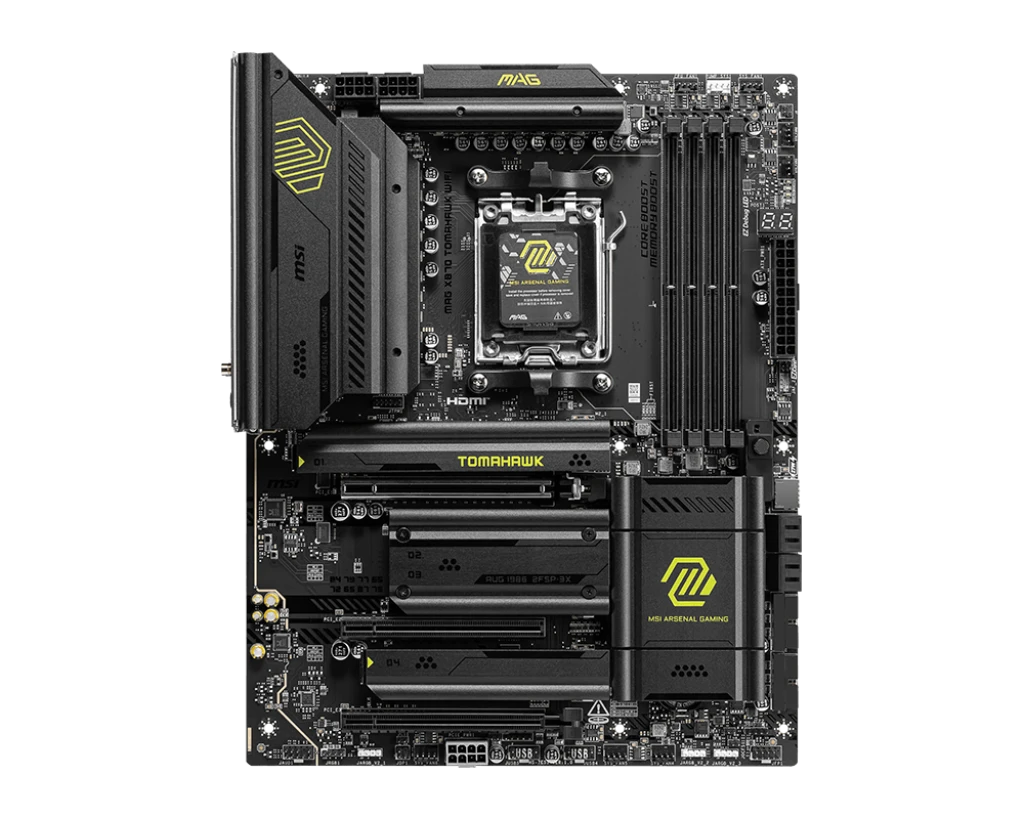

Product Details
MSI
MAG X870 TOMAHAWK (Wi-Fi 7) ATX Motherboard
The MSI MAG X870 TOMAHAWK is
a high-performance motherboard designed for AMD Ryzen 9000/8000/7000 Series
Desktop Processors. Built with the powerful AMD X870 chipset, this
motherboard delivers advanced features like DDR5 memory support, PCIe
5.0, and Wi-Fi 7 connectivity. With support for multi-GPU setups
and a robust design, it is the ideal choice for gamers and PC enthusiasts
looking to build a cutting-edge system.
Features
- AMD X870 chipset
with AM5 socket for Ryzen 9000/8000/7000 Series Desktop
Processors
- DDR5 memory
support with speeds up to 8400+ MHz (OC) and down to 4800 MHz
(JEDEC)
- Dual-channel memory architecture with 4 DIMM slots,
supporting up to 256GB
- Multi-GPU support
for enhanced graphics performance
- Realtek ALC4080 Codec
for 7.1 channel audio
Storage
Options
- 4 x M.2 slots
for high-speed storage:
- 2 x PCIe 5.0 x4
slots (supports 22110/2280 devices from the CPU)
- 2 x PCIe 4.0 x4/x2
slots (supports 2280/2260 devices from the chipset)
- 4 x SATA 6Gb/s
ports for additional storage devices
Graphics
& Expansion
- 3 x PCIe x16 slots
for GPUs and expansion cards, supporting AMD Multi-GPU
configurations
Connectivity
Options
- 1 x Realtek 5G Ethernet LAN for high-speed wired networking
- Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) for the latest wireless connectivity
- Bluetooth 5.4
for wireless peripherals

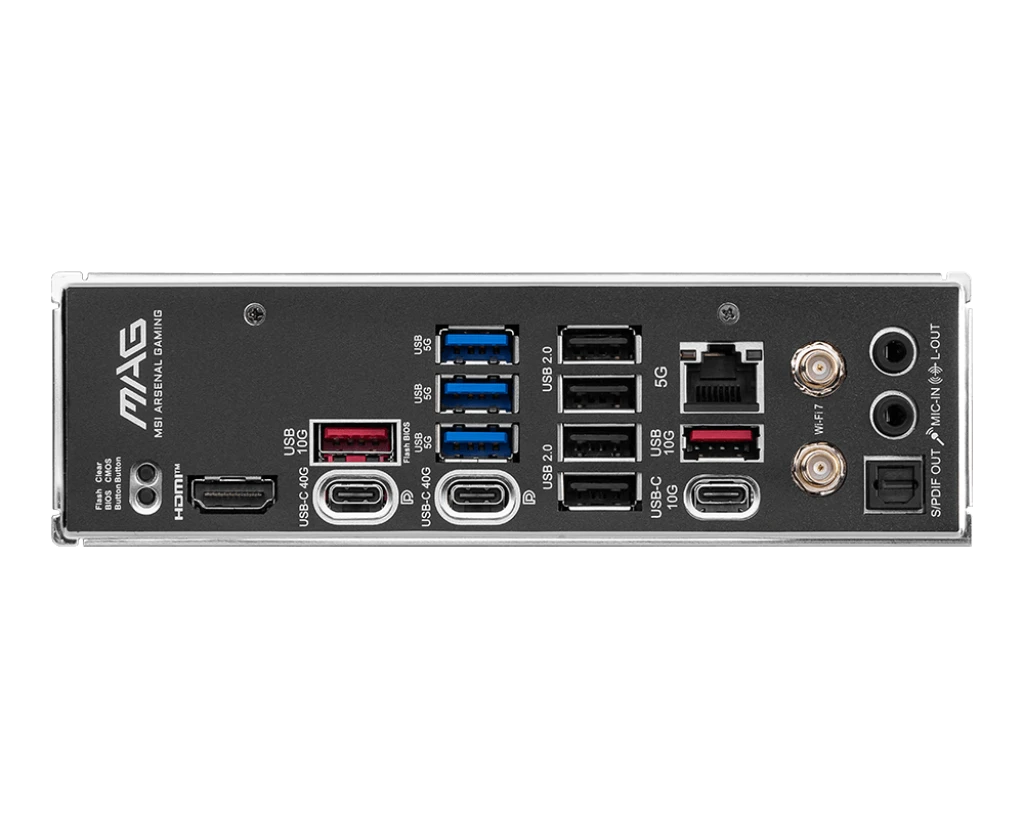

- USB Ports:
- 4 x USB 2.0 Type-A,
3 x USB 5Gbps Type-A, 2 x USB 10Gbps Type-A, 1 x USB
10Gbps Type-C, and 2 x USB 40Gbps Type-C
- HDMI
and DisplayPort outputs for display connectivity
Design
and Build
- ATX form factor
for full-sized builds with robust performance
- Front cable management for clean and tidy wiring
- Heatsinks
for effective cooling during high-performance tasks
- RGB support
for customizable lighting with RGB headers
Power
& Efficiency
- Approximate power consumption: 70W
- Efficient power management to support high-end processors and graphics setups
Warranty
Information
- 3-year warranty
for reliability and long-term use
Price
and Availability
The MSI MAG X870 TOMAHAWK (Wi-Fi
7) motherboard is available at Computer Village Agrabad, Chattogram,
Bangladesh, for those looking to build a powerful, future-proof PC.
