MSI MAG B860M MORTAR (Wi-Fi 7) DDR5 (Intel Core Ultra LGA1851 Socket) Micro-ATX Gaming Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI MAG B860M MORTAR (Wi-Fi 7) |
|
Color |
Black |
|
CPU Data |
Chipset Brand: Intel Chipset: Intel B860 Sockets Supported: LGA1851 Built-in Processor: N/A Supported CPU: Intel Core Ultra
Processors (Series 2) Generation: Ultra |
|
Memory
Support |
Memory Type: DDR5 Memory MHz: 8800 - 6400 (OC) MT/s/ 6400 -
4800 (JEDEC) MT/s Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage Info |
Storage Interface: 6.0Gb/s M.2/SSD Expansion Slot: 3 M.2/SSD Expansion : 3 x M.2 (1 x M.2
supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices, 1 x M.2
supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 supports up
to PCIe 4.0 x2 , supports 2280 devices) |
|
Graphics
Info |
Multi-GPU Support: N/A PCI Express Slot: 4x PCI-E x16 slot (PCI_E1
Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 4.0 supports up
to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset),
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)) |
|
Audio & Video |
Audio Chipset: REALTEK ALC897 Codec Audio Channel – 7.1 |
|
Network
& Connectivity |
LAN Chipset: Intel Killer E5000 5Gbps LAN LAN Speed (Mbps): 10/ 100/ 1000/ 2500/ 5000Mbps WiFi: Yes WiFi Technology: Intel Killer BE1750x Wi-Fi
7 Bluetooth: Bluetooth 5.4 |
|
Ports Data |
USB Port: 4x USB 2.0 Type-A, 2x USB
5Gbps Type-A, 2x USB 10Gbps Type-A, 1x Thunderbolt 4 40Gbps (Type-C) VGA Port: N/A HDMI Port: 1 Display: 1 SATA Port: 4 Thunderbolt: 1 TPM Port: 1 |
|
Technical
Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 3x Addressable V2 RGB LED
connector (JARGB_V2), 1x RGB LED connector(JRGB) Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported Operating System: Windows 11 Supported Operating System: Compatible
with LGA1851 Sockets Intel Core Ultra Processors (Series 2) |
|
Warranty |
3 year |
|
* Product
may vary with different Kit or Version |
|
Product Details
MSI
MAG B860M MORTAR (Wi-Fi 7) Micro-ATX Motherboard
The MSI MAG B860M MORTAR is a
high-performance Micro-ATX motherboard engineered for modern PC builders
using Intel Core Ultra Series 2 processors with LGA1851 sockets.
Designed with gamers and creators in mind, it supports cutting-edge DDR5
memory, PCIe 5.0 storage, and Wi-Fi 7 via Intel Killer
BE1750x. With robust expansion options, premium networking, and refined
aesthetics, this board is an ideal foundation for compact yet powerful systems.
Features
- Intel B860 Chipset
designed for next-gen performance and efficiency
- LGA1851 Socket
supports Intel Core Ultra (Series 2) processors
- DDR5 Support:
Up to 256GB at 8800 MT/s (OC) for ultra-fast memory
bandwidth
- Dual Channel Memory Architecture across 4 DIMM slots
- Wi-Fi 7
powered by Intel Killer BE1750x for ultra-low latency and high
throughput
- Bluetooth 5.4
for seamless wireless peripheral connectivity
Storage
and Expansion
- 3 x M.2 Slots:
- 1 x PCIe 5.0 x4
(supports 2280/2260/2242 devices)
- 1 x PCIe 4.0 x4
(supports 2280/2260 devices)
- 1 x PCIe 4.0 x2
(supports 2280 devices)
- 4 x SATA 6Gb/s
ports for traditional SSD and HDD compatibility
Graphics
and Display
- 4 x PCI-E x16 Slots:
- PCI_E1:
PCIe 5.0 x16 (from CPU)
- PCI_E2:
PCIe 4.0 x1 (from Chipset)
- PCI_E3:
PCIe 4.0 x4 (from Chipset)
- PCI_E4:
PCIe 4.0 x1 (from Chipset)
- 1 x HDMI Port
for integrated display output
Audio
and Video
- Realtek ALC897 Codec
for high-definition 7.1-channel audio
- Great for immersive gaming, streaming, and
entertainment setups
Network
and Connectivity
- Intel Killer E5000 LAN with 5Gbps high-speed wired networking
- Intel Killer BE1750x Wi-Fi 7 for the latest in wireless technology
- Bluetooth 5.4
for enhanced wireless connectivity

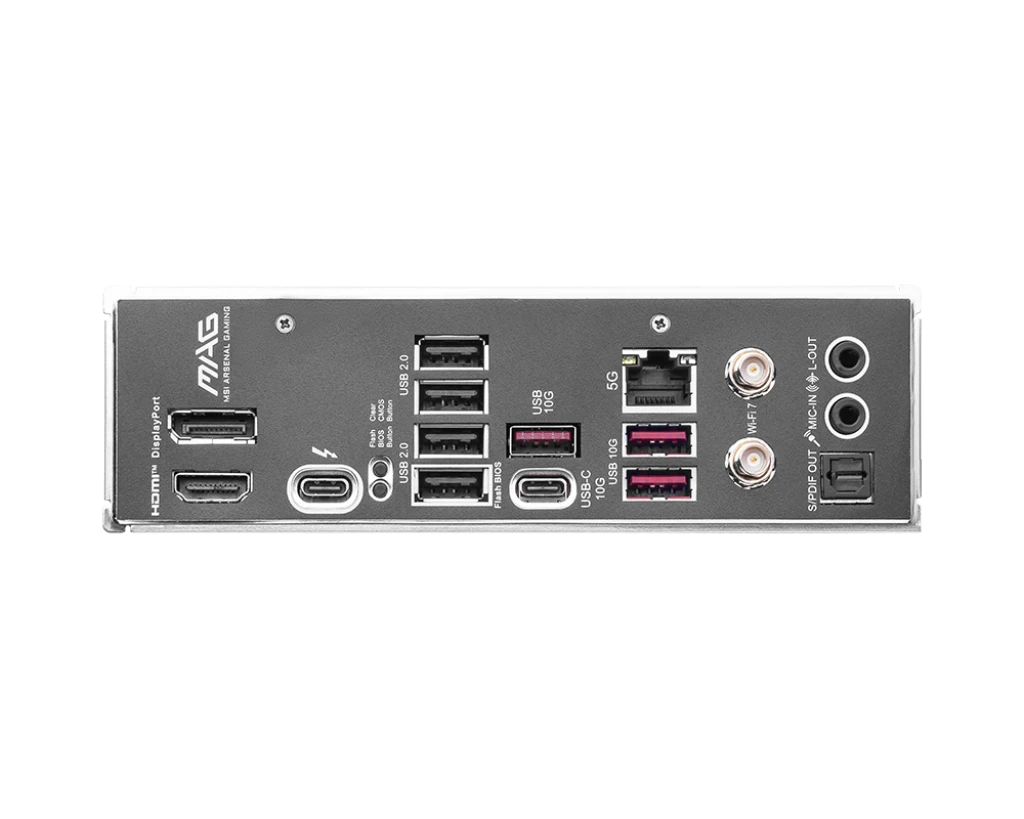

Connectivity
Options
- USB Ports:
- 4 x USB 2.0 Type-A
- 2 x USB 5Gbps Type-A
- 2 x USB 10Gbps Type-A
- 1 x Thunderbolt 4 (Type-C, 40Gbps)
- HDMI Port:
1
- Thunderbolt Port:
1 (via USB-C)
- SATA Ports:
4
- TPM Header:
1
Design
and Build
- Form Factor:
Micro-ATX – ideal for compact gaming or productivity builds
- Color:
Black finish with military-inspired accents
- RGB Support:
- 3 x Addressable V2 RGB connectors (JARGB_V2)
- 1 x RGB LED connector (JRGB)
- Integrated Heatsinks
for optimized thermal management
- Front Cable Management for a cleaner build aesthetic
Power
and Efficiency
- Approximate Power Consumption: 60W
- Efficient power delivery and cooling for stability under load
Compatibility
and Warranty
- Operating System Support: Windows 11
- CPU Compatibility:
Intel Core Ultra Processors (Series 2) on LGA1851
- Warranty:
Backed by a 3-year manufacturer warranty
Price
and Availability
The MSI MAG B860M MORTAR (Wi-Fi
7) is now available at Computer Village Agrabad, Chattogram,
Bangladesh. For current pricing and stock status, please contact the store
directly.
