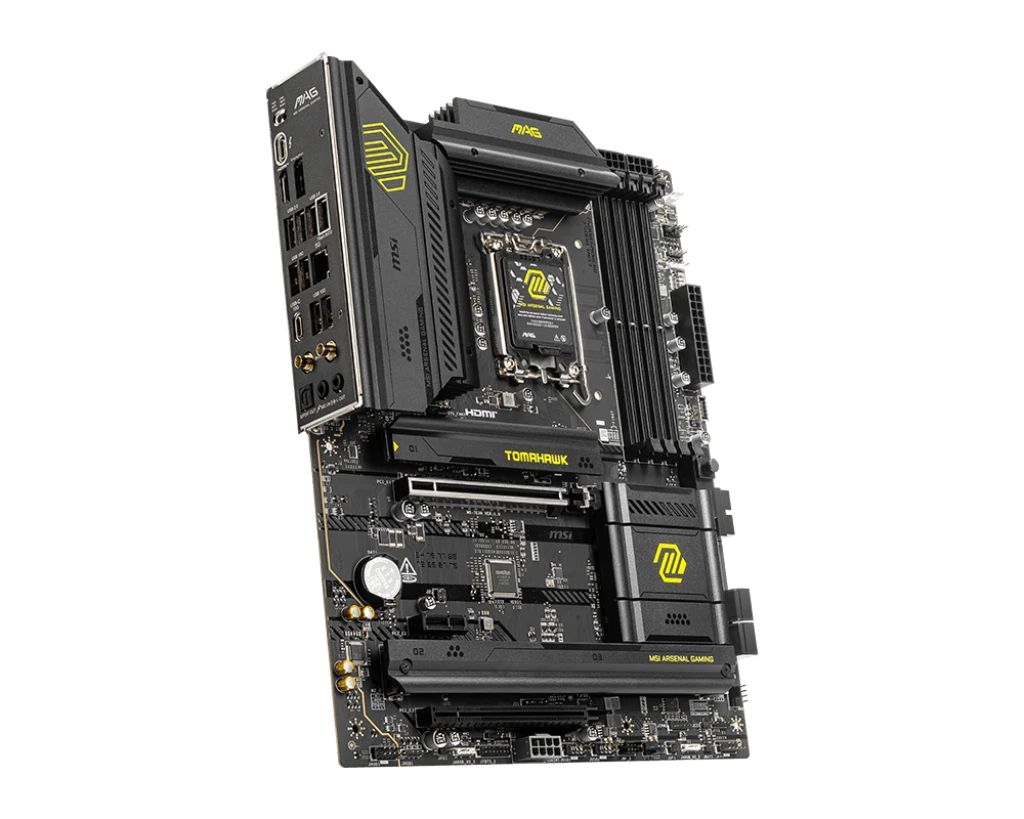

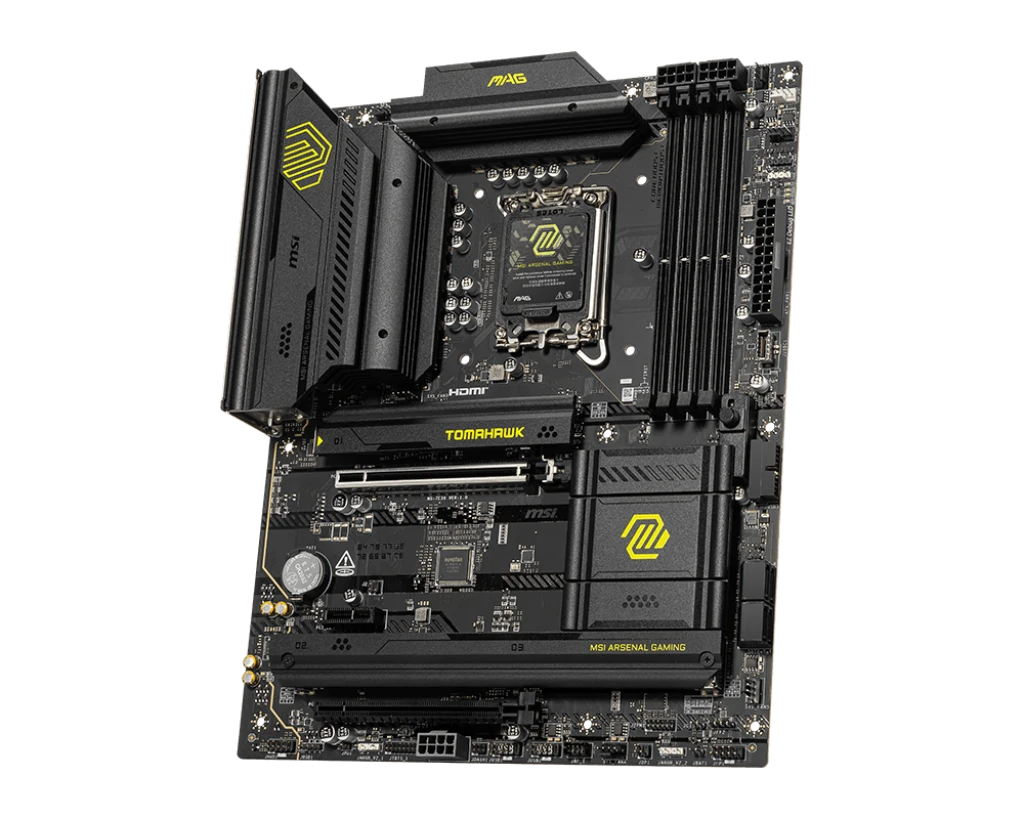

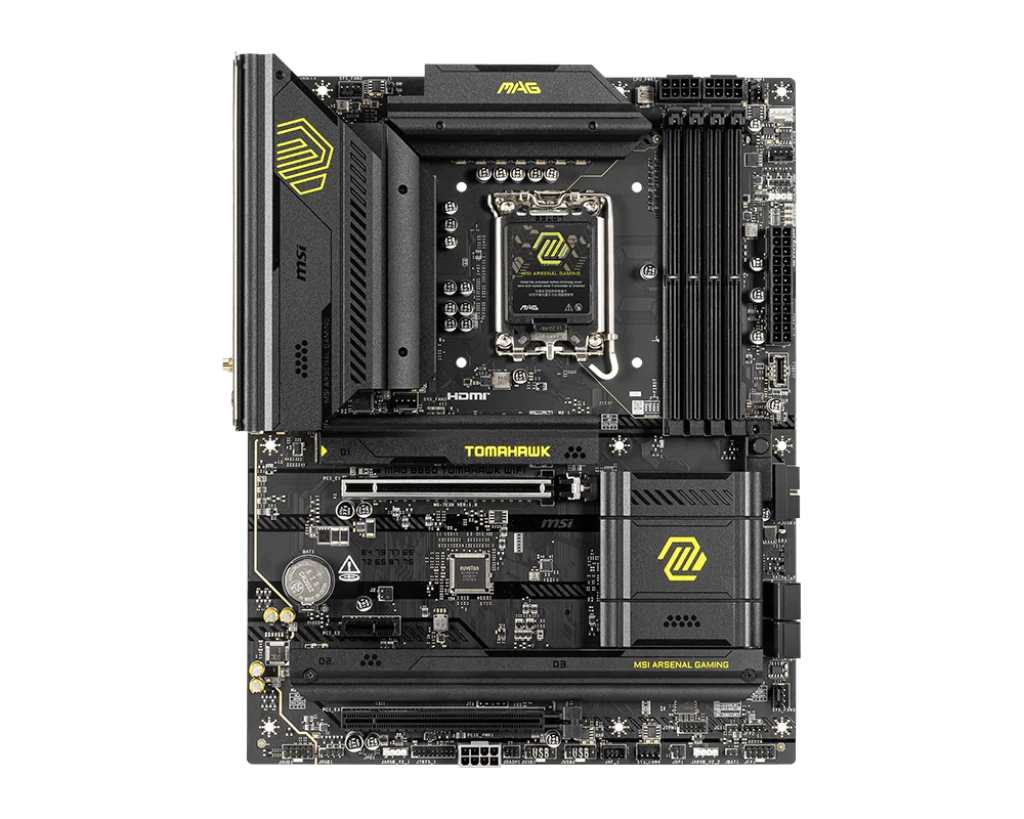

MSI MAG B860 TOMAHAWK (Wi-Fi 7) ATX Motherboard

The MSI MAG B860 TOMAHAWK is a feature-rich ATX motherboard that supports the latest Intel Core Ultra Series 2 processors with LGA1851 sockets. Designed to provide exceptional performance and cutting-edge connectivity, this motherboard features DDR5 memory, PCIe 5.0 support for storage, and advanced Wi-Fi 7 through Intel Killer BE1750x, making it a prime choice for gaming, content creation, and high-performance computing.

Features

• Intel B860 Chipset for reliable performance with Intel Core Ultra (Series 2) processors
• LGA1851 Socket compatible with the latest Intel Core Ultra Processors (Series 2)
• DDR5 Memory support up to 256GB with 8800 MT/s (OC) speeds
• Dual Channel Memory Architecture for efficient data handling
• Intel Killer BE1750x Wi-Fi 7 for high-speed wireless connectivity
• Bluetooth 5.4 for seamless wireless device pairing

Storage and Expansion

• 3 x M.2 Slots:
• 1 x PCIe 5.0 x4 (supports 2280/2260/2242 devices)
• 1 x PCIe 4.0 x4 (supports 2280/2260 devices)
• 1 x PCIe 4.0 x2 (supports 2280 devices)
• 4 x SATA 6Gb/s ports for traditional storage devices

Graphics and Display

• PCI Express Slots:
• 2 x PCI-E x16 Slots (for discrete GPUs)
• 1 x PCI-E x1 Slot for additional expansion cards
• 1 x HDMI Port for display output

Audio and Video

• Realtek ALC897 Codec for immersive 7.1-channel audio
• Perfect for high-quality sound output during gaming and media consumption

Network and Connectivity

• Intel Killer E5000 LAN with 5Gbps for ultra-fast wired internet connections
• Intel Killer BE1750x Wi-Fi 7 for the fastest wireless networking
• Bluetooth 5.4 for connecting various Bluetooth-enabled devices

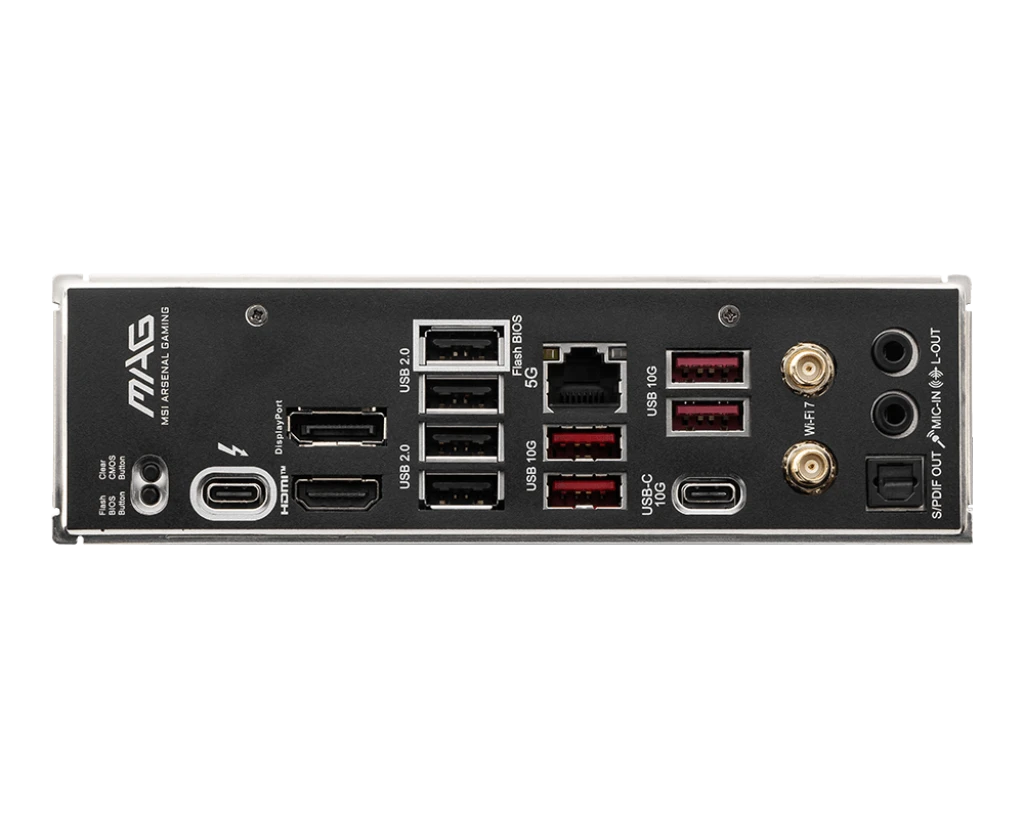

Connectivity Options

• USB Ports:
• 4 x USB 2.0 Type-A
• 2 x USB 5Gbps Type-A
• 2 x USB 10Gbps Type-A
• 1 x Thunderbolt 4 (Type-C, 40Gbps)
• HDMI Port: 1
• SATA Ports: 4
• Thunderbolt Port: 1 (via USB-C)
• TPM Header: 1

Design and Build

• Form Factor: ATX for large-scale systems with ample expansion
• Color: Sleek black finish with premium military-style aesthetics
• RGB Support:
• 3 x Addressable V2 RGB connectors (JARGB_V2)
• 1 x RGB LED connector (JRGB)
• Integrated Heatsinks for superior thermal performance
• Front Cable Management for a cleaner and more organized build

Power and Efficiency

• Approximate Power Consumption: 70W
• Optimized for efficient power usage while providing excellent performance under load

Compatibility and Warranty

• Operating System Support: Windows 11
• CPU Compatibility: Supports Intel Core Ultra Processors (Series 2) on LGA1851
• Warranty: 3-year warranty provided by MSI

Price and Availability

The MSI MAG B860 TOMAHAWK (Wi-Fi 7) is available for purchase at Computer Village Agrabad, Chattogram, Bangladesh. For pricing and stock availability, please inquire with the store.
