MSI MAG B760M MORTAR II (Wi-Fi 6E) DDR5 Intel Gaming Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI MAG
B760M MORTAR II (Wi-Fi 6E) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Supported
CPU: 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron
Processors Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7800+(OC)/ 7600(OC)/ 7400(OC)/
7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Memory Channel: Dual Memory Slot: 4 Memory Max: 192GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 3 M.2/SSD
Expansion Slot Details: 3 x M.2 (1 x M.2 Source (From CPU) supports up to
PCIe 4.0 x4 , supports 2280/2260/2242 devices, 1 x M.2 Source (From Chipset)
supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 Source (From
Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices) |
|
Graphics Info |
PCI Express Slot: 1 x PCI-E x 16 (PCI_E1 Gen
PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x4
(From Chipset)) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 2.5Gbps LAN LAN Speed (Mbps): 10/100/1000/2500Mbps WiFi : Yes WiFi Technology: Wi-Fi 6E Bluetooth: Bluetooth 5.3 |
|
Ports Data |
USB
Port: 4 x USB 2.0, 3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 4 x SATA TPM
Port: Yes |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: RGB RGB Connector: 1 x RGB LED connector (JRGB) Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11, Windows 10 Compatible
Products: Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen, 13th
Gen &1 4th Gen) |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI

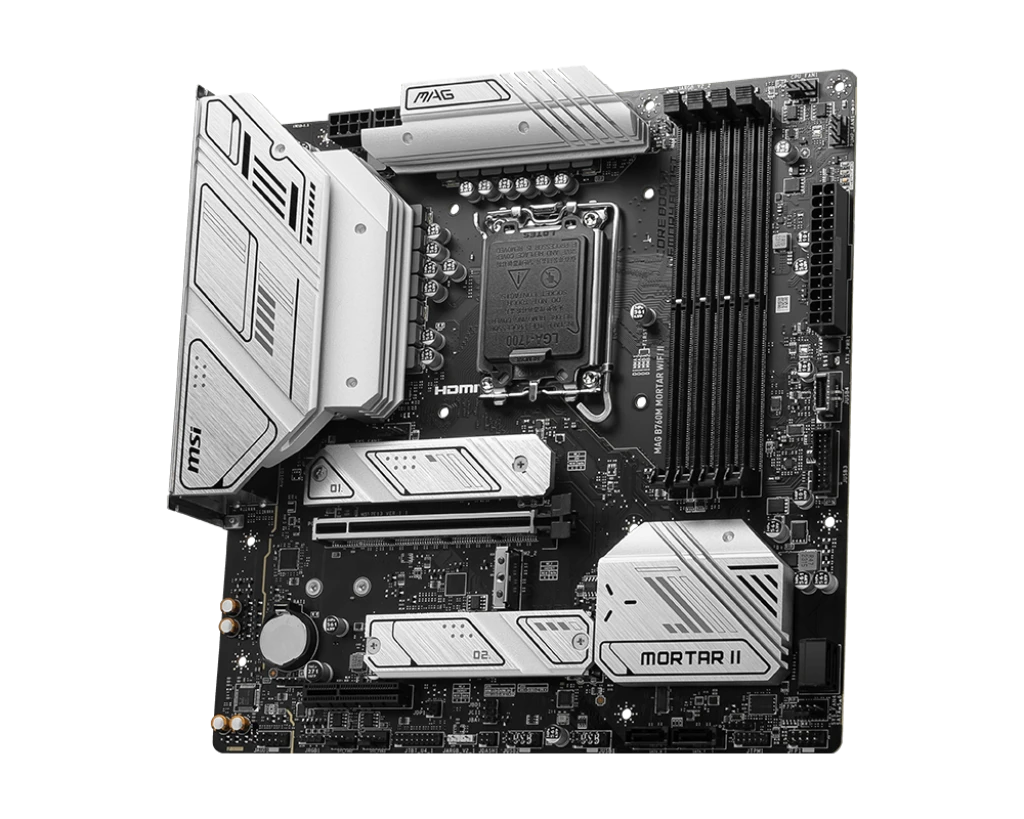

MAG B760M MORTAR II Micro-ATX Motherboard (Wi-Fi 6E)
The MSI MAG B760M MORTAR II
is a compact powerhouse designed for gamers and creators who need next-gen
performance in a Micro-ATX form factor. Powered by the Intel B760
chipset, it supports 12th, 13th, and 14th Gen Intel Core processors,
boasts high-speed DDR5 memory support, and features advanced Wi-Fi 6E
and triple M.2 slots for cutting-edge storage options. A perfect balance
of performance, durability, and connectivity for modern builds.
Features
- Supports 12th, 13th & 14th Gen Intel Core,
Pentium Gold & Celeron processors
- Built on the Intel B760 chipset
- LGA1700 socket
for high compatibility
- Supports DDR5 memory up to 7800+(OC) MHz
- Maximum capacity: 192GB across 4 DIMM slots
- Realtek ALC897 Codec
for 7.1-channel HD audio
- Compatible with Windows 10 and 11
Storage
- 3 x M.2 slots
- 1 x from CPU: PCIe 4.0 x4, supports 2280/2260/2242
- 2 x from Chipset: one PCIe 4.0 x4, one PCIe
4.0 x4/SATA
- 4 x SATA 6Gb/s ports
for traditional drives
Expansion
& Graphics
- 1 x PCIe x16 (Gen 5.0) from CPU
- 1 x PCIe x4 (Gen 3.0)
from chipset
- Ideal for high-performance GPUs and expansion
cards
Connectivity
Options
- Wi-Fi 6E
for ultra-fast wireless networking
- Bluetooth 5.3
for seamless device pairing
- 2.5Gbps LAN (Realtek)
for low-latency wired connections

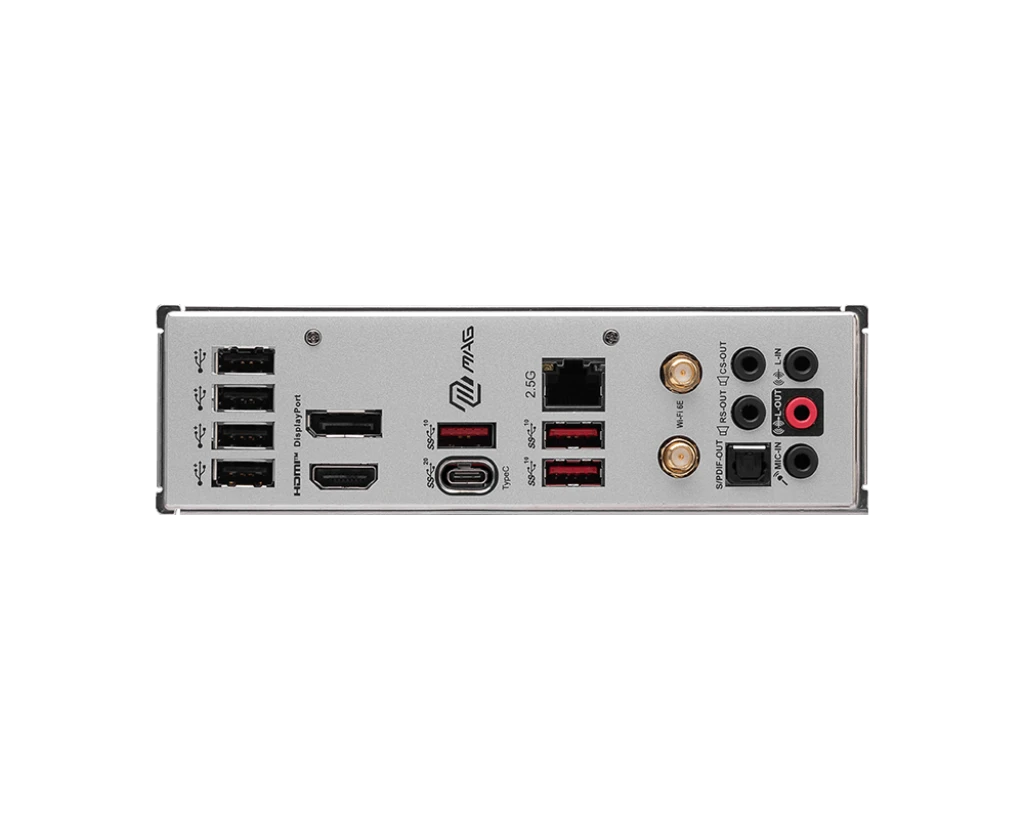

I/O
Ports
- 4 x USB 2.0 ports
- 3 x USB 3.2 Gen 2 Type-A ports
- 1 x USB 3.2 Gen 2 Type-C port
- 1 x HDMI port
- 1 x DisplayPort
Design
and Build
- Micro-ATX form factor
with a clean black finish
- Efficient front cable management

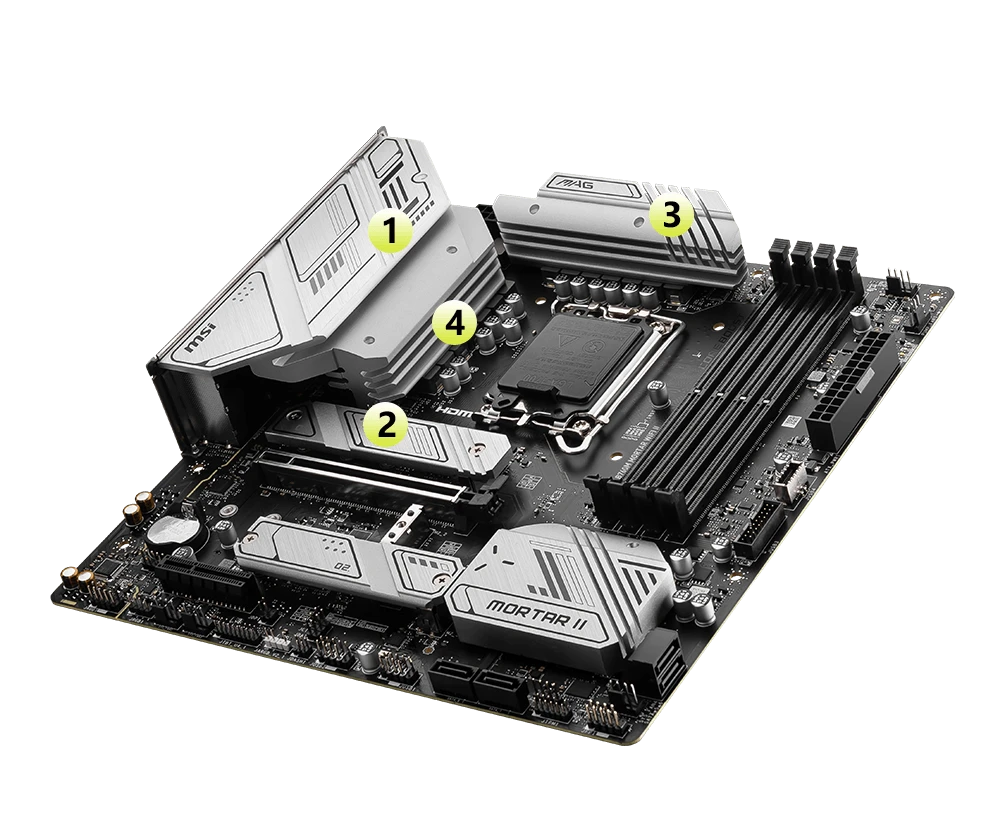

- Integrated heatsinks for thermal efficiency
- RGB LED header
for lighting customization
Power
& Efficiency
- Approx. power consumption: 60W
- Stable power delivery for consistent performance
Warranty
Information
- Backed by a 3-year manufacturer warranty
Price
and Availability
Available at Computer Village
Agrabad, Chattogram, Bangladesh. An ideal choice for gamers and
professionals seeking reliability, next-gen features, and a compact
footprint.
