MSI MAG B760M MORTAR II DDR5 Intel Gaming Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI MAG
B760M MORTAR II |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Supported
CPU: Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and
Celeron Processors Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7800+(OC)/ 7600(OC)/ 7400(OC)/
7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Memory Channel: Dual Memory Slot: 4 Memory Max: 192GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 3 M.2/SSD
Expansion Slot Details: 3 x M.2 (1 x M.2 Source (From CPU) supports up to
PCIe 4.0 x4 , supports 2280/2260/2242 devices, 1 x M.2 Source (From Chipset)
supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 Source (From
Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices) |
|
Graphics Info |
PCI Express Slot: 1 x PCI Express 5.0 x16, 1
x PCI Express 3.0 x4 |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 codec Audio
Channel - 2/4/5.1/7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8125BG LAN LAN Speed (Mbps): 10/100/1000/2500 Mb/s |
|
Ports Data |

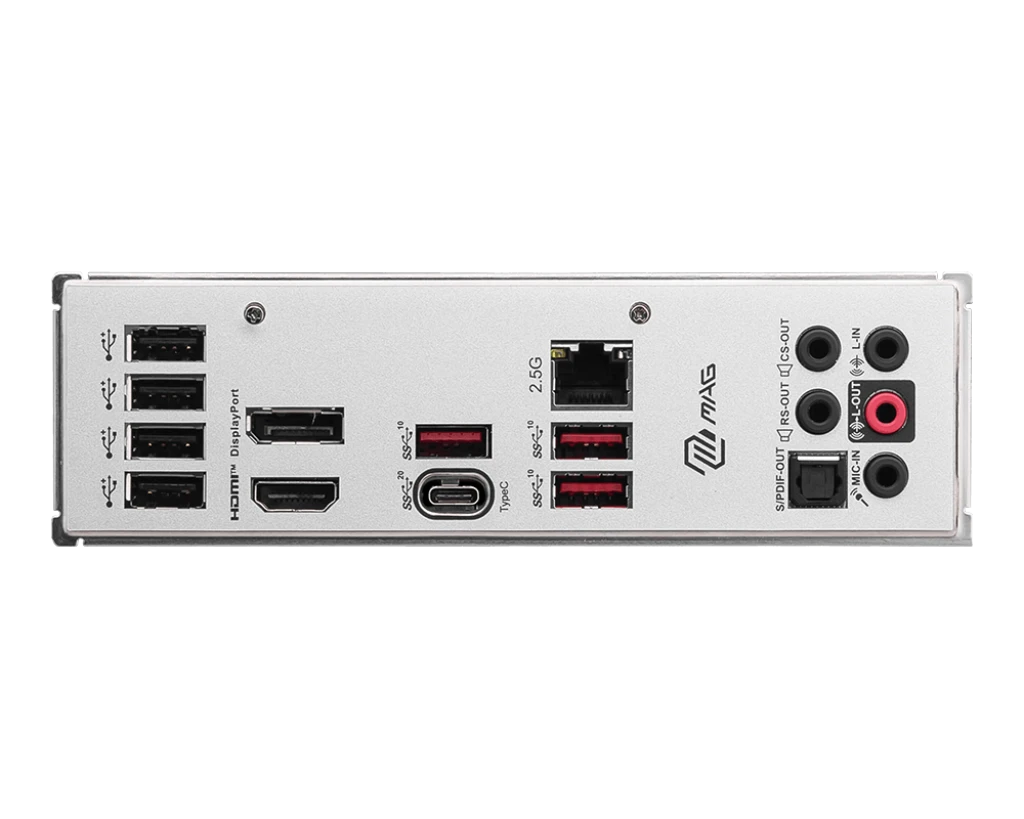

USB
Port: 4 x USB2.0 Type-A, 3 x USB3.2 Type-A, 1 x USB3.0 Type-C HDMI
Port: 1 DisplayPort
(DP): 1 SATA Port: 4 x SATA TPM
Port: Yes |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: RGB RGB Connector: 1x RGB LED connector(JRGB) Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11, Windows 10 Supported
Operating System: Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen,
13th Gen & 14th Gen) |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI

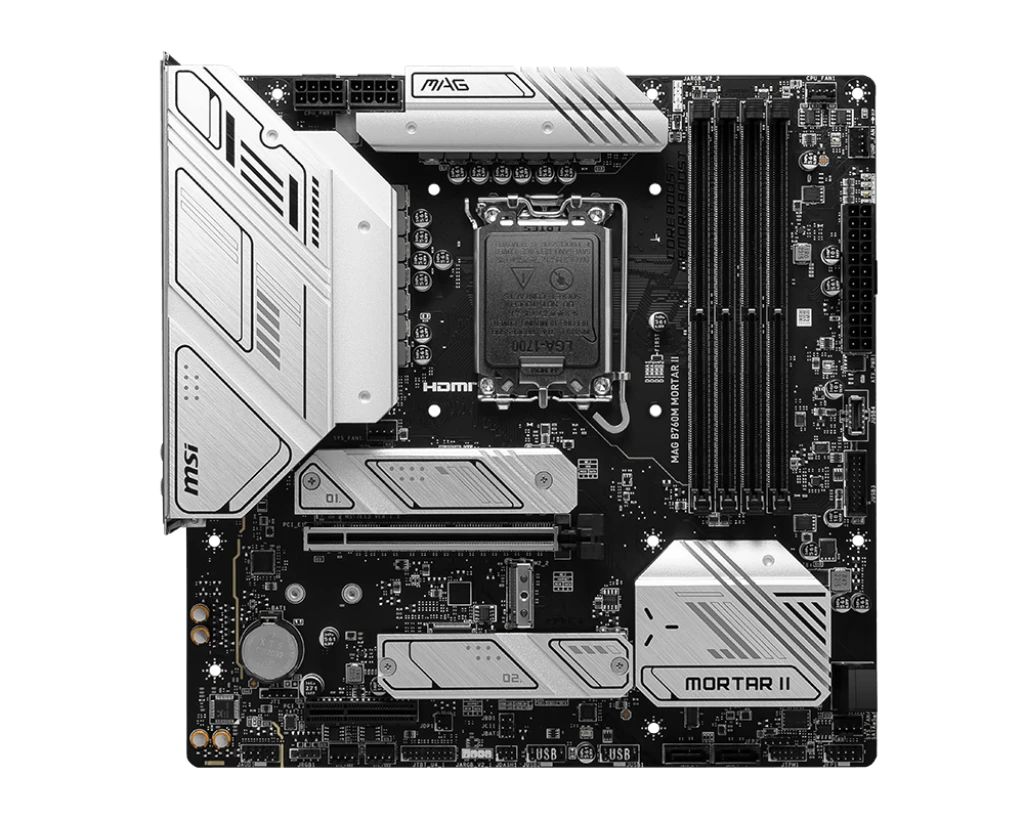

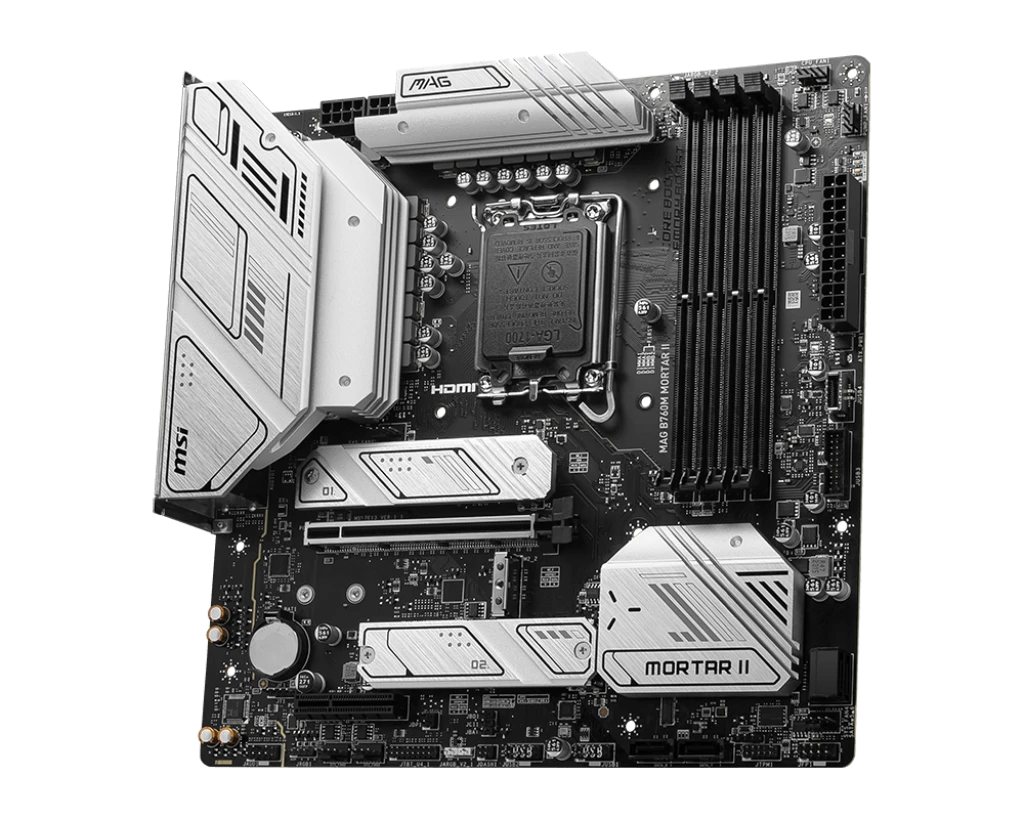

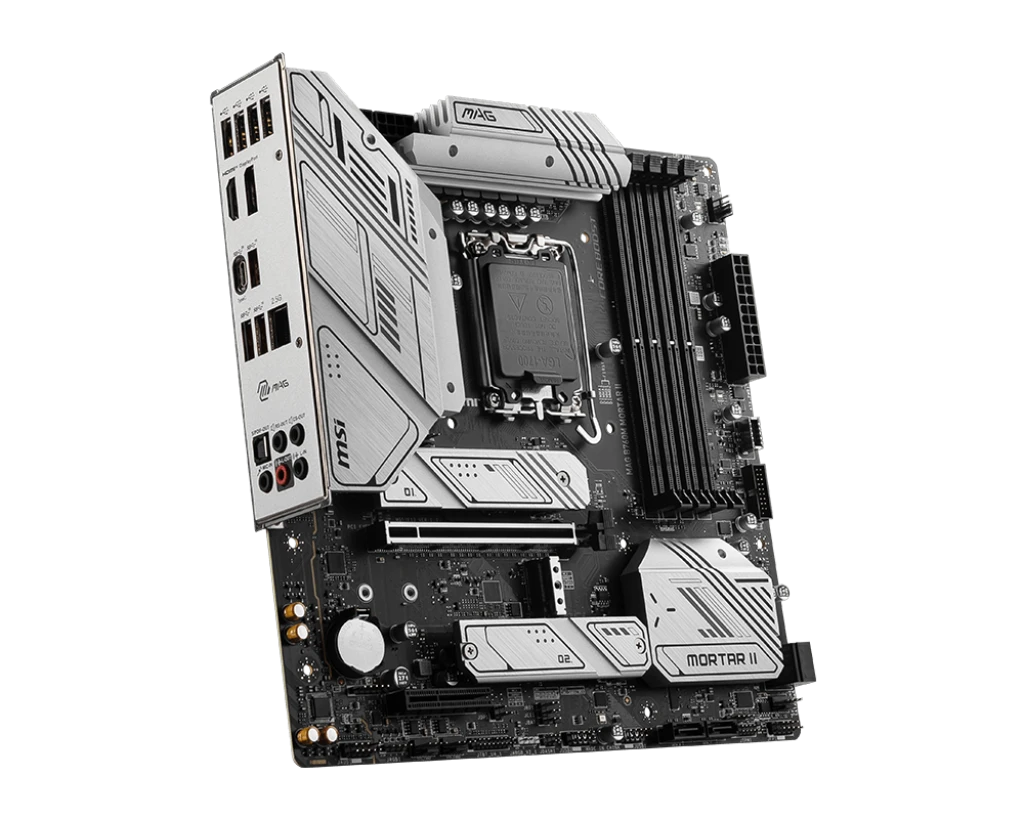

MAG B760M MORTAR II Micro-ATX Motherboard
The MSI MAG B760M MORTAR II
is a Micro-ATX motherboard built for high performance with 12th,
13th, and 14th Gen Intel Core processors. Equipped with an Intel B760
chipset, this motherboard is designed to support the latest processors,
providing stability, speed, and reliability for gaming and workstation needs.
With DDR5 memory support and multiple expansion options, it offers
everything you need for building a powerful system.
Features
The MSI MAG B760M MORTAR II
supports 12th, 13th, and 14th Gen Intel Core Processors, including Pentium
Gold and Celeron Processors. With DDR5 memory support, the
motherboard delivers high-speed performance, with memory overclocking potential
up to 7800 MHz. It supports Dual Memory Channels, providing improved
bandwidth and multitasking capabilities.
Storage
and Expansion
This motherboard provides 3 M.2
expansion slots for PCIe 4.0 x4 devices, supporting fast storage
devices in 2242/2260/2280 sizes. It also includes 4 SATA ports,
allowing additional storage devices to be added, ensuring ample space for your
data and applications.
Graphics
and Multi-GPU Support
The MSI MAG B760M MORTAR II
includes 1 PCI Express 5.0 x16 slot, allowing you to install high-end
graphics cards, ensuring smooth graphics performance for gaming and content
creation. It also offers 1 PCI Express 3.0 x4 slot for additional
expansion cards.
Audio
& Video
The motherboard is equipped with the
Realtek ALC897 audio codec, supporting 2/4/5.1/7.1 audio channels,
delivering a good-quality audio experience for gaming and multimedia tasks. It
also offers 1 HDMI port and 1 DisplayPort, making it compatible
with a wide range of display setups.
Network
and Connectivity
For networking, the MSI MAG B760M
MORTAR II includes the Realtek RTL8125BG LAN chipset, providing 2.5Gbps
Ethernet speeds, making it ideal for high-speed internet and network
connectivity. The motherboard also supports a variety of USB ports,
including 4 x USB2.0 Type-A, 3 x USB3.2 Type-A, and 1 x USB3.0
Type-C.
Power
and Cooling
The MSI MAG B760M MORTAR II
is designed with a heatsink for cooling and front cable management
to improve airflow. The motherboard has a low power consumption of 60W,
making it efficient and suitable for most gaming and productivity setups.
Compatibility
& Warranty
This motherboard is compatible with Windows
10 and Windows 11, offering versatility in operating systems. It is
backed by a 3-year warranty, ensuring long-term reliability and
performance.
Price
and Availability
The MSI MAG B760M MORTAR II
is available at Computer Village Agrabad, Chattogram, Bangladesh, making
it a great choice for anyone building a system with Intel Core processors and
requiring fast performance and excellent expansion options.
