MSI MAG B650M MORTAR (Wi-Fi 6E) DDR5 AMD AM5 Socket Gaming Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI MAG
B650M MORTAR (Wi-Fi 6E) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B650 Sockets
Supported: AM5 Supported
CPU: AMD Ryzen 7000 Series Generation:
Not Applicable |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 6000+(OC)/ 5800(OC)/ 5600(OC)/
5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC)MHz Memory Channel: Dual Memory Slot: 4 Memory Slot (Additional Info): 4 x DIMM Memory Max: 128GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion Slot Details: 2 x M.2 slot (2 x M.2 PCIe 4.0 x4, supports
2280/2260) |
|
Graphics Info |
PCI Express Slot: 2 x PCI-E x 16, 1 x PCI-E
x 1 (PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports
up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC4080 Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8125B LAN Speed (Mbps): 10/100/1000/2500Mbps WiFi : Yes WiFi Technology: AMD Wi-Fi 6E Bluetooth: Bluetooth 5.2 |
|
Ports Data |
USB
Port: 4 x USB 3.2 Gen 1 Type-A , 3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 6 x SATA TPM
Port: 1 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: RGB RGB Connector: 2 x RGB LED connector Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11, Windows 10 Compatible
Products: Sockets Supported AM5: AMD Ryzen 7000 Series Desktop Processors |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI

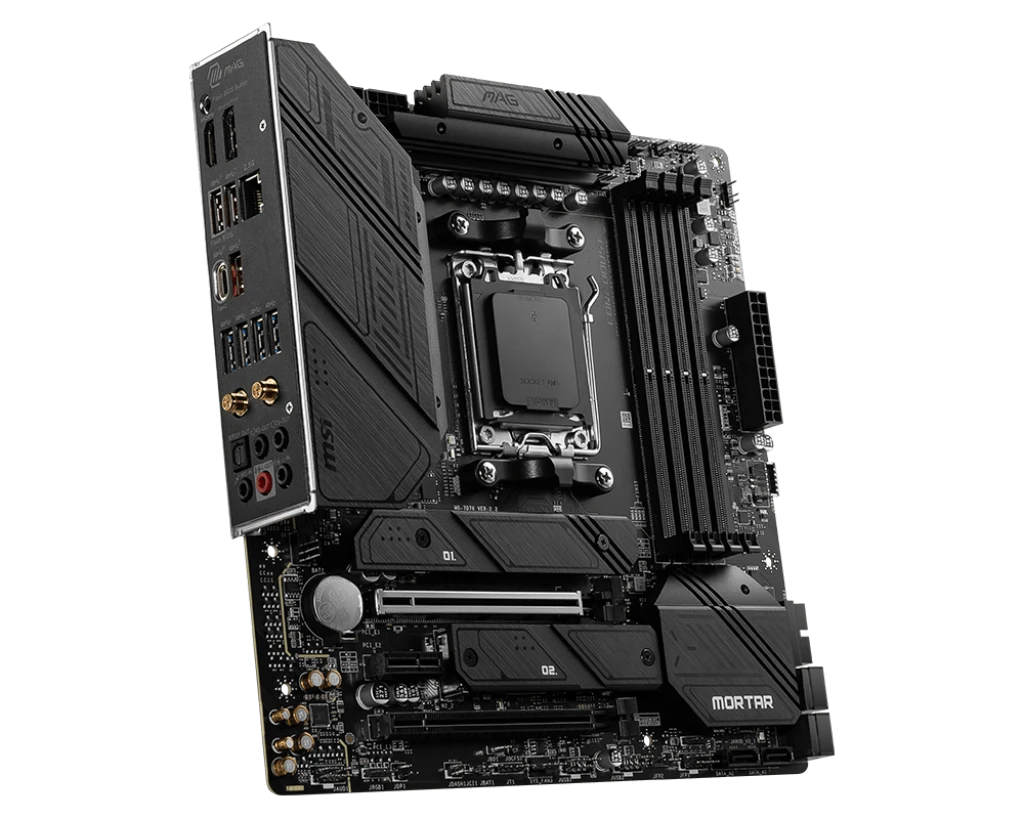

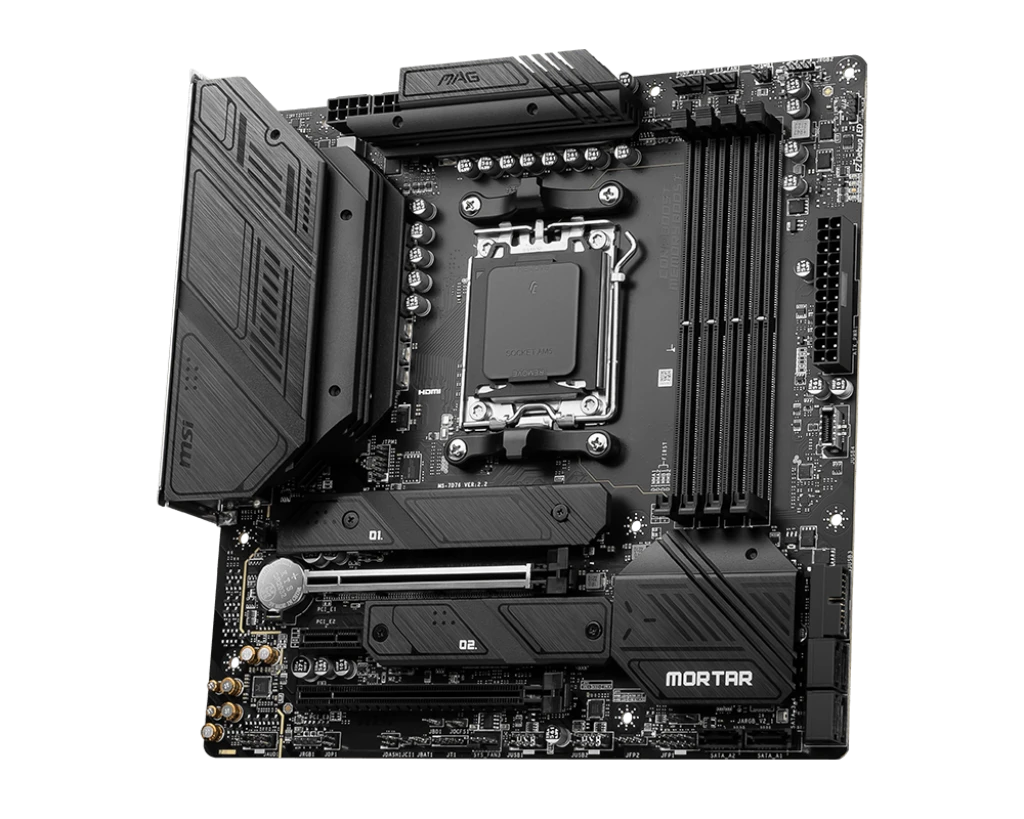

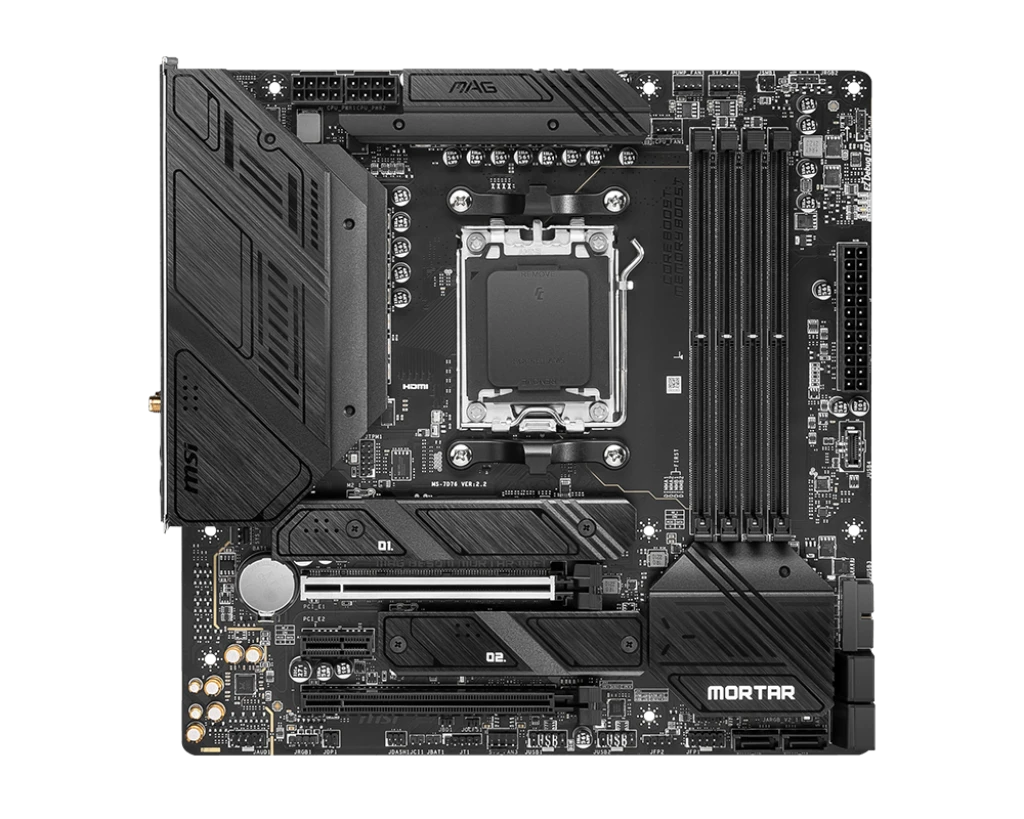

MAG B650M MORTAR Micro-ATX Motherboard (Wi-Fi 6E)
The MSI MAG B650M MORTAR
delivers next-gen performance in a compact form factor. Engineered for AMD
Ryzen 7000 Series processors, it features the AMD B650 chipset, DDR5
memory support, and advanced Wi-Fi 6E for seamless connectivity.
Built with durable components, efficient thermal design, and premium audio,
it's perfect for high-performance gaming or productivity-focused builds.
Features
- Compatible with AMD Ryzen 7000 Series Desktop
Processors
- Powered by the AMD B650 chipset with AM5
socket
- Supports DDR5 memory up to 6000+(OC) MHz
- Dual-channel memory architecture with 4 DIMM slots, up to 128GB
- Premium Realtek ALC4080 audio chipset with 7.1-channel
HD audio
- Compatible with Windows 10 and 11
Storage
Options
- 2 x M.2 PCIe 4.0 x4 slots (supports 2280/2260 devices)
- 6 x SATA 6Gb/s ports
for ample storage expansion
Graphics
& Expansion
- 2 x PCI-E x16 slots
- PCI_E1 (PCIe 4.0 x16) from CPU
- PCI_E3 (PCIe 4.0 x4)
from chipset
- 1 x PCI-E x1 (PCIe 3.0) from chipset
- Ideal for high-performance graphics cards and expansion
devices
Connectivity
Options
- AMD Wi-Fi 6E
for high-speed wireless connections
- Bluetooth 5.2
for modern wireless peripherals
- Realtek RTL8125B 2.5Gbps LAN for stable and fast networking

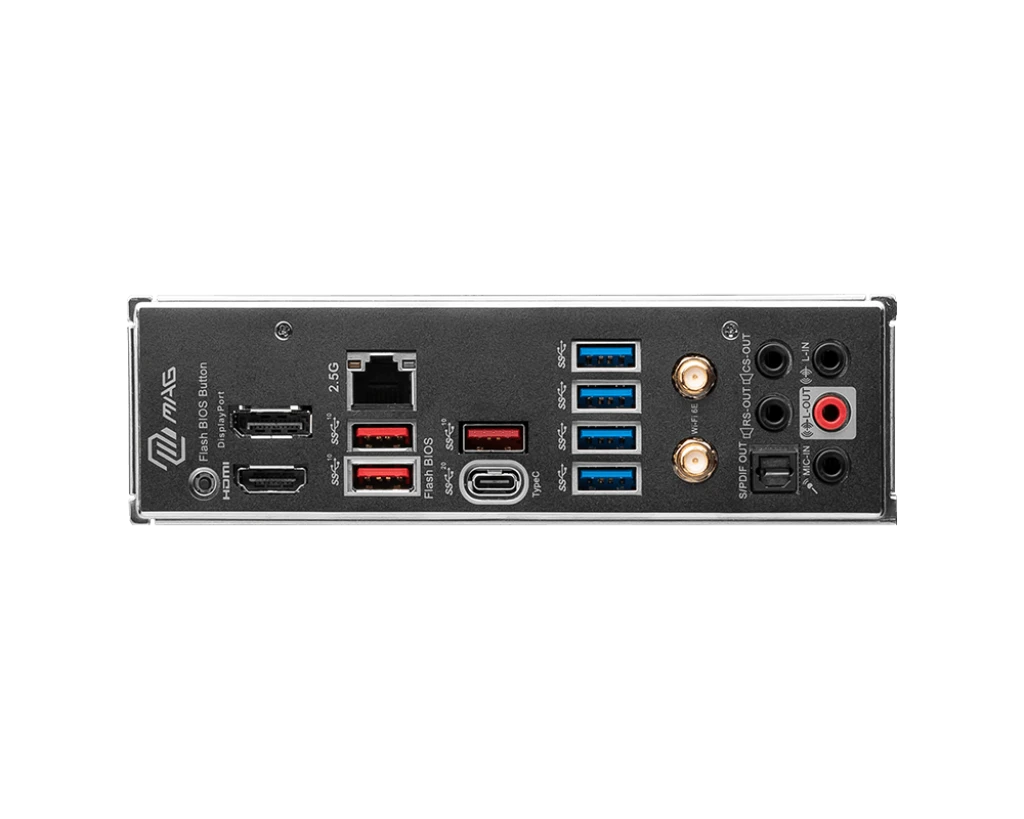

I/O
Ports
- 4 x USB 3.2 Gen 1 Type-A ports
- 3 x USB 3.2 Gen 2 Type-A ports
- 1 x USB 3.2 Gen 2 Type-C port
- 1 x HDMI port
- 1 x DisplayPort
- 1 x TPM header
Design
and Build
- Micro-ATX form factor
in sleek black finish
- Optimized front cable management layout
- Durable heatsinks ensure efficient thermal
performance
- RGB lighting support
with:
- 2 x RGB LED connectors
Power
& Efficiency
- Approx. power consumption: 60W
- Reliable power delivery for efficient system
performance
Warranty
Information
- Comes with a 3-year warranty for peace of mind
Price
and Availability
Available now at Computer Village
Agrabad, Chattogram, Bangladesh. The MAG B650M MORTAR is a
great choice for gamers and PC builders looking for AM5 performance in a
compact and efficient layout.
