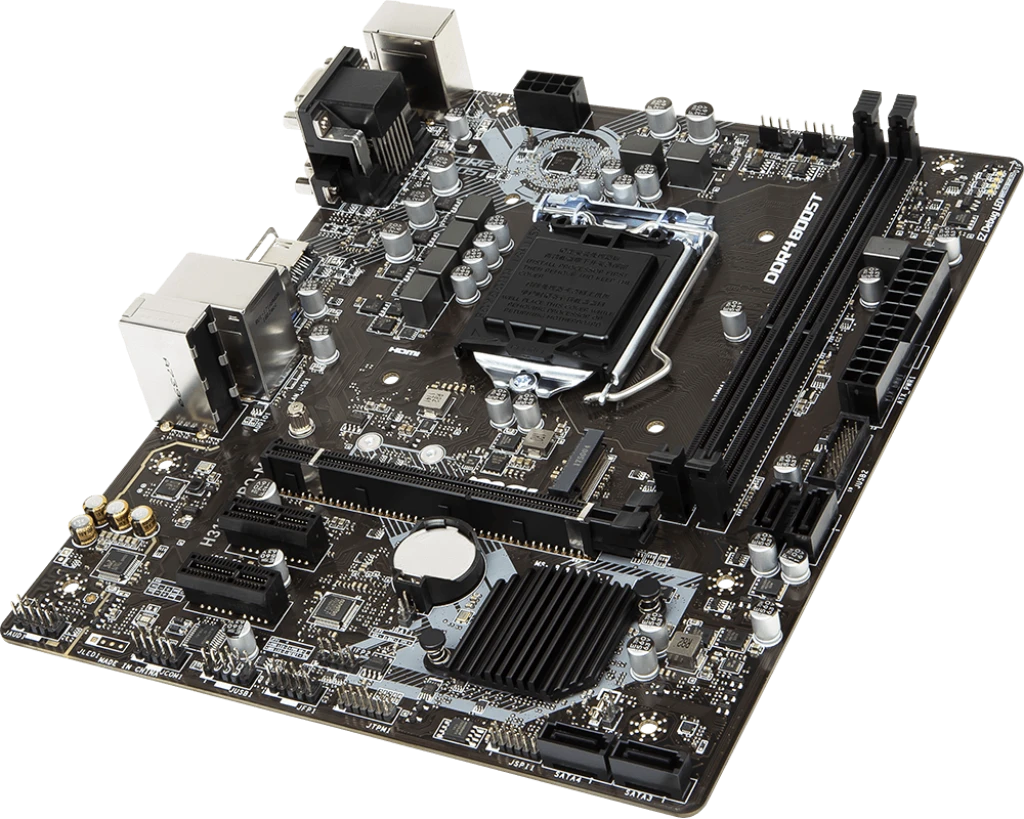

MSI H310M PRO-M2 Micro-ATX Motherboard

The MSI H310M PRO-M2 is a compact and budget-friendly Micro-ATX motherboard engineered to support 8th and 9th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA1151 socket. Whether you're assembling a cost-efficient office PC or a basic home computing system, this motherboard delivers dependable performance, good expansion potential, and reliable connectivity—all within a solid grey-themed board design.

Features

• Processor Compatibility: The H310M PRO-M2 is compatible with a wide range of processors, including Intel’s 8th and 9th Generation Core, Pentium Gold, and Celeron processors, offering a stable and responsive computing experience across productivity and light multitasking workloads.
• Chipset: Powered by the Intel H310 chipset, this board provides essential performance features without unnecessary extras, making it an excellent choice for entry-level builds.

Memory and Storage Support

• Memory Configuration: With dual DDR4 memory slots, the motherboard supports non-ECC, un-buffered memory up to 2666 MHz, allowing for a maximum capacity of 32GB, which is sufficient for most home and office tasks.
• M.2 Expansion: Includes 1 x M.2 slot that supports PCIe 3.0 x4 and SATA mode, giving users faster boot times and efficient data transfer speeds with modern SSDs.
• SATA Ports: Comes with 4 x SATA 6Gb/s ports, providing additional options for traditional HDDs and SATA SSDs.

Graphics and Expansion Options

• Integrated Display Outputs: The board includes 1 x HDMI port and 1 x VGA port, making it easy to connect modern and legacy monitors.
• Expansion Slots:
• 1 x PCIe 3.0 x16 slot for dedicated graphics cards.
• 2 x PCIe 3.0 x1 slots for additional peripherals such as Wi-Fi cards, capture cards, or sound cards.

Audio and Networking

• Audio Experience: Built with the Realtek ALC887 codec, the motherboard offers 7.1-channel HD audio, ideal for everyday multimedia and clear audio output.
• Networking: The onboard Intel I219-V Gigabit LAN controller ensures fast and stable internet connections at 10/100/1000 Mbps, suitable for both work and entertainment.

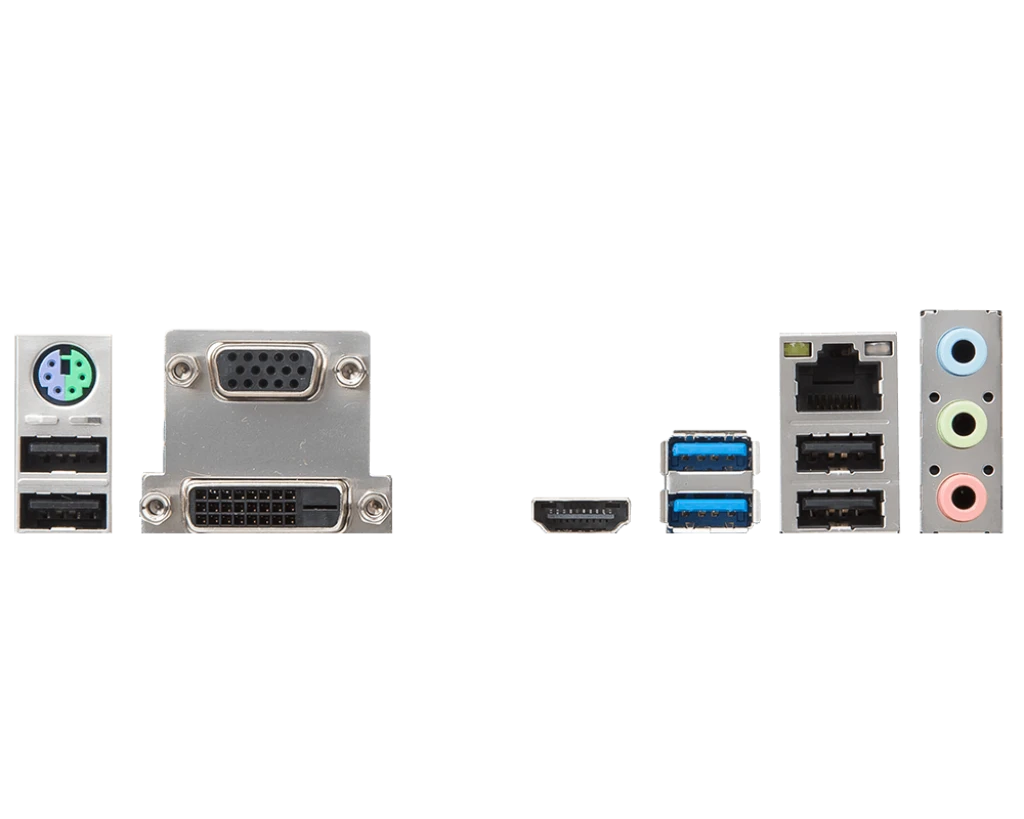

Connectivity Options

• USB Ports:
• 2 x USB 3.1 Gen 1 ports for faster file transfers.
• 4 x USB 2.0 ports for peripherals like keyboard, mouse, and printers.
• Display Ports: Equipped with both HDMI and VGA, providing flexibility for dual-display configurations.
• TPM Support: Trusted Platform Module support enhances system-level security, particularly important for business and Windows 10 Pro installations.

Design and Build

• Form Factor: The compact Micro-ATX form factor makes it ideal for smaller PC cases and limited-space environments.
• Cable Management: Includes front cable management support for neater builds.
• Efficient Design: Designed with essential components only, it keeps power consumption low at around 60W, helping to maintain energy efficiency without compromising reliability.

Compatibility and Warranty

• Operating System: Fully compatible with Windows 10, making it ready for current-gen applications and security updates.
• Socket and CPU Compatibility: Supports Intel 8th/9th Gen Core, Pentium Gold, and Celeron processors on the LGA1151 socket.
• Warranty: Backed by a 3-year manufacturer warranty, ensuring long-term durability and peace of mind.

Price and Availability

The MSI H310M PRO-M2 Micro-ATX motherboard is available now at Computer Village Agrabad, Chattogram, Bangladesh. Visit in-store or contact for current pricing and promotional offers.
