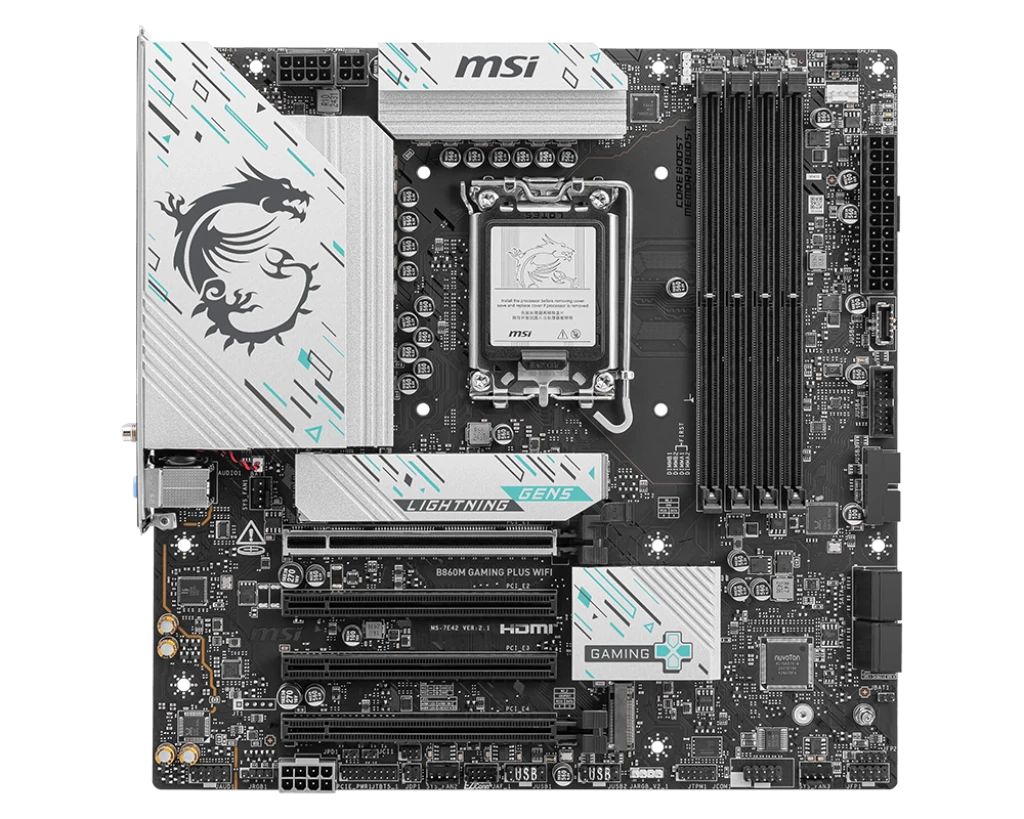

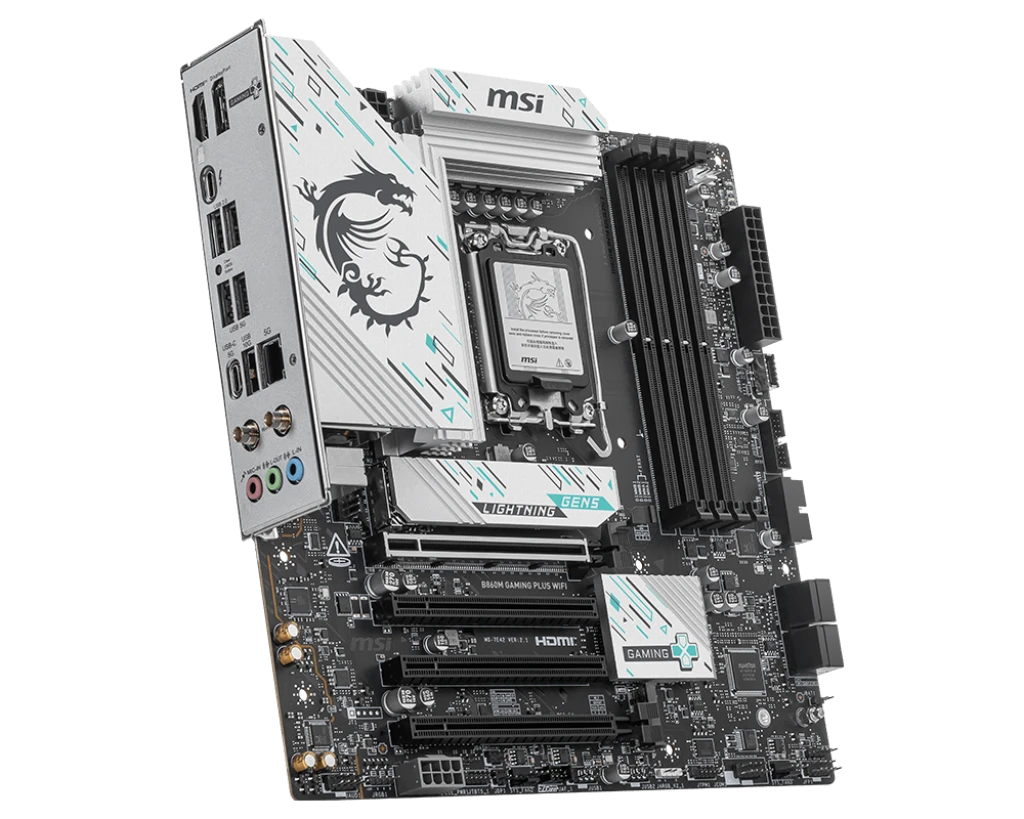

MSI B860M GAMING PLUS (Wi-Fi 7) Micro-ATX Motherboard

The MSI B860M GAMING PLUS (Wi-Fi 7) is a performance-driven Micro-ATX motherboard tailored for gamers and power users building on Intel’s next-gen Core Ultra Series 2 processors with the LGA1851 socket. Designed with the Intel B860 chipset, this board boasts high-speed DDR5 memory, support for PCIe 5.0 storage, and ultra-fast Wi-Fi 7, making it an excellent foundation for a compact yet powerful gaming or content creation system.

Features

• Intel Core Ultra Ready: Built for Intel Core Ultra (Series 2) processors with LGA1851 support, ensuring compatibility with the latest CPU advancements.
• Advanced Chipset Design: Powered by the Intel B860 chipset, this board balances performance and efficiency with extensive connectivity features.
• DDR5 Memory Support: Supports ultra-fast DDR5 memory up to 8000MHz (OC) with a capacity of up to 256GB via 4 DIMM slots, ideal for high-performance computing.
• PCIe Expansion Options: Offers 4 x PCIe x16 slots, providing plenty of room for expansion cards, graphics upgrades, or high-bandwidth devices.

Storage and Expansion

• Triple M.2 Slots:
• 1 x M.2 PCIe 5.0 x4 – delivers unmatched SSD speed for blazing boot and load times.
• 1 x M.2 PCIe 4.0 x4 – ideal for fast NVMe drives.
• 1 x M.2 PCIe 4.0 x2 – for flexible storage options.
• 4 x SATA III Ports: Standard 6Gb/s ports for HDDs and SSDs.

Graphics and Display

• Integrated Display Support: Features 1 x HDMI and 1 x DisplayPort, providing flexible video output for CPUs with integrated graphics.
• Multi-GPU Capability: While not officially supporting SLI/CrossFire, the multiple PCIe x16 slots allow for multiple expansion cards as needed.

Network and Connectivity

• Intel Killer E5000 5Gbps LAN: Optimized for gamers with high-speed, low-latency wired connections.
• Wi-Fi 7 & Bluetooth 5.4:
• Wi-Fi 7 delivers the next generation of wireless networking with ultra-low latency and high throughput.
• Bluetooth 5.4 allows faster and more reliable connections with wireless peripherals.

Connectivity Options

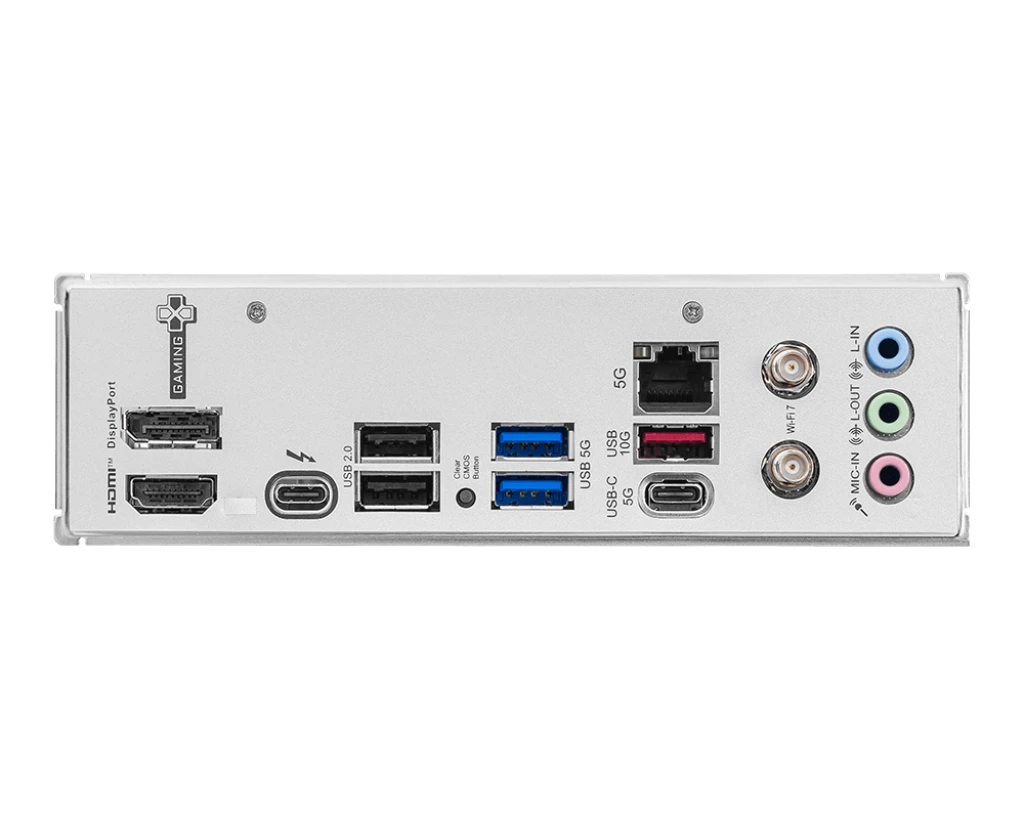

• Extensive Rear I/O:
• 1 x Thunderbolt 4 (40Gbps) Type-C
• 1 x USB 10Gbps Type-A
• 2 x USB 5Gbps Type-A
• 1 x USB 5Gbps Type-C
• 2 x USB 2.0
• Display Output: 1 x HDMI, 1 x DisplayPort
• TPM Support: 1 x TPM header for enhanced system security

Design and Build

• Color Theme: A sleek black and silver aesthetic designed to match modern gaming setups.
• Cooling Support: Integrated heatsinks ensure efficient cooling for key components under heavy load.
• RGB Lighting: Features 1 x RGB LED connector (JRGB) for lighting customization and effects.
• Form Factor: Micro-ATX, perfect for mid-sized or compact chassis.
• Cable Management: Front-facing layout ensures clean build and airflow optimization.

Power and Efficiency

• Power Consumption: Efficient operation with approx. 60W typical power draw.
• Thermal Stability: Built-in heatsinks and intelligent layout provide thermal balance and durability.

Compatibility and Warranty

• OS Support: Fully compatible with Windows 11.
• Processor Support: Designed for Intel Core Ultra Series 2 processors with LGA1851 socket.
• Warranty: Includes a reliable 3-year manufacturer warranty for peace of mind.

Price and Availability

The MSI B860M GAMING PLUS (Wi-Fi 7) motherboard is available at Computer Village Agrabad, Chattogram, Bangladesh. Contact the store for the most up-to-date pricing and availability.
