MSI B760M PROJECT ZERO (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI
B760M PROJECT ZERO |
|
Color |
Black & Silver |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Supported
CPU: 12th/13th/14th Gen Intel Core Processors, Intel Pentium Gold and Celeron
Processors Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7800+(OC)/ 7600(OC)/ 7400(OC)/
7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
non-ECC, un-buffered Memory Channel: Dual Memory Slot: 4 Memory Slot (Additional Info): 4 x DDR5 Memory Max: 192GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion Slot Details: 2 x M.2 (1. supports up to PCIe 4.0 x4 , supports
2280/2260/2242 devices, 2. Supports up to PCIe 4.0 x4 / SATA mode, supports
2280/2260/2242 devices) |
|
Graphics Info |
PCI Express Slot: 2 x PCI-E x16 slot, 1 x
PCI-E x1 slot |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Speed (Mbps): 10/ 10/ 1000/ 2500Mbps WiFi : Yes WiFi Technology: Intel Wi-Fi 6E, 802.11 a/
b/ g/ n/ ac/ ax Bluetooth: Bluetooth 5.3 |
|
Ports Data |
USB
Port: 4 x USB 2.0, 3 x USB 3.2 Gen 2 10Gbps Type-A, 1 x USB 3.2 Gen 2x2
20Gbps Type-C HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 4 |
|
Technical Data |
Cable Management: Back Heatsink: Yes RGB Support: ARGB RGB Connector: 2 x Addressable V2 RGB LED connector (JARGB_V2), 2 x RGB LED
connector(JRGB) Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11/10 64-bit Compatible
Products: 12th/13th/14th Gen Intel Core Processors, Intel Pentium Gold and
Celeron Processors |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
B760M PROJECT ZERO Micro-ATX Motherboard

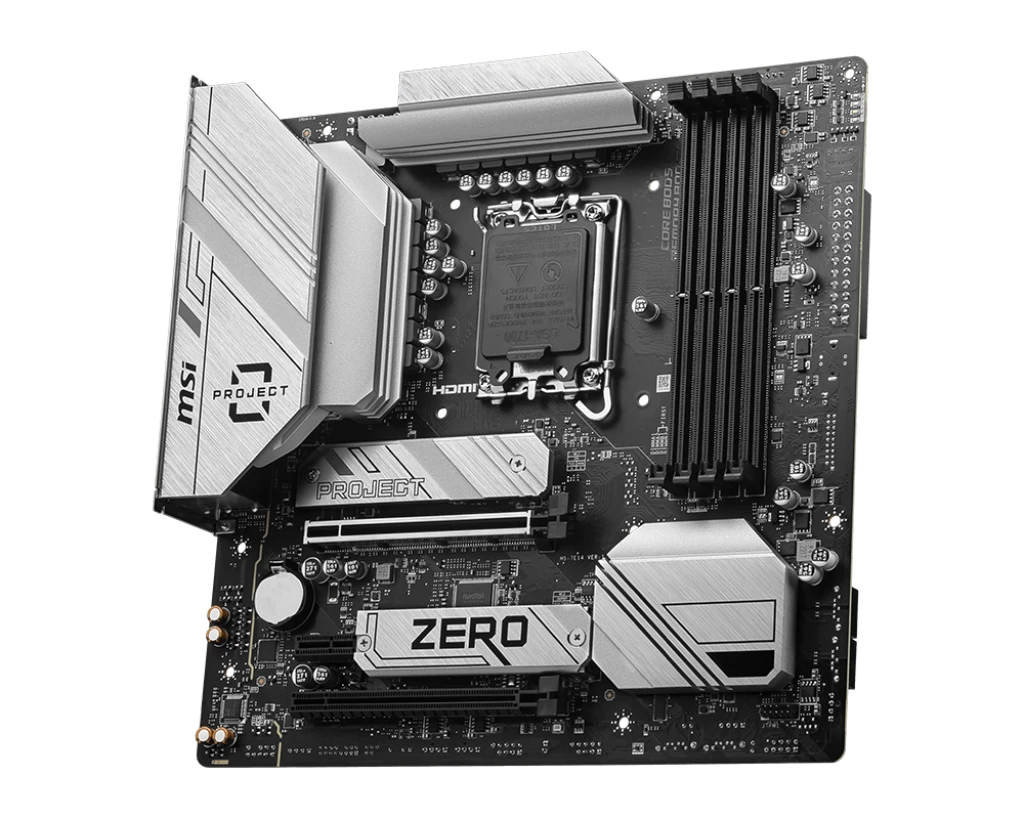

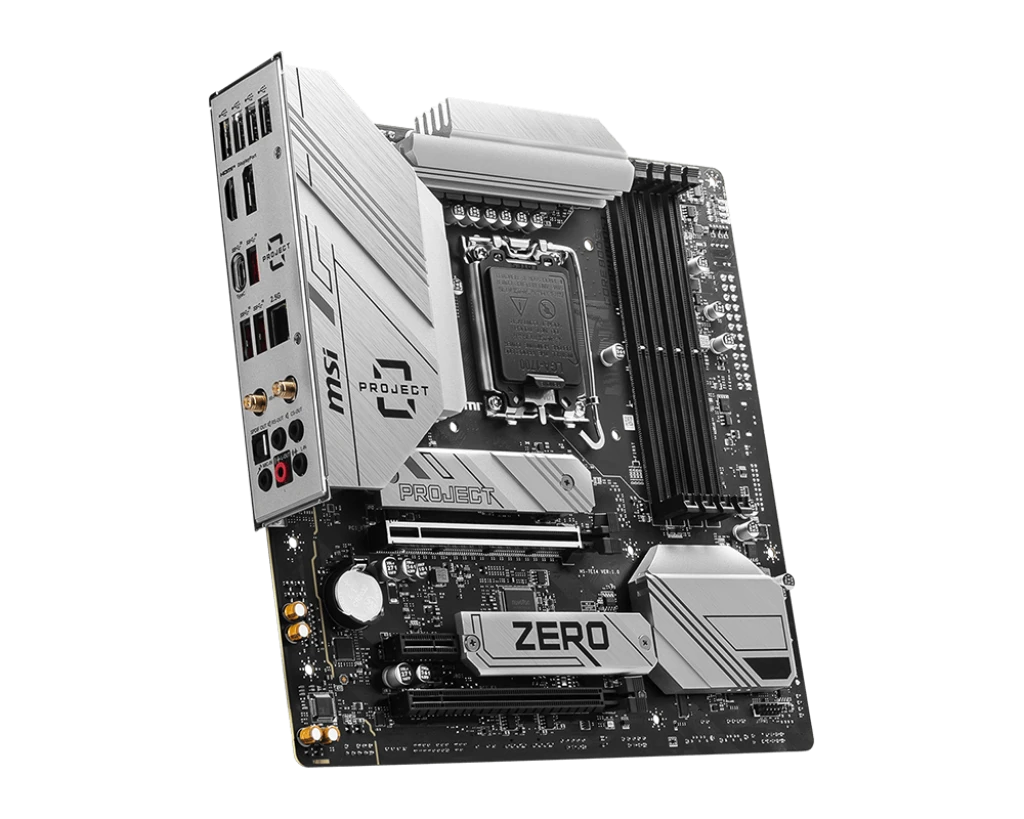

The MSI B760M PROJECT ZERO is
a high-performance Intel B760 chipset motherboard built for modern PC
builders. Supporting 12th, 13th, and 14th Gen Intel Core processors, it
brings together powerful performance, advanced DDR5 memory support, and
a unique back-connect layout for seamless cable management. Designed in
an eye-catching black and silver theme, it offers robust features for
gamers and creators alike.
Features
- Supports 12th/13th/14th Gen Intel Core, Pentium
Gold, and Celeron processors
- LGA1700 socket
with Intel B760 chipset
- Supports DDR5 memory up to 7800+(OC) MHz
- Maximum memory capacity: 192GB
- Dual-channel architecture with 4 DDR5 DIMM slots
- Integrated Realtek ALC897 7.1-channel
high-definition audio
- Clean Back-Connect design for improved airflow
and cable routing
- Compatible with Windows 10/11 64-bit
Storage
- 2 x M.2 slots
- M.2_1: Supports PCIe 4.0 x4, for 2280/2260/2242
devices
- M.2_2: Supports PCIe 4.0 x4 / SATA, for 2280/2260/2242
devices
- 4 x SATA 6Gb/s ports
for HDDs and SSDs
Expansion
Slots
- 2 x PCIe x16 slots
- 1 x PCIe x1 slot
- Ready for additional GPUs and PCIe devices
Connectivity
Options
- Intel Wi-Fi 6E
(802.11 a/b/g/n/ac/ax)
- Bluetooth 5.3
for wireless accessories
- 2.5G LAN (Realtek 8125BG) with speeds up to 2500 Mbps

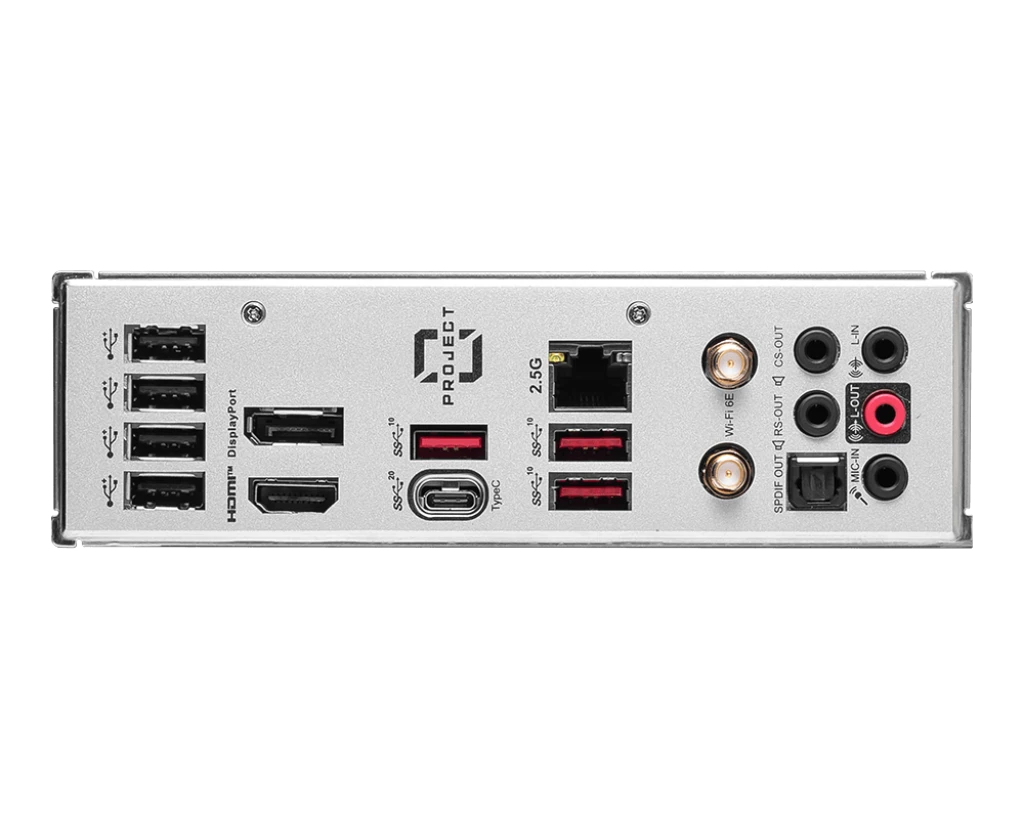

I/O
Ports
- 4 x USB 2.0 Type-A
- 3 x USB 3.2 Gen 2 10Gbps Type-A
- 1 x USB 3.2 Gen 2x2 20Gbps Type-C
- 1 x HDMI port
- 1 x DisplayPort
Design
and Build
- Micro-ATX form factor
- Black & Silver color scheme
- Rear cable management layout for minimal clutter
- ARGB lighting support
with
- 2 x Addressable V2 RGB LED connectors (JARGB_V2)
- 2 x RGB LED connectors (JRGB)
- Integrated heatsinks for thermal efficiency
Power
& Efficiency
- Approx. power consumption: 60W
- Energy-efficient with stable performance under load
Warranty
Information
- Includes 3-year manufacturer warranty
Price
and Availability
Available now at Computer Village
Agrabad, Chattogram, Bangladesh. Ideal for users looking for a stylish,
clean, and performance-ready micro-ATX motherboard with
future-proof features.
