Brand

MSI

Model

MSI B760M BOMBER (Wi-Fi 6E)

Color

Black

CPU Data

Chipset Brand: Intel

Chipset: Intel B760

Sockets Supported: LGA1700

Supported CPU: Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

Generation: 12th/13th/14th

Memory Support

Memory Type: DDR5

Memory MHz: 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz non-ECC Un-buffered

Memory Channel: Dual

Memory Slot: 2

Memory Slot (Additional Info): 2x DDR5

Memory Max: 128GB

Storage Info

Storage Interface: 6.0Gb/s

M.2/SSD Expansion Slot: 2

M.2/SSD Expansion Slot Details: 2 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices)

Graphics Info

PCI Express Slot: 1x PCI-E x16 slot (Qty), 1x PCI-E x1 slot (Qty) (PCI_E1 Gen PCIe 4.0 supports up to (From CPU), PCI_E2 Gen PCIe 4.0 supports up to (From Chipset))

Audio & Video

Audio Chipset: Realtek ALC897 Codec

Audio Channel - 7.1

Network & Connectivity

LAN Chipset: Realtek RTL8125B

LAN Speed (Mbps): 10/100/1000/2500Mbps

WiFi: Yes

WiFi Technology: Intel Wi-Fi 6E 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth: Bluetooth 5.3

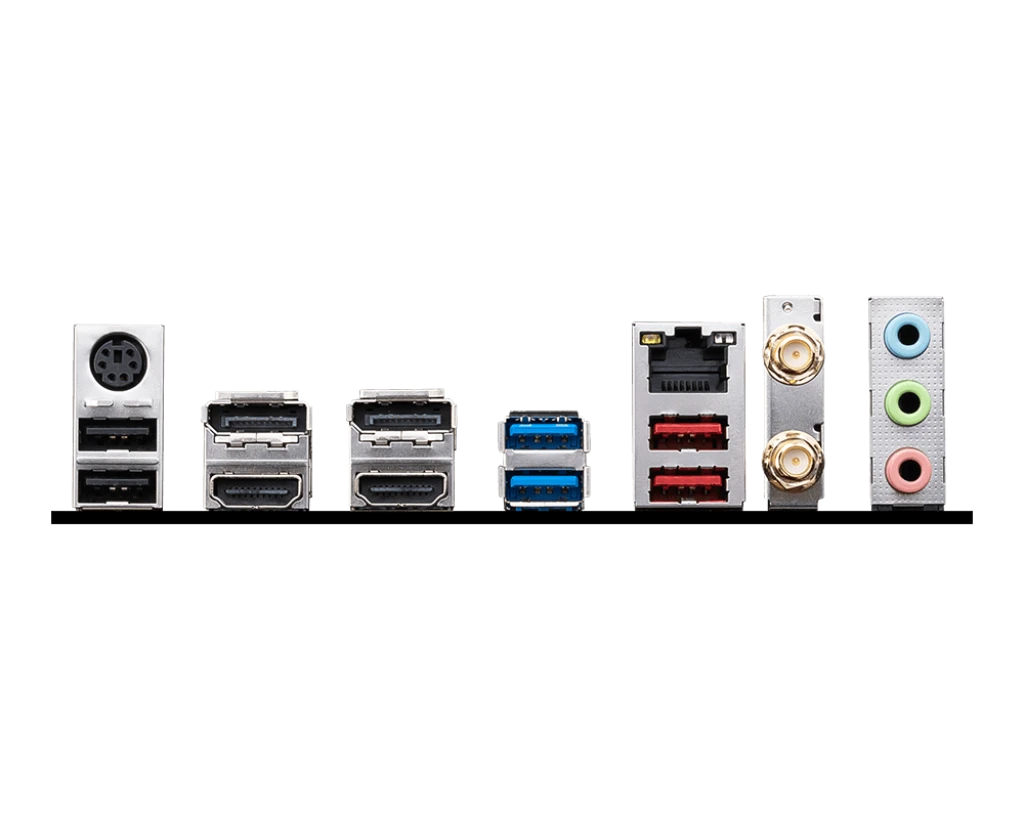

Ports Data

USB Port: 2 x USB 2.0, 4 x USB 3.2 Gen 1 5Gbps (Type-A)

VGA Port: 1

HDMI Port: 1

DisplayPort (DP): 1

SATA Port: 4 x SATA

TPM Port: 1

Technical Data

Cable Management: Front

Heatsink: Yes

RGB Support: ARGB

RGB Connector: 2 x Addressable V2 RGB LED connector, 1 x RGB LED connector

Approx. Power Consumption: 60W

Form Factor: Micro-ATX

Compatibility

Supported Operating System: Windows 10 / 11

Compatible Products: Intel Core i9/ i7/ i5/ i3, Pentium, Celeron processors. LGA1700 socket.

Warranty

3 Year

* Product may vary with different Kit or Version
