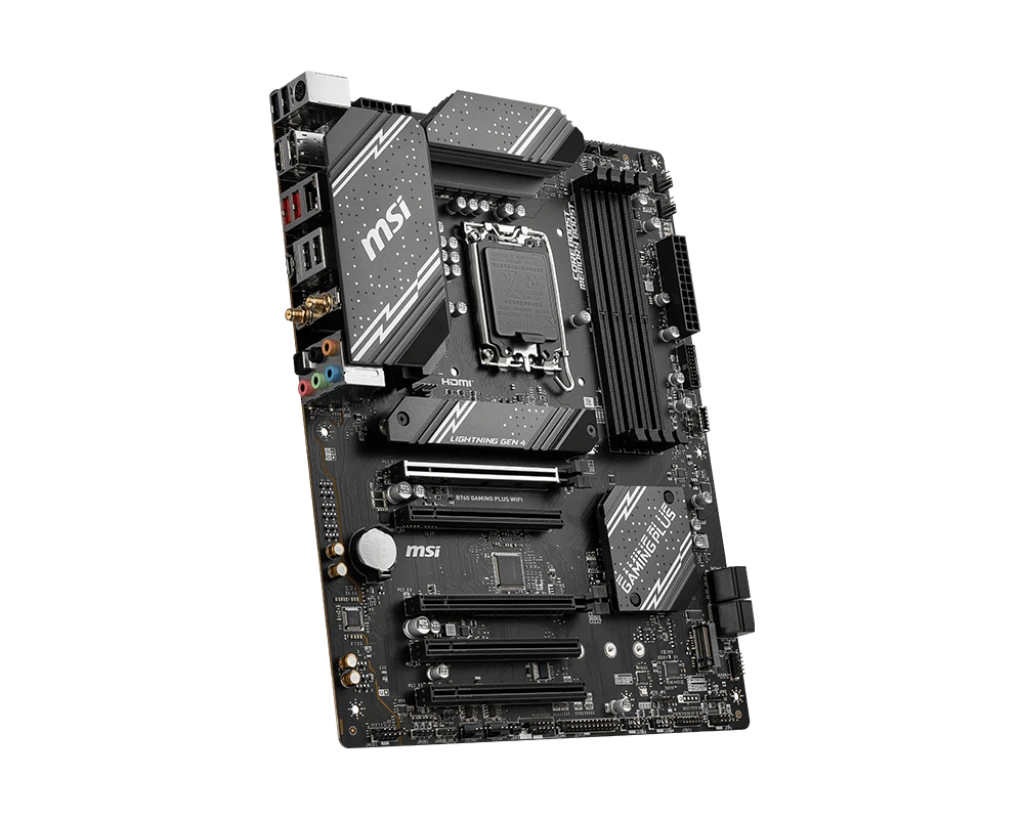

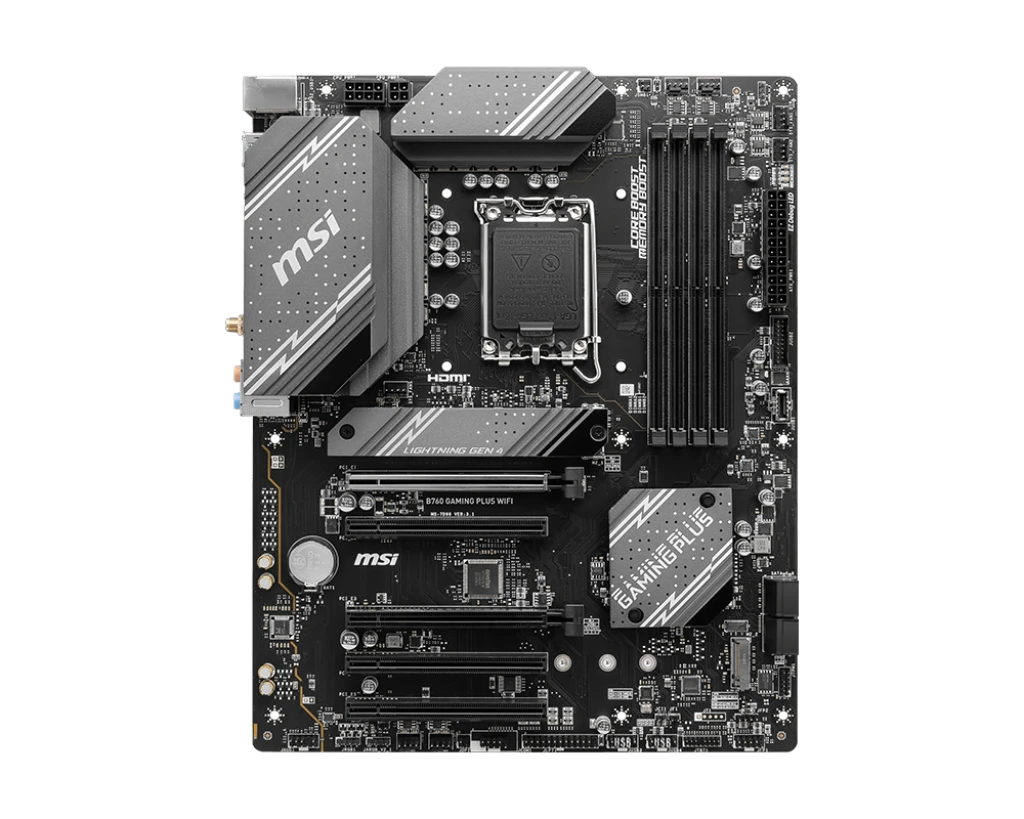

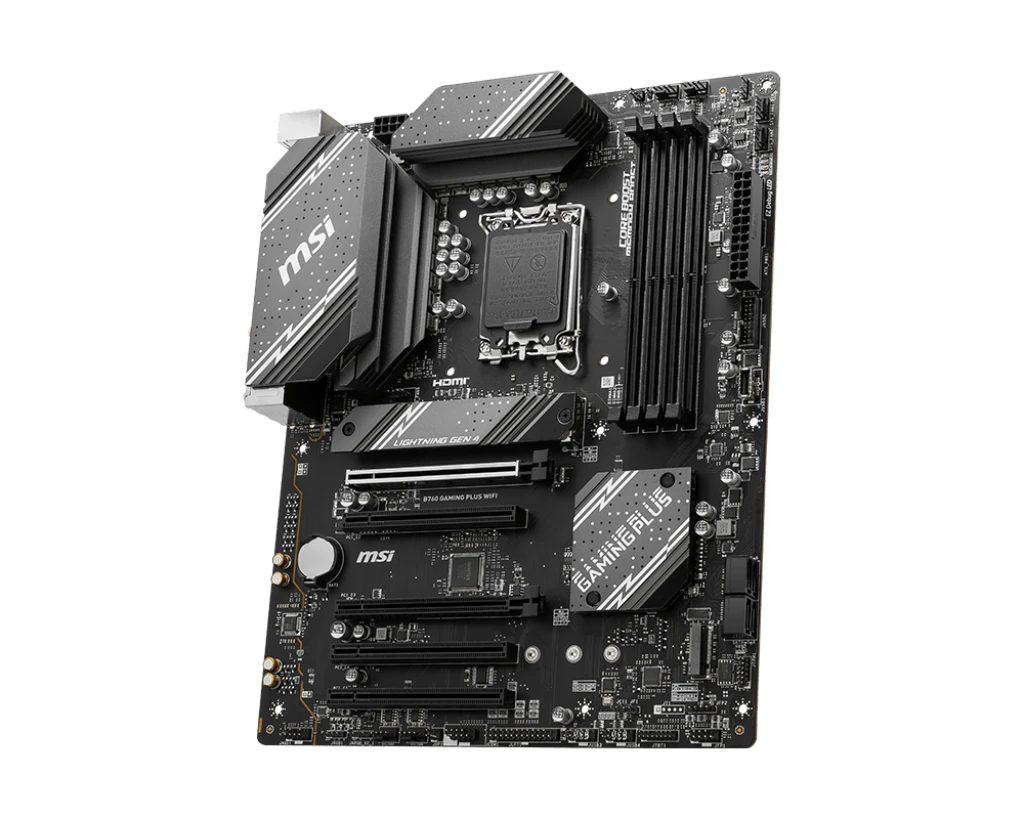

MSI B760 GAMING PLUS (Wi-Fi 6E) DDR5 Intel Gaming Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI
B760 GAMING PLUS (Wi-Fi 6E) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Supported
CPU: Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and
Celeron Processors. Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 6800+(OC)/ 6600(OC)/ 6400(OC)/
6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/
5000(JEDEC)/ 4800(JEDEC) MHz non-ECC, un-buffered memory Memory Channel: Dual Memory Slot: 4 Memory Max: 192GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion Slot Details: 2 x M.2 ( 1 x M.2 type 22110/2280/2260/2242 supports
up to PCIe 4.0 x4, 1 x M.2 type 280/2260/2242 supports up to PCIe 4.0 x4 /
SATA mode) |
|
Graphics Info |
PCI Express Slot: 5 x PCI-E x16 slot |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8125BG 2.5G LAN LAN Speed (Mbps): 10/100/1000/2500Mbps WiFi : Yes WiFi Technology: Wi-Fi 6E Bluetooth : Bluetooth 5.3 |
|

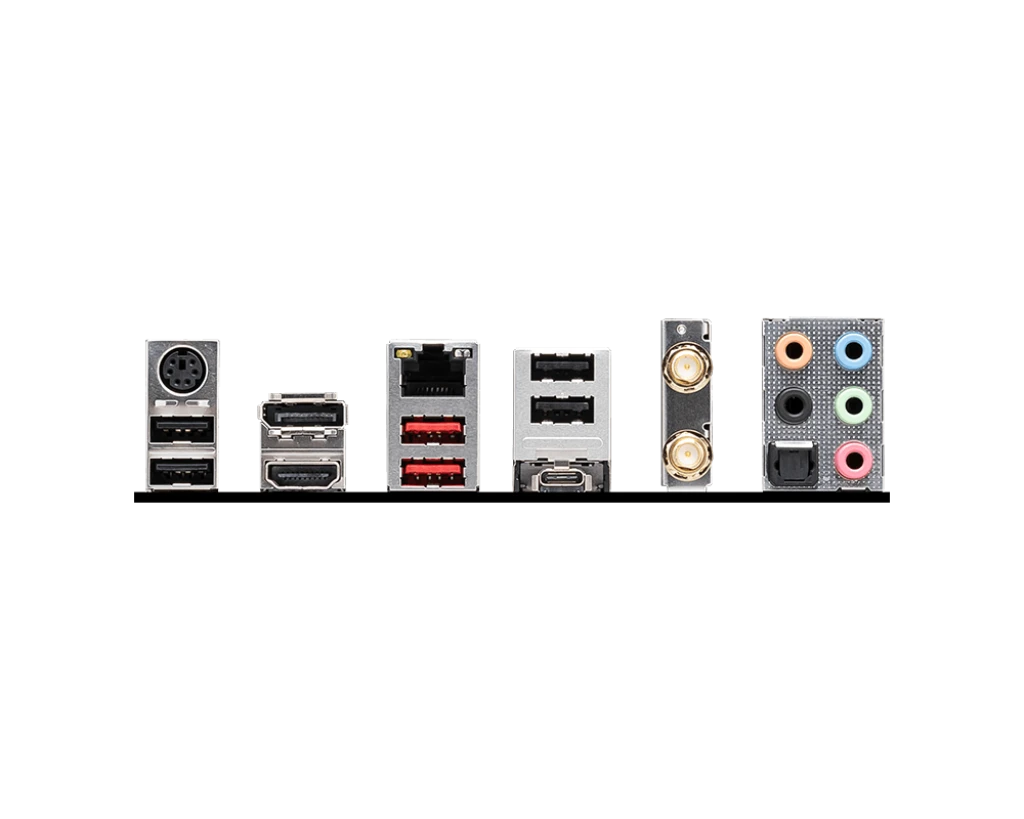

Ports Data |
USB
Port: 4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 4 x SATA TPM
Port: 1 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 2 x Addressable V2 RGB LED connector (JARGB V2), 1 x RGB LED
connector(JRGB) Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / 11 Supported
Operating System: Compatible with LGA1700 Socket 12th, 13th & 14th Gen
Intel Processor. |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI
B760 GAMING PLUS (Wi-Fi 6E) ATX Motherboard
The MSI B760 GAMING PLUS
motherboard is built to support the latest 12th, 13th, and 14th Gen Intel
Core processors. Featuring DDR5 memory support, Wi-Fi 6E
connectivity, and PCIe 4.0, this motherboard provides exceptional
performance and future-proof capabilities, making it an ideal choice for gaming
and high-performance computing.
Features
The MSI B760 GAMING PLUS is
powered by the Intel B760 chipset and supports Intel Core processors
using the LGA1700 socket. It features DDR5 memory support with
speeds up to 6800 MHz (OC), ensuring smooth performance for demanding
applications and multitasking. The motherboard offers 4 memory slots,
allowing for a maximum of 192GB of RAM for intense gaming or content
creation setups.
Storage
and Expansion
This motherboard includes 2 M.2
slots, supporting PCIe 4.0 x4 and SATA modes. The M.2
slots are compatible with 2242/2260/2280 devices, providing
flexibility for high-speed storage configurations. Additionally, it features 4
SATA ports, which offer ample space for additional storage devices.
Graphics
and Multi-GPU Support
The MSI B760 GAMING PLUS
comes with 5 x PCIe x16 slots, allowing for future expansion or
multi-GPU setups (depending on the configuration and CPU). This provides
flexibility for those looking to add multiple graphics cards or other PCIe
devices.
Audio
& Video
The motherboard includes a Realtek
ALC897 Codec for 7.1 channel audio, delivering high-quality sound
for immersive gaming and media experiences. It also features 1 HDMI port
and 1 DisplayPort (DP) for flexible display options.
Network
and Connectivity
Equipped with Realtek RTL8125BG
2.5G LAN, this motherboard ensures fast wired internet speeds, supporting 10/100/1000/2500
Mbps connections. It also features Wi-Fi 6E technology for faster
wireless connections, along with Bluetooth 5.3 support for wireless
device pairing.
Power
and Cooling
The MSI B760 GAMING PLUS
motherboard is designed for efficient power usage, with an approximate power
consumption of 70W. The board includes front cable management and a heatsink
to maintain optimal temperatures during extended gaming or high-load sessions.
Additionally, it supports ARGB lighting with 2 x Addressable V2 RGB
LED connectors and 1 x RGB LED connector, allowing for customizable
lighting effects.
Compatibility
& Warranty
The motherboard is compatible with Windows
10 and Windows 11, and it supports the LGA1700 socket for Intel's
12th, 13th, and 14th Gen Core processors. It also comes with a 3-year
warranty, ensuring long-term durability and support.
Price
and Availability
The MSI B760 GAMING PLUS (Wi-Fi
6E) motherboard is available at Computer Village Agrabad, Chattogram,
Bangladesh, offering excellent value for gamers and high-performance users
looking for an affordable yet capable motherboard.
