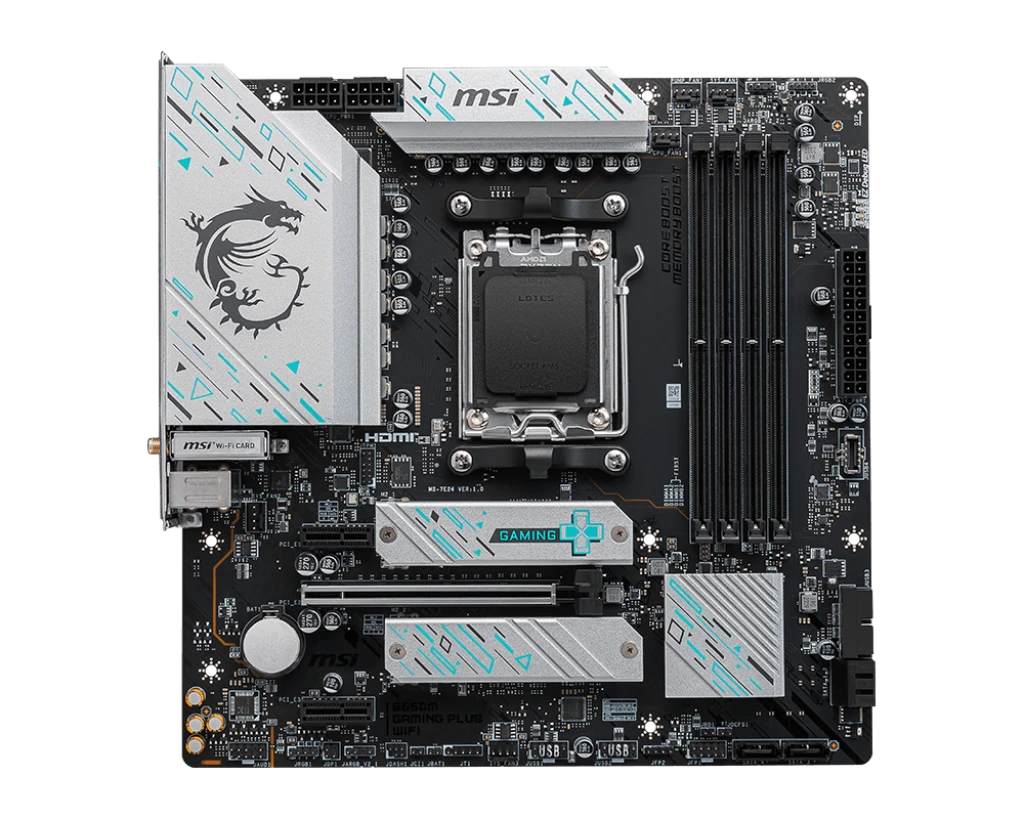

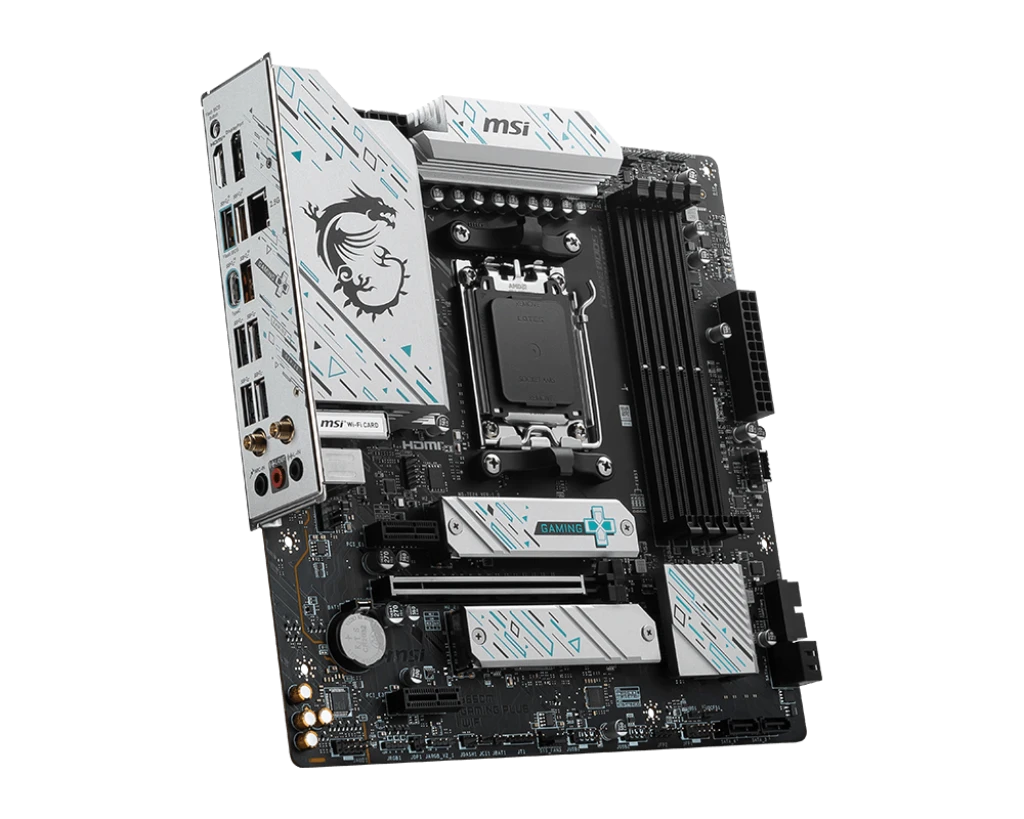

MSI B650M GAMING PLUS (Wi-Fi 6E) DDR5 AMD AM5 Socket Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI
B650M GAMING PLUS (Wi-Fi 6E) |
|
Color |
Black & White |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B650 Sockets
Supported: AM5 Supported
CPU: AMD Ryzen 8000/ 7000 Series Desktop Processors Generation:
Not Applicable |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7200+(OC)/ 7000(OC)/ 6800(OC)/
6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/
5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz non-ECC, un-buffered memory Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion Slot Details: 2 x M.2, (1 x M.2 supports up to PCIe 4.0 x4 ,
supports 2280/2260 devices, 1 x M.2 supports up to PCIe 4.0 x4 , supports
2280/2260 devices) |
|
Graphics Info |
PCI Express Slot: 1 x PCI-E x16 slot, 2 x
PCI-E x1 slot |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8125BG 2.5Gbps LAN LAN Speed (Mbps): 10/ 10/ 1000/ 2500Mbps WiFi: Yes WiFi Technology: Wi-Fi 6E Bluetooth: Bluetooth 5.3 |
|

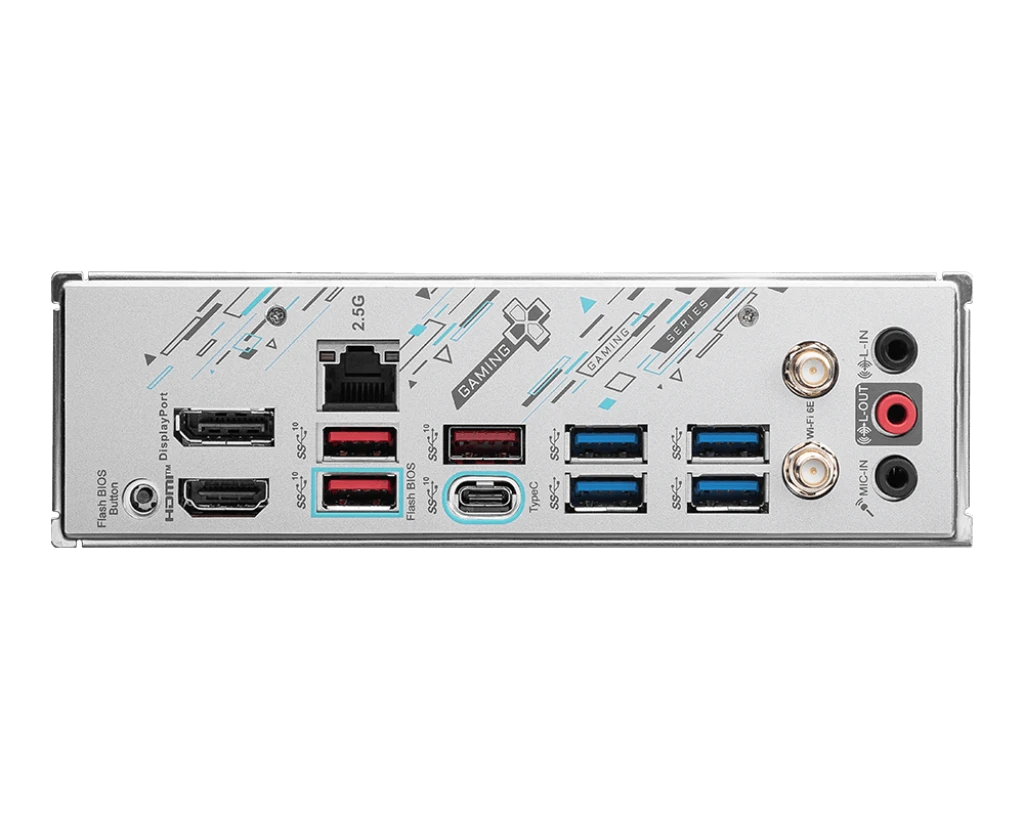

Ports Data |
USB
Port: 1 x USB 3.2 Gen 2 10Gbps (Type-A), 4 x USB 3.2 Gen 1 5Gbps (Type-A), 1
x USB 3.2 Gen 2 10Gbps (Type-A), 1 x USB 3.2 Gen 2 10Gbps (Type-C) HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 4 TPM
Port: 1 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: RGB Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10, Windows 11 Supported
Operating System: Ryzen 8000 / 7000 Series Processors |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
|
Brand |
MSI |
|
Model |
MSI
B650M GAMING PLUS (Wi-Fi 6E) |
|
Color |
Black & White |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B650 Sockets
Supported: AM5 Supported
CPU: AMD Ryzen 8000/ 7000 Series Desktop Processors Generation:
Not Applicable |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7200+(OC)/ 7000(OC)/ 6800(OC)/
6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/
5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz non-ECC, un-buffered memory Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion Slot Details: 2 x M.2, (1 x M.2 supports up to PCIe 4.0 x4 ,
supports 2280/2260 devices, 1 x M.2 supports up to PCIe 4.0 x4 , supports
2280/2260 devices) |
|
Graphics Info |
PCI Express Slot: 1 x PCI-E x16 slot, 2 x
PCI-E x1 slot |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8125BG 2.5Gbps LAN LAN Speed (Mbps): 10/ 10/ 1000/ 2500Mbps WiFi: Yes WiFi Technology: Wi-Fi 6E Bluetooth: Bluetooth 5.3 |
|
Ports Data |
USB
Port: 1 x USB 3.2 Gen 2 10Gbps (Type-A), 4 x USB 3.2 Gen 1 5Gbps (Type-A), 1
x USB 3.2 Gen 2 10Gbps (Type-A), 1 x USB 3.2 Gen 2 10Gbps (Type-C) HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 4 TPM
Port: 1 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: RGB Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10, Windows 11 Supported
Operating System: Ryzen 8000 / 7000 Series Processors |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
