MSI B550M PRO-VDH Wi-Fi AMD Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI
B550M PRO-VDH WIFI |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B550 Sockets
Supported: AM4 Built-in
Processor: N/A Supported
CPU: AMD Ryzen 3rd Generation Processors and New Generation AMD Ryzen
processors Generation:
Unmentioned |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 4400/ 4266/ 4133/ 4000/ 3866/
3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866MHz by
JEDEC and A-XMP OC MODE Memory Channel: Dual Memory Slot: 4 Memory Slot (Additional Info): Unmentioned Memory Max: 128GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion Slot Details: 2 x M.2 (1 x M.2 (Supports PCIe 4.0/ 3.0 x4, Supports
SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices), 1 x M.2 (Supports
PCIe 3.0x4, Supports 2242/ 2260/ 2280 storage devices)) |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Integrated with Processor Multi-GPU Support: Unmentioned PCI Express Slot: 1x PCIe 4.0/ 3.0 x16 slot
(PCI_E1), 2x PCIe 3.0 x1 slots |
|
Audio
& Video |
Audio
Chipset: Realtek ALC892 Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 8111HN LAN Speed (Mbps): 10/100/1000 WiFi: Yes WiFi Technology: Intel Dual Band Wireless-AC
3168, Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433
Mbps speed. Bluetooth: Bluetooth 4.2 |
|
Ports Data |
USB
Port: 2 x USB 3.2 Gen 1 5Gbps Type-A, 2 x USB 2.0, 2 x USB 3.2 Gen 1 5Gbps
Type-A VGA
Port: 1 DVI
Port: Unmentioned HDMI
Port: 1 DisplayPort
(DP): 1 IDE
Port: Unmentioned SATA
Port: 4 x SATA Thunderbolt:
Unmentioned TPM
Port: Yes |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Yes FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: RGB RGB Connector: 2 x 4-pin RGB LED connectors Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 Compatible
Products: Unmentioned |
|
Warranty |
3 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
MSI

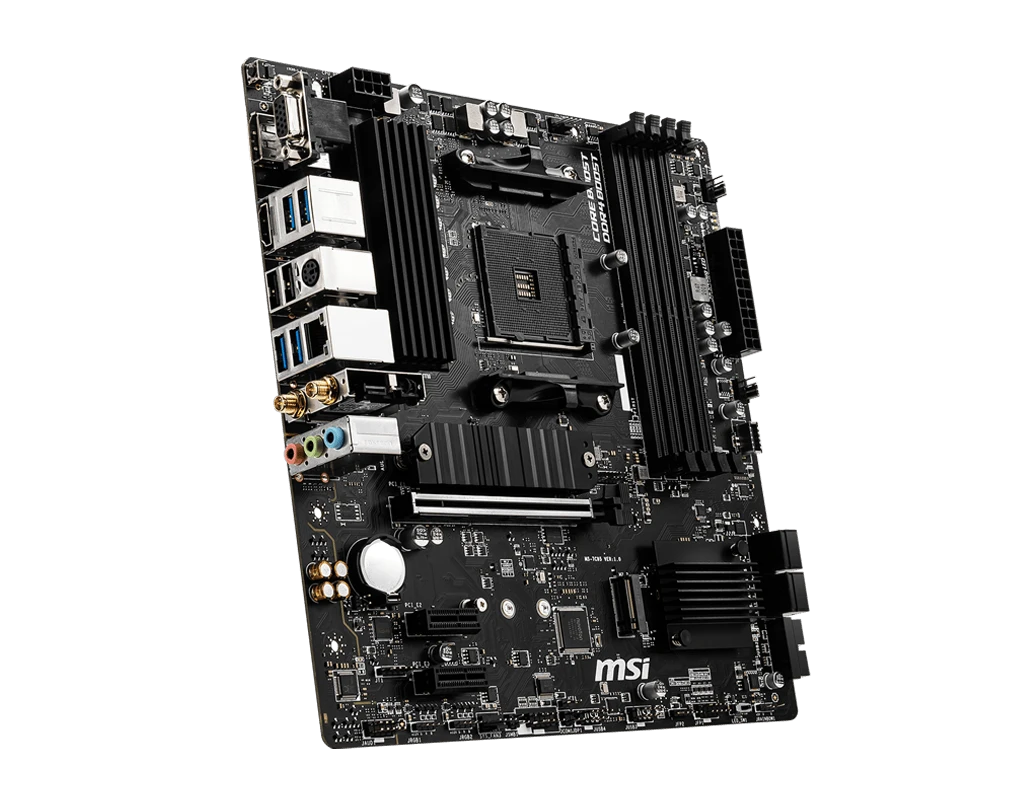

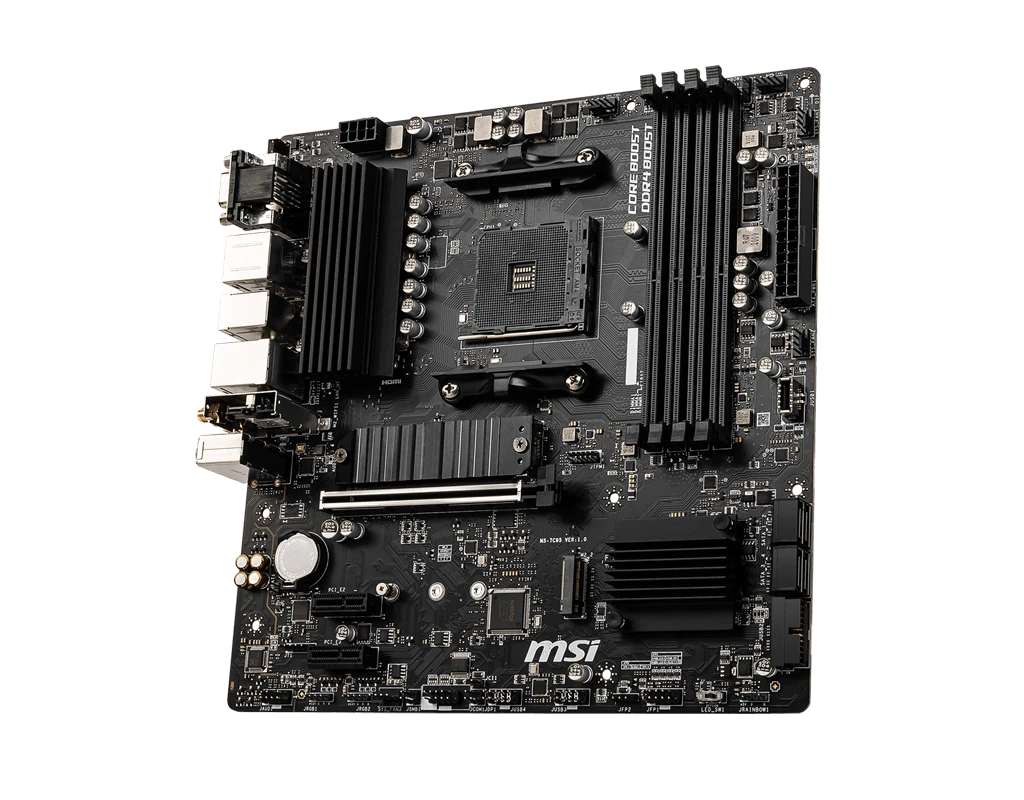

B550M PRO-VDH WIFI DDR4 Micro-ATX Motherboard
The MSI B550M PRO-VDH WIFI is
a Micro-ATX motherboard designed to offer performance, reliability,
and Wi-Fi connectivity. Supporting the latest AMD Ryzen processors
and DDR4 memory with a sleek black design, it's an ideal choice
for mainstream builds looking for a stable foundation for gaming and
productivity tasks.
Features
• Processor Compatibility: Supports AMD Ryzen 3rd Generation and new Ryzen
processors on the AM4 socket
• Chipset: AMD B550 for advanced performance and features
• Memory Support: Dual-channel DDR4 up to 128GB, speeds
from 2133MHz to 4400MHz (OC)
• Networking: Intel Dual Band Wireless-AC 3168 Wi-Fi, supports 802.11
a/b/g/n/ac dual band (2.4GHz, 5GHz)
• Audio: Realtek ALC892 for 7.1-channel high-definition
audio
Storage
Support
• M.2 Slots:
2 x M.2 slots
– 1 x M.2 (Supports PCIe 4.0/3.0 x4), SATA 6Gb/s, supports
2242/2260/2280 storage devices
– 1 x M.2 (Supports PCIe 3.0 x4), supports 2242/2260/2280 storage
devices
• SATA Ports: 4 x SATA 6Gb/s connectors for traditional drives
Expansion
and Graphics
• PCIe Slots:
1 x PCIe 4.0/3.0 x16 slot (PCI_E1)
2 x PCIe 3.0 x1 slots
• Integrated Graphics: Integrated graphics with the processor (No dedicated
GPU required for basic use)

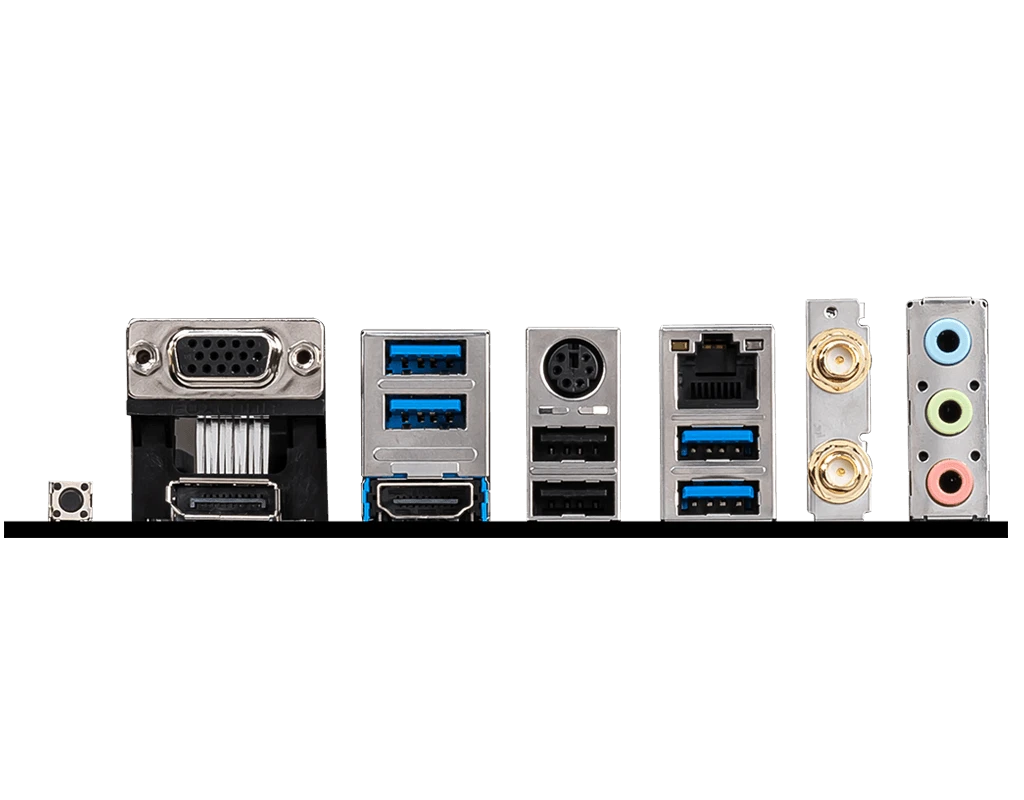

Connectivity
Options
• USB Ports:
2 x USB 3.2 Gen 1 5Gbps Type-A
2 x USB 2.0
2 x USB 3.2 Gen 1 5Gbps Type-A
• Video Outputs:
1 x HDMI port
1 x DisplayPort
1 x VGA port
• Additional Ports:
1 x TPM header for Trusted Platform Module integration
Design
and Build
• Form Factor: Micro-ATX
• Color Scheme: Black
• Heatsink: Integrated for efficient cooling
• RGB Lighting: Supports RGB lighting with 2 x 4-pin RGB LED
connectors
Power
and Efficiency
• Power Consumption: Approx. 60W
• Power Management: Optimized for energy efficiency
Warranty
Information
• Warranty: 3 Years official manufacturer warranty
Price
and Availability
Available now at Computer Village Agrabad, Chattogram, Bangladesh. The MSI B550M PRO-VDH WIFI is an excellent choice for users seeking reliable performance, Wi-Fi connectivity, and expandability in a Micro-ATX build
