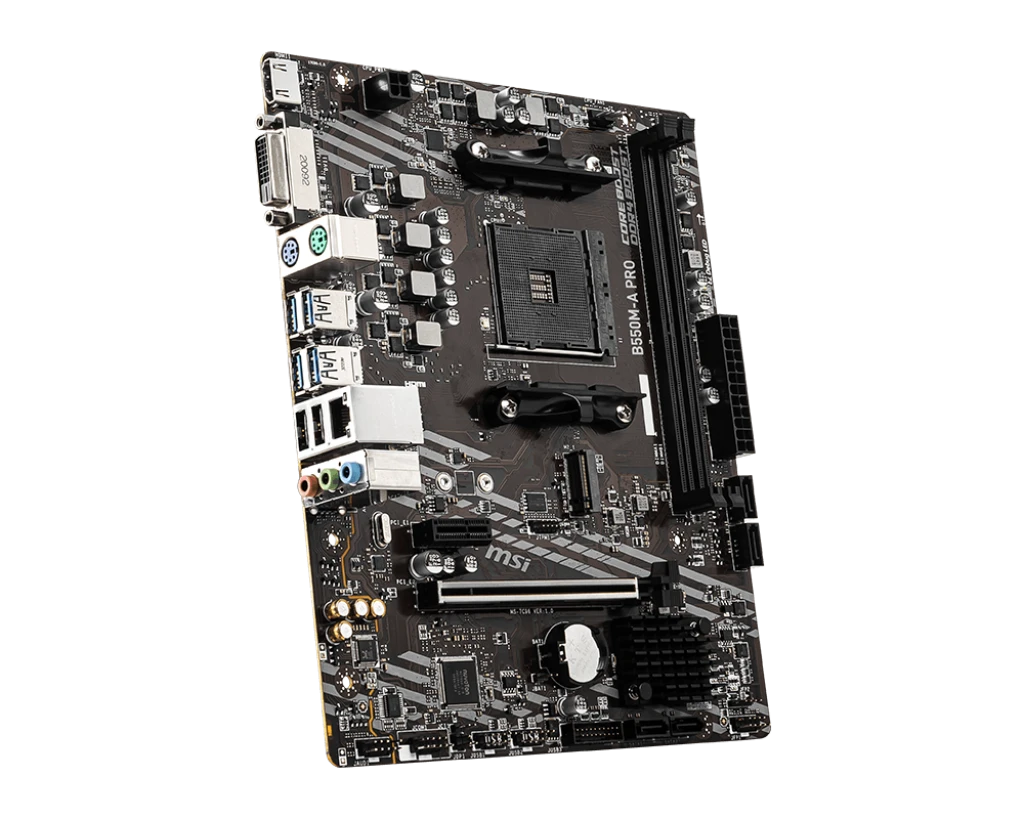

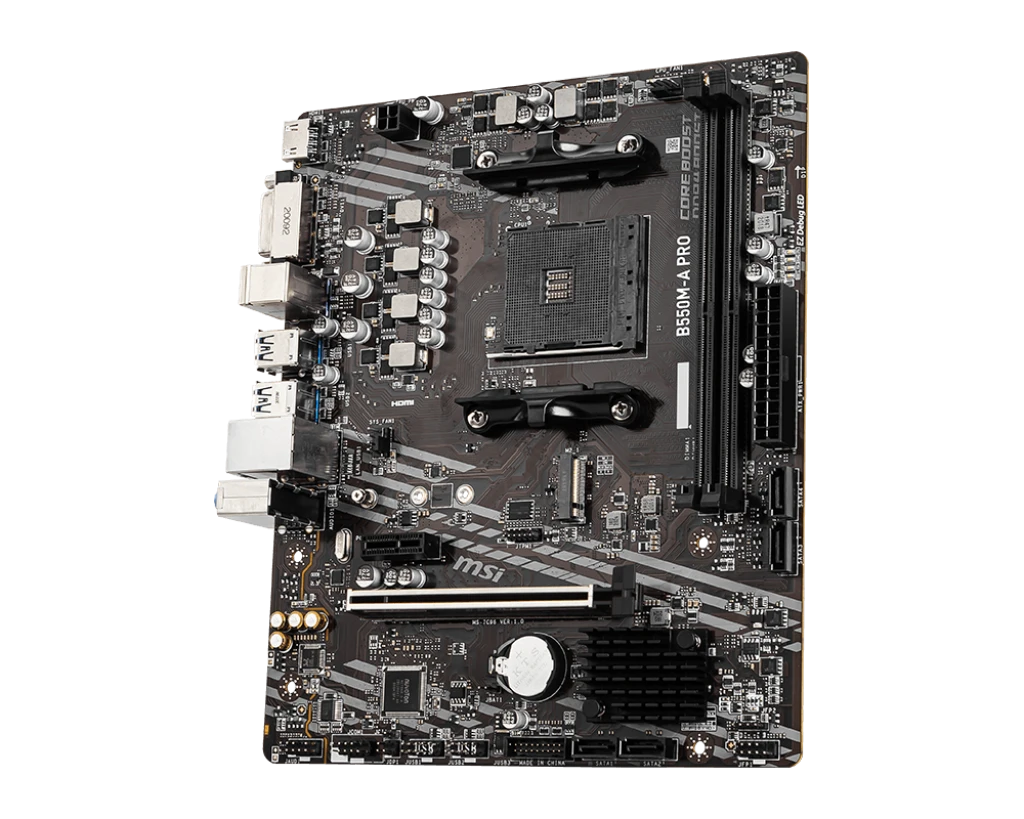

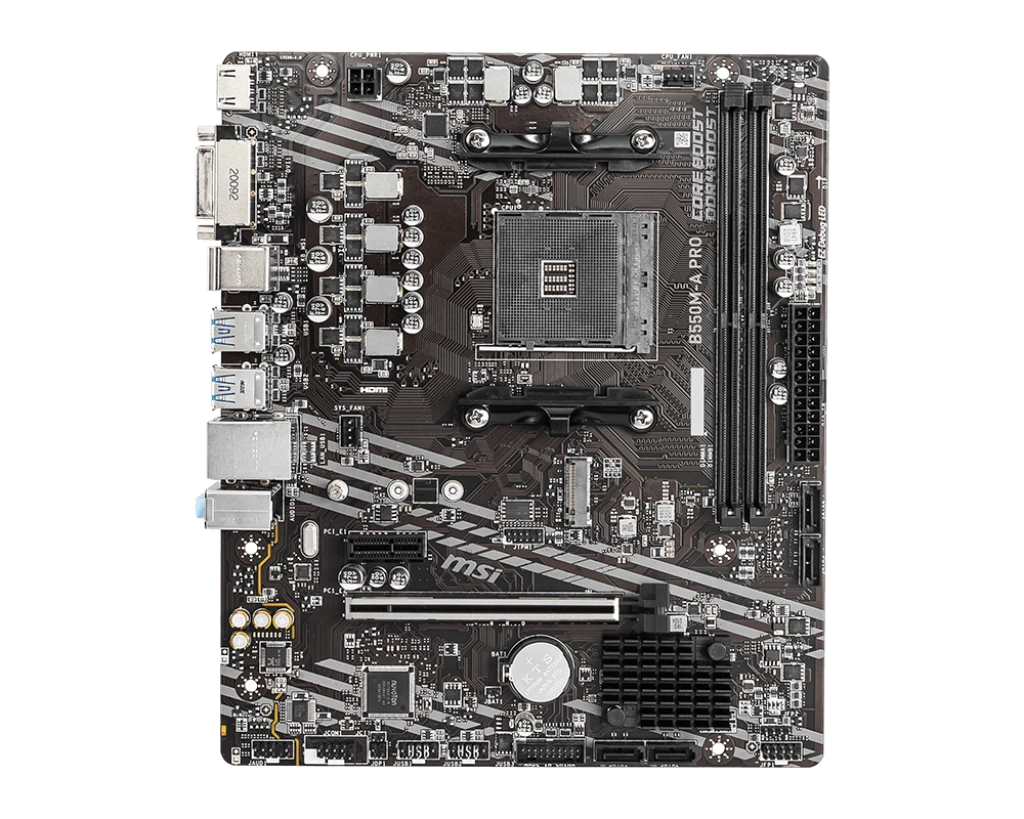

MSI B550M-A PRO DDR4 AMD AM4 Socket Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI
B550M-A PRO |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B550 Sockets
Supported: AM4 Built-in
Processor: Unmentioned Supported
CPU: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
(not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) Generation:
N/A |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 1866/ 2133/ 2400/ 2667/ 2800/
2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/
4600+MHz Memory Channel: Dual Memory Slot: 2 Memory Max: 64GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion Slot Details: 1 x M.2, type 2242/ 2260/ 2280, supports PCIe 4.0/
3.0, storage devices |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Integrated with Processor Multi-GPU Support: Unmentioned PCI Express Slot: 1 x PCIe 3.0 x1, 1 x PCIe
4.0/3.0 x16 |
|
Audio
& Video |
Audio
Chipset: Realtek ALC892/ALC897 Codec Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8111H LAN Speed (Mbps): 10/100/1000 Mb/s WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 6 x USB 3.2 Gen 1, 6 x USB 2.0 VGA
Port: Unmentioned DVI
Port: 1 HDMI
Port: 1 DisplayPort
(DP): Unmentioned IDE
Port: Unmentioned SATA
Port: 4 Thunderbolt:
Unmentioned TPM
Port: 1 |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: Unmentioned RGB Connector: Unmentioned Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 Compatible
Products: Unmentioned |
|
Warranty |
3 Year |
|
* Product may vary with different
Kit or Version |
|
Product Details
MSI
B550M-A PRO Micro-ATX Motherboard
The MSI B550M-A PRO is a
versatile Micro-ATX motherboard offering robust performance and
compatibility with AMD Ryzen 5000 Series, 4000 G-Series, and 3000
Series processors. With support for DDR4 memory and PCIe 4.0,
this motherboard is designed to deliver solid gaming and productivity
performance for everyday use and content creation.
Features
• Processor Compatibility: Supports AMD Ryzen 5000 Series, 4000 G-Series, and 3000
Series processors (Not compatible with Ryzen 5 3400G & Ryzen
3 3200G)
• Chipset: AMD B550 chipset for excellent overall system
stability
• Memory Support: Dual-channel DDR4 memory, up to 64GB,
speeds from 1866MHz to 4600MHz+ (OC)
• Audio: Realtek ALC892/ALC897 Codec for 7.1-channel
high-definition audio
Storage
Support
• M.2 Slot:
1 x M.2 slot (supports PCIe 4.0/3.0, 2242/2260/2280 sizes) for
fast SSD storage
• SATA Ports:
4 x SATA 6Gb/s connectors for additional storage devices
Expansion
and Graphics
• PCIe Slots:
1 x PCIe 3.0 x1
1 x PCIe 4.0/3.0 x16
• Integrated Graphics: Integrated graphics with the processor (No dedicated
GPU required for basic tasks)
Connectivity
Options

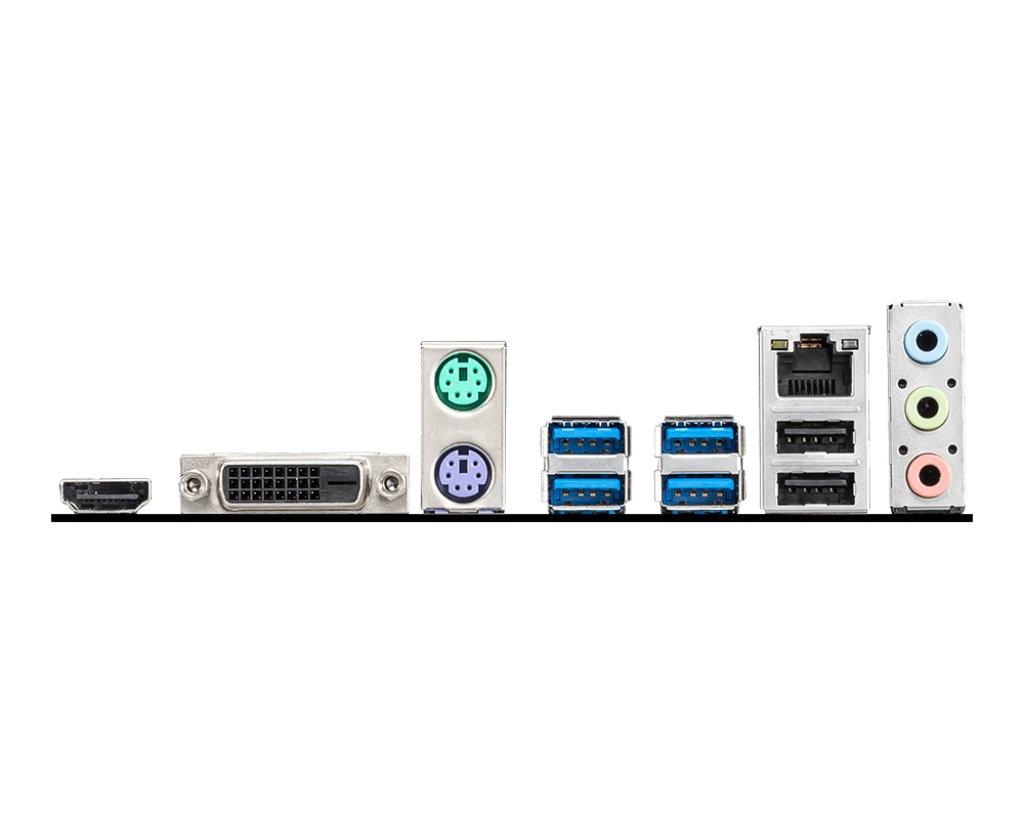

• USB Ports:
6 x USB 3.2 Gen 1
6 x USB 2.0
• Video Outputs:
1 x HDMI port
1 x DVI port
• Additional Ports:
1 x TPM header for Trusted Platform Module integration
Design
and Build
• Form Factor: Micro-ATX
• Color Scheme: Black
• Heatsink: Unmentioned
• Power Consumption: Approx. 60W
Compatibility
• Supported Operating System: Windows 10
• Compatible Products: AMD Ryzen processors
Warranty
Information
• Warranty: 3 Years official manufacturer warranty
Price
and Availability
Available now at Computer Village
Agrabad, Chattogram, Bangladesh, the MSI B550M-A PRO provides
excellent value for users looking to build a reliable system with DDR4
memory and PCIe 4.0 support.
