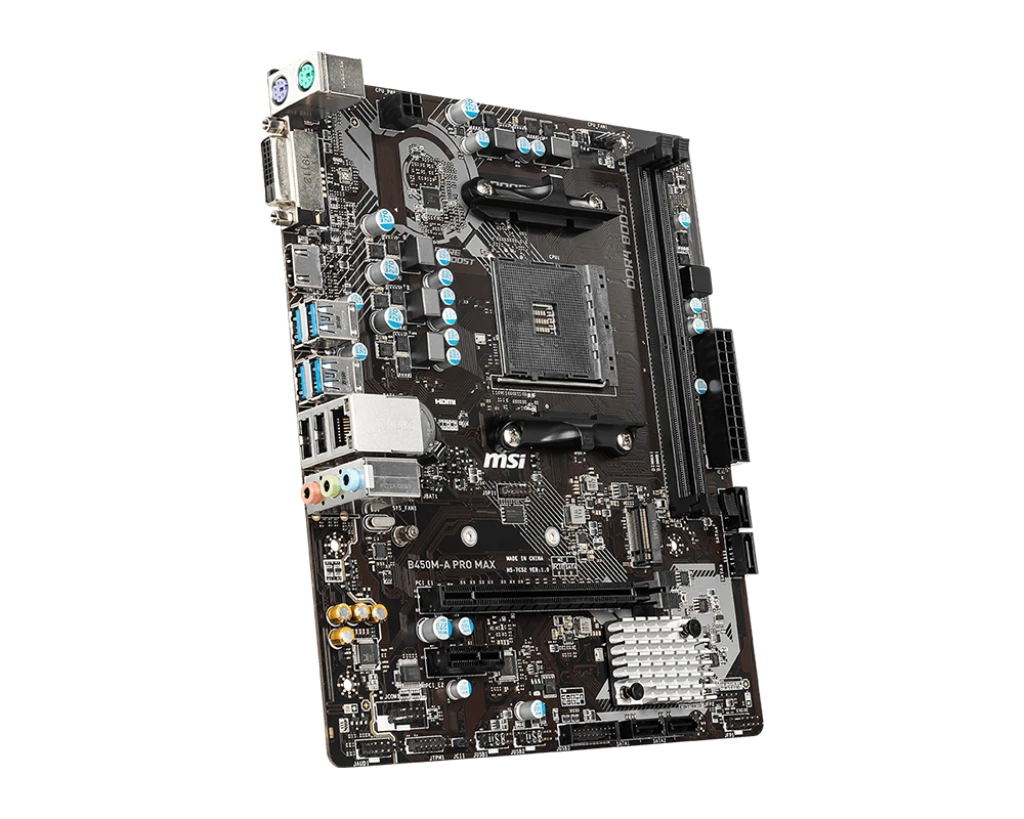

MSI B450M-A PRO MAX motherboard is an excellent choice for building a reliable and efficient desktop system, offering robust performance for users seeking to build a gaming, workstation, or media setup. It is compatible with a variety of AMD Ryzen™ processors, including 1st, 2nd, and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, Athlon™ with Radeon™ Vega Graphics, and A-series/ Athlon X4 Desktop Processors for the AM4 socket. This flexibility makes it a versatile option for different computing needs.

Memory Support

The B450M-A PRO MAX supports up to 64GB of DDR4 memory across 2 DIMM slots, allowing for dual-channel memory configuration for improved performance. It is compatible with DDR4 memory speeds ranging from 1866 MHz to 4133 MHz (OC mode), providing a wide range of options depending on your requirements. This motherboard also supports ECC UDIMM memory (non-ECC mode), enhancing data integrity and system stability, making it ideal for professional and demanding environments.

Storage and Connectivity

For storage, the motherboard offers 4 SATA 6Gb/s ports, providing ample space for connecting multiple storage devices such as SSDs and HDDs. It also supports RAID 0, RAID 1, and RAID 10, giving users flexibility in managing their storage setup for increased speed or data redundancy. The 1x M.2 slot (Key M) supports both PCIe 3.0 x4 and SATA 6Gb/s modes, allowing users to install high-speed NVMe SSDs for faster boot times and data access. The M.2 slot is compatible with 2242, 2280, and 22110 storage devices to cater to various storage needs.

Graphics and Display

The motherboard provides 1x DVI-D and 1x HDMI™ port, enabling multiple display options. Whether you're connecting a monitor for gaming or a TV for media consumption, these ports deliver high-quality visuals and support various resolutions for an immersive experience.

Network and Expansion

Equipped with a Realtek® 8111H Gigabit LAN controller, the B450M-A PRO MAX ensures stable and fast network connectivity, ideal for gaming, streaming, and other internet-heavy applications. The motherboard includes several expansion slots, including 1x PCIe 3.0 x16 slot for high-performance graphics cards and 1x PCIe 2.0 x1 slot for additional peripherals.

Internal Connectors and Back Panel Ports

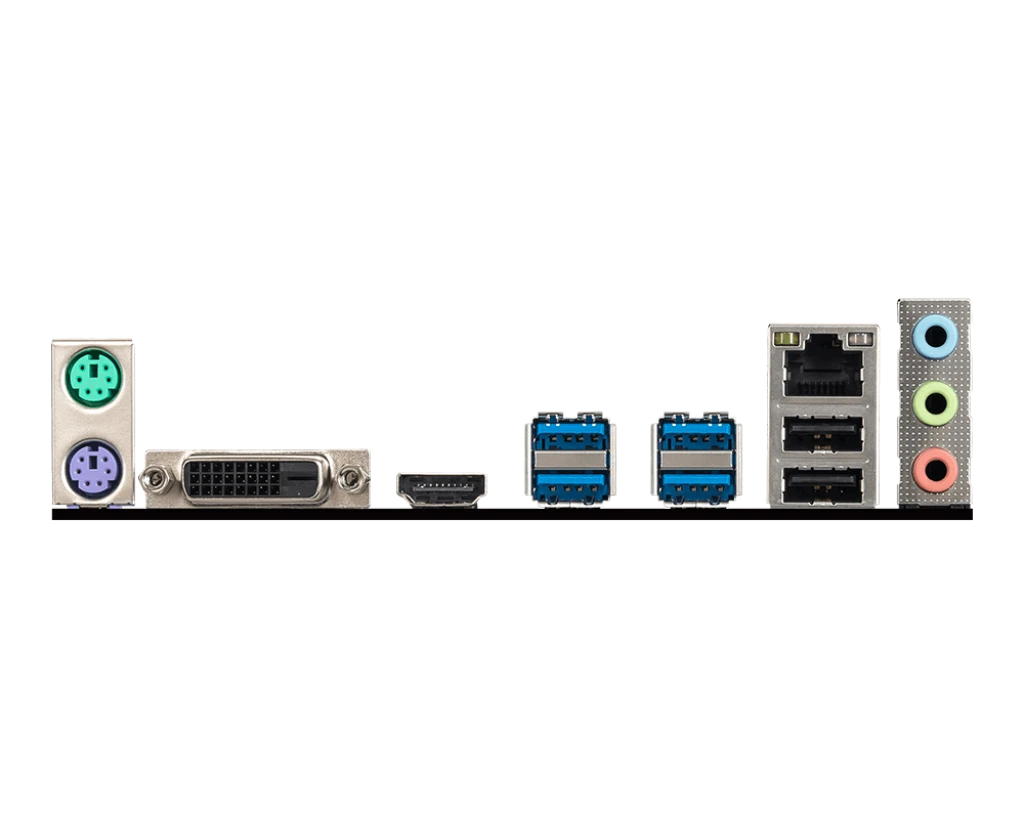

The B450M-A PRO MAX motherboard offers several internal connectors, including USB 3.2 Gen1 and USB 2.0 connectors, allowing for easy expansion of USB ports. It features 1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, and multiple fan headers to ensure efficient cooling and optimal system performance. The back panel features a wide array of connectivity options, including 6x USB 3.2 Gen1 ports, 1x HDMI™ port, 1x LAN port, and 1x DVI-D port for seamless integration with peripherals and network connections.

Audio

The B450M-A PRO MAX is equipped with the Realtek® ALC892/ALC897 Codec, delivering 7.1-channel high-definition audio for a superior sound experience. Whether you're gaming or enjoying media, the audio system provides clear and immersive sound quality. Additionally, the HD audio connectors on the back panel enable easy setup for audio devices such as speakers and headphones.

BIOS and Software Features

The motherboard features a 256 Mb flash UEFI AMI BIOS, providing a user-friendly interface for easy system configuration and updates. It includes a range of software utilities such as MSI Driver Utility Installer, APP Manager, Command Center, and Live Update 6 to streamline system management and ensure your system runs at its best.

Warranty

The MSI B450M-A PRO MAX motherboard is backed by a 3-year warranty, providing peace of mind and ensuring long-term reliability for your system build. Whether you're creating a powerful gaming rig or a professional workstation, this motherboard delivers the performance, connectivity, and durability you need for demanding tasks.
