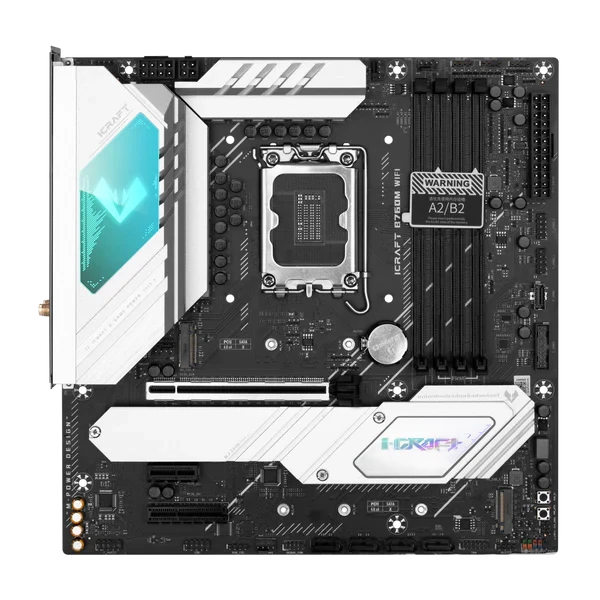

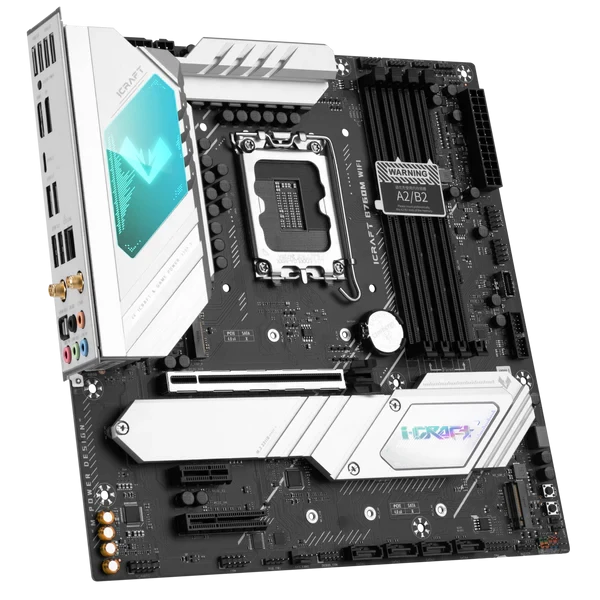

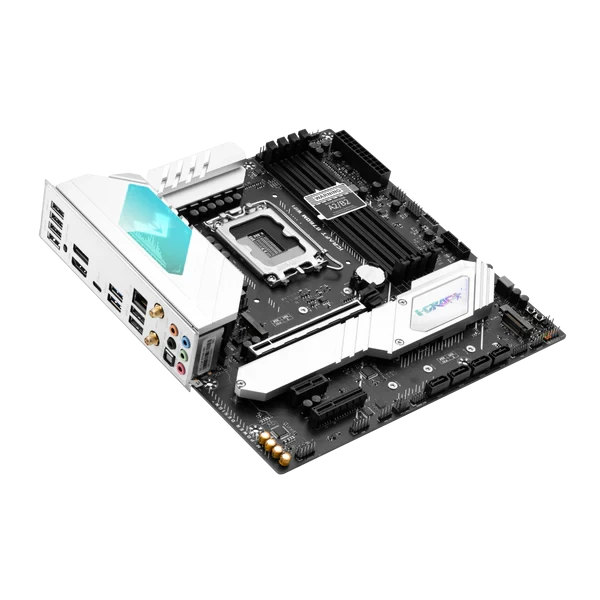

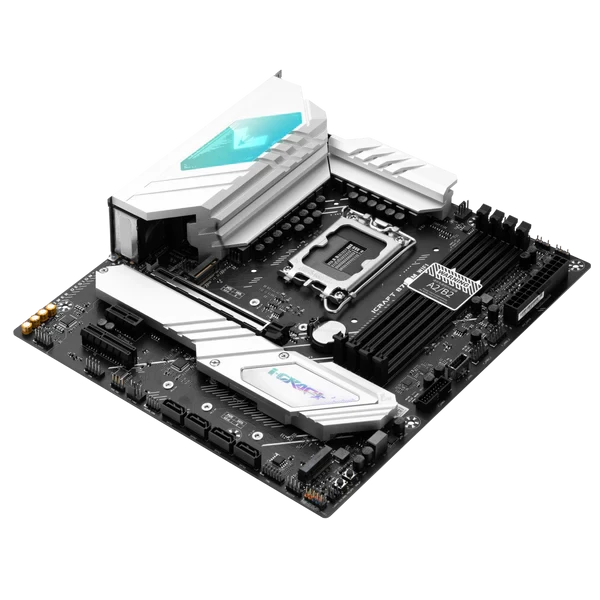

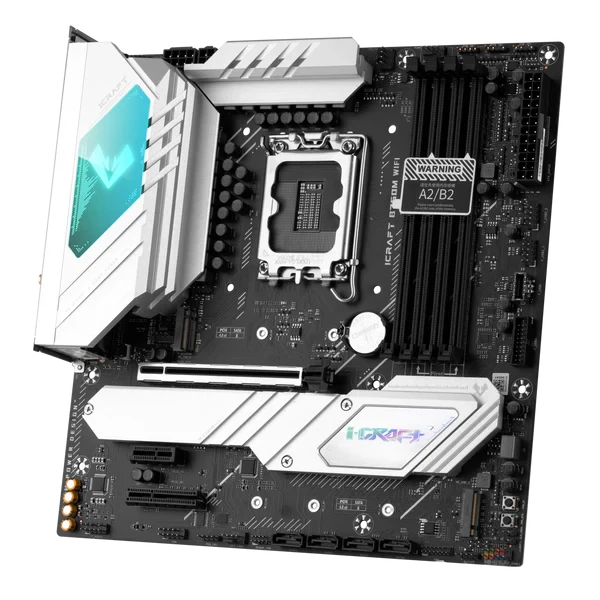

Maxsun iCraft B760M (Wi-Fi 6E) Micro-ATX Motherboard

The Maxsun iCraft B760M (Wi-Fi 6E) motherboard is designed to provide excellent performance, advanced connectivity, and flexible expandability for Intel-based systems. This Micro-ATX motherboard supports the latest 12th/13th Gen Intel Core processors, along with Pentium Gold and Celeron processors. With Wi-Fi 6E support and a sleek black and white design, it is a great choice for users looking to build high-performance desktops with superior connectivity and memory support.

Features

• Processor Support: The motherboard is equipped with the Intel B760 chipset and LGA1700 socket, offering support for 12th and 13th generation Intel Core processors, along with Pentium Gold and Celeron processors.
• Memory Support: Supports DDR5 memory, with speeds ranging from 4800 MHz to 6800 MHz (OC), ensuring faster data transfer and multitasking capabilities. The motherboard features 4 memory slots, allowing for up to 192GB of RAM for demanding applications and workflows.

Storage and Expansion

• M.2 Slots: Features 3 M.2 slots (supports PCIe 4.0 x4 mode for fast data transfer), with support for type 2242/2280/22110 M.2 drives. Perfect for users looking for high-speed storage solutions.
• SATA Ports: Equipped with 4 SATA ports for additional storage devices.

Graphics and Expansion

• PCIe Slots: The motherboard offers a PCIe 5.0 x16 slot for a powerful GPU and includes PCIe 3.0 x4 and PCIe 3.0 x1 slots for further expansion.
• Graphics Output: The HDMI port allows for easy display connectivity, supporting 1 display.

Networking and Audio

• LAN: Integrated REALTEK 8125B NIC chip supports speeds of 10/100/1000/2500 Mbps, offering high-speed wired networking.
• Wi-Fi: Supports Wi-Fi 6E with the AX211 module, providing ultra-fast wireless internet and reduced latency.
• Bluetooth: Features Bluetooth 5.3, allowing for seamless connection with wireless peripherals.
• Audio: Equipped with the REALTEK ALC897 Codec, providing 7.1 audio for an immersive sound experience.

Ports and Connectivity

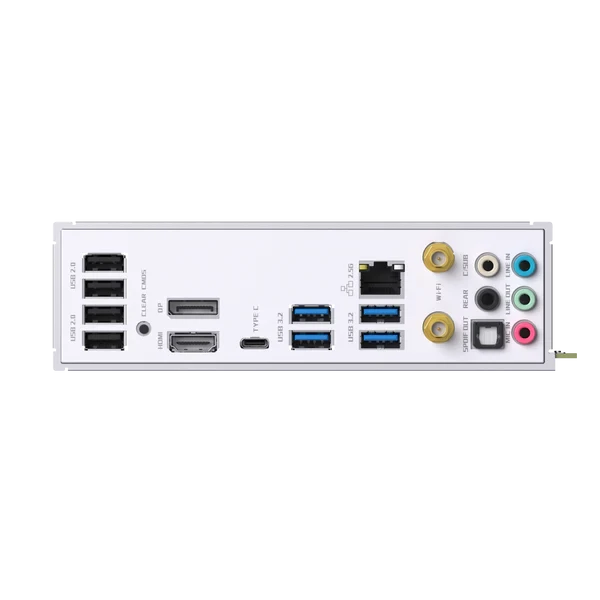

• USB Ports: Offers a range of connectivity options, including 1 x USB 3.2 Gen2 Type-C (20Gbps), 4 x USB 3.2 Gen1 Type-A, and 4 x USB 2.0 ports, giving users ample options for connecting various devices.
• Display: Includes a HDMI port for easy display connection, supporting 1 display.

Build and Design

The Maxsun iCraft B760M (Wi-Fi 6E) motherboard features an elegant black and white color scheme, making it an attractive option for custom PC builds. It includes front cable management for a cleaner setup and integrates a heatsink to ensure stable performance during extended use. The motherboard also supports ARGB lighting, offering customization through 2x 5V 3-Pin ARGB and 1x 12V 4-Pin RGB connectors.

Compatibility and Warranty

• The Maxsun iCraft B760M (Wi-Fi 6E) motherboard supports Windows 10 and Windows 11 operating systems, giving users the flexibility to choose their preferred platform.
• It is compatible with 12th/13th Gen Intel Core processors, as well as Pentium Gold and Celeron processors in the LGA1700 socket.
• 3-year warranty ensures peace of mind and long-term reliability.

Price and Availability

The Maxsun iCraft B760M (Wi-Fi 6E) Micro-ATX motherboard is available at Computer Village Agrabad, Chattogram, Bangladesh. For pricing and availability, please contact the retailer.

.
