Maxsun eSport Z890M ICE (Wi-Fi 6) DDR5 (Intel Core Ultra LGA1851 Socket) White Motherboard #MS-eSport Z890M WIFI ICE
Key Specification
Product Specification
|
Brand |
Maxsun |
|
Model |
Maxsun
eSport Z890M ICE (Wi-Fi 6) |
|
Color |
Silver |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel Z890 Sockets
Supported: LGA1851 Built-in
Processor: N/A Supported
CPU: Intel Core Ultra processors Generation:
Ultra |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 4800/ 5200/ 5600(OC)/ 6000(OC)/
6400(OC)/ 6800(OC)/ 7000(OC)/ 7200(OC)/ 7600(OC)/ 7800(OC)/ 8000(OC) MHz Memory Channel: Dual Memory Slot: 2 Memory Max: 256GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 3 M.2/SSD
Expansion : 3 x M.2 (1 x M.2 slot (PCIe 5.0 x4/x2, supports 2280 length), 1 x
M.2 slot (PCIe 4.0 x4/x2, supports 2280 length), 1 x M.2 slot (PCIe 4.0
x4/x2, supports 2280/22110 length)) |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1 x PCIe 5.0 x16
(mendukung mode PCIe 5.0 x16), 1 x PCIe 4.0 x4 (mendukung mode PCIe 4.0 x4),
1 x PCIe 4.0 x1 slot (supports PCIe 4.0 x1 mode) |
|
Audio
& Video |
Audio
Chipset: REALTEK ALC897 Codec Audio
Channel – N/A |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8125BG/D 2.5G
Ethernet LAN Speed (Mbps): 10/ 100/ 1000/ 2500 Mbps WiFi: Yes WiFi Technology: Wi-Fi 6 Bluetooth: Bluetooth 5.2 |
|
Ports Data |
USB
Port: 4 x USB 3.2 Gen1 Type-A (5G) ports, 2 x port USB 2.0 Tipe-A, 1 x port
USB 3.2 Gen2 Tipe-C (10G) VGA
Port: N/A HDMI
Port: 1 Display:
1 SATA
Port: 4 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 2 x 3-Pin ARGB, 1 x 4-Pin
NRGB Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11 Supported
Operating System: Intel LGA1851, compatible with Intel Core Ultra processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|

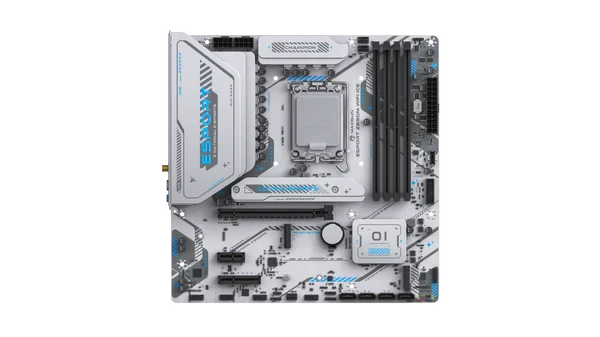

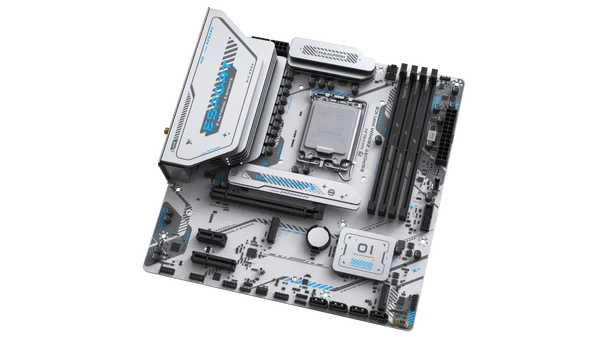

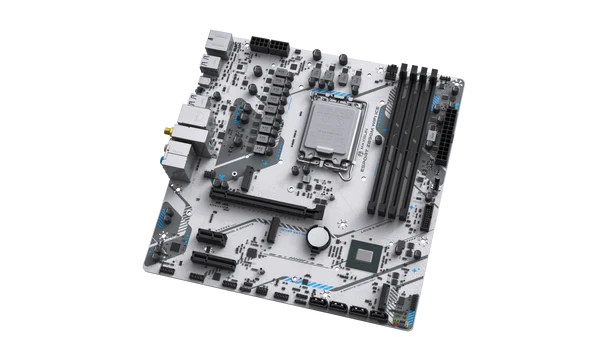

Product Details
Maxsun
eSport Z890M ICE (Wi-Fi 6) Micro-ATX Motherboard
The Maxsun eSport Z890M ICE
(Wi-Fi 6) motherboard is engineered for high-performance gaming and content
creation with Intel Core Ultra processors. Featuring the Intel Z890
chipset and DDR5 memory support, this motherboard delivers
exceptional speed, reliability, and versatility. It comes in a sleek silver
design and offers advanced features like PCIe 5.0, Wi-Fi 6,
and RGB customization, making it a top choice for gaming enthusiasts and
professionals.
Features
- Processor Support:
Built with the Intel Z890 chipset, this motherboard is compatible
with the latest Intel Core Ultra processors using the LGA1851
socket for cutting-edge performance.
- Memory Support:
Supports DDR5 memory up to 256GB (2 slots) with frequencies
ranging from 4800 MHz to 8000 MHz (OC), providing ample
capacity and speed for heavy multitasking, gaming, and content creation.
Storage
and Expansion
- M.2 Slots:
Features 3 x M.2 slots, including:
- 1 x PCIe 5.0 x4/x2 (supports 2280 length) for blazing-fast SSD speeds.
- 2 x PCIe 4.0 x4/x2 (supports 2280/22110 length) for additional storage options.
- SATA Ports:
Equipped with 4 SATA ports to connect additional storage devices.
Graphics
and Expansion
- PCIe Slots:
- 1 x PCIe 5.0 x16 slot for the latest graphics cards in PCIe 5.0 x16 mode.
- 1 x PCIe 4.0 x4 slot
and 1 x PCIe 4.0 x1 slot for expansion cards.
- Graphics Output:
Includes a 1 HDMI port for video output to compatible displays.
Networking
and Audio
- LAN:
Powered by Realtek RTL8125BG/D 2.5G Ethernet, ensuring ultra-fast
wired network speeds of 10/100/1000/2500 Mbps.
- Wi-Fi:
Integrated Wi-Fi 6 technology for reliable, high-speed wireless
internet connections.
- Bluetooth:
Equipped with Bluetooth 5.2, enabling seamless connection of
wireless devices.
- Audio:
Uses Realtek ALC897 codec for high-definition audio output.

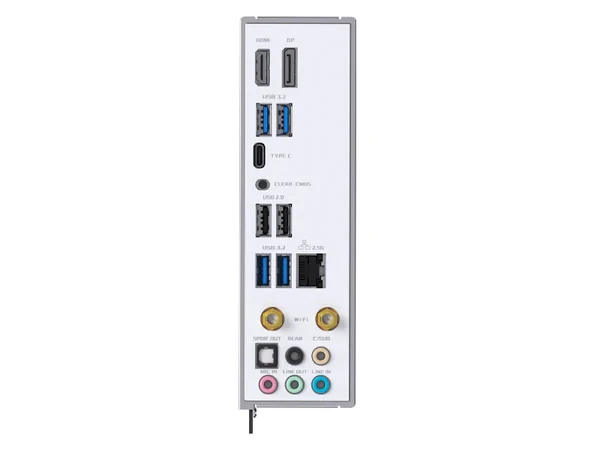

Ports
and Connectivity
- USB Ports:
- 4 x USB 3.2 Gen1 Type-A (5Gbps) for fast data transfer.
- 2 x USB 2.0 Type-A
for legacy devices.
- 1 x USB 3.2 Gen2 Type-C (10Gbps) for high-speed data transfer.
- Display Output:
Includes 1 HDMI port for video output.
- SATA Ports:
Provides 4 SATA ports for additional storage.
Build
and Design
The Maxsun eSport Z890M ICE
boasts a sleek silver design, perfect for a clean, modern gaming or
workstation build. It includes front cable management for a tidy setup
and RGB support for aesthetic customization, with 2 x 3-Pin ARGB
and 1 x 4-Pin NRGB connectors. A built-in heatsink ensures
efficient cooling for optimal performance during long gaming or work sessions.
Compatibility
and Warranty
- Operating System Compatibility: Fully compatible with Windows 11 for a smooth
and modern user experience.
- Intel Core Ultra processors support via Intel LGA1851 socket.
- 3-year warranty,
ensuring peace of mind and long-term reliability.
Price
and Availability
The Maxsun eSport Z890M ICE
(Wi-Fi 6) motherboard is available at Computer Village Agrabad, Chattogram,
Bangladesh. Please contact the retailer for pricing and availability.
