Maxsun Challenger Z890M (Wi-Fi 6) DDR5 (Intel Core Ultra LGA1851 Socket) Motherboard #MS-Challenger Z890M WIFI
Key Specification
Product Specification
|
Brand |
Maxsun |
|
Model |
Maxsun
Challenger Z890M (Wi-Fi 6) |
|
Color |
Black & Silver |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel Z890 Sockets
Supported: LGA1851 Built-in
Processor: N/A Supported
CPU: Intel Core Ultra processors Generation:
Ultra |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7200+(O.C.) / 7000(O.C.)/
6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/
5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC, un-buffered Memory Channel: Dual Memory Slot: 2 Memory Max: 128GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion : 2 x M.2 (M.2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)) |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1 x PCIe x16 (supports
PCIe 5.0 x16 mode), 1 x PCIe x1 (supports PCIe 4.0 x1 mode), 1 x PCIe x4
(mendukung mode PCIe 4.0 x4) |
|
Audio
& Video |
Audio
Chipset: REALTEK ALC897 Codec Audio Channel
– N/A |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8125BG/D 2.5G
Ethernet LAN Speed (Mbps): 10/ 100/ 1000/ 2500 Mbps WiFi: Yes WiFi Technology: Wi-Fi 6 Bluetooth: Bluetooth 5.2 |
|
Ports Data |
USB
Port: 4 x USB 3.2 Gen 1 Type-A (5G) ports, 2 x USB 2.0 Type-A ports VGA
Port: N/A HDMI
Port: 1 Display:
1 SATA
Port: 3 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11 Supported
Operating System: Intel LGA1851, compatible with Intel Core Ultra processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Maxsun
Challenger Z890M (Wi-Fi 6) Micro-ATX Motherboard
The Maxsun Challenger Z890M
(Wi-Fi 6) motherboard is a high-performance board designed for enthusiasts
looking to build a powerful system with the latest Intel Core Ultra
processors. Built around the Intel Z890 chipset, this motherboard
provides robust connectivity and fast speeds with support for DDR5 memory,
PCIe 5.0, and Wi-Fi 6, all within a compact Micro-ATX form
factor.
Features
- Processor Support:
The Maxsun Challenger Z890M is built for Intel Core Ultra
processors with the LGA1851 socket, providing support for
cutting-edge Intel technology.
- Memory Support:
It supports DDR5 memory up to 128GB (2 slots), with speeds
ranging from 4800 MHz to 7200+ MHz (OC), ideal for
high-speed data processing and demanding applications.
Storage
and Expansion
- M.2 Slots:
Includes 2 x M.2 slots (Type 2280) that support PCIe 4.0 x4 mode,
ensuring fast storage performance for your SSDs.
- SATA Ports:
Equipped with 3 SATA ports, providing additional connectivity
options for hard drives or optical drives.
Graphics
and Expansion
- PCIe Slots:
Includes a 1 x PCIe 5.0 x16 slot for the latest high-performance
graphics cards, as well as 1 x PCIe 4.0 x1 slot and 1 x PCIe 4.0
x4 slot for expansion cards and other peripherals.
- Graphics Output:
Includes a 1 HDMI port for video output to compatible displays.
Networking
and Audio
- LAN:
Features the Realtek RTL8125BG/D 2.5G Ethernet chipset, offering
network speeds of 10/100/1000/2500 Mbps for ultra-fast wired
connectivity.
- Wi-Fi:
Built-in Wi-Fi 6 technology ensures a fast and reliable wireless
connection, ideal for high-speed internet usage.
- Bluetooth:
Supports Bluetooth 5.2, enabling you to connect wireless
peripherals seamlessly.
- Audio:
Equipped with the Realtek ALC897 codec, providing high-quality
audio support for immersive sound.

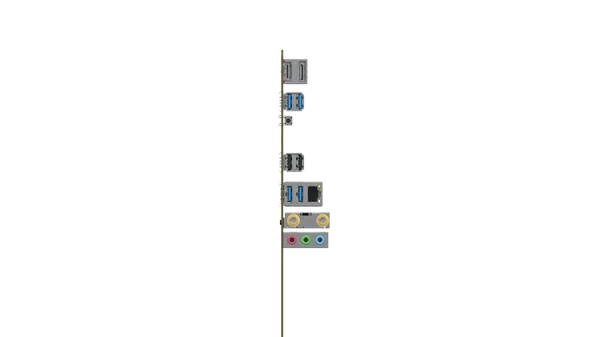

Ports
and Connectivity
- USB Ports:
Includes 4 x USB 3.2 Gen 1 Type-A ports (5Gbps) and 2 x USB 2.0
Type-A ports, providing plenty of options for connecting external
devices.
- Display Output:
The motherboard features 1 HDMI port for video output to compatible
monitors.
- SATA Ports:
Provides 3 SATA ports for additional data storage devices.
Build
and Design
The Maxsun Challenger Z890M
comes with a sleek black and silver design, making it a stylish choice
for any PC build. The motherboard includes front cable management for a
clean and organized setup. It also features a heatsink for efficient
thermal management and ARGB support, with customizable lighting options
to enhance the visual appeal of your system.
Compatibility
and Warranty
- The Maxsun Challenger Z890M motherboard is
compatible with Windows 11, offering support for the latest
operating system features.
- Compatible with Intel LGA1851 socket for Intel
Core Ultra processors.
- 3-year warranty
for reliability and peace of mind.
Price
and Availability
The Maxsun Challenger Z890M
(Wi-Fi 6) motherboard is available at Computer Village Agrabad, Chattogram,
Bangladesh. For pricing and availability, please contact the retailer.
